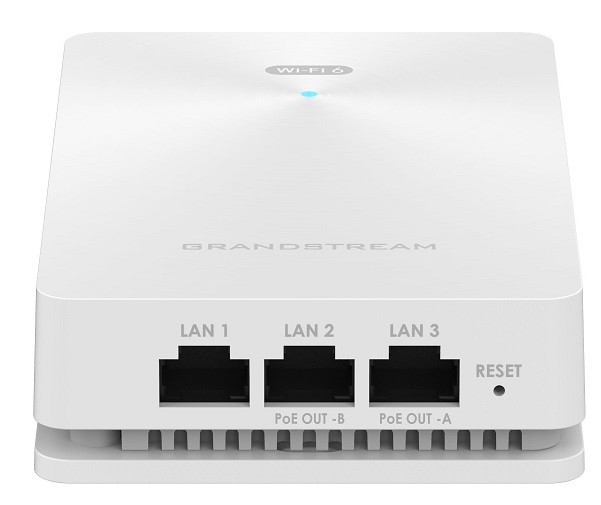

Wi-Fi 6 In-Wall Access Point Grandstream GWN7661

Giá sốc online
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Wi-Fi 6 In-Wall Access Point Grandstream GWN7661
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Wi-Fi 6 In-Wall Access Point Grandstream GWN7661

- The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit network port with PoE/PoE+.

- 1.77Gbps wireless throughput and 4x Gigabit wireline ports.

- Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology.

- Supports up to 500+ concurrent Wi-Fi client devices.

- Self power adaptation upon auto detection of PoE or PoE+.

- Advanced QoS to ensure real-time performance of low-latency applications.

- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device.

- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management.

Specifications

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas 4 single band internal antennas
2.4GHz x 2, gain 3.30dBi, gain 3.51dBi
5GHz x 2: gain 4.79dBi, gain 5.37dBi
Wi-Fi Data Rates 5G:
IEEE 802.11ax: 7.3 Mbps to 1201 Mbps
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands 2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 MHz
Channel Bandwidth 2.4G: 20 and 40MHz
5G: 20, 40 and 80MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2×2:2 2.4GHz
2×2:2 5GHz
Coverage Range Up to 100 meters
*coverage range can vary based on environment
Maximum TX Power 2.4G: 24dBm
5G: 27dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients Up to 500+
Network Interfaces 1x 10/100/1000M uplink Ethernet port with PoE/PoE+
2x 10/100/1000M Ethernet ports with PSE
1x 10/100/1000M Ethernet port
Auxiliary Ports 1x Reset Pinhole
Mounting In-wall mountable
LEDs 1 tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency Support 802.3az
PoE 802.3af/ 802.3at;
PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W
Environmental Operation: -10°C to 50°C
Storage: -30°C to 60°C
Humidity: 5% to 95% Non-condensing
Physical  Unit Dimension: 135mm(L)x86mm(W)x38.5mm(H); Unit Weight: 185g
Entire Package Dimension: 176mm(L)x118.5mm(W)x65mm(H); Entire Package Weight: 400g
Compliance FCC, CE, RCM, IC, UKCA

- Bảo hành: 36 tháng.

Wi-Fi 6 In-Wall Access Point Grandstream GWN7661

- The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit network port with PoE/PoE+.

- 1.77Gbps wireless throughput and 4x Gigabit wireline ports.

- Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology.

- Supports up to 500+ concurrent Wi-Fi client devices.

- Self power adaptation upon auto detection of PoE or PoE+.

- Advanced QoS to ensure real-time performance of low-latency applications.

- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device.

- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management.

Specifications

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas 4 single band internal antennas
2.4GHz x 2, gain 3.30dBi, gain 3.51dBi
5GHz x 2: gain 4.79dBi, gain 5.37dBi
Wi-Fi Data Rates 5G:
IEEE 802.11ax: 7.3 Mbps to 1201 Mbps
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands 2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 MHz
Channel Bandwidth 2.4G: 20 and 40MHz
5G: 20, 40 and 80MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2×2:2 2.4GHz
2×2:2 5GHz
Coverage Range Up to 100 meters
*coverage range can vary based on environment
Maximum TX Power 2.4G: 24dBm
5G: 27dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients Up to 500+
Network Interfaces 1x 10/100/1000M uplink Ethernet port with PoE/PoE+
2x 10/100/1000M Ethernet ports with PSE
1x 10/100/1000M Ethernet port
Auxiliary Ports 1x Reset Pinhole
Mounting In-wall mountable
LEDs 1 tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency Support 802.3az
PoE 802.3af/ 802.3at;
PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W
Environmental Operation: -10°C to 50°C
Storage: -30°C to 60°C
Humidity: 5% to 95% Non-condensing
Physical  Unit Dimension: 135mm(L)x86mm(W)x38.5mm(H); Unit Weight: 185g
Entire Package Dimension: 176mm(L)x118.5mm(W)x65mm(H); Entire Package Weight: 400g
Compliance FCC, CE, RCM, IC, UKCA

- Bảo hành: 36 tháng.
