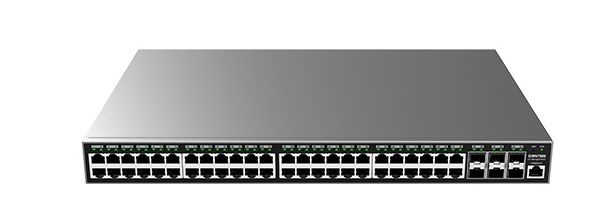

48-Port Gigabit PoE + 6-Port SFP+ Managed Network Switch Grandstream GWN7806P

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: 48-Port Gigabit PoE + 6-Port SFP+ Managed Network
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

48-Port Gigabit PoE + 6-Port SFP+ Managed Network Switch Grandstream GWN7806P

- Smart power control to support dynamic PoE/PoE+ power allocation per port

- 48 Gigabit Ethernet PoE ports and 6 Gigabit SFP+ ports.

- Supports deployment in IPv6 and IPv4 networks.

- Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more.

- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping.

- Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform.

- Built-in QoS allows for prioritization of network traffic.

- Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices.

Thông số kỹ thuật

Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Gigabit Ports	48
SFP+ Ports	6
Console	1
# of PoE Ports	48
Integrated Power Supply	470W
Maximum Output Power Per PoE Port	30W
Max Total PoE Output Power	400W
PoE Standards	IEEE 802.3af/at
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	108Gbps
Switching Capability	216Gbps
Forwarding Rate	160.704Mpps
Packet Buffer	16Mb
Switching	- 32K static, dynamic and filtering MAC addresses - 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN - VLAN virtual interface - GVRP (pending) - 27 link aggregation - Spanning tree, 64 instances for STP/RSTP/MSTP
Routing	Static routing
Multicast	- IGMP Snooping - MLD Snooping - MVR (pending)
QoS/ACL	- Port priority - Priority mapping - Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ - Traffic shaping - Rate limit - 4K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance	CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security	- User hierarchical management and password protection, HTTPS, SSH, Telnet - 802.1X authentication - AAA authentication including RADIUS, TACACS+ - Storm control - Port isolation, port security, sticky MAC - Filtering MAC address - IP source guard, DoS attack prevention, ARP inspection - DHCP Snooping - Loop protection including BPDU protection, root protection (pending) and loopback protection(pending) - Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Rack-Mount(rack-mounting kits included)
LEDs	1x tri-color LED for device tracking and status indication 54x green-color LEDs for data transferring 48x yellow-color LEDs for PoE powered (GWN7806P)
Fan	3
Environmental	Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Dimensions	440mm(L)x301mm(W)x44mm(H)
Unit Weight	5.1kg
Compliance	FCC, CE, RCM, IC, UKCA

- Bảo hành: 36 tháng.
