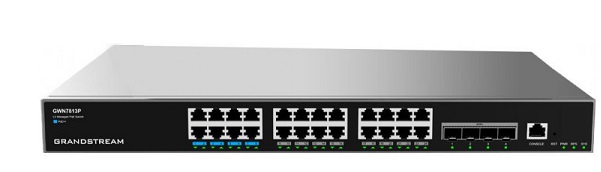

24-Port Gigabit PoE + 4-Port 10Gigabit SFP+ Layer 3 Managed Switch Grandstream GWN7813P

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: 24-Port Gigabit PoE + 4-Port 10Gigabit SFP+ Layer
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

24-Port Gigabit PoE + 4-Port 10Gigabit SFP+ Layer 3 Managed Switch Grandstream GWN7813P

- 24 Gigabit Ethernet poE ports and 4 10Gigabit SFP+ ports.

- Smart power control to support dynamic PoE/PoE+ power allocation per port.

- Supports deployment in IPv6 and IPv4 networks.

- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping.

- Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform.

- Built-in QoS allows for prioritization of network traffic.

Thông số kỹ thuật

Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Gigabit Ethernet Ports	24
10Gigabit SFP+ Ports	4
Console	1
# of PoE Ports	24
Link Aggregation	14
External Redundant Power Supply( RPS)	54V(300W)
Max Output Power per PoE Port	60W(1-8,PoE++) 30W(9-24)
Max Total PoE Output Power	360W
PoE Standards	IEEE 802.3af/at/bt
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	64Gbps
Switching Capability	128Gbps
Forwarding Rate	95.232Mpps
Packet Buffer	12MB
Switching	- 16K static, dynamic and filtering MAC addresses - 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN - VLAN virtual interface - GVRP (pending) - Spanning tree, 32 instances for STP/RSTP/MSTP
Routing	- Static routing - Dynamic routing, including RIP, RIPng, OSPF and OSPFv3 - Policy routing (pending)
Multicast	- IGMP Snooping - MLD Snooping - MVR (pending)
QoS/ACL	- Port priority - Priority mapping - Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ - Traffic shaping - Rate limit - 2K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance	CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD (TBD) and copper test
Security	- User hierarchical management and password protection, HTTPS, SSH, Telnet - 802.1X authentication - AAA authentication including RADIUS, TACACS+ - Storm control - Port isolation, port security, sticky MAC - Filtering MAC address - IP source guard, DoS attack prevention, ARP inspection - DHCP Snooping - Loop protection including BPDU protection, root protection(pending) and loopback protection(pending) - Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
System LEDs	1x tri-color LED for device tracking and status indication
Power Supply LEDs	2x bi-color LEDs for per power supply PWR&RPS
Data Transferring LEDs	28x green-color LEDs
PoE Powered LEDs	24x yellow-color LEDs
Fan	3
Environmental	Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)
Dimensions	440mm(L)x300mm(W) x44mm(H)
Unit Weight	4.69kg
Compliance	FCC, CE, RCM, IC, UKCA

- Bảo hành: 36 tháng.
