Phatsongwifi
Đài Loan Thương hiệu: EnGenius

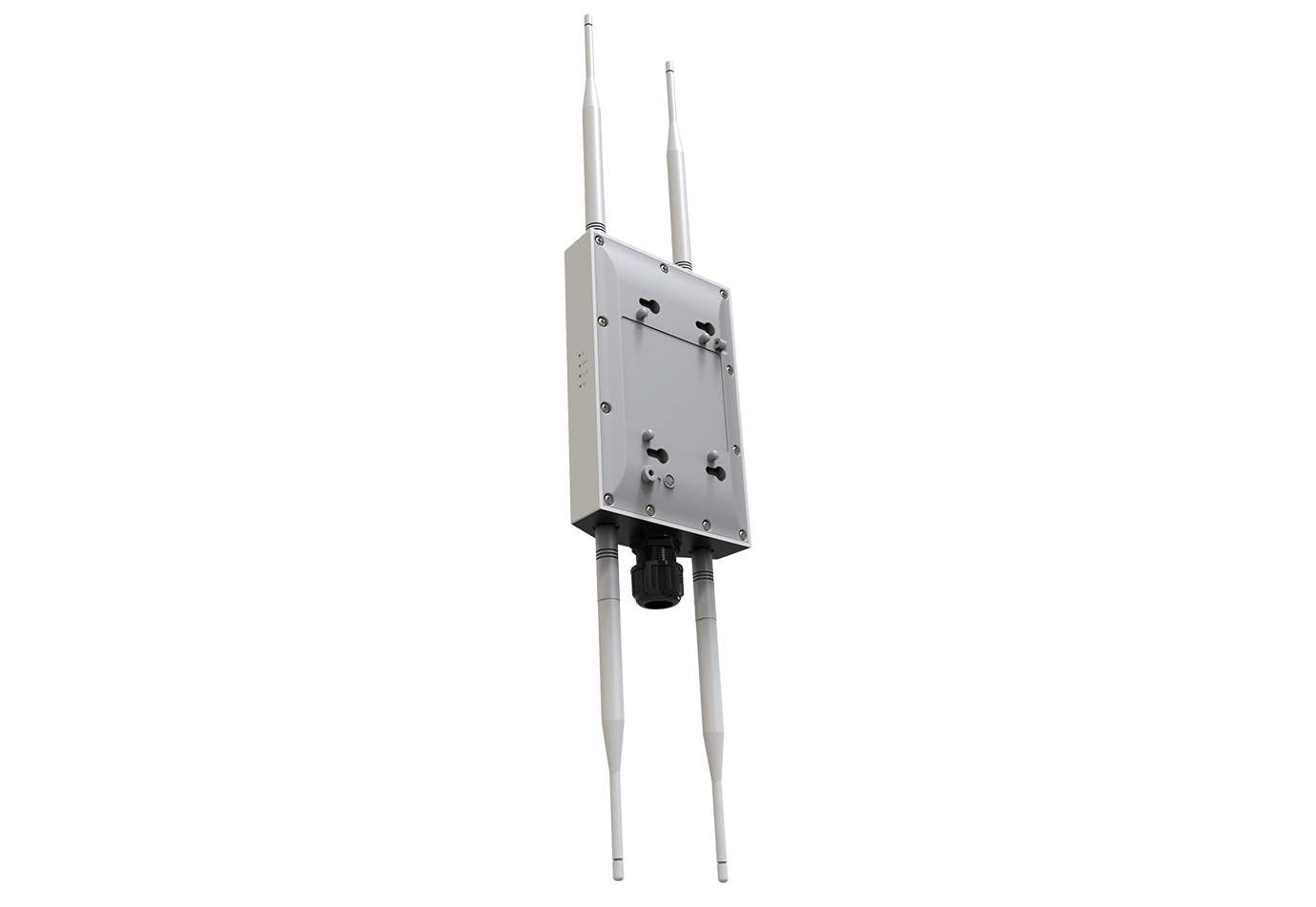

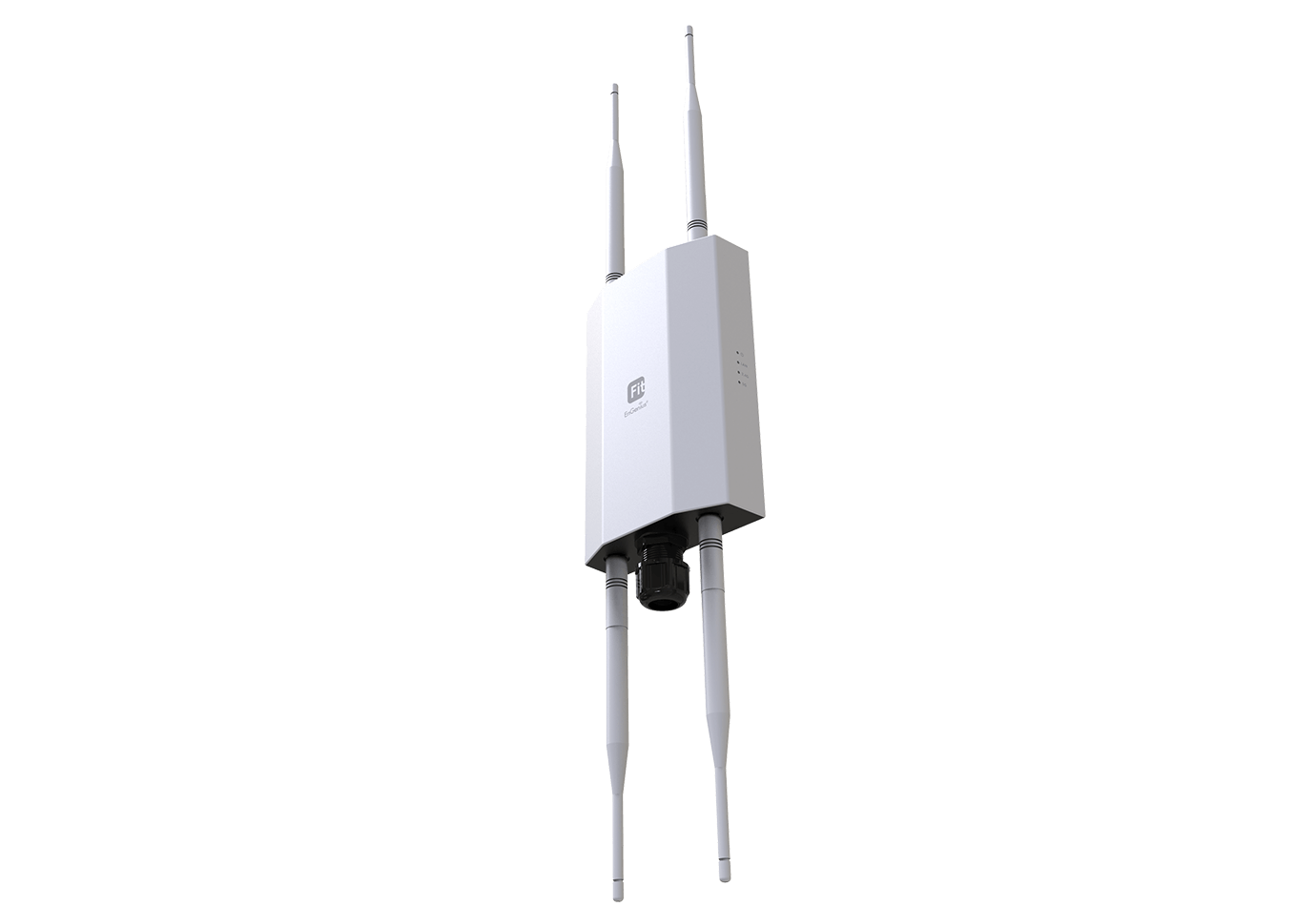

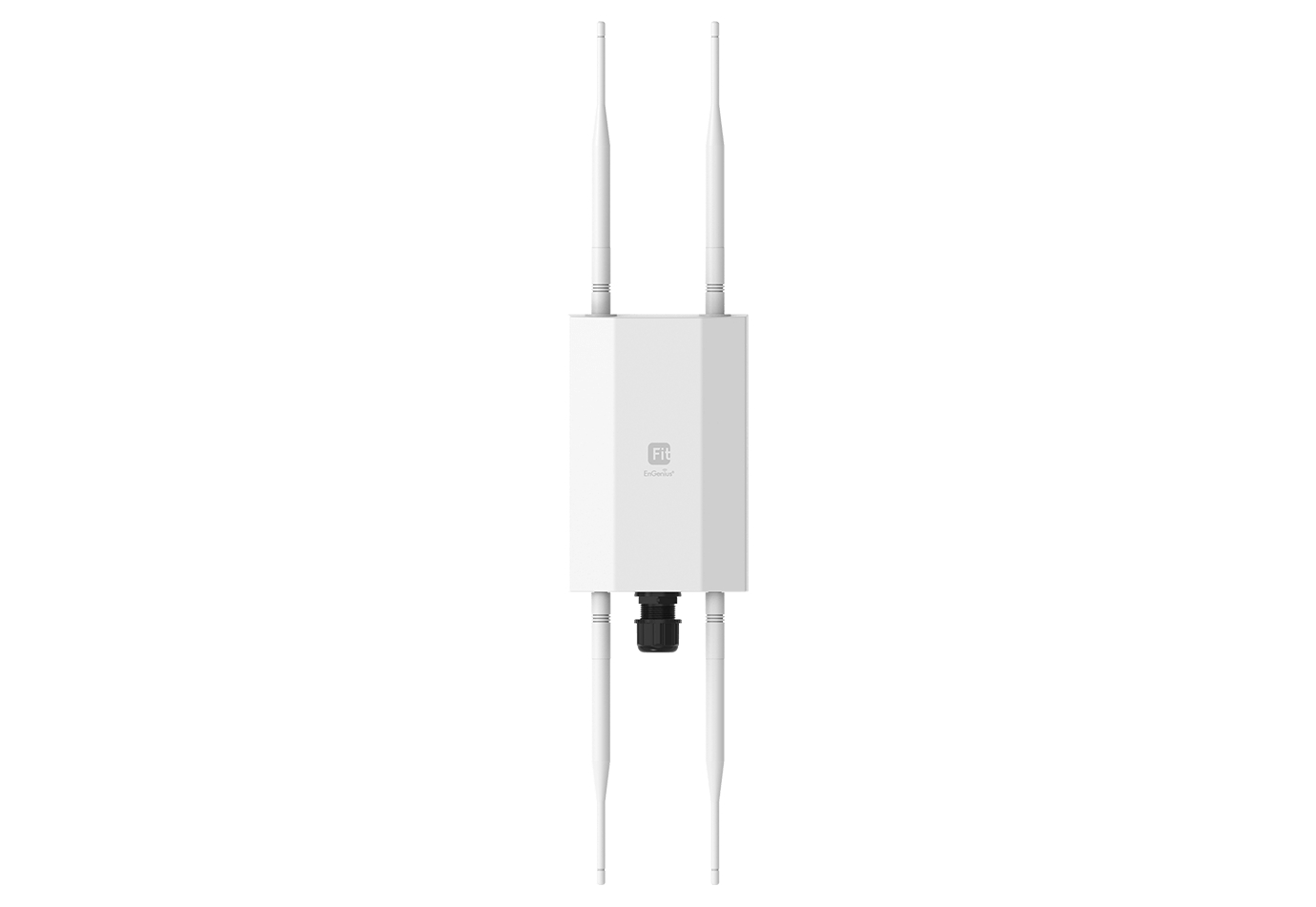

Thiết bị phát sóng wifi EnGenius EWS850-FIT (Fit6 2×2 Outdoor)

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
EWS850-FIT
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả

Engenius Fit6 2x2 Managed Outdoor Wireless Access Point features the best in Wi-Fi 6 technology guaranteed to handle high capacity environments with greater speed and efficiency. Speeds of 574 Mbps/2.4 GHz and 1,200 Mbps/5 GHz along with WPA3/WPA2-PSK (AES) encryption make your network fast and secure, while a weatherIP67 proof/dustproof housing protects against harsh environments.

Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Product Highlight

Engenius Fit6 2x2 Managed Outdoor Wireless Access Point features the best in Wi-Fi 6 technology guaranteed to handle high capacity environments with greater speed and efficiency. Speeds of 574 Mbps/2.4 GHz and 1,200 Mbps/5 GHz along with WPA3/WPA2-PSK (AES) encryption make your network fast and secure, while a weatherIP67 proof/dustproof housing protects against harsh environments. With high gain antenna and output power, it provides large coverage for long range application

  • Dual concurrent 802.11ax architecture and backward compatible with ac/a/b/g/n client devices.
  • 360° omni-directional antennas to achieve comprehensive coverage for networking cli-ent devices under a pervasive environment.
  • 5 dBi integrated 2x2 antenna
  • Supports up to 1,200 Mbps in the 5GHz frequency band & 574 Mbps in the 2.4GHz frequency band
  • 2.5 Gigabit Ethernet PoE port for flexible power options
  • Compliance with Proprietary 48V PoE Input for flexible installation and implementing remotely reset/reboot Access Point over 100 meters (328 feet).
  • Robust housing with IP67 enclosure rated to deploy at extremely weather.
  • WPA3 & WPA2-AES authentication support
  • Local and remote management over Fitcon controller without fees.

Technical Specifications

Standard

802.11a/b/g/n/ac/ax

Antenna

4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 5 dBi

Physical Interface

1 x 10/100/1000/2500 BASE-T

LED Indicators

1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source

PoE 802.3af/at

Maximum Power Consumption

15.9W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz
Up to 25 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)

Radio Chains

2 × 2:2

SU-MIMO Capability

Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):

802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high-efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

127 per radio

Management Features

Deployment Options

Stand-Alone (Individually Managed)
FitXpress
FitController

Environmental & Physical

Temperature Range

Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)

Operating: 0%～90% typical
Storage: 0%～90% typical

Dimensions & Weight

EWS850-FIT Device

Length: 190 mm
Width: 124 mm
Height: 47 mm

Package Contents

1 – EWS850-FIT Outdoor Access Point
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
2 – 2.4GHz 5dBi SMA Antennas
2 – 5GHz 5dBi SMA Antennas
1 – Quick Installation Guide

Compliance

FCC
CE
IC
UCKA

Warranty

2 Year
