Phatsongwifi
Đài Loan Thương hiệu: EnGenius

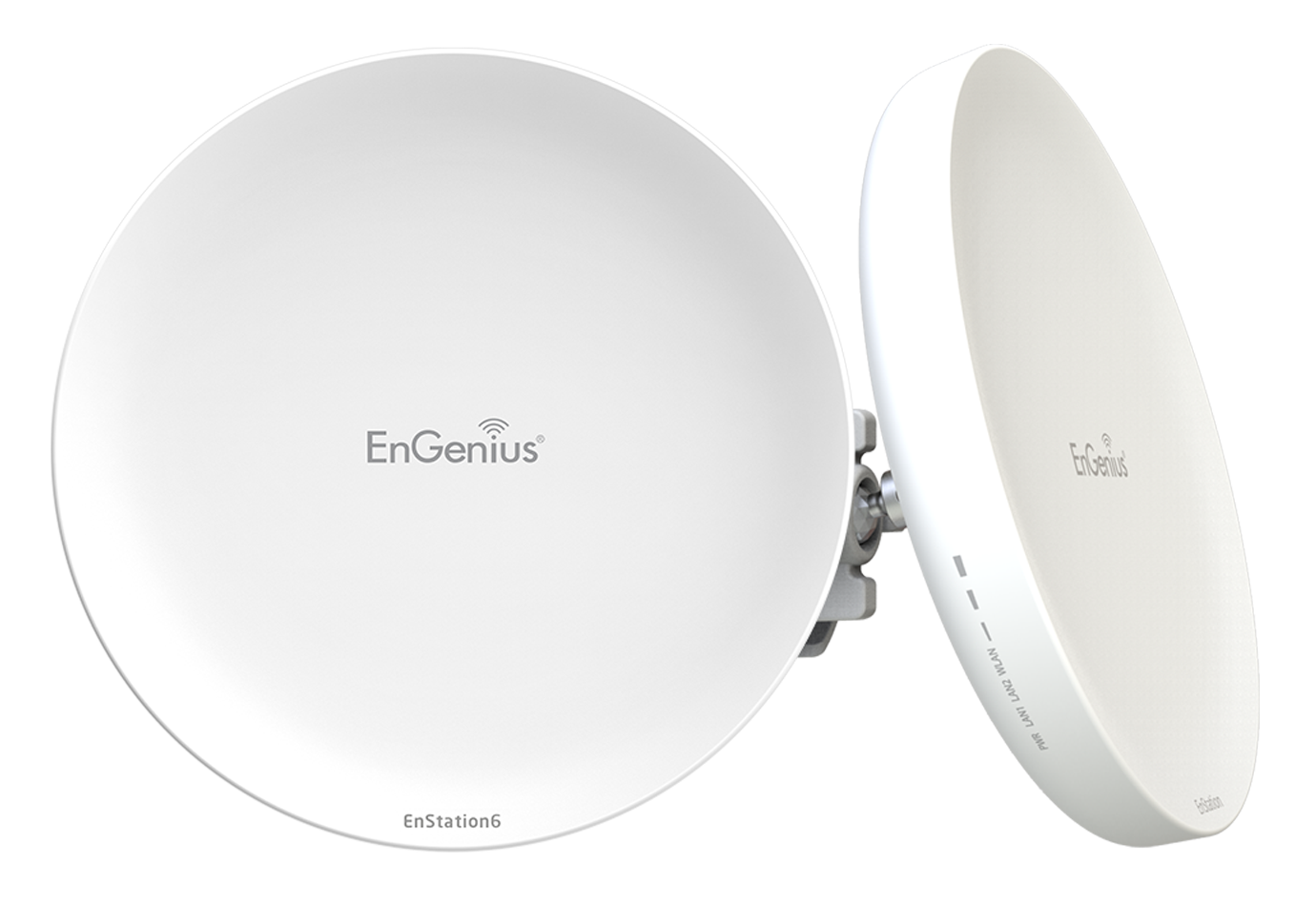

Thiết bị phát sóng wifi EnGenius EnStation6 - EnGenius Station Wi-Fi 6 2x2 5GHz Outdoor Long Range CPE

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
EnStation6
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả

With advantages over the older Wi-Fi standards, the Wi-Fi 6 bridge significantly increases throughput, supports greater efficiency, and accommodates 8k ultra HD video and heavy multi-application traffic with extended bandwidth over greater distances. The Wi-Fi 6 “invisible wire” bridge uses the latest in Wi-Fi technology to achieve longer ranges when paired with another Wi-Fi 6 bridge in a point-to-point/multiple point deployment.

Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Product Highlight

With advantages over the older Wi-Fi standards, the Wi-Fi 6 bridge significantly increases throughput, supports greater efficiency, and accommodates 8k ultra HD video and heavy multi-application traffic with extended bandwidth over greater distances. The Wi-Fi 6 “invisible wire” bridge uses the latest in Wi-Fi technology to achieve longer ranges when paired with another Wi-Fi 6 bridge in a point-to-point/multiple point deployment.

  • Wi-Fi 6 technology for high-performance and efficiency Wi-Fi in outdoor environments
  • Beamforming optimizes antenna signal, reception & reliability for clients
  • 2x2 directional antennas to support up to 1,200 Mbps in 5-GHz
  • High 26 dBm transmit power extends Wi-Fi to yard or building-to-building
  • High gain 19 dBi Integrated directional antenna extend wireless networks up to 5 miles point-to-point
  • IP55-rated weatherproof & dustproof housing

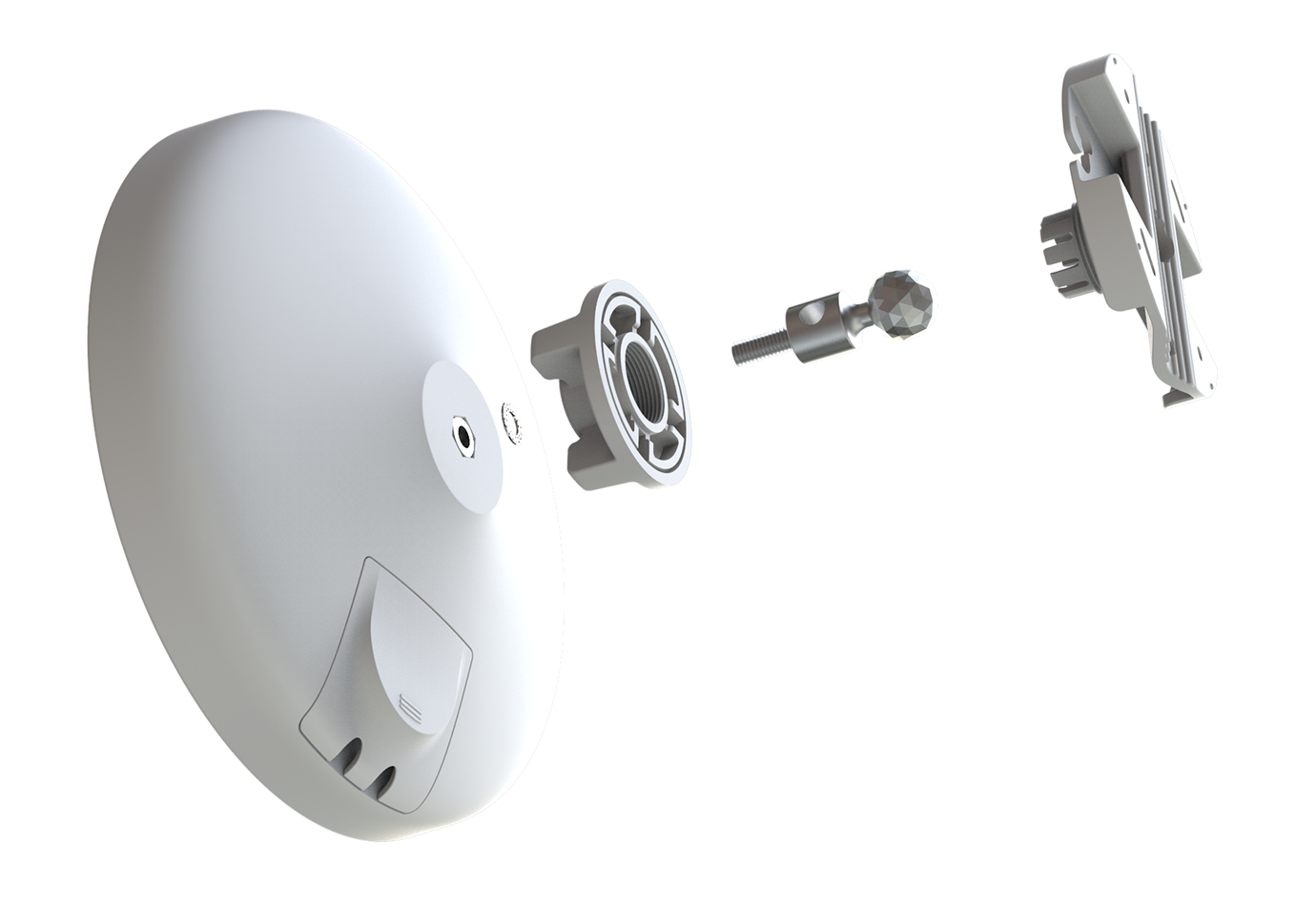

  • 3-Axis pivoting arm locks for precise alignment
  • Flexible Operation Modes: Access Point, Client Bridge, WDS Access Point, WDS Station, Repeater
  • 1 GbE throughput and 802.3at support for flexible installation over 100 meters (328 feet)


Technical Specifications

Standards

802.11a/b/g/n/ac/ax

Antenna – 5GHz

19dBi

Physical Interfaces

1 x 10/100/1000 BASE-T(PoE+)
1 x 10/100/1000 BASE-T
Proceed reset and reboot when pushing this button

LED indicators

1 x Power
1 x LAN
1 x WLAN
3 x Signal

Power Source

Proprietary 54V

Maximum Power Consumption

PoE: Max. 11W

Wireless & Radio Specifications

Operating Frequency

Single band 5 GHz

Operation Modes

AP/CB/WDS AP/WDS STA/ Repeater

Frequency Radio

5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

26 dBm

Radio Chains

2 × 2:2

SU-MIMO Capability

Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.

MU-MIMO Capability

Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.

Supported Data Rates

802.11ax:
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11ax:
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz

802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

127 per radio

Management Features

EnWiFi app

Environmental & Physical

Operating Temperature

-4º~140ºF/-20ºC~60ºC

Storage Temperature

-40Fº~176ºF/-40ºC~80ºC

Storage Humidity

Storage: 90% or less

IP Rating(Outdoor only)

IP55

Surge Protection (Outdoor only)

1KV

ESD Protection(Outdoor only)

Contact: 4KV Air: 8 K

Dimensions & Weight

Dimensions

Φ190 x 38 mm

Package Contents

1 – EnStation Outdoor CPE
1 – EPA5006GR with AC cord
2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
1 – Quick Installation Guide

Compliance & Warranty
Safety Compliance

CB

WEEE

Yes

RoHS

Yes

Regulatory Compliance

FCC
CE
IC
UCKA

Warranty

2 Year
