Đài Loan Thương hiệu: EnGenius

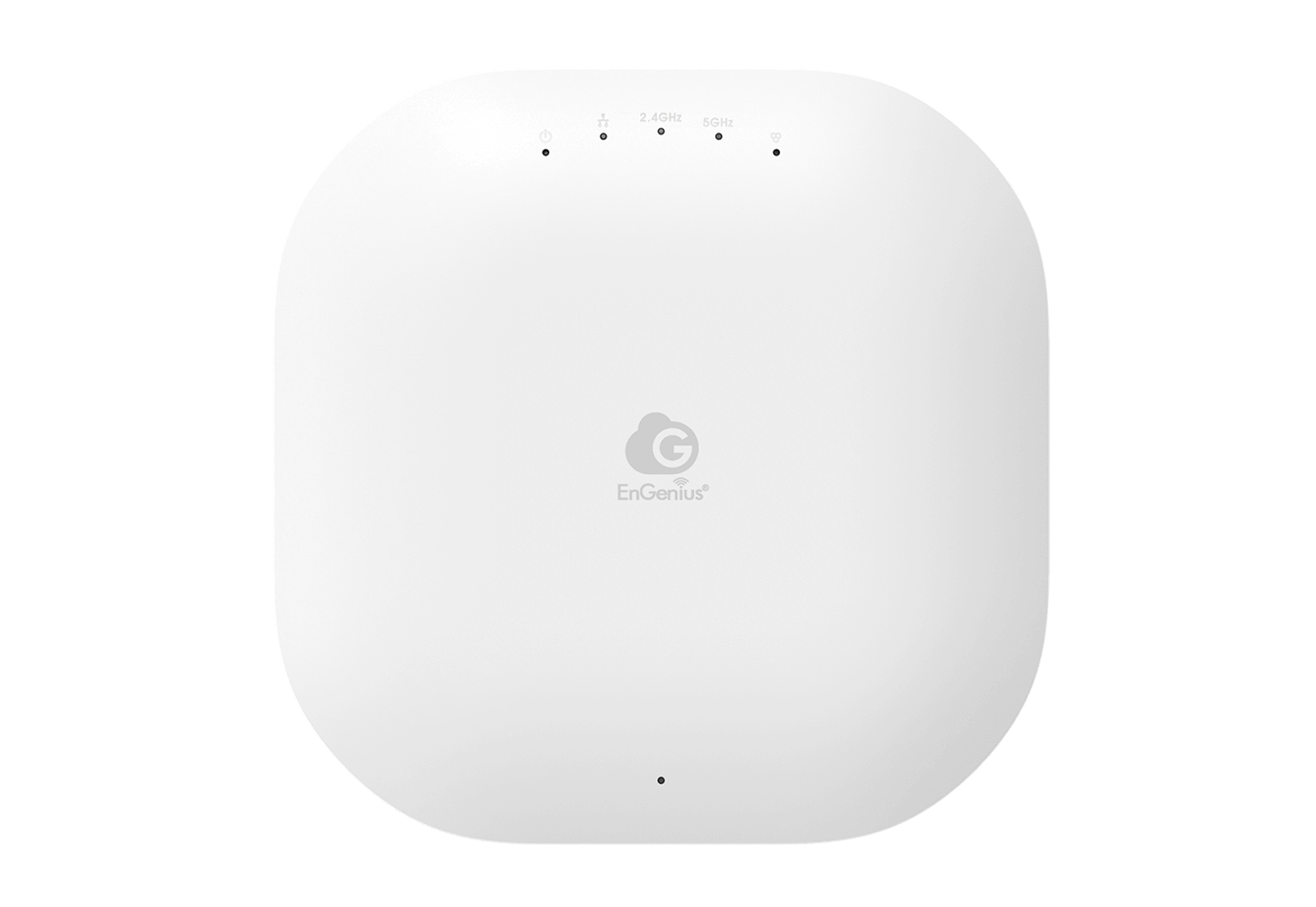

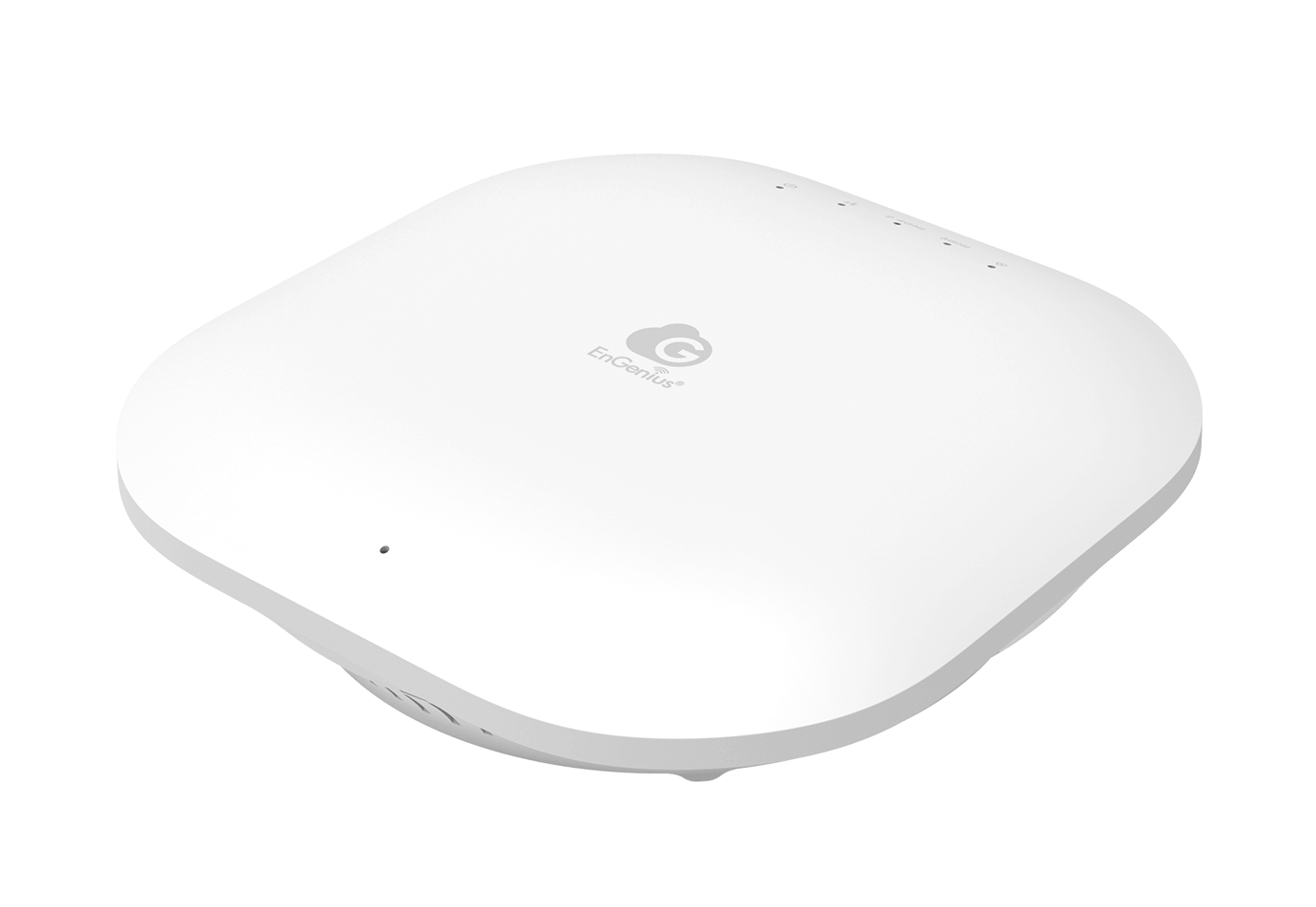

Thiết bị phát sóng wifi EnGenius ECW120 - Cloud Managed 11ac Wave 2 Indoor Access Point

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: ECW120
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả: ECW120 11ac Wave 2 Cloud Managed Indoor Access Point delivers blazing-fast 1.3 Gbps speeds and higher user capacity. It supercharges the performance up to 30% faster than traditional 3x3 APs and improves connection reliability for exceptional next-generation, business-class Wi-Fi.
Review: Xem tại đây

Yêu cầu báo giá

Bán hàng: Mr. Đức Mr. Thành Mr. Quan Mr. Thịnh Mr. Vinh

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Product Highlight

ECW120 11ac Wave 2 Cloud Managed Indoor Access Point delivers blazing-fast 1.3 Gbps speeds and higher user capacity. It supercharges the performance up to 30% faster than traditional 3x3 APs and improves connection reliability for exceptional next-generation, business-class Wi-Fi.

Supercharged speeds up to 867 Mbps (5 GHz) & up to 400 Mbps (2.4 GHz)
Wave 2 MU-MIMO to meet Wi-Fi business demands
Allows more wireless clients & better connections
Remote managing & monitoring
Gigabit Ethernet PoE port for flexible power options
Quick-scan device register & configuration and remote monitoring & troubleshooting
Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards

IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz

Antenna

2 x 2.4 GHz: 5 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

Physical Interface

1 x 10/100/1000 Ethernet Port (PoE)
1 x DC Jack
1 x Reset Button

LED Indicators

1 x Power
1 x LAN
1 x Mesh
1 x 2.4 GHz
1 x 5 GHz

Power Source

Power-over-Ethernet: 802.3af Input
IEEE 802.11e Compliant Source
12VDC /1A Power Adapter

Maximum Power Consumption

12W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz~2482 MHz
5 GHz: 5150 MHz~5250 MHz, 5250 MHz~5350 MHz, 5470 MHz~5725 MHz, 5725 MHz~5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream

2 x 2:2

SU-MIMO

Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4 GHz radio. Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio.

MU-MIMO

Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5 GHz simultaneously.

Supported Data Rates (Mbps):

2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: Max 867 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM uner HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM
802.11n/ac: 2×2 MIMO with 2 Streams

Channelization

802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Management Features

Multiple BSSID

8 SSIDs on both 2.4 GHz and 5 GHz bands

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Complaint With IEEE 802.11e Standard
WMM

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH Tunnel
Client Isolation

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

ECW120 Device

Weight: 362.8 g
Width: 161.5 mm
Length: 161.5 mm
Height: 41.6 mm
