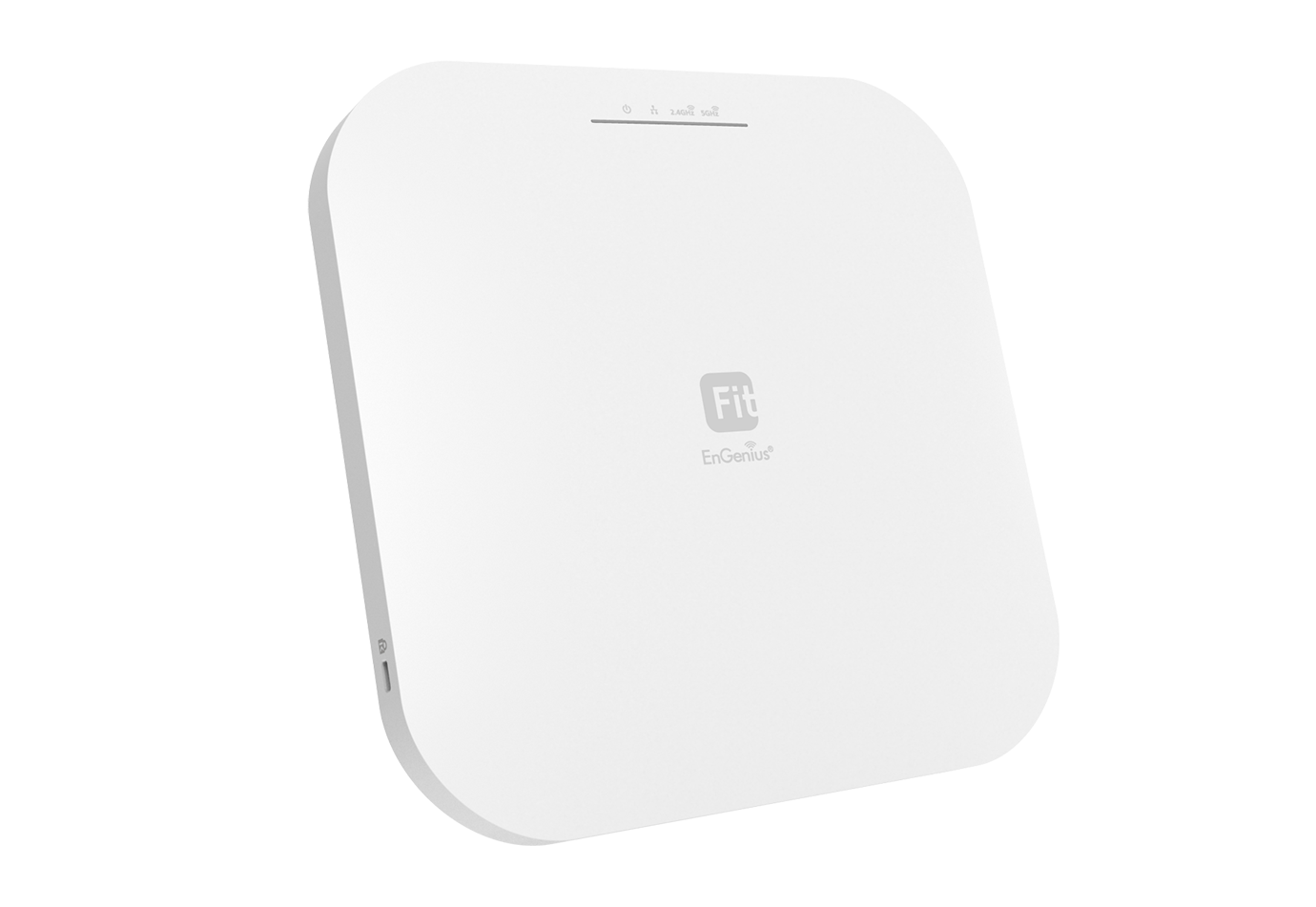

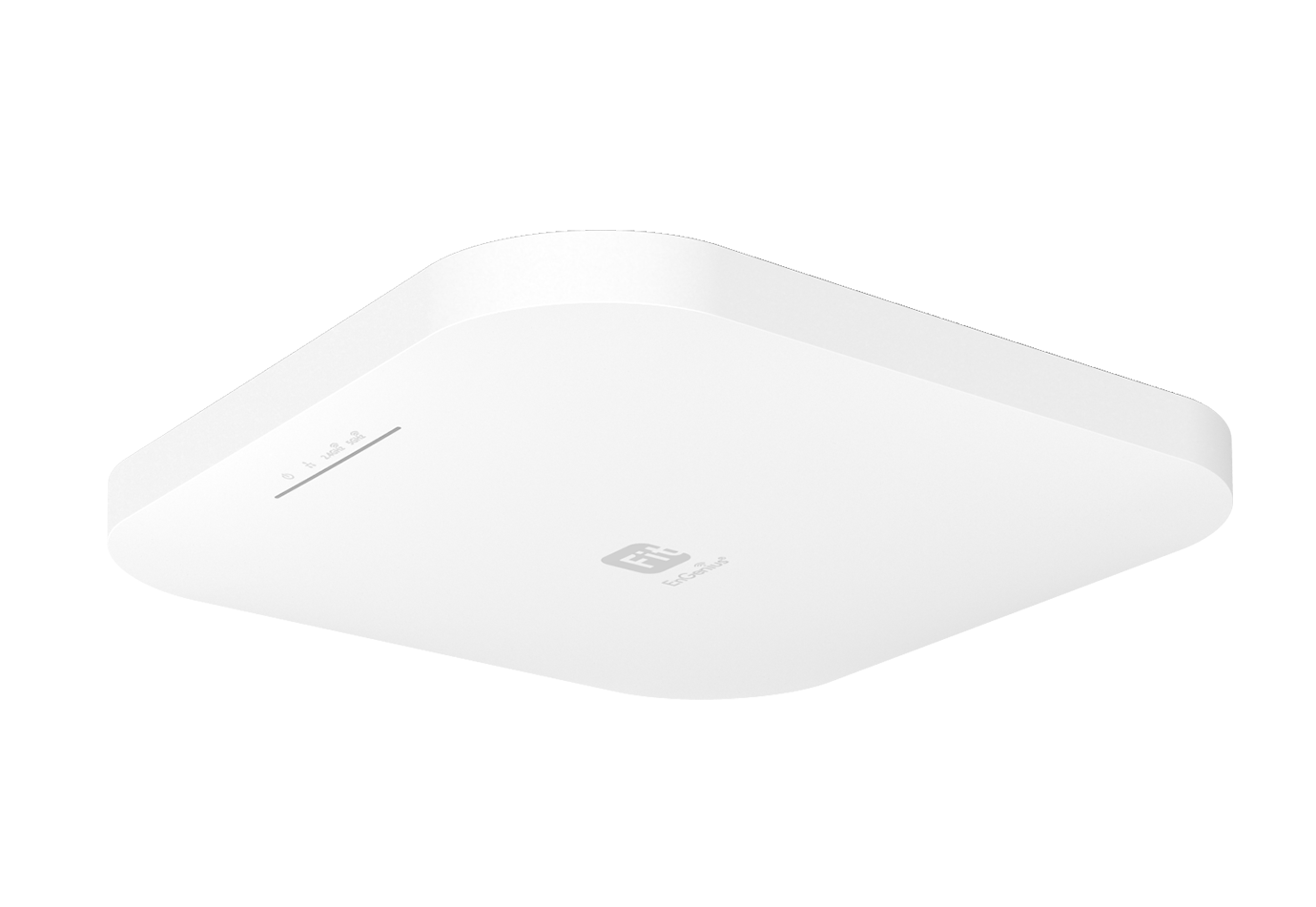

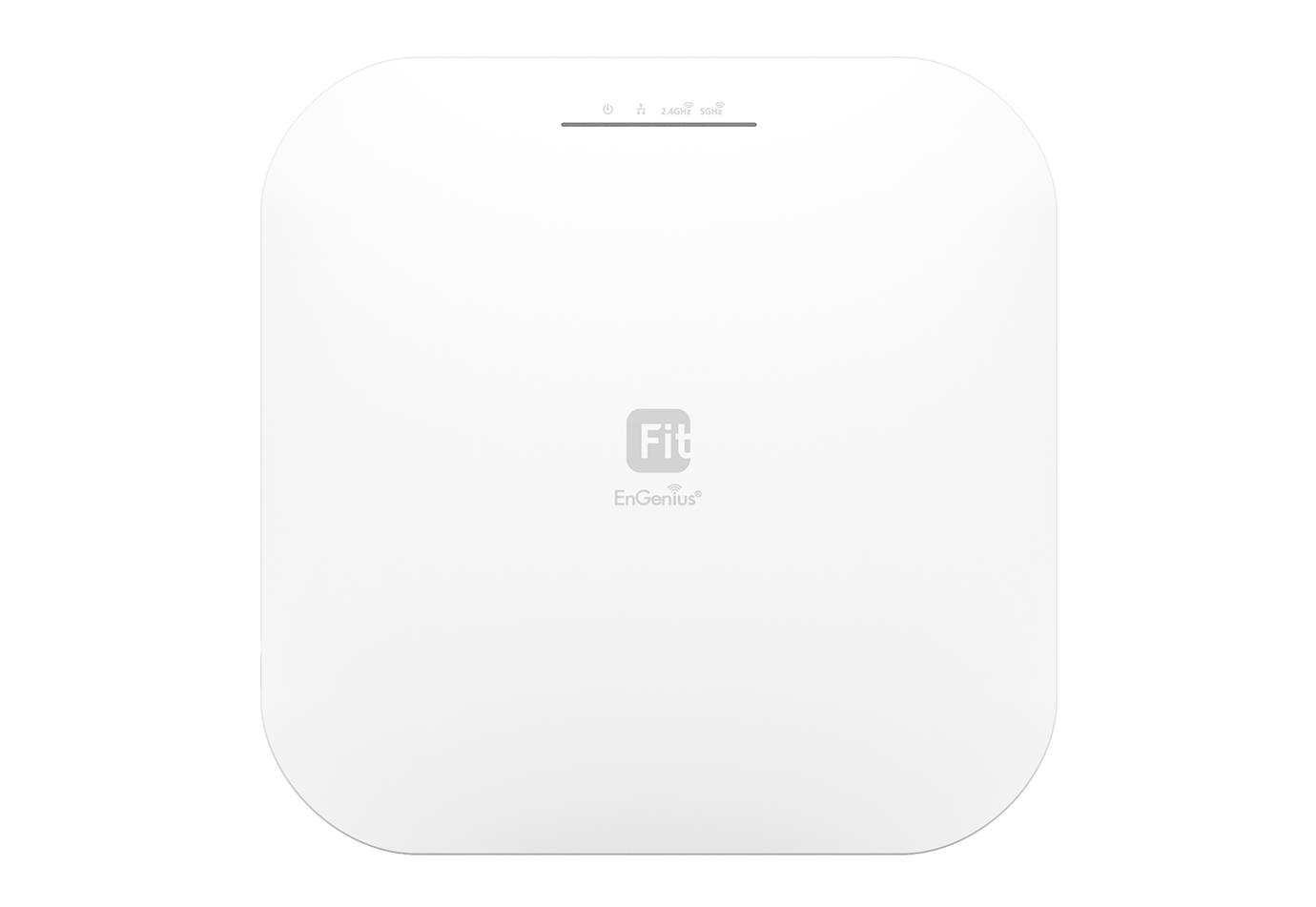

Thiết bị phát sóng wifi Engenius EWS377-FIT (Fit6 4×4)

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
EWS377-FIT (Fit6 4×4)
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả

Engenius Fit6 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, which deepens and extends the capabilities of Wi-Fi and harnesses EnGenius enterprise-level management and AP features for use in high-capacity environments.

Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Product Highlight

Engenius Fit6 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, which deepens and extends the capabilities of Wi-Fi and harnesses EnGenius enterprise-level management and AP features for use in high-capacity environments.The sleek, low-profile AP is loaded with new hardware components to run more efficiently and consume less power for maximum theoretical speeds of 1,148 Mbps (2.4 GHz frequency) and 2,400 Mbps (5 GHz frequency). To give your network elevated security, WPA3/WPA2-PSK (AES) makes connecting client and IoT devices more secure and easier.

  • Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices
  • WPA3 & WPA2-AES authentication support
  • 5 dBi integrated 4x4 antenna
  • Supports up to 2,400 Mbps in the 5GHz frequency band & 1,148 Mbps in the 2.4GHz frequency band
  • 2.5 Gigabit Ethernet PoE port for flexible power options
  • Local and remote management over Fitcon controller without fees
  • Choice of AP and WDS modes to meet your management & deployment requirements

Technical Specifications

Standards

802.11a/b/g/n/ac/ax

Antenna

4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi

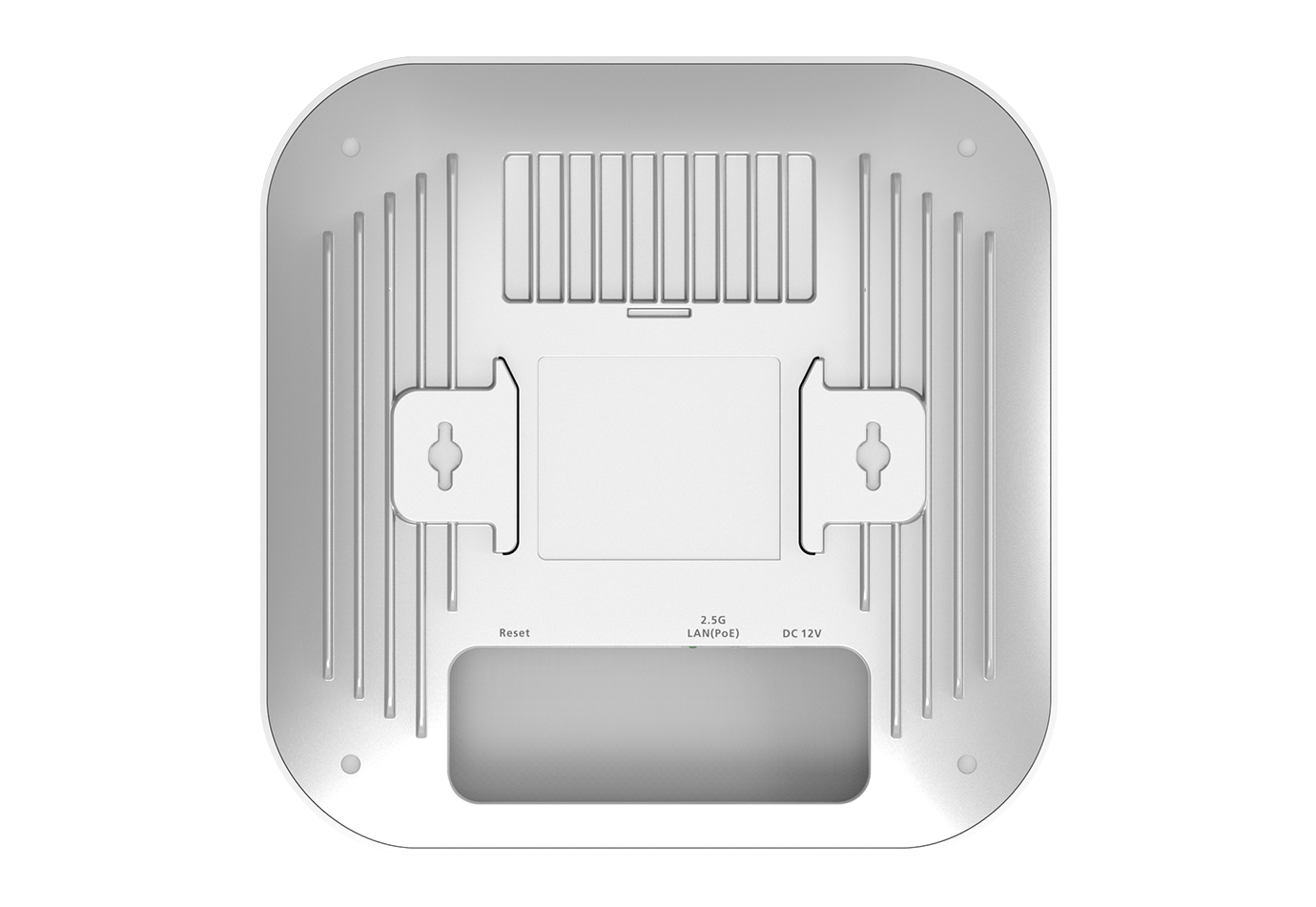

Physical Interface

1 x 10/100/1000/2500 BASE-T
DC12V
Yes, proceed reset and reboot when pushing this button

LED Indicators

1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source

PoE 802.3at
DC12V

Maximum Power Consumption

19.5W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)

Radio Chains

4 × 4:4

SU-MIMO Capability

Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.

MU-MIMO Capability

Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):

802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

127 per radio
