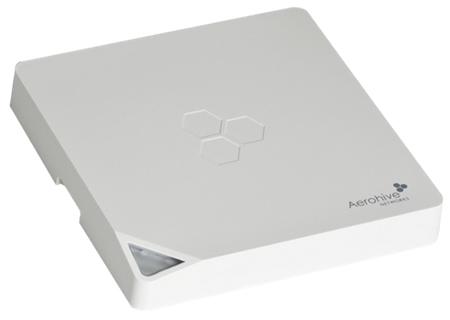

The AP121 access points optimize RF performance with enhanced receive sensitivity to provide an enhanced user experience for networks supporting multiple types of clients, including consumer-grade and bring-your-own devices (BYOD).
Hardware Platform
Two radios provide concurrent 802.11a/n and 802.11b/g/n connections with no degradation in performance
Automatic or dedicated mesh backup
Supports 802.3af PoE
Slimline design
Security Features
Trusted Platform Module (TPM)–Hardware-based key storage and encryption
Granular user profile-based management defines QoS, mobility policies, and security policies for each user that enters the network
Encryption: AES:CCMP, TKIP, and RC4 (WEP only)
Advanced Features
Integrated application visibility and control
On-board RADIUS Server with directory support, Captive Web Portal, DHCP server, and spectrum analysis
Dual Concurrent Radios (b/g/n + a/n)
802.11n (HT20/HT40): MCS0 -MCS7
2.4–2.5 GHz & 5.150–5.950 GHz Operating Frequency • 802.11n Modulation • 24 dBm Transmit Power • Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps) • 2x2 Multiple-In, Multiple-Out (MIMO) Radio • HT40 High-Throughput (HT) Support
802.11g: 6,9,12,18,24,36,48, and 54 Mbps
2.4–2.5 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • 22 dBm (100 mW) Transmit Power • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b: 1,2,5.5 and 11Mbps
2.4–2.5 GHz Operating Frequency • Direct-Sequence Spread-Spectrum (DSSS) Modulation • 20 dBm Transmit Power • Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback
802.11a: 1,2,5.5 and 11Mbps
5.150–5.850 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • 24 dBm Transmit Power • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Antennas
2x Integrated single band, 2.4-2.5 GHz Omni-directional, 4.0 dBi gain • 2x Integrated single band, 5.1-5.8 GHz Omni-directional, 4.0 dBi gain
Interfaces

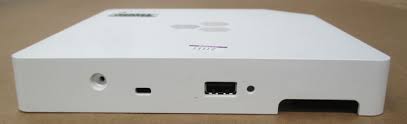

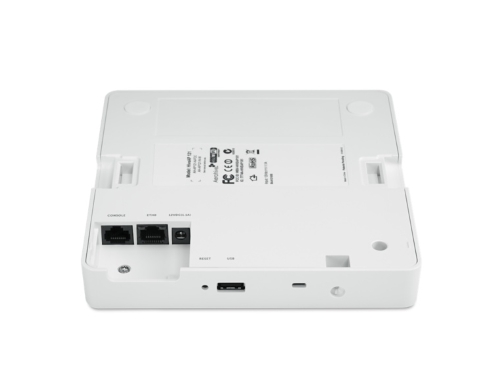

Autosensing 10/100/1000 Base-T Ethernet Port • Power over Ethernet (PoE) capable (802.3af) Ethernet Port (Eth0) • 1x Reset Pinhole • USB 2.0 port reserved for future use • RJ-45 console port
Physical
6.69” W x 1.63” H x 6.69” D (170 mm W x 41 mm H x 170 mm D) • 11.6 oz (0.36 kg)
Environmental
Operating: 0 to +40°C, Storage: -40 to +85°C • Humidity: 95% RH (non-condensing)
Environmental Compliance
Plenum rated
Power Options
802.3af Power over Ethernet (PoE) port • 12V, 2A DC external power adapter (sold separately)
