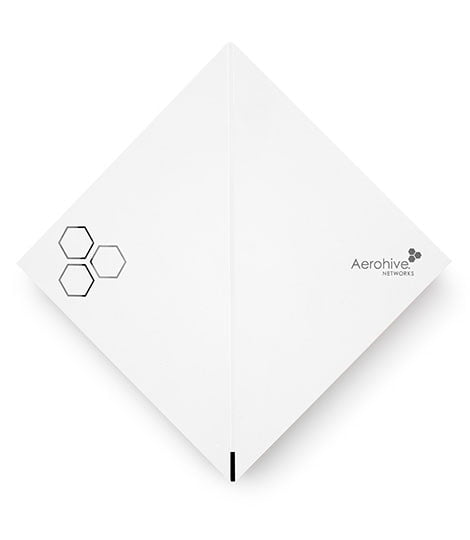

Aerohive AP550 (Wifi AC Wave 2, Mu-MiMo, Wifi cao cấp, chịu tải, phát xa)

₫ 5.900.000 4.900.000 ₫ Giảm 17%

Thời gian bảo hành: 12 tháng (Không bảo hành cháy, nổ, chập điện, sét đánh)

Tình trạng hàng: Like new 99%

Tính năng: The AP550 is an excellent choice to provide instant adaption to ever-changing capacity and density needs. AP550 features 4x4:4 MU-MIMO with aggregate data rates up to 3.46 Gbps per access point. Software configurable radio allows IT managers to enable dual 5 GHz 802.11ac performance on both radios to provide the best of coverage and capacity Wi-Fi design and maximize ROI. Built-in BLE (Bluetooth Low Energy) radio enables proximity, indoor location tracking, and other location-based mobile engagement services

Dịch vụ khuyến mãi: Khách hàng là đại lý của Muawifi.com, Phatsongwifi.com hoặc khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0938912229 để có giá tốt.

Kho hàng: Liên hệ

Review sản phẩm

Số lượng:

Nhà bán lẻ: phatsongwifi.com

  • delivery
    Giao hàng & thu tiền tận nơi trên toàn quốc
  • delivery
    Đổi trả trong vòng 7 ngày (Áp dụng cho các sản phẩm được dùng thử)
  • delivery
    Bảo hành kỹ thuật 1 đổi 1 trong thời gian 30 ngày.
  • delivery
    Nhà cung cấp giải pháp mạng và wifi chuyên nghiệp.
  • delivery
    Liên hệ. 0901188385 - 0938912229
  • delivery
    Liên hệ. Skype: hvdung.itnet

Overview:

AP550The AP550 is an excellent choice to provide instant adaption to ever-changing capacity and density needs. AP550 features 4x4:4 MU-MIMO with aggregate data rates up to 3.46 Gbps per access point. Software configurable radio allows IT managers to enable dual 5 GHz 802.11ac performance on both radios to provide the best of coverage and capacity Wi-Fi design and maximize ROI. Built-in BLE (Bluetooth Low Energy) radio enables proximity, indoor location tracking, and other location-based mobile engagement services.

Highlights

  • Software selectable radio allows either two 5 GHz radios (for high density-high capacity deployments) or concurrent 2.4 GHz and 5 GHz radios
  • Full 4x4:4 Wave 2 802.11ac MU-MIMO and dual 5 GHz performance
  • Built-in BLE for iBeacon and other beacon technologies
  • IoT readiness with USB port for other wireless technologies to connect seamlessly

AP550 is engineered for high performance in demanding environments, with data rates up to 1.3 Gbps. AP550 features software defined radio that allows IT managers to enable 802.11ac 5 GHz performance on both radios. AP550 extends support to the next-generation Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 2 support.

With the underlying powerful HiveOS and innovative distributed Cooperative Control architecture, AP550 brings to market a rich set of enterprise-grade features and best-in-class performance. In addition, the integrated BLE radio and a USB interface in the access point lay the foundation for a wide variety of deployment use-cases in IoT and proximity/location-oriented services.

AP550 is a key component of the Aerohive Connect solution. Connect provides cloud-managed connectivity built on Aerohive’s industry-first cooperative control Wi-Fi focused on optimizing speed and resilience. Connect is centrally managed from the cloud, allowing for simple, fast, and powerful management.

Enterprise Connectivity Cloud Management HiveCare Support
  • 4x4 Wave 2 802.11ac technology with MU-MIMO capability and 4 spatial streams
  • Software configurable radio for dual 5 GHz operation
  • Built-in Bluetooth Low Energy for iBeacon/other beacon technologies
  • IoT readiness with USB port
  • PoE redundancy between the 2 Ethernet ports for high availability
  • Trusted Platform Module (TPM) – Hardware-based key storage and encryption
  • RF-IQ antenna and radio technology
  • Network Device and Client Monitoring
  • Global Search and Filter function
  • Auto-Provisioning Tools for quick and easy deployment
  • Network Health View
  • Versatile RF Planning
  • Guided Network Configuration Setup
  • 802.1X and PSK Secured Networks
  • Guest Access functionality with configurable Captive Web Portal
  • HiveCare Community Support: forum-based interactive support
  • HiveCare Connect CallBack service (optional)
  • Wide array of online resources and tools
Specifications
Radio Specifications—802.11a
  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11b
  • 2.4–2.5GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
Radio Specifications—802.11g
  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11n
  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • Rates (Mbps): MCS0–MCS23 (6.5Mbps - 300Mbps)
  • 4x4 4-Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support for 2.4 GHz and 5 GHz
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation
Radio Specifications—802.11ac
  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1733Mbps), NSS = 1-4
  • 4x4 4-Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
Included Mounting Options
  • Wall Mount
  • Ceiling Tile flush 15/16”
Mounting
  • Desktop
  • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
  • Ceiling Tile flush 3/8”, 9/16” sold as an accessory
  • Suspend Mount sold as an accessory
  • Plenum Mount sold as an accessory
  • Silhouette and Interlude sold as an accessory
Antennas
  • 12x WiFi internal antennas (4x 2.4 GHz antennas and 8x 5 GHz antennas)
  • 1x BLE internal antenna
Interfaces
  • Two Autosensing 10/100/1000 Base-T Ethernet ports. PoE (Power over Ethernet 802.3af) capability on both ports for redundancy and high availability
  • RJ-45 console port
  • Standard USB port
Physical
  • WxDxH: 8.15” x 8.15” x 2.17” (208mm x 208mm x 55mm)
  • Weight: 2.4 lbs (1.1 Kg)
Environmental
  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 95%
Environmental Compliance
  • UL2043
Power Specifications
  • IEEE 802.3at PoE+ Power required for full 4x4:4 MU-MIMO, dual 5 GHz, USB, BLE and 2 Ethernet ports to operate*
Power Options
  • Power Draw: Typical PoE 20.0W, Max PoE 23.8W Typical DC 16.9W, Max DC 21.6W
Certifications
  • WPA/WPA2
  • Voice-Enterprise
  • Passpoint



Transmit Power Table

2.4 GHZ DATA RATE POWER (dBm)
11b 1-11 Mbps 21
11G 6 Mbps 20
36 Mbps 18
48 Mbps 17
54 Mbps 16
11n HT20 MCS7, 15, 23 16
MCS6, 14, 22 17
MCS5, 13, 21 18
MCS0-4, 8-12, 16-20 20
5 GHZ DATA RATE POWER (dBm)
11a 6 Mbps 19
36 Mbps 18
48 Mbps 16
54 Mbps 15
11n HT20 MCS7, 15,23 15
MCS6, 14, 22 16
MCS5, 13, 21 18
MCS0-4, 8-12, 16-20 19
11n HT40 MCS7, 15, 23 14
MCS6, 14, 22 16
MCS5, 13, 21 18
MCS0-4, 8-12, 16-20 19
11ac VHT 256QAM@3/4 Code Rate 12
256QAM@5/6 Code Rate 11

Note: Power shown is per transmit chain and is the maximum power that the radio is capable of. Power limits will be limited by local radio regulations.



Receive Sinsitivity Table

2.4 GHZ DATA RATE SENSITIVITY
11b 1 Mbps -100
11 Mbps -93
11g 6 Mbps -95
36 Mbps -86
48 Mbps -82
54 Mbps -80
11n HT20 MCS0, 8, 16 -95
MCS5, 13, 21 -81
MCS6, 14, 22 -79
MCS7, 15, 23 -77
5 GHZ DATA RATE SENSITIVITY
11a 6 Mbps -95
36 Mbps -86
48 Mbps -81
54 Mbps -80
11n HT20 MCS0, 8, 16 -91
MCS5, 13, 21 -78
MCS6, 14, 22 -76
MCS7, 15, 23 -74
11n HT40 MCS0, 8, 16 -88
MCS5, 13, 21 -75
MCS6, 14, 22 -73
MCS7, 15, 23 -71
11ac HT20 Code Rate 3/4 -65
Code Rate 5/6 -63
11ac HT40 Code Rate 3/4 -62
Code Rate 5/6 -60
11ac HT80 Code Rate 3/4 -59
Code Rate 5/6 -57



Radiation Patterns

Aerohive Radiation Patterns
