Aerohive AP150W Indoor Wall Wireless Access Point (Wifi AC Wave 2 MU

Overview:

Transform any existing Ethernet jack into a versatile and compact cloud-managed AP and Switch for connectivity ideal for hospitality, cruise ships, residential halls, or other multi-dwelling-unit deployments.

Aerohive’s AP150W is designed to address key use cases like:

Higher education - University dorm rooms
Hospitality – Hotel rooms/suites/cruise ships
Long term care units
Multiple Dwelling Units (MDU)
Retail – In-store connectivity including checkout kiosks

The AP150W is the industry’s only wallplate 3x3:3 802.11ac Wave 2 Wi-Fi Access Point and wired Switch managed by Aerohive’s next-generation HiveManager NG management system. It delivers high performance wireless access up to 1.3 Gbps, integrated Bluetooth Low Energy and ZigBee for IoT connectivity, and 4 Gigabit Ethernet ports that can power digital phones, IoT sensors, or cameras.

Enterprise Connectivity

Easy and intuitive installation for single and dual gang wall boxes
The 5 GHz band supports 3x3:3 SU-MIMO (1.3 Gbps of data rate) and 2x2:2 MU-MIMO (867 Mbps of data rate)
Additional Gigabit Ethernet managed port, providing secured connectivity to wired end-points like laptops, set-top boxes, IP phones, cameras, printers etc
Built-in BLE for iBeacon and beacon management applications
Future support for Zigbee to support IoT sensor use cases

Cloud Management

Network Device and Client Monitoring
Global Search and Filter function
Auto-Provisioning Tools for quick and easy deployment
Versatile RF Planning
Guided Network Configuration Setup
802.1X and PSK Secured Networks
Guest Access functionality with configurable Captive Web Portal

Hivecare Support

HiveCare Community Support: forum-based interactive support included
Additional optional support upgrade options available
Wide array of online resources and tools

Aerohive AP150W Specifications
Radio Specifications—802.11a 5.150–5.850 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM Modulation Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback Radio Specifications—802.11b 2.4–2.5 GHz Operating Frequency Direct-Sequence Spread-Spectrum (DSSS) Modulation Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback Radio Specifications—802.11g 2.4–2.5 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation 20 dBm (100 mW) Transmit Power Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback Radio Specifications—802.11n 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency 802.11n Modulation 2.4 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps) 5 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 450Mbps) 3x3 Multiple-In, Multiple-Out (MIMO) Radio for 5 GHz 2x2 Multiple-In, Multiple-Out (MIMO) Radio for 2.4 GHz HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) HT40 High-Throughput (HT) Support for 5 GHz Radio Specifications—802.11ac 5.150–5.850 GHz Operating Frequency 802.11ac Modulation (256-QAM) Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1300 Mbps), NSS = 1-3 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio VHT20/VHT40/VHT80 support TxBF ( Transmit Beamforming) Antennas 2x Integrated single band, 2.4-2.5 GHz Omnidirectional antennas 3 x Integrated single band, 5.1-5.8 GHz Omnidirectional antennas 1 x BLE internal antenna 1 x zigbee internal antenna Interfaces Eth0 / POE Input: Autosensing 10/100/1000 Base-T Ethernet POE Input Port Eth1 / PoE Output: Autosensing 10/100/1000 Base-T Ethernet PoE Output Port Eth2 / Eth3: 2x Autosensing 10/100/1000 Base-T Ethernet Port Passive pass thru connection : 2 x RJ-45 port (from the back of the AP to the bottom) Built-in BLE and ZigBee (future use) RJ-45 Console Port	Physical WxDxH: 4.2” x 1.1” x 6.9” (105.9mm x 29.2mm x 175mm) Weight: 0.86 lb / ( 0.39 kg) Wallplate Bracket Weight: 0.26 lb ( 0.1 kg) Environmental Operating: 0 to +40°C, Storage: -40 to +70°C Humidity: 95% Mounting Wallplate (included with the AP) Desk mount (sold as an accessory) Power Consumption 802.3af Input: Typical 11.3W, Max 12.4W 802.3at Input: Typical 23.6W, Max 24.9W (with 12W POE Output Load) 48VDC Input: Typical 26.9W, Max 28.2W (with 15.4W POE Output Load) Power Options IEEE 802.3af / 802.3at (PoE/PoE+) – With IEEE 802.3af PoE power, AP150W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, POE budget on the downlink port is not supported – With IEEE 802.3at PoE power, AP150W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, the available POE budget on the downlink port is 12W Power supply 48VDC, 0.75A (sold as an accessory) – With 48VDC input, AP150W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, the available POE budget on the downlink port is 15.4W

Aerohive AP150W Specifications

Radio Specifications—802.11a

5.150–5.850 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications—802.11b

2.4–2.5 GHz Operating Frequency
Direct-Sequence Spread-Spectrum (DSSS) Modulation
Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

Radio Specifications—802.11g

2.4–2.5 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
20 dBm (100 mW) Transmit Power
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications—802.11n

2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
802.11n Modulation
2.4 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps)
5 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 450Mbps)
3x3 Multiple-In, Multiple-Out (MIMO) Radio for 5 GHz
2x2 Multiple-In, Multiple-Out (MIMO) Radio for 2.4 GHz
HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
HT40 High-Throughput (HT) Support for 5 GHz

Radio Specifications—802.11ac

5.150–5.850 GHz Operating Frequency
802.11ac Modulation (256-QAM)
Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1300 Mbps), NSS = 1-3
3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80 support
TxBF ( Transmit Beamforming)

Antennas

2x Integrated single band, 2.4-2.5 GHz Omnidirectional antennas
3 x Integrated single band, 5.1-5.8 GHz Omnidirectional antennas
1 x BLE internal antenna
1 x zigbee internal antenna

Interfaces

Eth0 / POE Input: Autosensing 10/100/1000 Base-T Ethernet POE Input Port
Eth1 / PoE Output: Autosensing 10/100/1000 Base-T Ethernet PoE Output Port
Eth2 / Eth3: 2x Autosensing 10/100/1000 Base-T Ethernet Port
Passive pass thru connection : 2 x RJ-45 port (from the back of the AP to the bottom)
Built-in BLE and ZigBee (future use)
RJ-45 Console Port

Physical

WxDxH: 4.2” x 1.1” x 6.9” (105.9mm x 29.2mm x 175mm)
Weight: 0.86 lb / ( 0.39 kg)
Wallplate Bracket Weight: 0.26 lb ( 0.1 kg)

Environmental

Operating: 0 to +40°C, Storage: -40 to +70°C
Humidity: 95%

Mounting

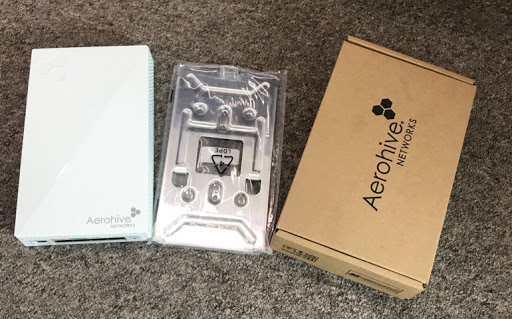

Wallplate (included with the AP)

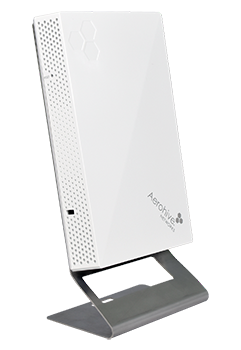

Desk mount (sold as an accessory)

Power Consumption

802.3af Input: Typical 11.3W, Max 12.4W
802.3at Input: Typical 23.6W, Max 24.9W (with 12W POE Output Load)
48VDC Input: Typical 26.9W, Max 28.2W (with 15.4W POE Output Load)

Power Options

IEEE 802.3af / 802.3at (PoE/PoE+)
– With IEEE 802.3af PoE power, AP150W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, POE budget on the downlink port is not supported
– With IEEE 802.3at PoE power, AP150W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, the available POE budget on the downlink port is 12W
Power supply 48VDC, 0.75A (sold as an accessory)
– With 48VDC input, AP150W will power up and the Wi-Fi and Ethernet ports will operate in its full capacity. In this scenario, the available POE budget on the downlink port is 15.4W

Transmit Power Table
2.4 GHz	DATA RATE	POWER (dBm)
11b	1 - 11 Mbps	16
11g	6 - 54 Mbps	16 - 15
11n HT20	MCS 0, 8, 16	14
	MCS 7, 15, 23	14
5 GHz	DATA RATE	POWER (dBm)
11a	6 - 54 Mbps	14
11ac VH20, VHT40, VHT80	MCS0 - 8	11 - 13
Receive Sensitivity Table
2.4 GHz	DATA RATE	POWER (dBm)
11b	1 - 11 Mbps	-96
11g	6 Mbps	-91
11g	54 Mbps	-74
11n HT20	MCS 0, 8, 16	-91
11n HT20	MCS 7, 15, 23	-68
5 GHz	DATA RATE	POWER (dBm)
11a	6 Mbps	-95
11a	54 Mbps	-74
11ac VHT20	MCS 0	-94
11ac VHT20	MCS 8	-70
11ac VHT40	MCS 0	-91
11ac VHT40	MCS 8	-66
11ac VHT80	MCS 0	-85
11ac VHT80	MCS 8	-62

Radiation Patterns

radiation pattern 1

radiation pattern 2

radiation pattern 3
