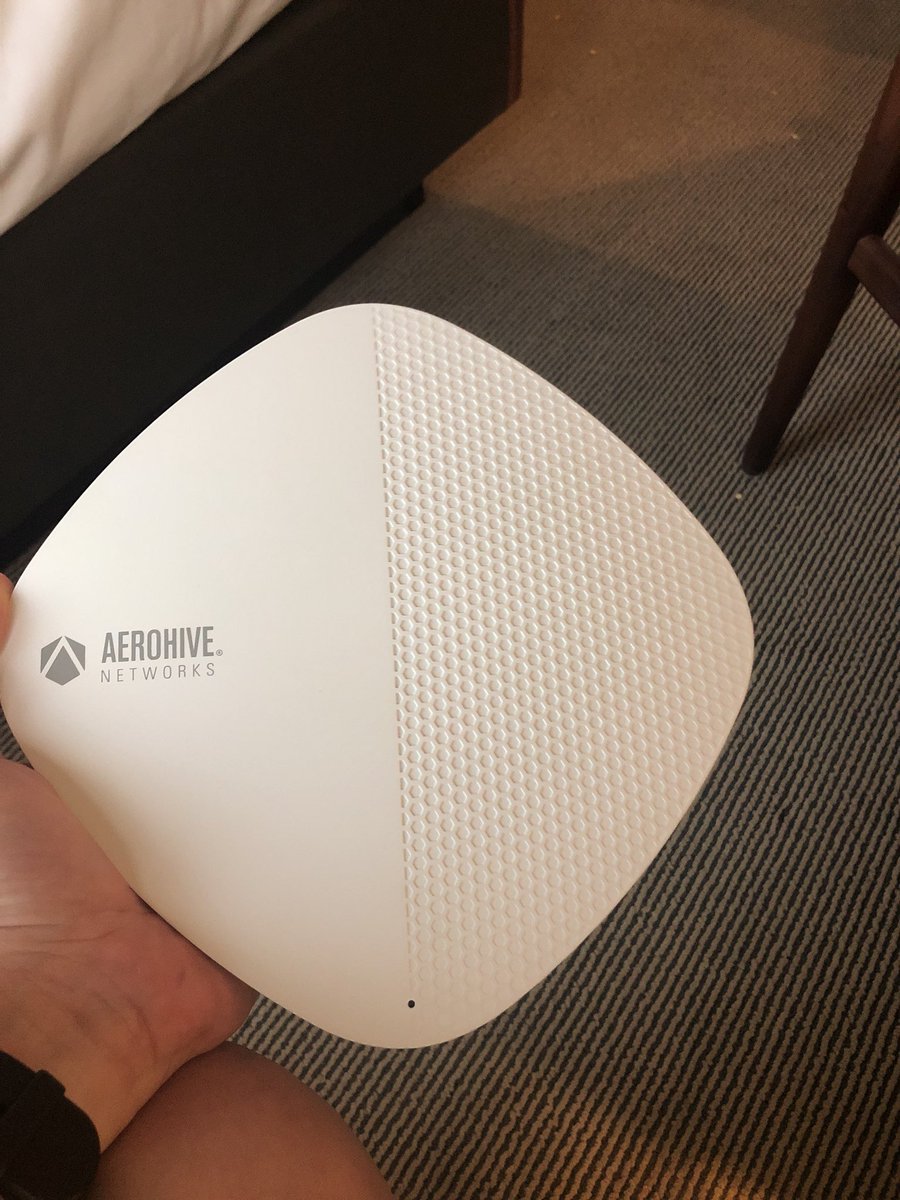

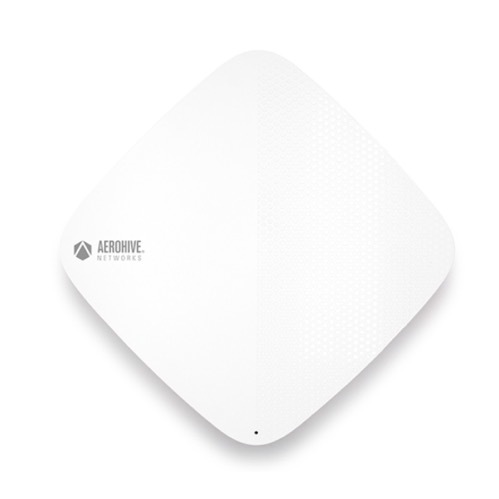

Aerohive AP630 (Siêu Wifi cao cấp chuẩn AX, Wifi 6, Mu-MiMo)

₫ 11.800.000 9.800.000 ₫ Giảm 17%

Thời gian bảo hành: 12 tháng (Không bảo hành cháy, nổ, chập điện, sét đánh)

Tình trạng hàng: Like new 99%

Tính năng: The AP630 is designed for high performance environments, combining the latest in Wi-Fi standards (IEEE 802.11ax technology) with Aerohive’s software defined network architecture and HiveManager network management system. Powered by HiveOS and the innovative distributed Cooperative Control architecture, AP630 brings the best of capacity and advanced high-efficiency 802.11ax technology. In addition, the integrated BLE radio and a USB interface in the access point opens up a multitude of deployment use-cases in IoT and proximity/location-oriented services

Dịch vụ khuyến mãi: Khách hàng là đại lý của Muawifi.com, Phatsongwifi.com hoặc khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0938912229 để có giá tốt.

Kho hàng: Liên hệ

Review sản phẩm

Số lượng:

Nhà bán lẻ: phatsongwifi.com

  • delivery
    Giao hàng & thu tiền tận nơi trên toàn quốc
  • delivery
    Đổi trả trong vòng 7 ngày (Áp dụng cho các sản phẩm được dùng thử)
  • delivery
    Bảo hành kỹ thuật 1 đổi 1 trong thời gian 30 ngày.
  • delivery
    Nhà cung cấp giải pháp mạng và wifi chuyên nghiệp.
  • delivery
    Liên hệ. 0901188385 - 0938912229
  • delivery
    Liên hệ. Skype: hvdung.itnet

The AP630 is designed for high performance environments, combining the latest in Wi-Fi standards (IEEE 802.11ax technology) with Aerohive’s software defined network architecture and HiveManager network management system. Powered by HiveOS and the innovative distributed Cooperative Control architecture, AP630 brings the best of capacity and advanced high-efficiency 802.11ax technology. In addition, the integrated BLE radio and a USB interface in the access point opens up a multitude of deployment use-cases in IoT and proximity/location-oriented services.

The AP630 benefits from an AI-driven Wi-Fi architecture capable of self-organizing, self-learning, self-healing and self-optimizing in the most challenging environments. Cooperative Control eliminates single points of failure and bottlenecks, delivering stability and unbridled performance, complimenting the capabilities of HiveOS - a stateful L2-L7 DPI firewall for context-based access security, advanced and customizable QoS for traffic optimization, intelligent meshing algorithms, Private Pre-Shared Key (PPSK) and much more.

All Aerohive APs can be centrally managed using Aerohive’s out-of-band cloud network management system - HiveManager. HiveManager is an industry-leading and visionary approach to cloud-managed networking, built from the ground up to take full advantage of the SD-LAN solution from Aerohive. Working in tandem with Aerohive’s HiveOS, HiveManager leverages state-of-the-art cloud technology. Benefit from unified, fullstack management of Wi-Fi, switching and routing, centralized monitoring and configuration, real-time and historical reporting, simplified troubleshooting, integrated RF planner tools and much more.

HiveManager is available in two editions: Connect and Select. The Connect solution is bundled with Aerohive access points and switches and is free for the lifetime of the device. Connect is the perfect solution for those looking to provide robust, yet enterprise-grade connectivity, without having to invest in the full suite of management features. The optional upgrade to Select unlocks a multitude of advanced features and capabilities that enhance network management, security and visibility.

Aerohive AP630 Specifications
Radio Specifications

Wireless Frequency Range

  • USA: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz, 5.725 ~ 5.85 GHz
  • Europe: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
  • Japan: 2.400 ~ 2.497 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
  • China: 2.400 ~ 2.483 GHz, 5.725 ~5.85 GHz
Channel Support

802.11 b/g/n/ax

  • US/Canada: 11 (1 ~ 11)
  • Major European country: 13 (1 ~ 13)
  • France: 4 (10 ~ 13)
  • Japan: 11b: 14 (1~13 or 14th), 11g: 13 (1 ~ 13)
  • China: 13 (1 ~ 13)

802.11 a/n/ac/ax

  • US/Canada: 24 non-overlapping channels (36,40,44,48,52,56,60,64;100,104,108, 112,116,120,124,128,132,136,140; 149,153,157,161,165)
  • Europe: 19 non-overlapping channel (36,40,44,48,52,56,60,64;100,104,108,112, 116,120,124,128,132,136,140)
  • Japan: 19 non-overlapping channels (36,40,44,48,52,56,60,64;100,104,108,112, 116,120,124,128,132,136,140)
  • China: 5 non-overlapping channels (149,153,157,161,165)
Modulation Technology

802.11 Legacy a/b/g

  • DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
  • DSSS (Direct Sequence Spread Spectrum) with DBPSK (Differential Binary Phase Shift Keying 1 Mbps), DQPSK (Differential Quaternary Phase Shift Keying 2 Mbps), and CCK (Complementary Code Keying 5.5 & 11 Mbps), and OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6, 9 Mbps. QPSK for 12, 18 Mbps; 16QAM for 24, 36 Mbps; 64QAM for 48, 54 Mbps)

802.11n

  • OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11ac

  • OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)

802.11ax

  • OFDMA (1024-QAM)
Mounting
  • Wall or ceiling mount
Interfaces
  • 2x 10/100/1000 Gigabit Ethernet
  • USB support for future IoT use cases
  • Console port for CLI access
  • Built in BLE for iBeacon and beacon management applications
Radios
  • Dual Radio AP, 2.4 GHz and 5 GHz, simultaneous dual band
  • 2.4 GHz, 802.11b/g/n/ax, 4x4
  • 5 GHz, 802.11 a/n/ac/ax, 4x4
  • 160 MHz, 1024-QAM supported
PoE
  • 802.3at (PoE+)
  • Typical: 15.4 W. Max: 17.8 W
Environmental
  • Operating Temperature: 0 to 40° C
  • Storage Temperature: -40 to 70° C
  • Humidity: 10 to 95%
  • MTBF: >500,000 Hours @ 25º C (estimate)
  • RoHS: -2 Compliant
Power Consumption
  • 802.3af Input: Typical 11.3 W, Max 12.4 W
  • 802.3at Input: Typical 23.6 W, Max 24.9 W
Physical
  • Dimensions: 205mm x 205mm x 37mm
  • Weight: .53lb (240g)
Antenna
  • 4x Dual Band, Omni directional antenna plus 1x Bluetooth Antenna

Peak Antenna Gain:

  • 2.4 GHz Omni Directional, gain 4.8 dBi
  • 5 GHz Omni Directional, gain 5.2 dBi
  • Bluetooth Omni Directional, gain 4.2 dBi
