Phatsongwifi
Mỹ Thương hiệu: Aerohive

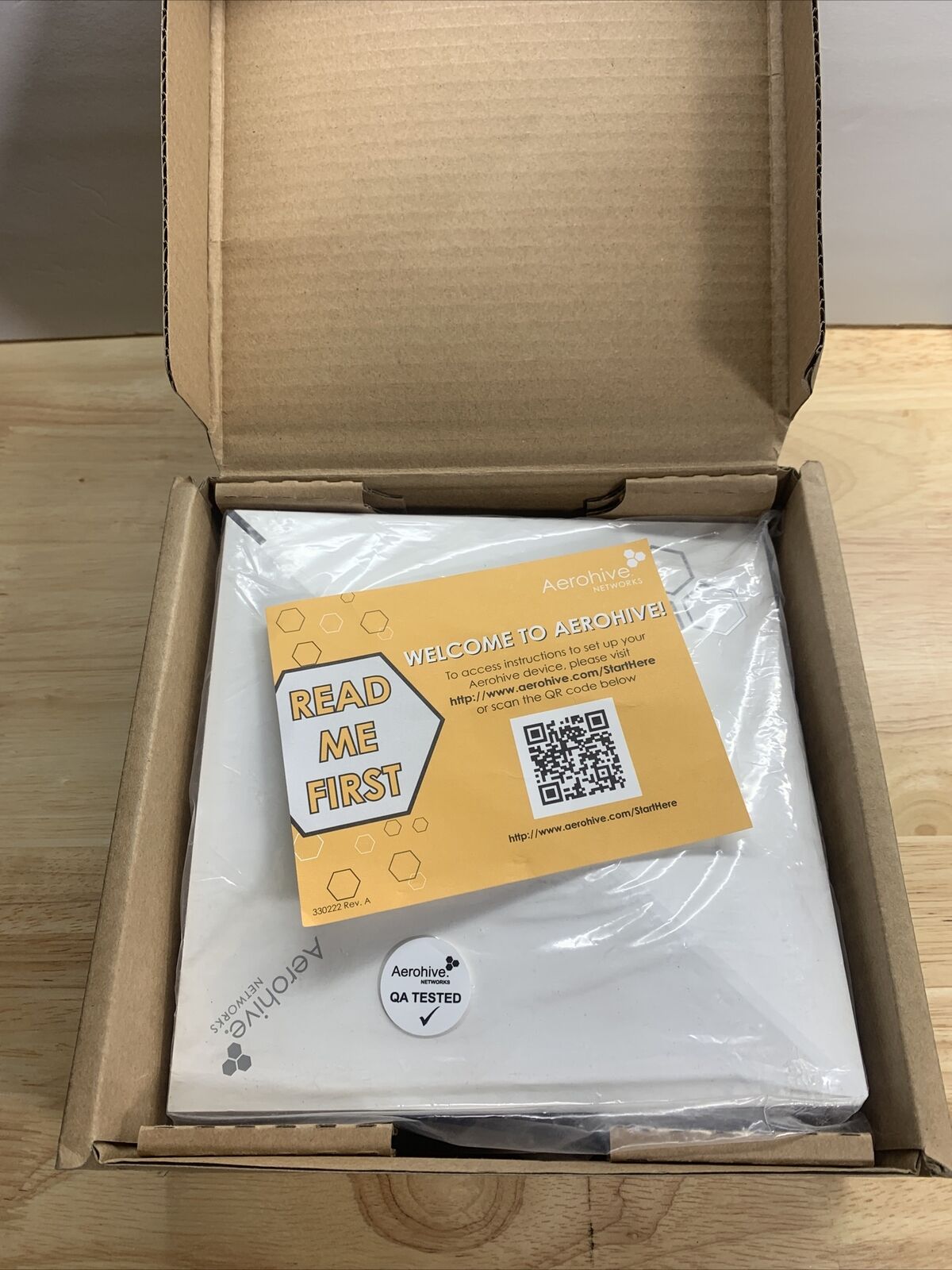

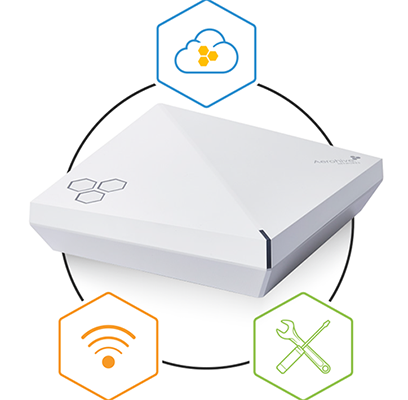

Thiết bị Wifi AC Aerohive AP250 (Fullbox New)

Hàng đẹp, như mới
Giá: Liên hệ
Bảo hành:
Tình trạng
Fullbox New (Hàng nhập fullbox)
Part Number
AP250 New
Kho hàng
Còn hàng
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0907591863 - 0396827937 để có giá tốt.
Mô tả

Aerohive AP250 quản lý Cloud 100%, thiết bị quản lý wifi chuyên dụng. Thương hiệu USA. Phù hợp cho Công ty, Văn Phòng, Quán Cafe, Nhà Hàng và Gia đình ...

Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Specifications:

Specifications
Radio Specifications—802.11a
  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11b
  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
Radio Specifications—802.11g
  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11n
  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0–MCS23 (6.5Mbps - 450Mbps)
  • 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation
Radio Specifications—802.11ac
  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps - 1300Mbps), NSS = 1-3
  • 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
Included Mounting Options
  • Wall Mount
  • Ceiling Tile flush 15/16” and Wall Mount locking accessory included with AP
 Mounting
  • Desktop
  • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
  • Ceiling Tile flush 3/8”, 9/16” sold as an accessory
  • Suspend Mount sold as an accessory
  • Plenum Mount sold as an accessory
  • Silhouette and Interlude sold as an accessory
Antennas
  • 6 + 2 internal Wi-Fi antennas for spatial and polarization diversity
  • 1x BLE internal antenna
Interfaces
  • Two Autosensing 10/100/1000 Base-T Ethernet ports. PoE/PoE+ capability on one of the ports
  • RJ-45 console port
  • Standard USB port
Physical
  • WxDxH: 7.25” x 7.25” x 1.87”(18.4 cm x 18.4 cm x 1.87cm)[plus .25”, mounting hardware – 2.12” (5.4 cm) H total ]
  • Weight: 1.8 lb ( 0.81 kg)
Environmental
  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 95%
Environmental Compliance
  • UL2043
Power Specifications
  • IEEE 802.3af PoE Power: Full 3x3:3 802.11ac MU-MIMO performance, BLE and Dual 5 GHz. No USB port, no 2nd Ethernet port.
  • IEEE 802.3at PoE Power: full set of features (all of the above plus USB port and 2nd Ethernet port).
Power Options
  • Power Draw: Typical PoE 11.75W, Max PoE 16.07W
Certifications
  • WPA/WPA2
  • Voice-Enterprise



Transmit Power Table

2.4 GHZ DATA RATE POWER (dBm)
11b 1,2,5.5,11 20
11G 54 Mbps 17
48 Mbps 18
36 Mbps 19
6 Mbps 19
11n HT20 MCS7, 15, 23 17
MCS6, 14, 22 18
MCS5, 13, 21 19
MCS0, 1, 2, 3, 4 19
MCS8, 9, 10, 11, 12 19
MCS16, 17, 18, 19, 20 19
5 GHZ DATA RATE POWER (dBm)
11a 54 Mbps 17
48 Mbps 18
36 Mbps 19
6 Mbps 19
11n HT20 MCS7, 15,23 17
MCS6, 14, 22 18
MCS5, 13, 21 19
MCS0, 2, 3, 4, 8, 9, 10, 11 19
MCS12, 16, 17, 18, 19, 20 19
11n HT40 MCS7, 15, 23 17
MCS6, 14, 22 18
MCS5, 13, 21 19
MCS0, 1, 2, 3, 4, 8 19
MCS9, 10, 11, 12, 16 19
MCS17, 18, 19, 20 19
11ac VHT 256QAM@3/4 Code Rate 14
256QAM@5/6 Code Rate 13



Receive Sinsitivity Table

2.4 GHZ DATA RATE SENSITIVITY
11b 1 Mbps -100
11 Mbps -93
11g 6 Mbps -95
36 Mbps -86
48 Mbps -82
54 Mbps -80
11n HT20 MCS0, 8, 16 -95
MCS5, 13, 21 -81
MCS6, 14, 22 -79
MCS7, 15, 23 -77
5 GHZ DATA RATE SENSITIVITY
11a 6 Mbps -95
36 Mbps -86
48 Mbps -81
54 Mbps -80
11n HT20 MCS0, 8, 16 -91
MCS5, 13, 21 -78
MCS6, 14, 22 -76
MCS7, 15, 23 -74
11n HT40 MCS0, 8, 16 -88
MCS5, 13, 21 -75
MCS6, 14, 22 -73
MCS7, 15, 23 -71
11ac HT20 Code Rate 3/4 -65
Code Rate 5/6 -63
11ac HT40 Code Rate 3/4 -62
Code Rate 5/6 -60
11ac HT80 Code Rate 3/4 -59
Code Rate 5/6 -57



Radiation Patterns

Aerohive Radiation Patterns

Specifications:

Specifications
Radio Specifications—802.11a
  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11b
  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
Radio Specifications—802.11g
  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11n
  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0–MCS23 (6.5Mbps - 450Mbps)
  • 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation
Radio Specifications—802.11ac
  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps - 1300Mbps), NSS = 1-3
  • 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
Included Mounting Options
  • Wall Mount
  • Ceiling Tile flush 15/16” and Wall Mount locking accessory included with AP
 Mounting
  • Desktop
  • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
  • Ceiling Tile flush 3/8”, 9/16” sold as an accessory
  • Suspend Mount sold as an accessory
  • Plenum Mount sold as an accessory
  • Silhouette and Interlude sold as an accessory
Antennas
  • 6 + 2 internal Wi-Fi antennas for spatial and polarization diversity
  • 1x BLE internal antenna
Interfaces
  • Two Autosensing 10/100/1000 Base-T Ethernet ports. PoE/PoE+ capability on one of the ports
  • RJ-45 console port
  • Standard USB port
Physical
  • WxDxH: 7.25” x 7.25” x 1.87”(18.4 cm x 18.4 cm x 1.87cm)[plus .25”, mounting hardware – 2.12” (5.4 cm) H total ]
  • Weight: 1.8 lb ( 0.81 kg)
Environmental
  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 95%
Environmental Compliance
  • UL2043
Power Specifications
  • IEEE 802.3af PoE Power: Full 3x3:3 802.11ac MU-MIMO performance, BLE and Dual 5 GHz. No USB port, no 2nd Ethernet port.
  • IEEE 802.3at PoE Power: full set of features (all of the above plus USB port and 2nd Ethernet port).
Power Options
  • Power Draw: Typical PoE 11.75W, Max PoE 16.07W
Certifications
  • WPA/WPA2
  • Voice-Enterprise



Transmit Power Table

2.4 GHZ DATA RATE POWER (dBm)
11b 1,2,5.5,11 20
11G 54 Mbps 17
48 Mbps 18
36 Mbps 19
6 Mbps 19
11n HT20 MCS7, 15, 23 17
MCS6, 14, 22 18
MCS5, 13, 21 19
MCS0, 1, 2, 3, 4 19
MCS8, 9, 10, 11, 12 19
MCS16, 17, 18, 19, 20 19
5 GHZ DATA RATE POWER (dBm)
11a 54 Mbps 17
48 Mbps 18
36 Mbps 19
6 Mbps 19
11n HT20 MCS7, 15,23 17
MCS6, 14, 22 18
MCS5, 13, 21 19
MCS0, 2, 3, 4, 8, 9, 10, 11 19
MCS12, 16, 17, 18, 19, 20 19
11n HT40 MCS7, 15, 23 17
MCS6, 14, 22 18
MCS5, 13, 21 19
MCS0, 1, 2, 3, 4, 8 19
MCS9, 10, 11, 12, 16 19
MCS17, 18, 19, 20 19
11ac VHT 256QAM@3/4 Code Rate 14
256QAM@5/6 Code Rate 13



Receive Sinsitivity Table

2.4 GHZ DATA RATE SENSITIVITY
11b 1 Mbps -100
11 Mbps -93
11g 6 Mbps -95
36 Mbps -86
48 Mbps -82
54 Mbps -80
11n HT20 MCS0, 8, 16 -95
MCS5, 13, 21 -81
MCS6, 14, 22 -79
MCS7, 15, 23 -77
5 GHZ DATA RATE SENSITIVITY
11a 6 Mbps -95
36 Mbps -86
48 Mbps -81
54 Mbps -80
11n HT20 MCS0, 8, 16 -91
MCS5, 13, 21 -78
MCS6, 14, 22 -76
MCS7, 15, 23 -74
11n HT40 MCS0, 8, 16 -88
MCS5, 13, 21 -75
MCS6, 14, 22 -73
MCS7, 15, 23 -71
11ac HT20 Code Rate 3/4 -65
Code Rate 5/6 -63
11ac HT40 Code Rate 3/4 -62
Code Rate 5/6 -60
11ac HT80 Code Rate 3/4 -59
Code Rate 5/6 -57



Radiation Patterns

Aerohive Radiation Patterns
