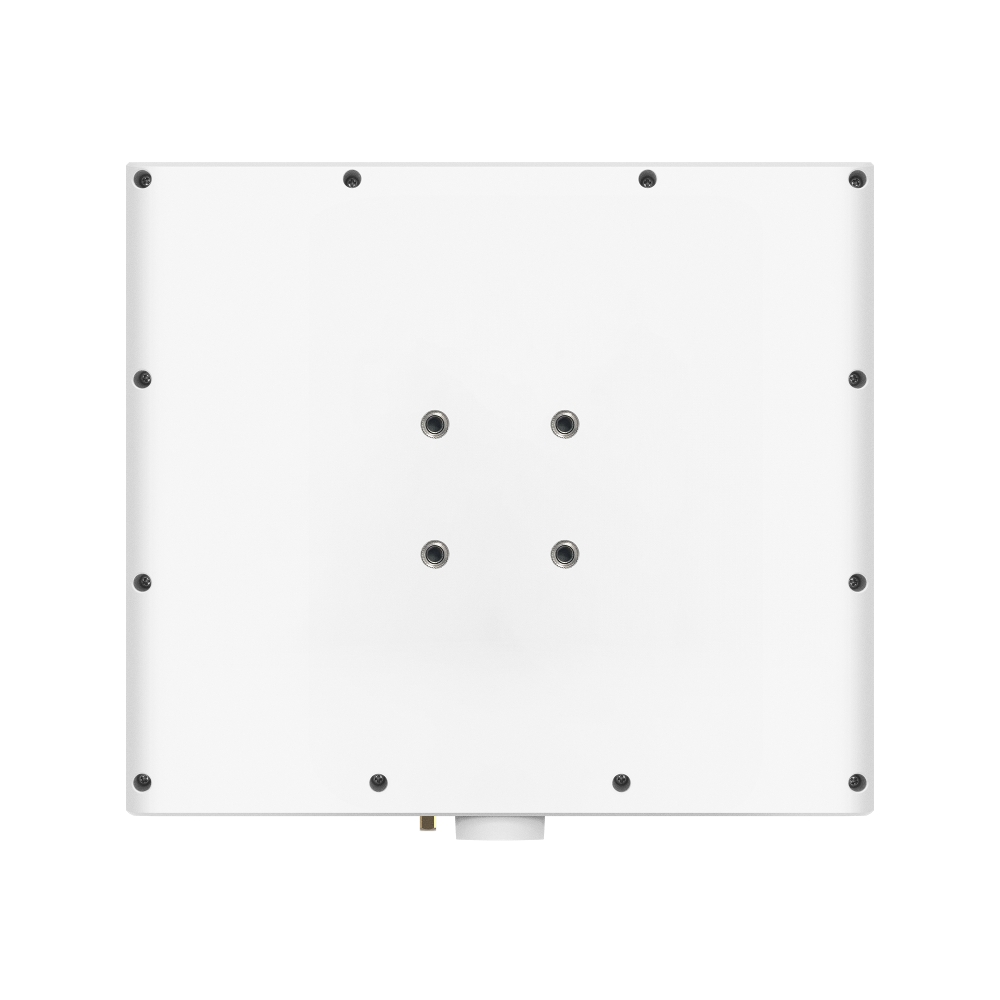

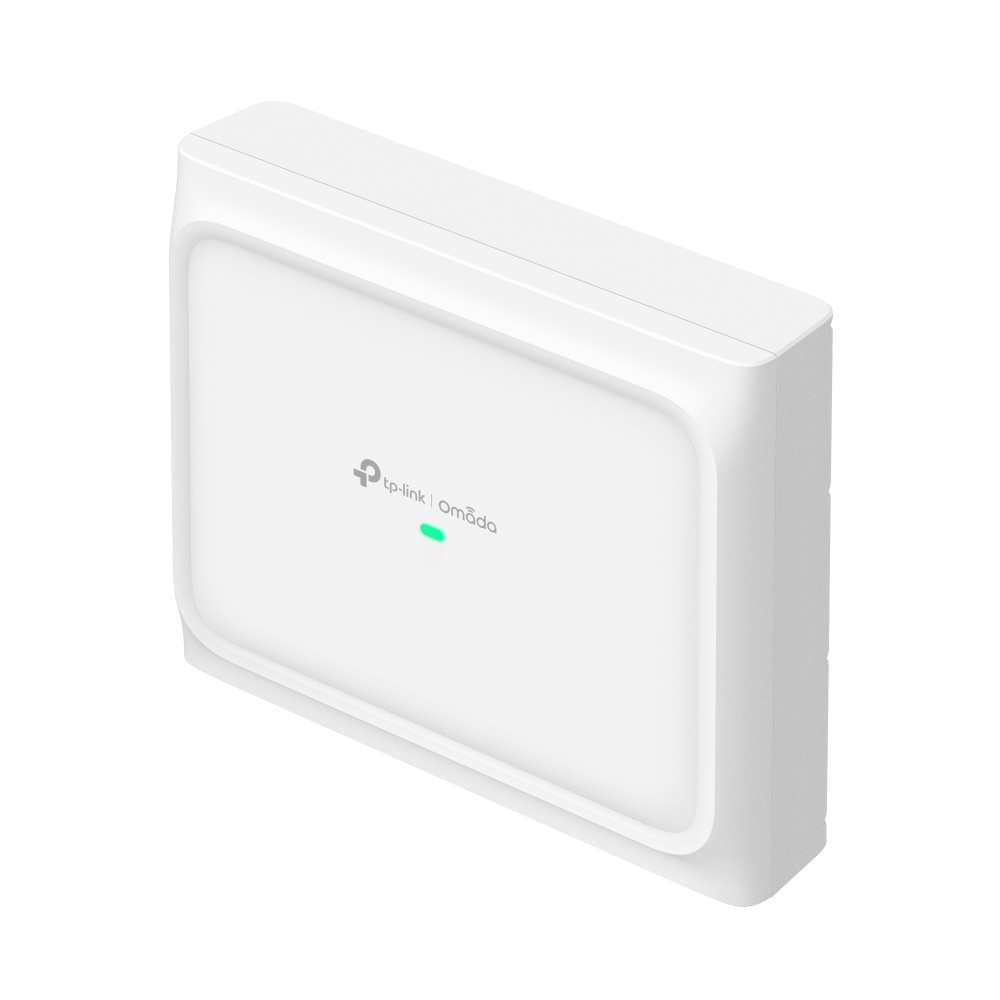

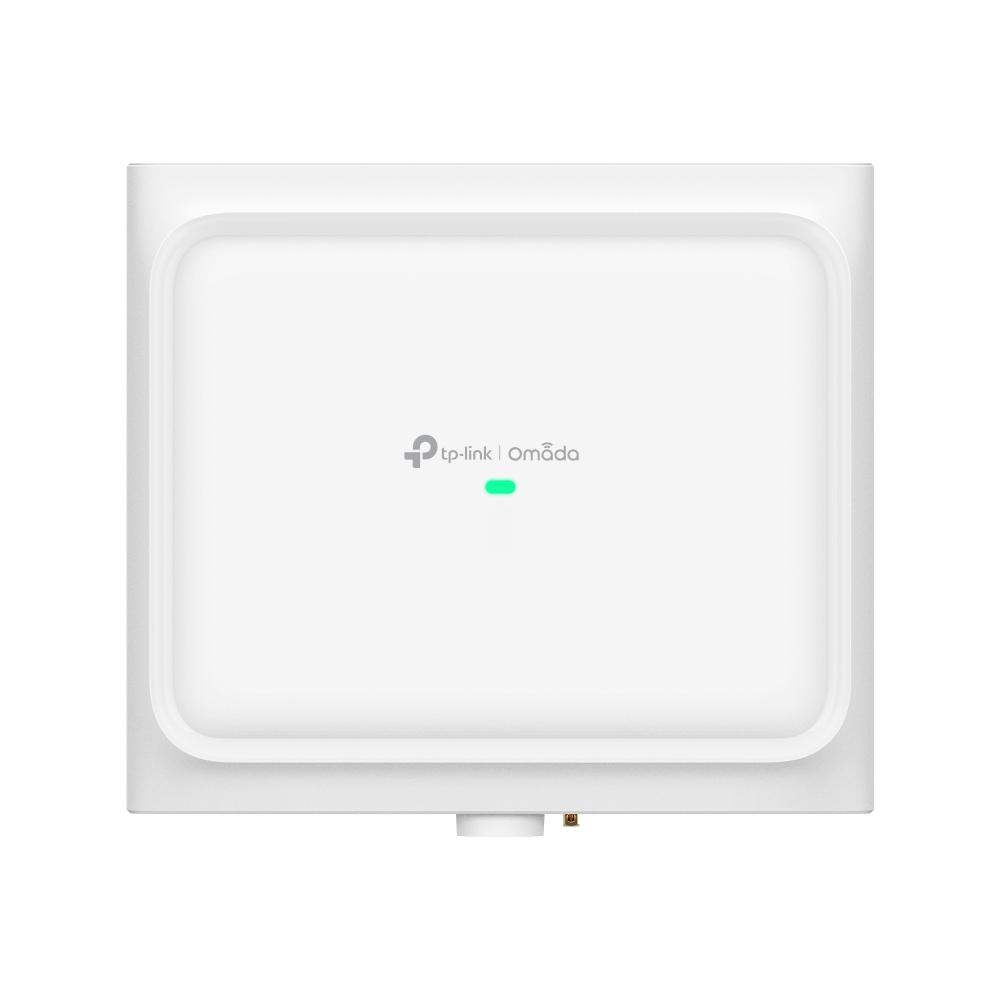

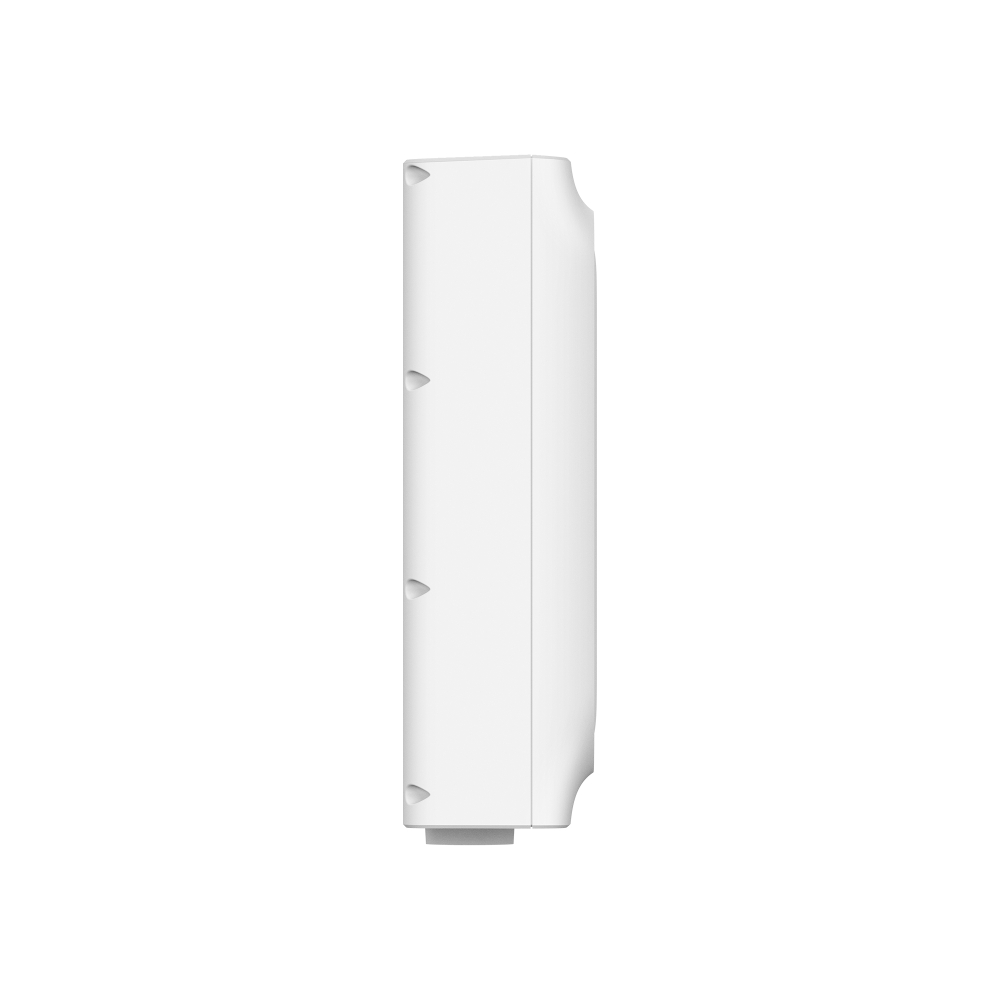

Thiết Bị Phát Sóng Wifi TP-Link EAP650 D120-Outdoor | AX3000 Indoor/Outdoor WiFi 6 Access Point

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: EAP650 D120-Outdoor
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: AX3000 Indoor/Outdoor WiFi 6 Access Point

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Omada AX3000
Indoor/Outdoor WiFi 6
Access Point

EAP650 D120-Outdoor

WiFi 6 Speeds up to
3.0 Gbps^†
Directional
Antennas
Focused & Ultra-Range Coverage
PoE+
Support
Omada Seamless Roaming and Mesh
Centralized Management via
App or Web
Automatic WLAN
Optimization
IP68 Weatherproof Enclosure

Designed for Warehouses

The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.

Durable Waterproof
Enclosure
Operating Temperature
of -30°C to 70°C
No Ingress
of Dust

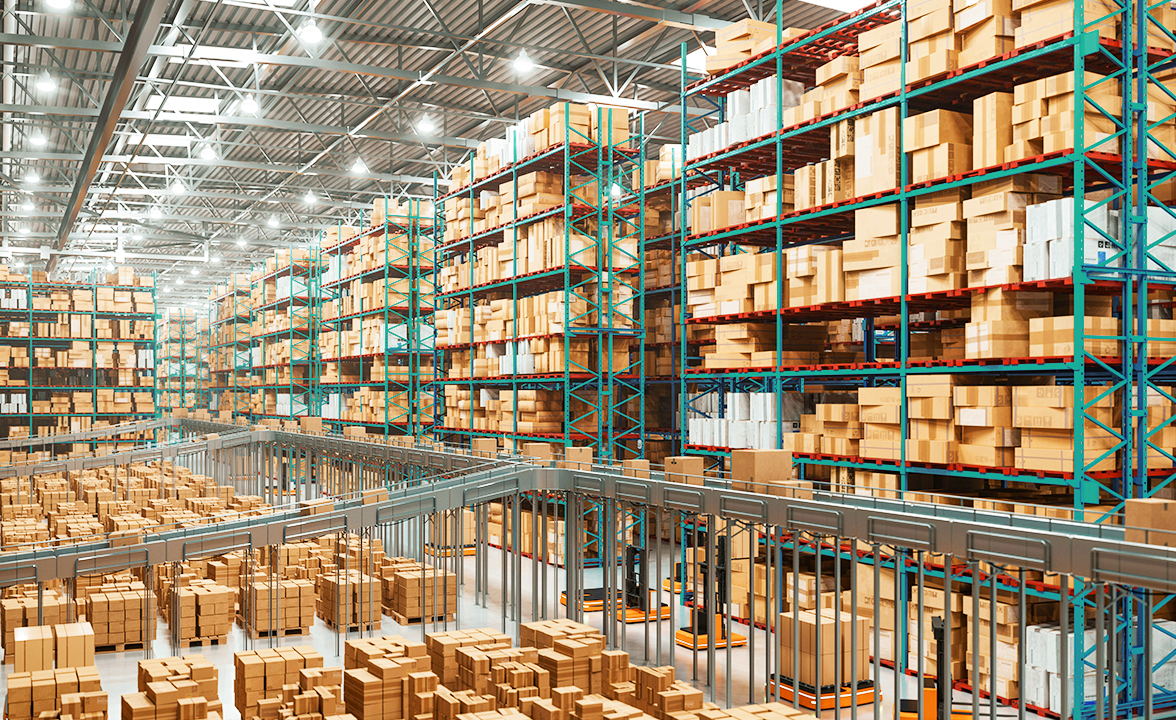

Warehouse Shelving Areas

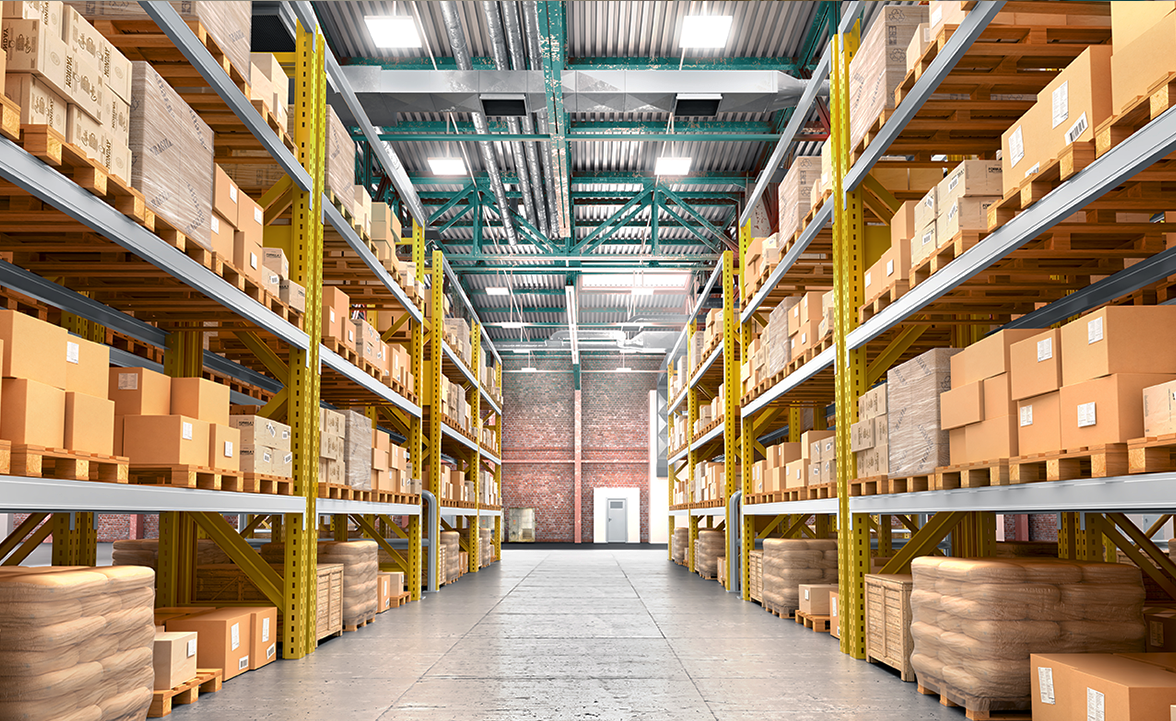

Storehouses

Elevate WiFi Experience for Shelf Areas with Directional Antennas

Equipped with 4× built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.*

Recommended Installation Height

49 ft / 15 m
Recommended Coverage Length

115 ft / 35 m

Higher Installation

Less Disruption

Longer Coverage

Directional Antennas for
Ultra-Range Coverage in Outdoor Scenarios

2.4 GHz up to

787 ft /240 m*
5 GHz up to

1640 ft /500 m*

*Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D120-Outdoor which the client's signal strength is ≥ -75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

Stay Smooth with Seamless Roaming

Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.

Seamless Roaming

Seamless Integration into Omada SDN

On-Premises Controllers

Omada Cloud-Based Controller^△

Omada Hardware Controller

Omada Software Controller

WiFi 6 Indoor/Outdoor AP

EAP650 D120-Outdoor

Omada PoE Switch

Omada VPN Gateway

Internet

Cloud Access

Web Browser

Omada App

TÍNH NĂNG PHẦN CỨNG

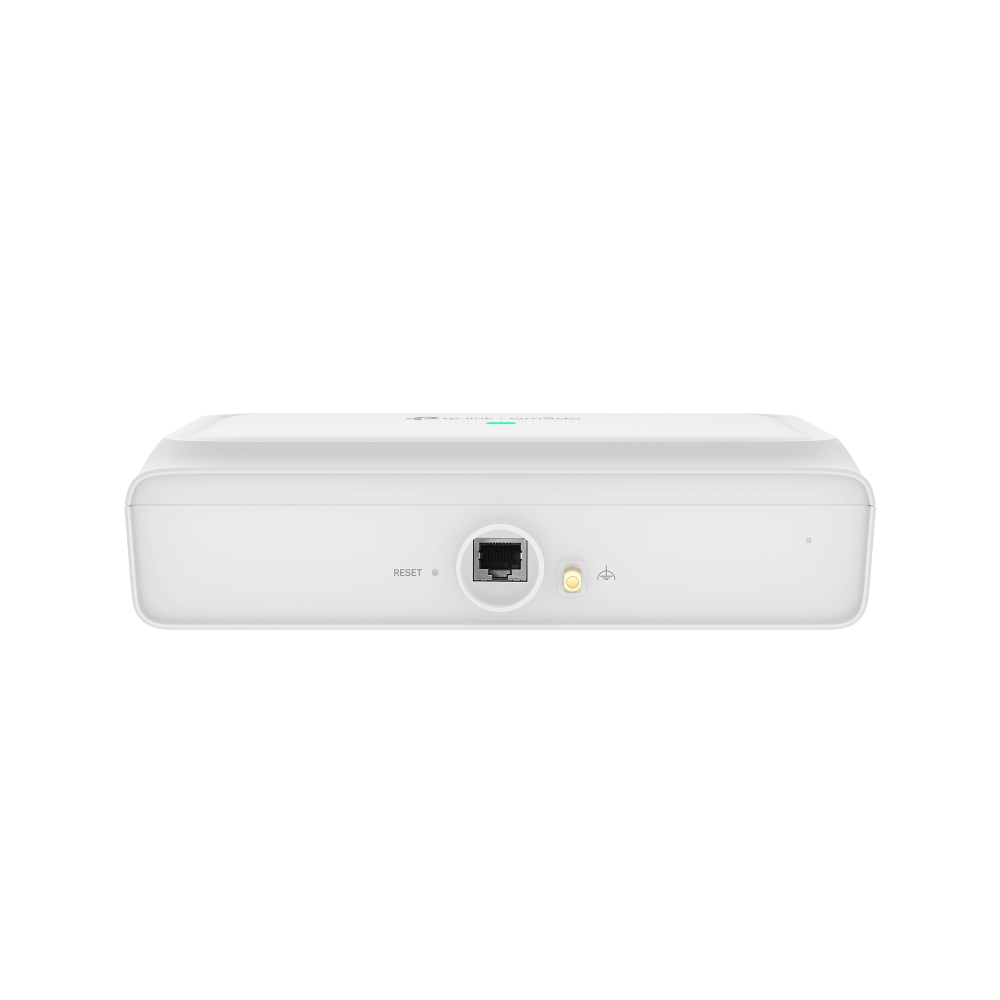

Giao diện	1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
Nút	Reset
Bộ cấp nguồn	• 802.3at PoE • 48V Passive PoE
Điện năng tiêu thụ	• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Kích thước ( R x D x C )	8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm)
Ăng ten	Built-in Directional Antennas: • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical
Bluetooth	Yes
Weatherproof Enclosure	IP68
Lắp	Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately
TÍNH NĂNG WI-FI
Coverage	• 2.4 GHz: 200+ m * • 5 GHz: 500+ m *
Concurrent Clients	250+ **
Chuẩn Wi-Fi	IEEE 802.11 a/b/g/n/ac/ax
Băng tần	2.4 GHz, 5 GHz
Tốc độ tín hiệu	574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) †
Tính năng Wi-Fi	• 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh § • Seamless Roaming(802.11k/v/r) § • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP
Bảo mật Wi-Fi	• Captive Portal Authentication § • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Công suất truyền tải	• CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)
QUẢN LÝ
Omada App	Yes
Restore & Backup	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Quản lý kiểm soát truy cập MAC	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
SSH	Yes
Quản lý dựa trên Web	Yes
Quản lý nhiều trang Web	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	• Access Point EAP650 D120-Outdoor • Mounting Kits • Installation Guide • Waterproof Kit
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Môi trường	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
