Thiết Bị Phát Sóng Wifi TP-Link EAP615GP-Wall | Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: EAP615GP-Wall
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

AX1800 Wi-Fi 6 Wall Plate
GPON Access Point

EAP615GP-Wall

Integrates into Omada
Optical Networking
Unified Management for OLT^{^} and Omada Devices
One Fiber,
Multiple Services
WiFi 6
Gigabit ONU
Omada Mesh^#
& Seamless Roaming
PPSK &
Captive Portal
One-Click
Easy Setup
AC Power
Supply

Complete Omada Optical Networking Solution

The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.

Unified Management for OLT^{^} and Omada Devices
Quick, Easy
Adoption
Easy
Setup
Complete
Product Types
Zero-Touch
Provisioning
Easy
Monitoring

One Fiber, Multiple Services

Connect a fiber optic cable to the EAP615GP-Wall to connect cameras, PCs, and TVs to carry data, voice, wired and wireless internet, HD video, and VoIP services.

OND
(Splitter)

1× GPON Port

Fiber Cable

Copper Cable

RJ11 Cable

1× FXS RJ11 Port

2× Gigabit Ports

Phone

Camera

Seamless WiFi 6 Mesh Networking

Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.*
Omada Mesh^# and 802.11k/v roaming ensure a consistently smooth and reliable connection.

EAP615GP
-Wall

Roaming

EAP615GP
-Wall

TP-Link OLT^{^}

Five-Step Installation

1. Detach the faceplate of the junction box with a screwdriver

2. Secure the mounting bracket

3. Connect the AC power cable

AC Power Supply

4. Connect the optical fiber

5. Attach the EAP to the mounting bracket

TÍNH NĂNG PHẦN CỨNG

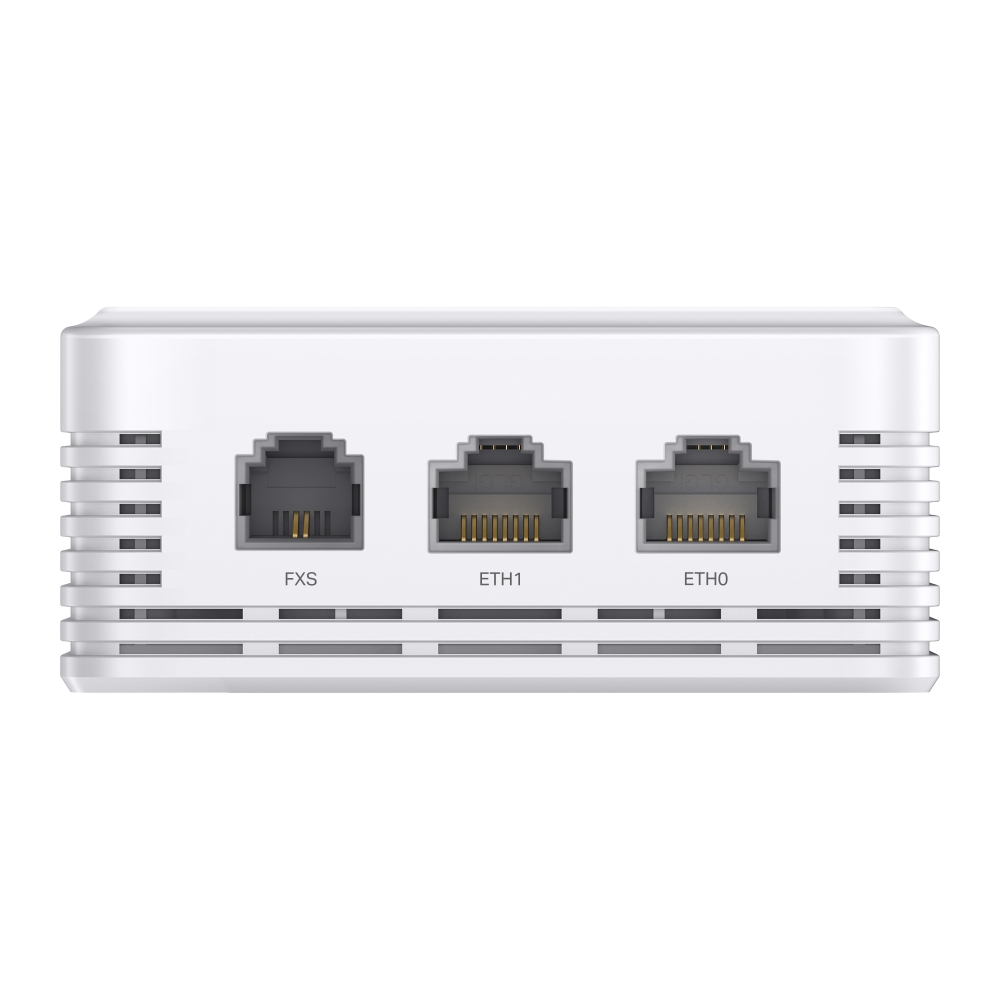

Giao diện	• 1x GPON Port • 1x FXS Port • 2x Gigabit RJ45 Ports
GPON Interface	• Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km
Nút	• Reset • LED
Bộ cấp nguồn	100–240V~ 50/60Hz, 0.5A
Điện năng tiêu thụ	12.2W
Khối lượng	320g
Kích thước ( R x D x C )	5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm)
Ăng ten	Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6.5 dBi
Lắp	Wall Mounting (Kits included)
TÍNH NĂNG WI-FI
Coverage	50㎡(600ft²) **
Concurrent Clients	120+ *
Chuẩn Wi-Fi	IEEE 802.11 a/b/g/n/ac/ax
Băng tần	2.4 GHz and 5 GHz
Tốc độ tín hiệu	• 5 GHz: 1201 Mbps † • 2.4 GHz: 574 Mbps
Tính năng Wi-Fi	• 2×2 (2.4G & 5G) MU-MIMO ‡ • HE80 (80 MHz Bandwidth) ‡ • OFDMA ‡ • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP
Bảo mật Wi-Fi	• Captive Portal Authentication § • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Công suất truyền tải	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <24 dBm(5 GHz, band3, EIRP) • FCC: <21 dBm (2.4 GHz) <21 dBm (5 GHz)
QUẢN LÝ
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Quản lý kiểm soát truy cập MAC	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Quản lý dựa trên Web	Yes
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.
KHÁC
Chứng chỉ	CE, FCC, RoHS, IC
Sản phẩm bao gồm	• EAP615GP-Wall • Wall Mounting Kit • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Môi trường	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
