Đài Loan Thương hiệu: Draytek

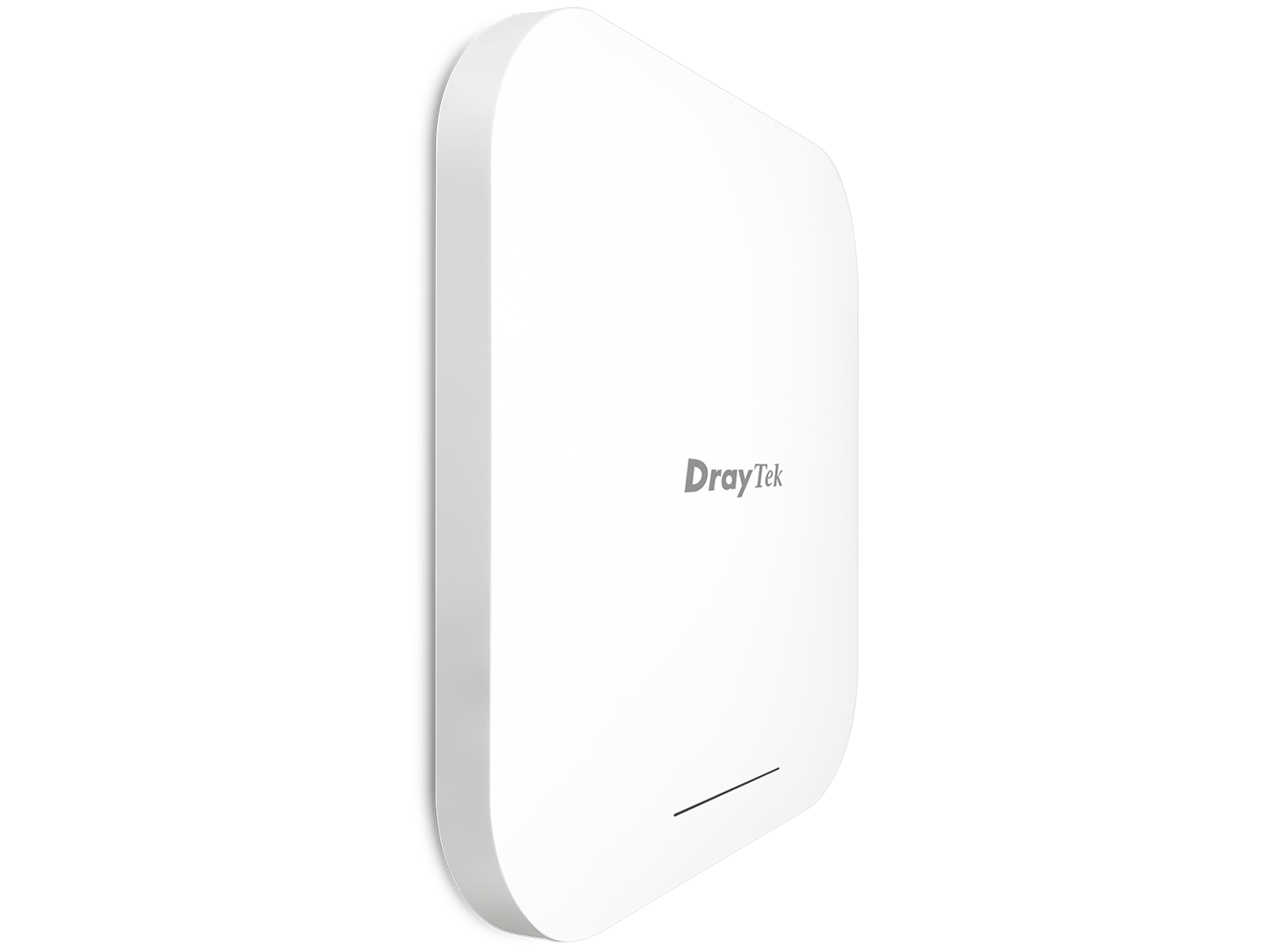

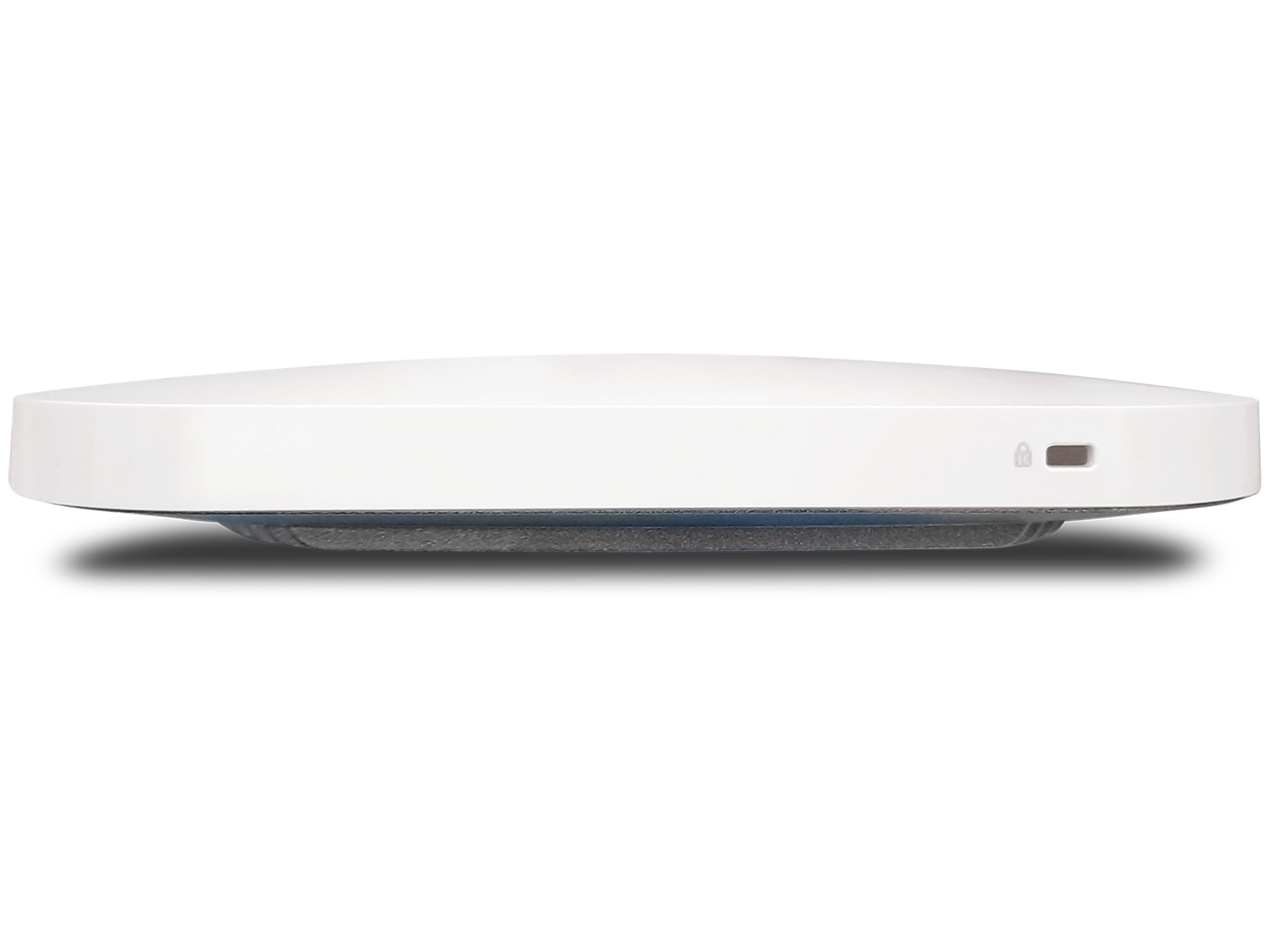

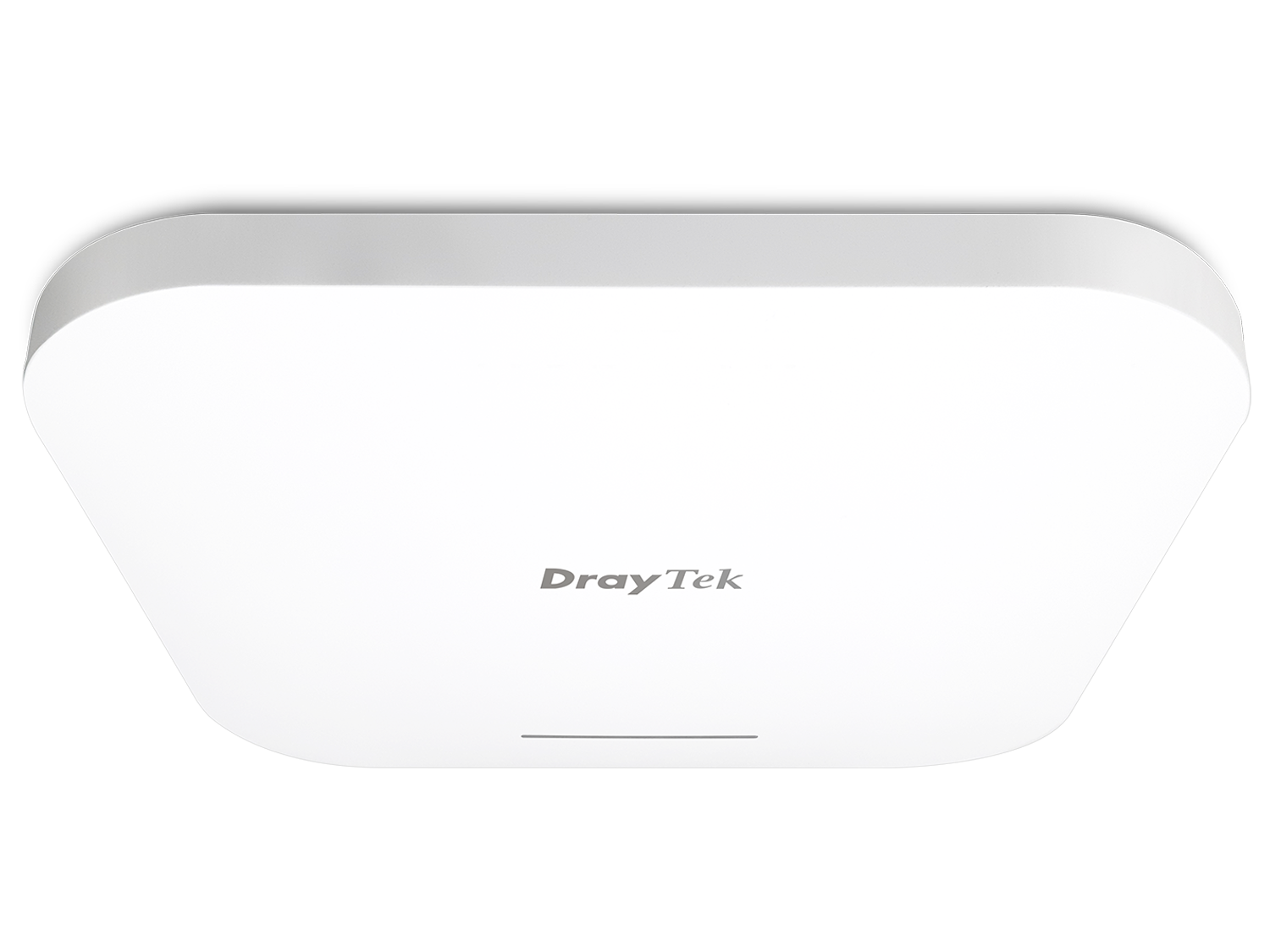

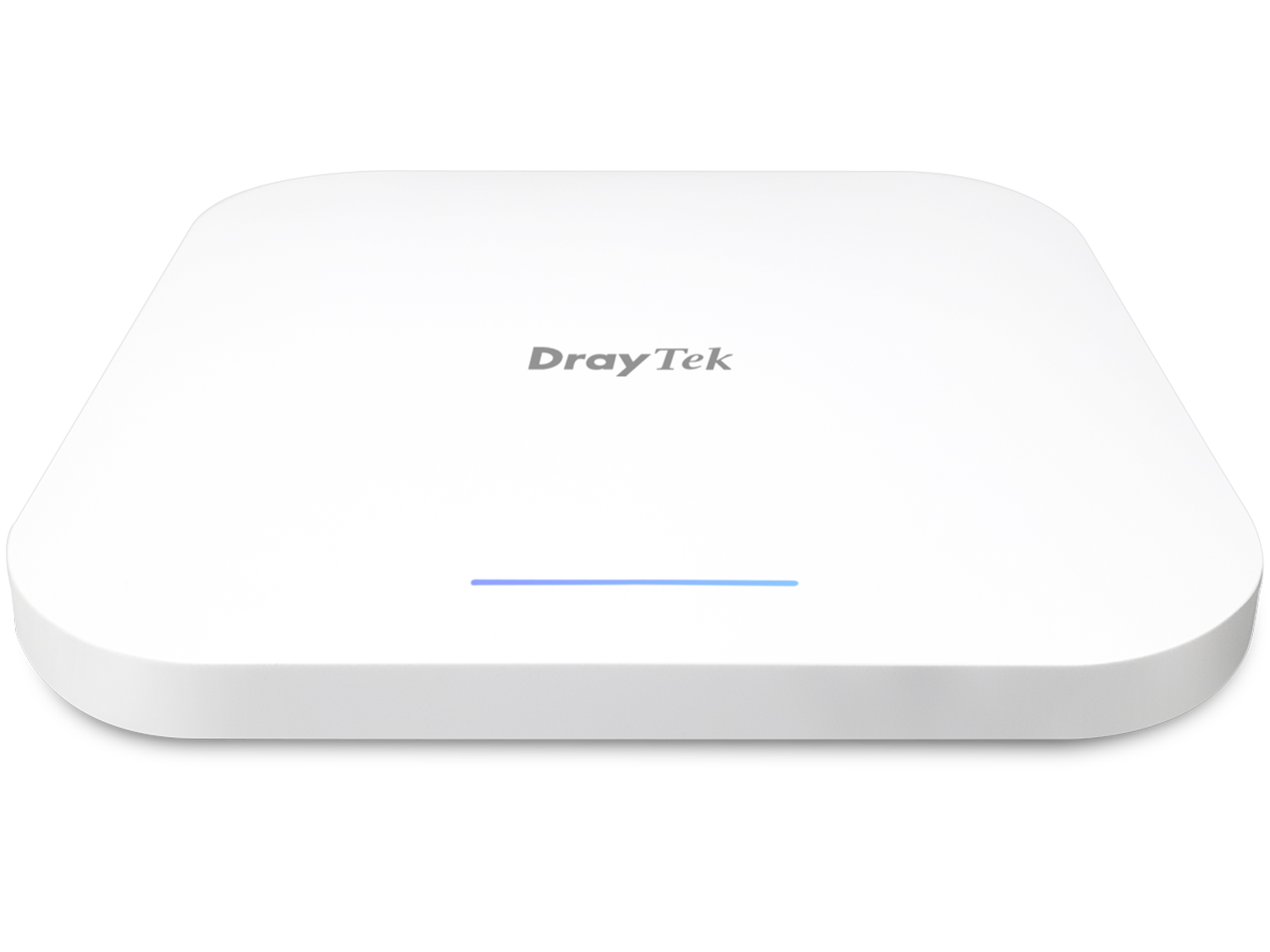

Thiết bị phát sóng wifi Draytek VigorAP 1060C | Wifi 6

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
VigorAP 1060C
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Mô tả

4x4 Dual Band WiFi 6 Ceiling AP

Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Pro Performance AP with Pro Management

VigorAP 1060C is the most powerful wireless AP we’ve ever made. With 3.6 Gbps aggregated max link rate, it’s suitable for high density environments. It can be cloud-managed by VigorACS, and also act as the master AP to manage up to 50 node VigorAPs in LAN.

Dual-Band

Concurrent 5GHz and 2.4GHz
& 1 x 2.4/5 GHz RF Analytics Band

AX3600

Delivers link rate up to 3.6 Gbps

256 Users

Acitve at maximum, 128 per radio

1x 2.5G LAN

PoE Capable Port

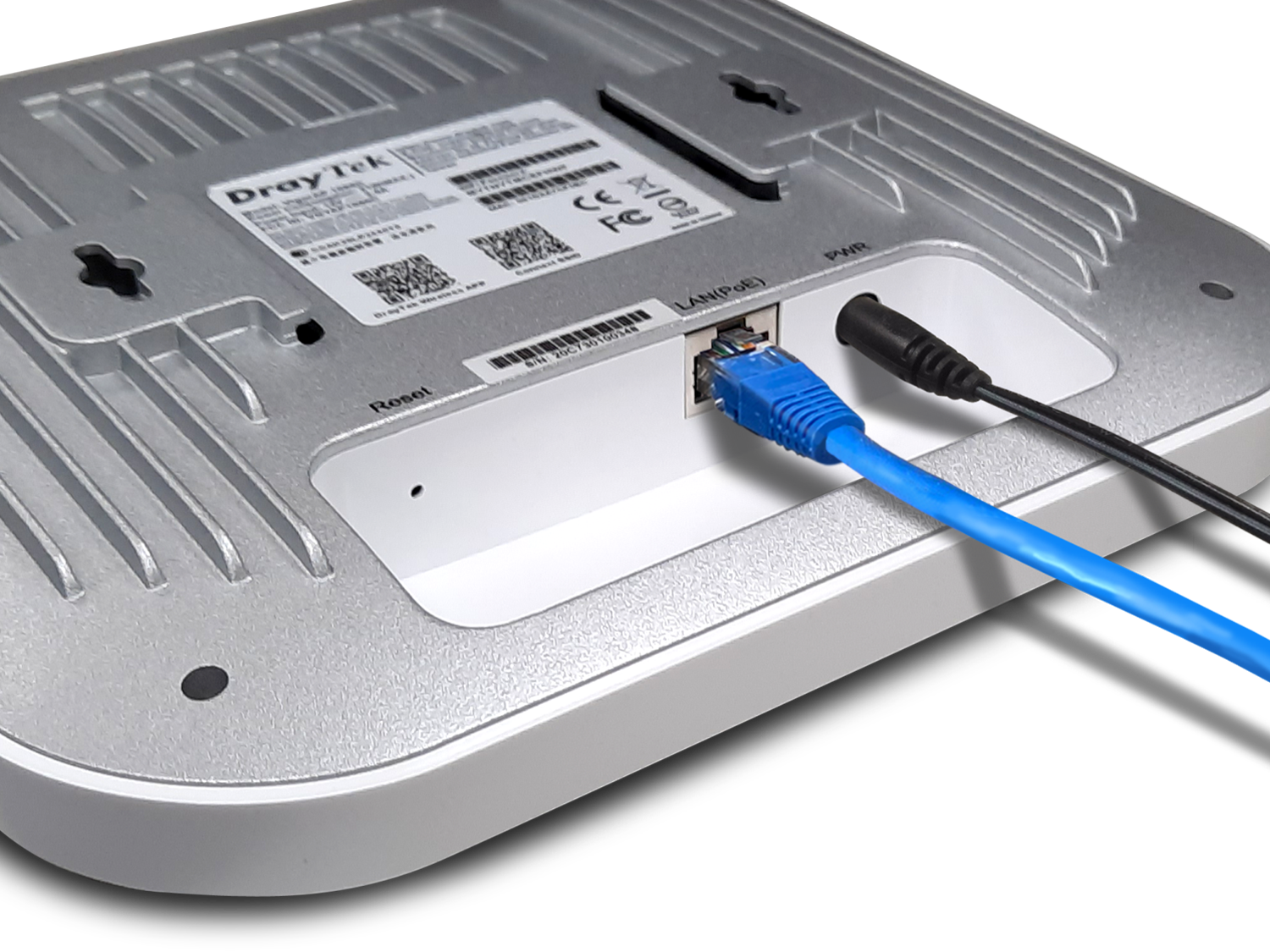

Interface

Interface of VigorAP 1060C

1Factory Reset Button

2LAN：2.5G/1G/100M/10M Base-T RJ-45
PoE-PD Support

3DC Power Input

4Security Lock

Key Features

wireless mesh
Mesh (Wireless model only)

Easily link to other VigorAP to expand the wireless network. Learn more

power over ethernet
PoE Power Supply

Simplify the infrastructure by getting data and power through a single cable.

SSID
Multiple SSID

Mapping Wi-Fi clients to different VLANs and have a different set of security standards Learn how

airtime fairness
Airtime Fairness

Equalize the transmission time of each client so the legacy devices won't slow everyone down. Learn more

band steering
Band Steering

Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed. Learn more

wi-fi roaming
Assisted Wi-Fi Roaming

Solve the sticky client problem and improve Wi-Fi roaming experience. Learn more

Schdule
Wi-Fi Scheduling

Schedule Wi-Fi On and Off to control wireless access and save energy.

RADIUS authentication
Local RADIUS Server

User profile database for local and external 802.1x authentication.

captive portal
Hotspot Web Portal

Market your business and communicate with the guests while offering hospitality WLAN. Learn more

wireless management
Central AP Management

Manage, maintain, and monitor VigorAP 1060C from the DrayTek routers. Learn more

Utilize Transmission Opportunity with OFDMA

OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.

Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.

OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.

OFDM
OFDM
OFDMA
OFDMA

Third Radio for RF Analytics & Security

RF Analytics & Auto Channel

VigorAP 1060C with a dedicated third radio is able to constantly monitor on all channels for airtime availability and channel utilization. It will always show the 3 best quality channels for Admin’s selection.

RF Analytics
Wireless Security with WIDS

The radio can also keep monitoring on rouge AP. When detecting unknown AP broadcasting the same SSID, VigorAP 1060C can notify network admin for further action.

WIDS Security

Client Management with Captive Portal

Hotspot with External Captive Portal Server

Working as NAS (network access server), VigorAP 1060C supports the 802.1x standard. It can redirect new clients to the designated portal server to go through the hotspot login process and receive corresponding RADIUS attributes and perform bandwidth limit and time limit accordingly. This function is ideal for retail, restaurants, coffee shops, and hospitality to do WiFi marketing and learn more about their clients.

Vigor AP Hostpot

Mobile Device Management

WiFi Roaming

Solve the sticky client problem and improve WiFi roaming experience.

Proactive Roaming

WiFi clients automatically hand-off to another AP/Router with a better signal strength when moving around in an area with multiple APs/Routers.

However, WiFi clients sometimes stick to the AP/Router with weak signal, and not switching to the one with better signal.

Assisted Roaming

VigorAP will disassociate the WiFi clients who are out of the effective transmission range, forcing them to pick up another AP/Router with a stronger signal.

Stronger Signal Guaranteed

Furthermore, with "Minimum RSSI with Adjacent AP" option, VigorAP can disassociate the client only when other AP/router has a stronger wireless signal, and keep client stayed when there’s no other AP/Router nearby.

Stronger Signal Guaranteed

By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.

Root AP for AP Management

VigorAP 1060C is capable of working as the Root AP and manage up to 50 Node APs within the same LAN subnet.

Root AP Management
Top-Level Root AP

AP Management can work alongside with Mesh in a more top-level manner. Root AP can manage wired APs which operate in either AP mode or Mesh Root mode. After receiving provision from Root AP, Mesh Root can then synchronize configuration with its mesh members accordingly.

In small installation within 8 APs, Mesh with wired and wireless nodes is handy; while in larger installation, hybrid solution with AP management and Mesh is more competent.

Retain High Performance

Unlike the performance decay brought by mesh wireless uplink, Node AP with wired uplink constantly provides high performance experience, and thus we always suggest to use wired uplink when possible.

Zero Touch Deployment

After auto-detecting and adding Node AP into management list, Root AP will provision relevant AP configurations to node APs.

Node AP Monitoring

Node APs are presented with IP address, operating channel, SSID of each radio, number of clients, and firmware version all in one page, and the AP offline can be easily spotted.

Three Modes in One

AP Mode

AP Mode
  • The mode mostly used
  • VigorAP acts as a bridge between wireless devices and wired Ethernet network, and exchanges data between them.
Pros
  • Less performance decay
Cons
  • Limited wireless coverage
  • Require physical wire to connect to the Ethernet

Range Extender

AP Mode
  • VigorAP act as a wireless repeater
  • It can be a Station and an AP at the same time
Pros
  • Compatibility among different brands
  • Extend wireless coverage
Cons
  • No self-healing uplinks
  • Need to install and check manually
  • Performance decay

Mesh

AP Mode
  • Wirelessly connect 1~8 APs, and form a Mesh Group
  • A mesh network creates a set of links automatically and calculate the most optimal wireless path through the wireless network back to a wired Mesh Root.
Pros
  • Easy installation
  • Self-healing uplinks
  • Extend wireless coverage
Cons
  • No compatibility among different brands
  • Performance decay

Management Solution

All-in-One Management


Mesh

DrayTek Wireless app-support, Discovery, Auto-Provisioning, Monitoring, Centralized Hierarchy View


VigorAP-based APM

Discovery, Auto-Provisioning, Monitoring


Vigor Router-based APM

Auto-Discovery, Profile-based Auto-Provisioning, Monitoring, Centralized View, Remote VigorAP Maintenance, WiFi Client Load Balancing

Software Management

VigorACS2
  • Provisioning
  • Monitoring
  • Centralized Hierarchy View
  • Alarm
  • Reboot Vigor Devices Remotely
  • Scheduled Maintenance
  • Report
VigorACS2
VigorConnect
  • Auto-Discovery
  • Auto-Provisioning
  • Monitoring
  • Centralized Hierarchy View
  • Alarm
  • Reboot VigorAP Remotely
  • Scheduled Maintenance
VigorConnect
VigorACS3
  • Zero Touch Deployment & Provisioning
  • Auto VPN
  • Interface Quality & SLA
  • VoIP Optimization & Monitoring
  • Application Visibility
  • Application Based SD-WAN Policy
  • Customized Hotspot Page with Multilingual
  • Hotspot Clients Analytics
  • ACS Server Load Balancing / Failover
VigorACS3
VigorACS2
  • Provisioning
  • Monitoring
  • Centralized Hierarchy View
  • Alarm
  • Reboot Vigor Devices Remotely
  • Scheduled Maintenance
  • Report
VigorACS2
VigorConnect
  • Auto-Discovery
  • Auto-Provisioning
  • Monitoring
  • Centralized Hierarchy View
  • Alarm
  • Reboot VigorAP Remotely
  • Scheduled Maintenance
VigorConnect
VigorACS3
  • Zero Touch Deployment & Provisioning
  • Auto VPN
  • Interface Quality & SLA
  • VoIP Optimization & Monitoring
  • Application Visibility
  • Application Based SD-WAN Policy
  • Customized Hotspot Page with Multilingual
  • Hotspot Clients Analytics
  • ACS Server Load Balancing / Failover
VigorACS3
VigorACS2
  • Provisioning
  • Monitoring
  • Centralized Hierarchy View
  • Alarm
  • Reboot Vigor Devices Remotely
  • Scheduled Maintenance
  • Report
VigorACS2


Manage from DrayTek Wireless App

  • Set up a Mesh network from scratch
  • Monitoring all Mesh nodes and get an overview of the topology
  • Check all the Wi-Fi clients
  • Change SSID Configuration for all the nodes
  • Add TR-069 Settings to all the nodes

* wireless model only

WLAN
Band Type Dual-Band
WiFi 6
2.4G WLAN 802.11 b/g/n/ax
5G WLAN 802.11 a/n/ac Wave 2/ax
Antennas 1x Internal PCB DB, 4x Internal PiFA 2.4G, 4x Internal PiFA 5G
2.4G Max. Link Rate (Mbps) 1200
5G Max. Link Rate (Mbps) 2400
Max. Clients 256
Max. Clients (per band) 128
Operating Mode
AP
Mesh Root
Mesh Node
Range Extender
Max. Number of SSIDs (per band) 16 (8)
Roaming
AP-Assisted Roaming
PMK-Caching
Pre-Authentication
802.11r
AirTime Fairness
Band Steering
OFDMA
WDS Repeater
WMM
Ports
2.5 GbE 1
PoE
PoE Input Power Supply 48-56V @ 0.5A
PoE Input PoE+ (802.3af/at)
Security
Security Mode
OWE
WEP
WPA
WPA2/WPA
WPA2PPSK
WPA2
WPA3/WPA2
WPA3
Authentication Enterprise, Personal
WPS PBC, PIN
MAC Address Filter (Max. entry number) 256
Application
Built-in RADIUS Server
Hotspot Web Portal
DHCP
DHCP Client
DHCP Server
DHCP Relay Agent
Static IP
MAC Clone
802.1q tag-based VLAN
Schedule
Auto-Reboot
WiFi Up/Down
LED On/Off
Management
Local Service
HTTP
HTTPS
Telnet
Firmware Upgrade HTTP, TFTP, TR-069
Config Backup/Restore
Syslog
Notification Alert E-mail
SNMP v1, v2c, v3
Stand-Alone Operation
Mobile Device Management
Mesh Node, Root
Central AP Management (Number of manageable APs) 50
VigorRouter Management (APM)
VigorConnect Management (Since f/w) V1.4.0
VigorACS Management (Since f/w) V1.4.0
Physical
Environment Indoor
Mounting Wall / Ceiling
Powered via DC / PoE
Power Input 12V DC @ 2.5A
Max. Power Consumption (watts) 21
Dimension (mm) 205 x 205 x 33.2
Weight (g) 809
Operating Temperature 0 to 40°C
Storage Temperature -20 to 70°C
Operating Humidity (non-condensing) 5 to 90%
