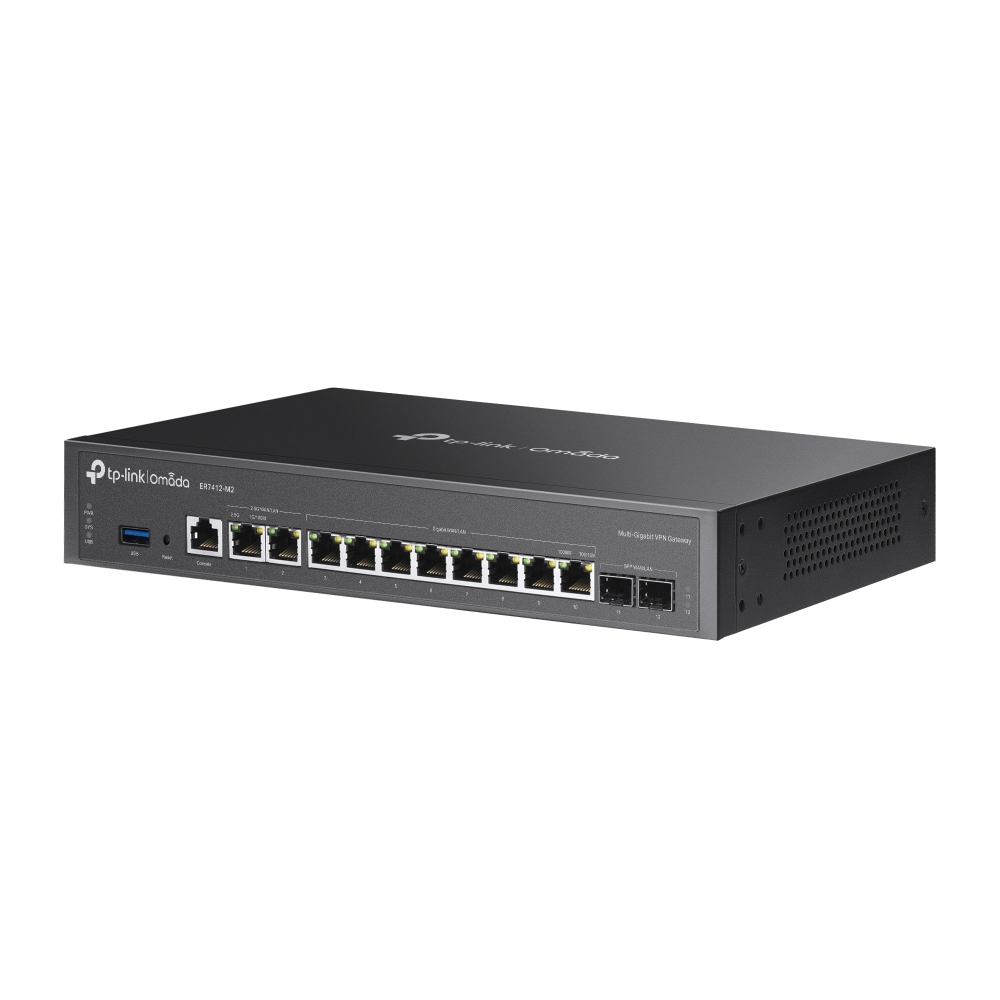

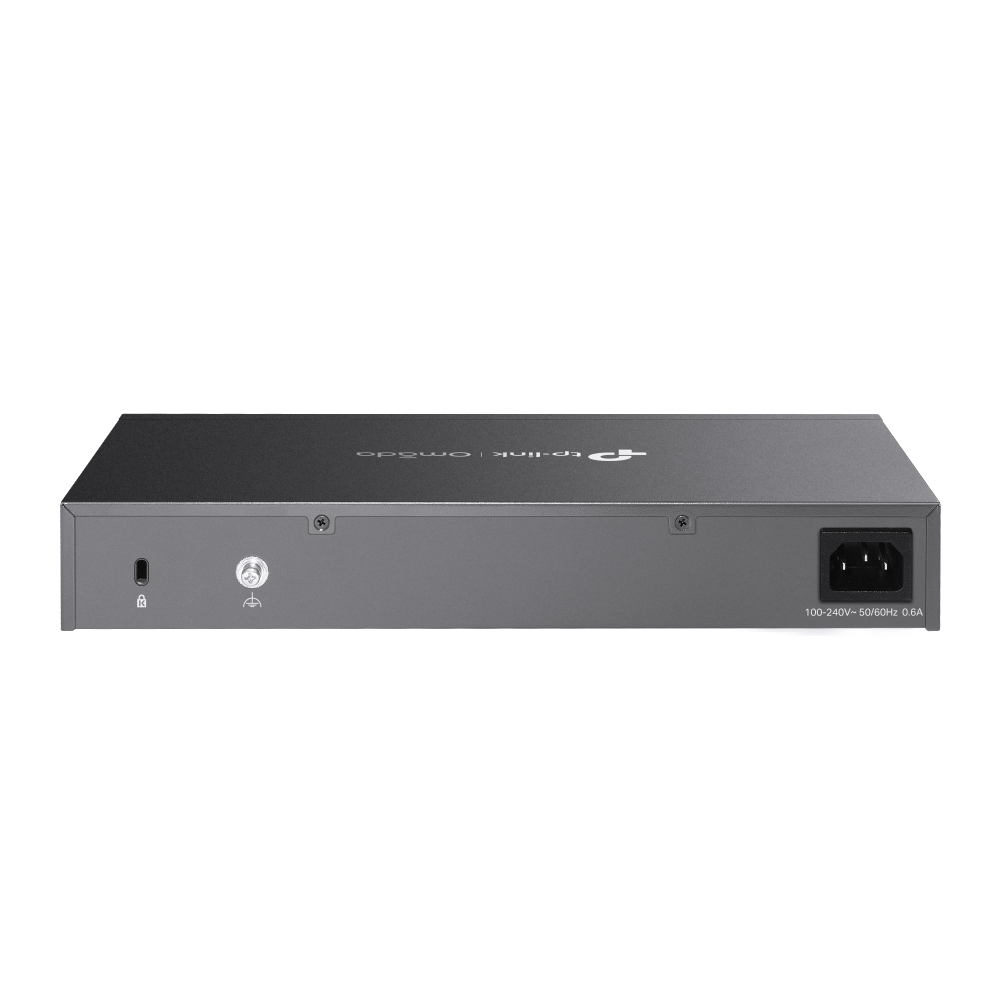

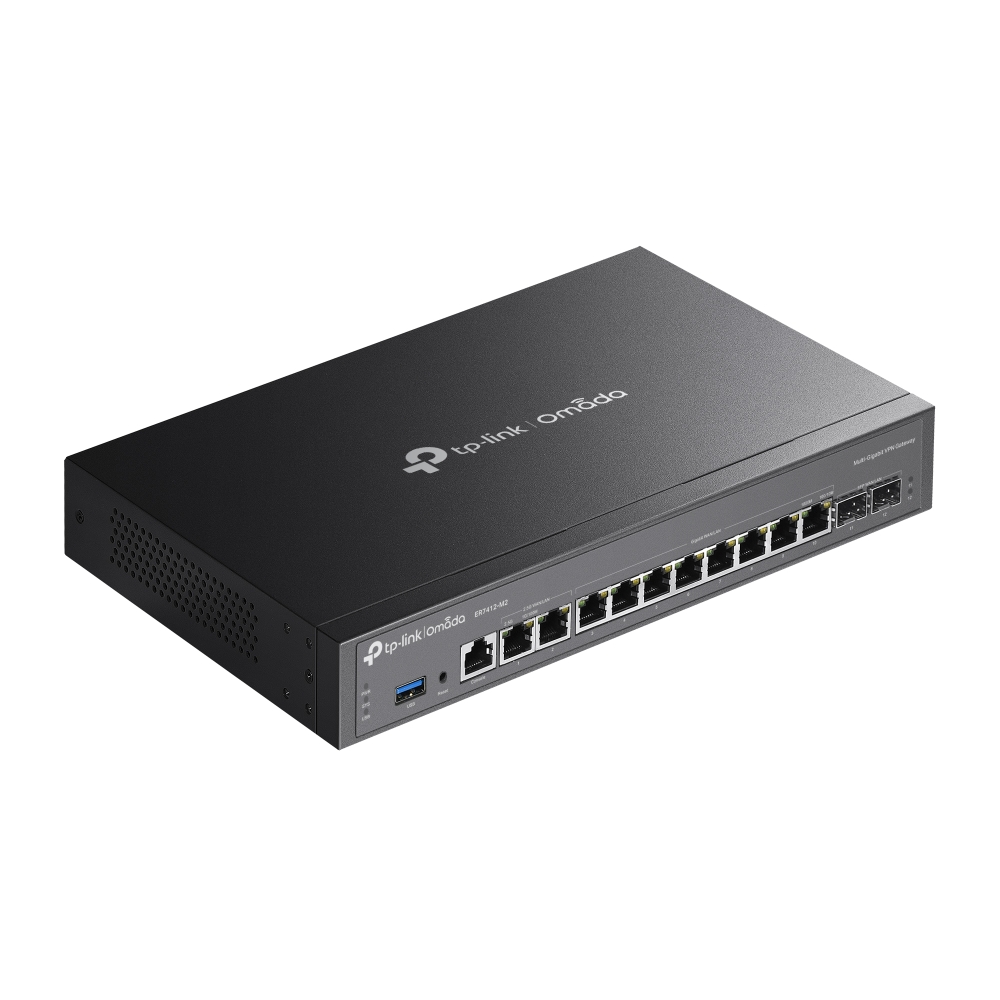

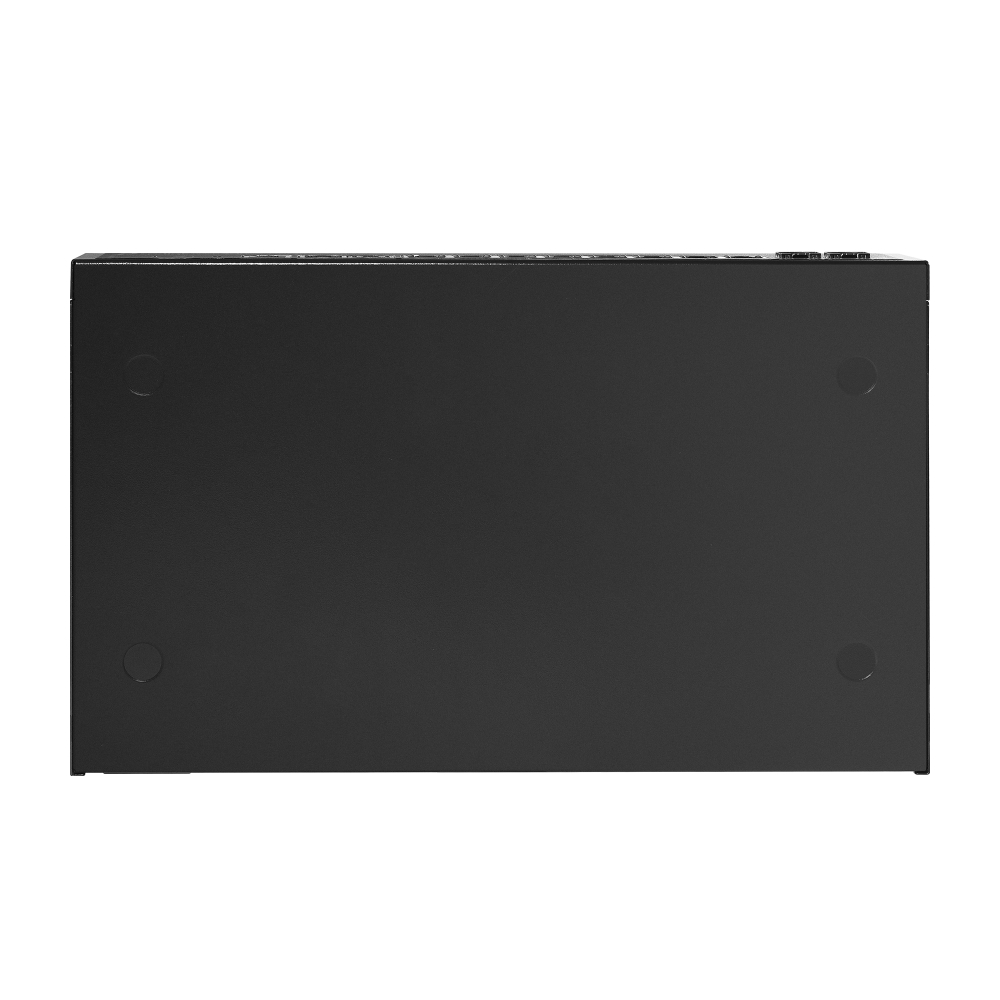

Thiết bị định tuyến TP-Link ER7412-M2 | Omada Multi-Gigabit VPN Gateway

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: ER7412-M2
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: Omada Multi-Gigabit VPN Gateway

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Omada Multi-Gigabit
VPN Gateway

ER7412-M2

2× 2.5Gbps
WAN/LAN
RJ45 Ports
10× Gigabit
WAN/LAN Ports
(2× SFP, 8× RJ45)
Load Balancing on
up to 11 WAN Ports
Quad-Core
2.0 GHz CPU

Centralized Cloud
Management^†
SSL/ IPSec / GRE^§ /
WireGuard / PPTP /
OpenVPN & L2TP VPN
Multi-Net DHCP
DPI & IPS/IDS

Engineered for Dense
Environments, Powered by
Dual 2.5 Gbps Ports and
Quad-Core 2.0 GHz CPU

Easily build a multi-gigabit network for schools, hotels, and offices.

Up to 11 WAN Ports & One USB WAN for Mobile Broadband

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Easy to Use
Hardware, Software, or Cloud-Based Controllers
Centralized Management via Web or Omada App
Zero-Touch Provisioning (ZTP)*

High-Security and High-Performance VPN

SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Abundant Security Features

DPI (Deep Packet Inspection)

Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS

The integrated IDS/IPS engine bolsters threat detection and defense. Additionally, there is an embedded, regularly updated signature database for attack prevention.
DoS Defense

Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

BẢO MẬT
DPI	Deep Packet Inspection Support 2421 type Applications
IDS/IPS	Intrusion Detection/Prevention
Access Control	• Source/Destination IP-Based ACL • Stateful ACL • IPv4/IPv6 ACL • Location Based ACL
DNS Proxy	DNSSEC, DoH, DoT, DNS Override
Bộ lọc	• WEB Group Filtering § • URL Filtering • Web Security §
ARP Inspection	• Sending GARP Packets § • ARP Scanning § • IP-MAC Binding §
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
VPN
GRE	Only in Standalone Mode
SSL VPN	80 Tunnels
IPsec VPN	• 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (15)** • 150 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (15)** • 150 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (11)** • 121 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	• 20 Tunnels
SD-WAN	√ (Only in Controller mode)
HIỆU SUẤT
Concurrent Session	1,000,000
New Sessions /Second	7,000
NAT (Static IP)	2345.71 Mbps / 2351.22 Mbps
NAT(DHCP)	2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE)	2336.52 Mbps / 2336.08 Mbps
NAT (L2TP)	1937.53 Mbps / 1761.82 Mbps
NAT (PPTP)	1757.54 Mbps / 2011.33 Mbps
66 Byte Packet Forwarding Rate	Upload: 3,471,591pps Download: 3,475,379pps
1,518 Byte Packet forwarding rate	Upload: 202,652pps Download: 202,652pps
IPsec VPN Throughput	• ESP-SHA1-AES256: 1125.60 Mbps • ESP-SHA256-AES256: 1133.1 Mbps • ESP-SHA384-AES256: 1126.6 Mbps • ESP-SHA512-AES256: 1132.8 Mbps
GRE	• Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps
WireGuard VPN	771.6 Mbps
OpenVPN	UDP: 266.2 Mbps
L2TP VPN Throughput	• Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps
PPTP VPN Throughput	• Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps
SSL VPN Throughput	263.1 Mbps
WireGuard VPN Throughput	771.6 Mbps
DPI Throughput	2.2Gbps
IDS Throughput	573 Mbps
IPS Throughput	573 Mbps
QUẢN LÝ
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Dịch vụ	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute) § • NTP Synchronize § • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule*
TÍNH NĂNG PHẦN CỨNG
CPU	Quad-core ARMv8
Chuẩn và Giao thức	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Giao diện	• 1× 2.5G RJ45 WAN/LAN Port • 1× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports • 1× RJ45 Console Port • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Mạng Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Nút	Reset Button
Bộ cấp nguồn	100–240 VAC, 50/60 Hz
Flash	128MB NAND
DRAM	1 GB DDR4
Khối lượng	1.168 kg
Kích thước ( R x D x C )	11.6×7.1×1.7 in (294×180×44 mm)
Bảo vệ	4 kV surge protection
Enclosure	Steel
Lắp	• Desktop • Rackmountable
Tiêu thụ điện tối đa	18.5W (With USB 3.0 connected)
CÁC TÍNH NĂNG CƠ BẢN
LAN DNS	√
Dạng kết nối WAN	• Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address †
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
TÍNH NĂNG NÂNG CAO
Advanced Routing	• Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode)
Kiếm soát băng tần	IP/Port-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing § , Failover) • Online Detection
NAT	• One-to-One NAT § • Multi-Net NAT • Virtual Server • Port Triggering § • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit
AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User/Voucher/SMS/Radius) • External Radius Server • External Portal Server • LDAP
KHÁC
Chứng chỉ	CE, FCC
Sản phẩm bao gồm	• ER7412-M2 • Power Cord • Quick Installation Guide • Rackmount Kit • RJ45 Console Cord
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Môi trường	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing
