Thiết bị chuyển mạch Switch Cisco C9300-48T-A sản phẩm Switch thế hệ mới hoạt động trên nền tảng Switch chuyển mạch doanh nghiệp với khả năng xếp chồng của Cisco, được xây dựng với nhiều tính năng nổi bật được thiết kế phục vụ cho loT, di động và đám mấy với tính bảo mật cao.
Mang những tính năn nổi bật của dòng sản phẩm Switch Cisco C9300-48T-A có thể truy cập phần mềm được xác định SD-Acess, với tốc độ 480Gpbs là giải pháp băng thông xếp chồng mật độ cao nhất với kiến trúc linh hoạt.
Thiết bị chuyển mạch Switch Cisco C9300-48T-A sản phẩm Switch thế hệ mới hoạt động trên nền tảng Switch chuyển mạch doanh nghiệp với khả năng xếp chồng của Cisco, được xây dựng với nhiều tính năng nổi bật được thiết kế phục vụ cho loT, di động và đám mấy với tính bảo mật cao.
Mang những tính năn nổi bật của dòng sản phẩm Switch Cisco C9300-48T-A có thể truy cập phần mềm được xác định SD-Acess, với tốc độ 480Gpbs là giải pháp băng thông xếp chồng mật độ cao nhất với kiến trúc linh hoạt.
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

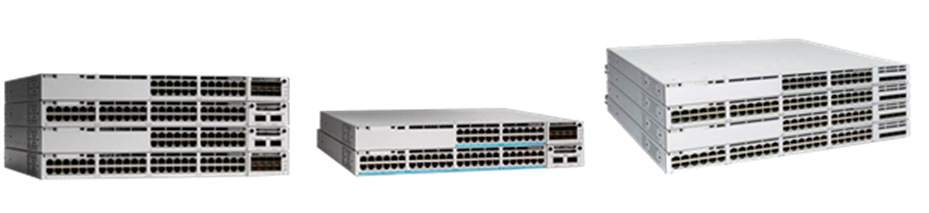

48-port Gigabit Ethernet Switch Cisco C9300-48T-A
- The Cisco Catalyst 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-48T-A is 48-port data only, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
- Catalyst 9300 48-port data only, Network Advantage.
- Total 10/100/1000 or Multigigabit copper ports: 48.
- Software: Network Advantage.
- Default AC power supply: 350WAC.
- Dimensions (H x W x D): 1.73 x 17.5 x 17.5 Inches.
- Weight: 16.33 Pounds.
Specification
Model | C9300-48T-A |
Product Description | Catalyst 9300 48-port data only, Network Advantage |
Total 10/100/1000 or Multigigabit copper ports | 48 |
Default AC power supply | 350WAC |
Cisco StackWise-480 | Yes |
Cisco StackPower | Yes |
Default power supply | PWR-C1-350WAC |
Switching capacity | 256 Gbps on 48-port Gigabit Ethernet model |
Stacking bandwidth | 480 Gbps |
Total number of MAC addresses | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
IPv4 routing entries | 32,000 |
IPv6 routing entries | 16,000 |
Multicast routing scale | 8000 |
QoS scale entries | 5120 |
ACL scale entries | 5120 |
Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
DRAM | 8 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 2000 |
Jumbo frames | 9198 bytes |
Total routed ports per 9300 Series stack | 208 |
Wireless bandwidth per switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
Forwarding rate | 154.76 Mpps |
Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
Weight | 16.33 Pounds |
Mean time between failures (hours) | 299,000 |
