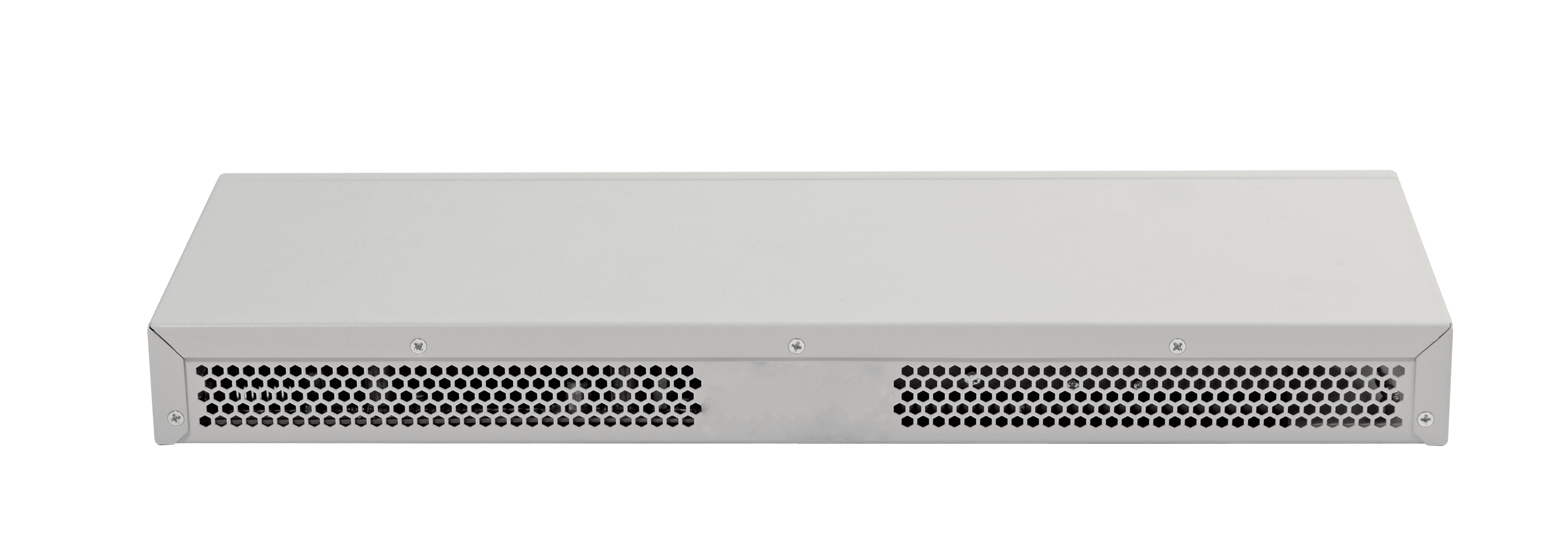

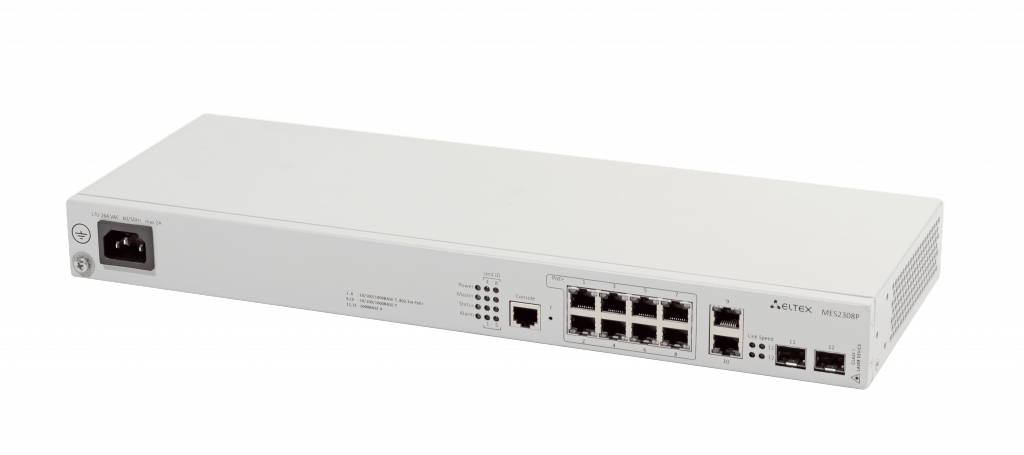

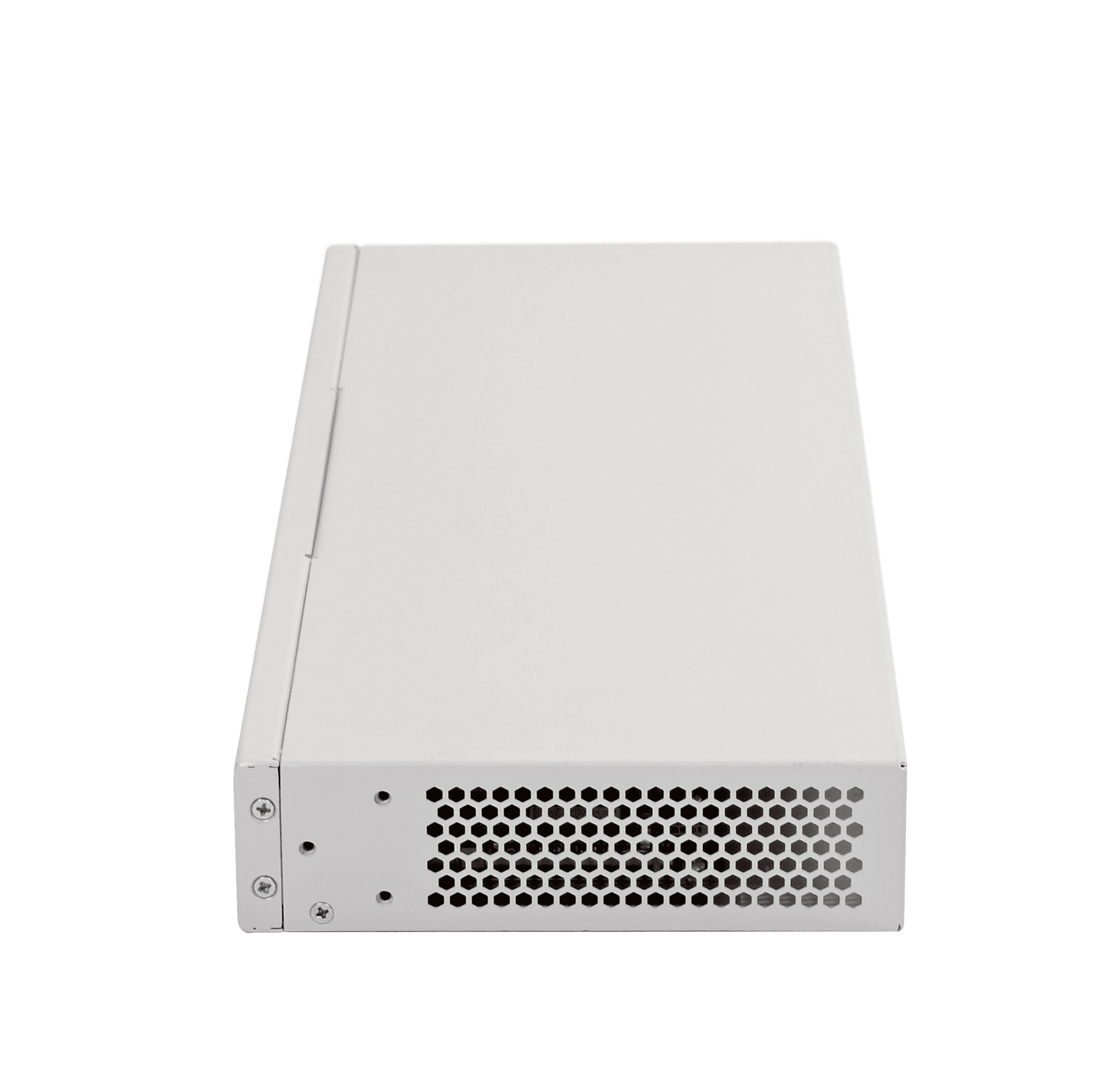

Thiết bị chuyển mạch Eltex MES2308P_AC

Key benefits

MES2308P access switches - managed L2+ switches which have 24 ports of 10/100/1000BASE-T with PoE/PoE+ support and 4 ports of 10GBASE-R (SFP+)/1000BASE-X (SFP).

The switches are designed to connect end users to a largescale corporate network, small and medium business networks and to a service provider networks using 1G/10G Ethernet interfaces.

The switches support physical stacking, VLANs, multicast groups and advanced security functions.

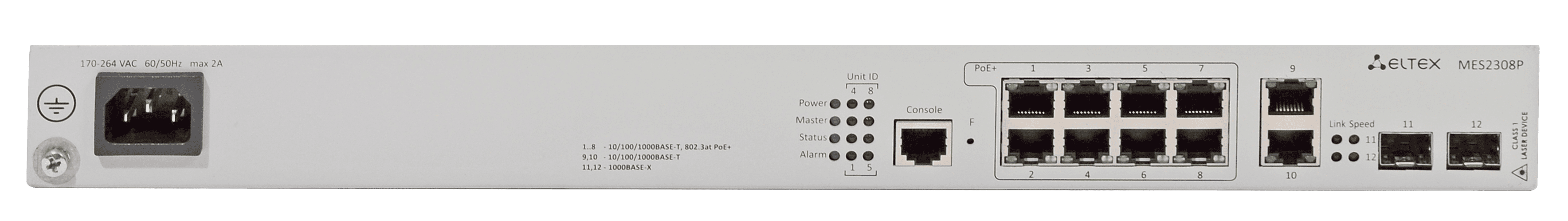

Interfaces

• Marvell 98DX3233
• RS-232/RJ-45
• 8x10/100/1000BASE-T (RJ-45) PoE/PoE+
• 2x10/100/1000BASE-T (RJ-45)
• 2x1000BASE-X (SFP)

Interfaces functions

• Head-of-line blocking (HOL) protection
• Back Pressure
• Auto MDI/MDIX
• Jumbo Frames
• Flow control (IEEE 802.3X)
• Port Mirroring

MAC table functions

• Independent learning mode per VLAN
• MAC Multicast Support
• Configurable aging time of MAC addresses
• Static MAC Entries
• MAC Flapping logging

VLAN functions

• Voice VLAN
• 802.1Q
• Q-in-Q
• Selective Q-in-Q
• GVRP

L2 Multicast functions

• Multicast profiles
• Static Multicast groups
• IGMP Snooping v1,2,3
• Port/host-based IGMP Snooping Fast Leave
• IGMP proxy-report
• IGMP authorization via RADIUS
• MLD Snooping v1,2
• IGMP Querier
• MVR

L2 functions

• STP (Spanning Tree Protocol, IEEE 802.1d)
• RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
• MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
• STP Multiprocess
• PVSTP+
• Spanning Tree Fast Link option
• EAPS¹
• STP Root Guard
• STP Loop Guard
• BPDU Filtering
• STP BPDU Guard
• VLAN-based Loopback Detection (LBD)
• ERPS (G.8032v2)
• Private VLAN
• Layer 2 Protocol Tunneling

L3 functions

• Static IP routes
• Support for dynamic routing protocols: RIPv2, OSPFv2, OSPFv3
• Address Resolution Protocol (ARP)
• Support for VRRP
• Support for dynamic multicast routing protocols: PIM SM, IGMP Proxy
• ECMP Load Balancing
• IP Unnumbered

Link Aggregation functions

• Static LAG
• Dynamic LAG (LACP)
• LAG Balancing Algorithm

IPv6 functions

• IPv6 Host
• Dual-stack

Service functions

• Virtual Cable Testing (VCT)
• Optical transceiver diagnostics
• Green Ethernet

Security functions

• DHCP Snooping
• DHCP Option 82
• IP Source Guard
• Dynamic ARP Inspection
• sFlow
• MAC-based authentication, Port Security, Static MAC entries
• Port-based authentication IEEE 802.1x
• Guest VLAN¹
• DoS attack prevention
• Traffic segmentation
• Protection against non-authorized DHCP servers
• DHCP clients filtering
• BPDU attacks prevention
• NetBIOS/NetBEUI filtering
• PPPoE Intermediate Agent

ACL (Access Control Lists)

• L2-L3-L4 ACL
• Time-Based ACL
• IPv6 ACL
• ACL based on:
  • Physical port number
  • IEEE 802.1p
  • VLAN ID
  • EtherType
  • DSCP
  • Protocol type
  • TCP/UDP port number
  • User Defined Bytes

Quality of Service (QoS) and rate limiting

• QoS statistics
• Shaping, Policing
• IEEE 802.1p Class of Service (CoS)
• Storm Control
• Bandwidth management
• Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
• Three marking colors
• ACL-based CoS/DSCP assignment
• Setting the IEEE 802.1p priority for management VLAN
• DSCP to CoS and CoS to DSCP remarking
• ACL-based VLAN assignment
• 802.1p, DSCP mark assignment for IGMP

ОАМ/CFM

• IEEE 802.3ah Ethernet OAM
• Dying Gasp
• IEEE 802.1ag Connectivity Fault Management (CFM)¹
• IEEE 802.3ah Unidirectional Link Detection (UDLD)

Management functions

• Download and upload of configuration file via TFTP/SCP
• Redirecting the output of CLI commands to an arbitrary file on ROM
• SNMP
• Command Line Interface (CLI)
• Web interface
• Syslog
• SNTP (Simple Network Time Protocol)
• Traceroute
• LLDP (802.1ab) + LLDP MED
• Access control – privilege levels
• Management interface blocking
• Local authentication
• IP addresses filtering for SNMP
• RADIUS and TACACS+ (Terminal Access Controller Access Control System) clients
• SSH server
• SSL
• Macrocommands
• CLI commands logging
• System log
• DHCP autoprovision
• DHCP Relay (IPv4 support)
• DHCP Option 12
• DHCP Relay Option 82
• PPPoE Circuit-ID tag
• Flash File System
• Debugging commands
• Rate limit of traffic to CPU
• Password encryption
• Password recovery
• Ping (IPv4/IPv6 support)
• FTP server^¹
• DNS server


Monitoring functions

• Statistics of interfaces
• RMON/SMON
• CPU utilization monitoring per task and per traffic type
• Temperature monitoring
• TCAM utilization monitoring
• RAM utilization monitoring

MIB

• RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
• RFC 1212 Concise MIB Definitions
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1493, 4188 Bridge MIB
• RFC 1157, 2571-2576 SNMP MIB
• RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
• RFC 271,1757, 2819 RMON MIB
• RFC 2465 IPv6 MIB
• RFC 2466 ICMPv6 MIB
• RFC 2737 Entity MIB
• RFC 4293 IPv6 SNMP Mgmt Interface MIB
• Private MIB
• RFC 3289 DIFFSERV MIB
• RFC 2021 RMONv2 MIB
• RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
• RFC 2668 802.3 MAU MIB
• RFC 2674, 4363 802.1p MIB
• RFC 2233, 2863 IF MIB
• RFC 2618 RADIUS Authentication Client MIB
• RFC 4022 MIB для TCP
• RFC 4113 MIB для UDP
• RFC 3298 MIB для Diffserv
• RFC 2620 RADIUS Accounting Client MIB
• RFC 2925 Ping & Traceroute MIB
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMPv4
• RFC 2463, 4443 ICMPv6
• RFC 4884 Extended ICMP for Multi-Part messages support
• RFC 793 TCP
• RFC 2474, 3260 DS field in the IPv4 and IPv6 header
• RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
• RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
• RFC 826 ARP

Physical parameters

• Maximum power consumption (including PoE) - 270 W
• Power supply - 220V АС, 50 Hz
• PoE budget - 240 W
• Operating temperature - from -20 to +50°С
• Storage temperature - from -40 to +70°С
• Operating humidity - 80%
• Passive cooling
• Form factor - 19", 1U
• Dimensions (WxDxH) - 430 x 158 x 44
• Weight - 2.55 kg
