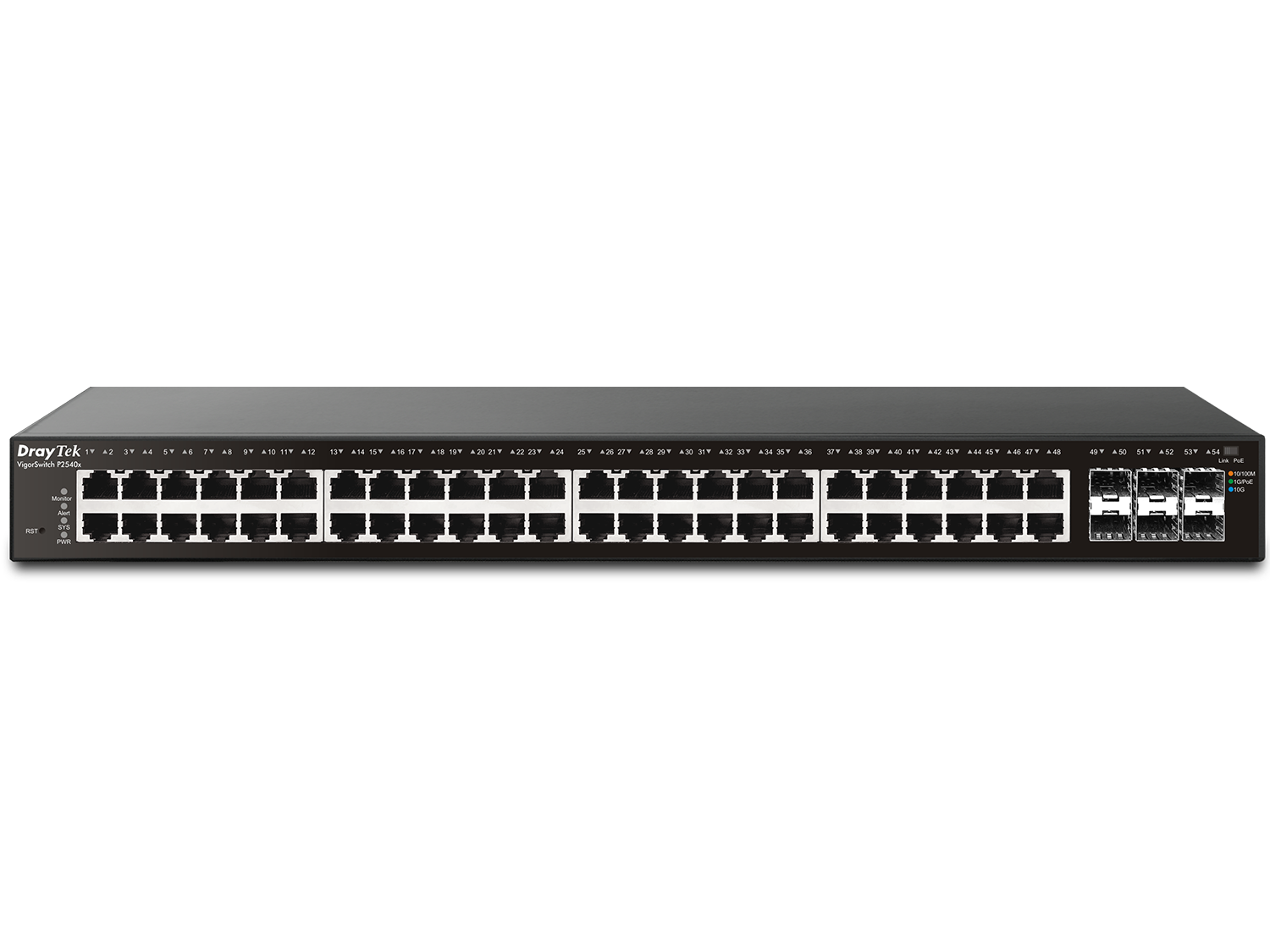

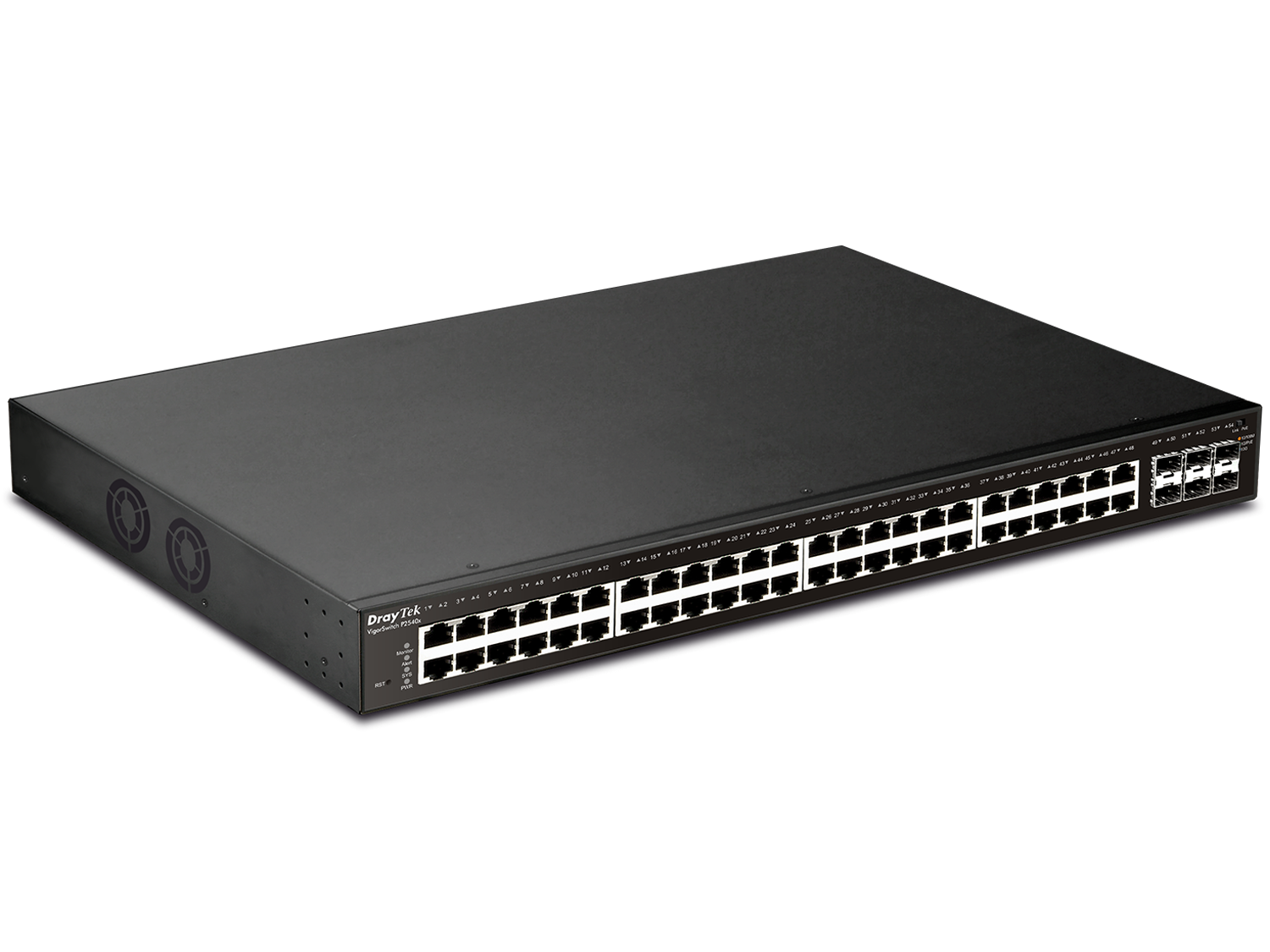

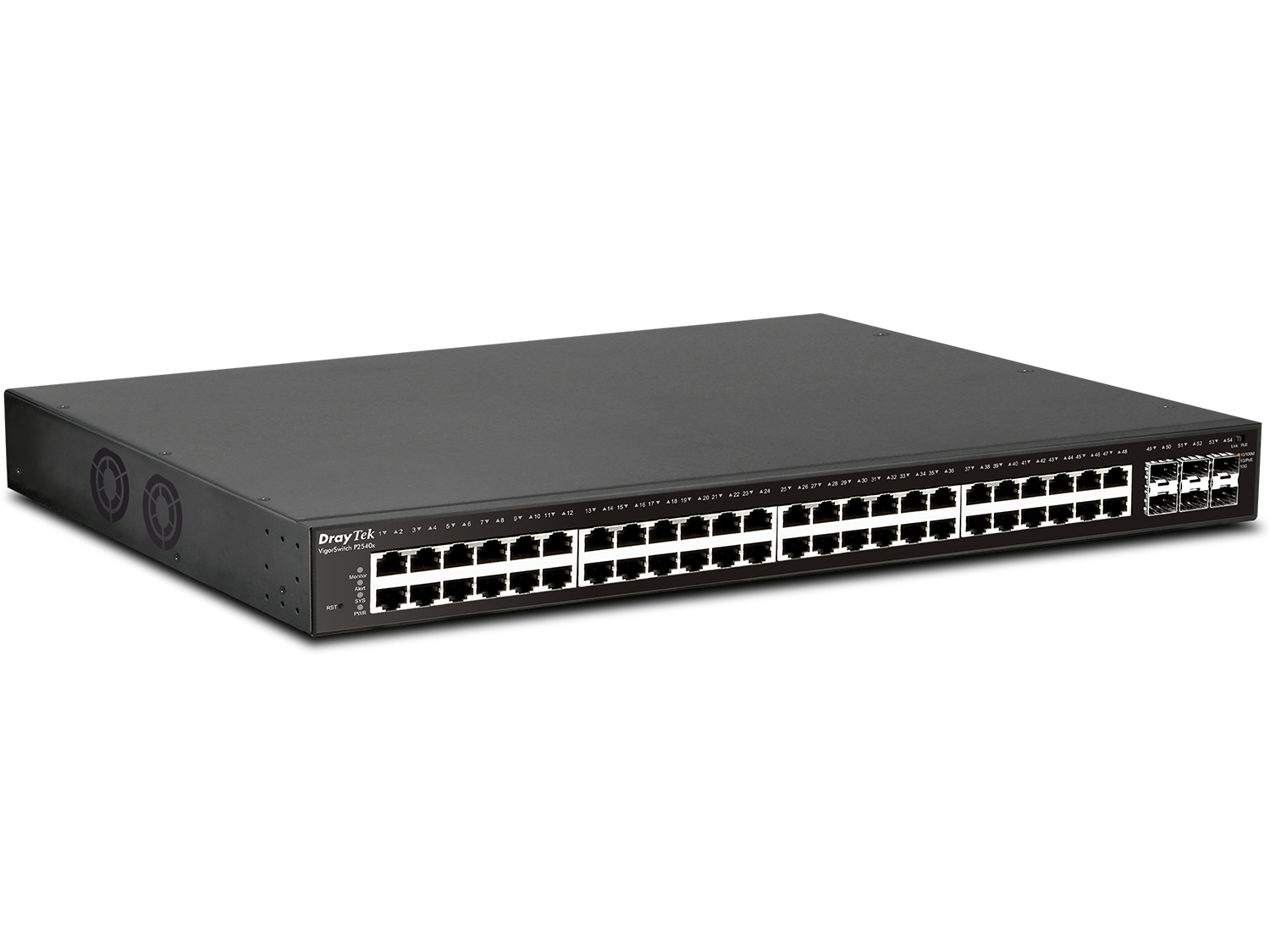

Thiết bị chuyển mạch DrayTek VigorSwitch P2540xs - Switch 54 Port Layer 2+ Managed 10G PoE
Chính hãng giảm sốc
Giá:
24.000.000 ₫
25.000.000 ₫
-4%
- Tình trạng
- Hàng chính hãng CO,CQ đầy đủ
- Part Number
- P2540xs
- Kho hàng
- Còn hàng
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
- Mô tả
DrayTek VigorSwitch P2540xs is a Layer 2+ Managed 10 Gbps switch. With 48x Gigabit Ethernet PoE+ ports providing 400W power budget and 6x SFP+ 10Gbps Fiber links. Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, VigorSwitch P2540xs improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
Review
Xem tại đây
An Ideal Core Switch for SME/SMB
DrayTek VigorSwitch P2540xs is a Layer 2+ Managed 10 Gbps switch. With 48x Gigabit Ethernet PoE+ ports providing 400W power budget and 6x SFP+ 10Gbps Fiber links. Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, VigorSwitch P2540xs improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.
48x PoE/PoE+
10/100/1000Mbps Ethernet, RJ-45
6x 10G SFP+
1000Mbps/10Gpbs fiber slot
400 watts
PoE Power Budget
216 Gbps
Switching Capacity
1Power Socket
2Reset Button
3LED Indicator
448x PoE/PoE+ Gigabit Ethernet
56x SFP+ Port
6Link/PoE LED Slide Switch
7Console Port
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch P2540xs to route the inter-VLAN traffic directly and offload the router.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Access Control
VigorSwitch P2540xs supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
IPv6 Ready
VigorSwitch P2540xs supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Advanced Layer 2+ Features
DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency,
with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.
L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.
As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
Bind IP to MAC
Reserve an IP Address for an Important Device
As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
Performance |
|
| Buffer Size (Mbit) | 16 |
| Switching Capacity (Gbps) | 216 |
| Forwarding Rate (64 bytes)(Mpps) | 160.7 |
| MAC Address Table | 32K |
| Max. Jumbo Frame (KB) | 12 |
| L3 Routing Table | |
Ports |
|
| 1 GbE | 48 |
| SFP+ (10G) | 6 |
| Console (RJ-45) | 1 |
| Slide Switch | |
PoE |
|
| PoE+(802.3af/at) Ports | 48 |
| PoE Power Budget (watts) | 400 |
| Scheduled On/Off | |
Standard Compliance |
|
| Ethernet Standards |
802.3af PoE
802.3at PoE+
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
|
Spanning Tree |
|
| STP | |
| RSTP | |
| MSTP | |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | |
VLAN |
|
| Max. Number of VLAN | 512 |
| VLAN Type |
802.1q Tag-based VLAN
MAC-based VLAN
Protocol-based VLAN
Management VLAN
Voice VLAN
Surveillance VLAN
|
| GVRP | |
| QinQ (Basic) | |
Layer3 Features |
|
| Static Route | |
| VLAN Route | |
| DHCP Server | |
Multicast |
|
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | |
| MVR (Multicast VLAN Registration) | |
ONVIF Surveillance |
|
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance |
Device Info
Network Settings
Time Settings
Reboot
Reset to Factory Default
|
QoS |
|
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) |
CoS
DSCP
CoS-DSCP
IP Precedence
|
| Rate Limiting | |
Security |
|
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | |
| IP Source Guard | |
| Traffic Control | DoS Defense, Storm Control |
| Dynamic ARP Inspection (DAI) | |
| DHCP Snooping | |
| IP Conflict Prevention | |
| Loop Protection | |
OpenFlow*The OpenFlow functionality is project-based and must be activated by DrayTek HQ. Please contact your Sales for further inquiries. |
|
| Version | 1.3 |
| Table Size | 1920 |
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
|
| Config Backup/Restore | |
| Dual Image | |
| 2-Level Administration Privilege | |
| Access Control | Access List |
| OpenVPN Client | |
| sFlow | |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | |
| LLDP | |
| LLDP-MED | |
| Mail Alert |
Port Status
Port Speed
System Restart
IP Conflict
Hardware Monitor
Device Check
ONVIF IP Cam Snapshot
|
| VigorRouter Management (SWM) | |
| VigorConnect Management (Since f/w) | V2.6.3 |
| VigorACS Management (Since f/w) | V2.6.3 |
Physical |
|
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 5.5A |
| Max. Power Consumption (watts) | 478 |
| Dimension (mm) | 441 x 330 x 45 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
