Thiết bị chuyển mạch DrayTek VigorSwitch P2282x – Switch 28 Port L2+ Managed 10G PoE
Hàng chính hãng
Giá:
13.200.000 ₫
13.950.000 ₫
-5%
- Tình trạng
- Hàng chính hãng - New 100% (CO, CQ đầy đủ)
- Part Number
- VigorSwitch P2282x
- Kho hàng
- Còn hàng
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
- Mô tả
DrayTek VigorSwitch 2282x series is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch 2282x series also provides DC power input as other power source, which helps to ensure uninterrupted operation. Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing.
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
Review
Xem tại đây
Enhancing Network Performance
DrayTek VigorSwitch P2280x is a Layer 2+ Managed Gigabit PoE switch ideal for a network with growing network traffic. The switch has 24x Gigabit Ethernet PoE/PoE+ ports with a power budget of 400 watts and 4 additional dedicated SFP+ for 10G Fiber link.
Business can get enhanced network performance through the integrated L2 and L2+ features, it provides various types of VLAN for you to segment the local network and keep the traffic only at where it needs to go. Moreover, it supports VLAN routing to route the inter-VLAN traffic directly, shares loads of the router, and improve overall network performance.
24x PoE/PoE+
10/100/1000Mbps Ethernet, RJ-45
4x 10G SFP+
1000Mbps/10Gbps fiber slot
400 watts
PoE Power Budget
128 Gbps
Switching Capacity

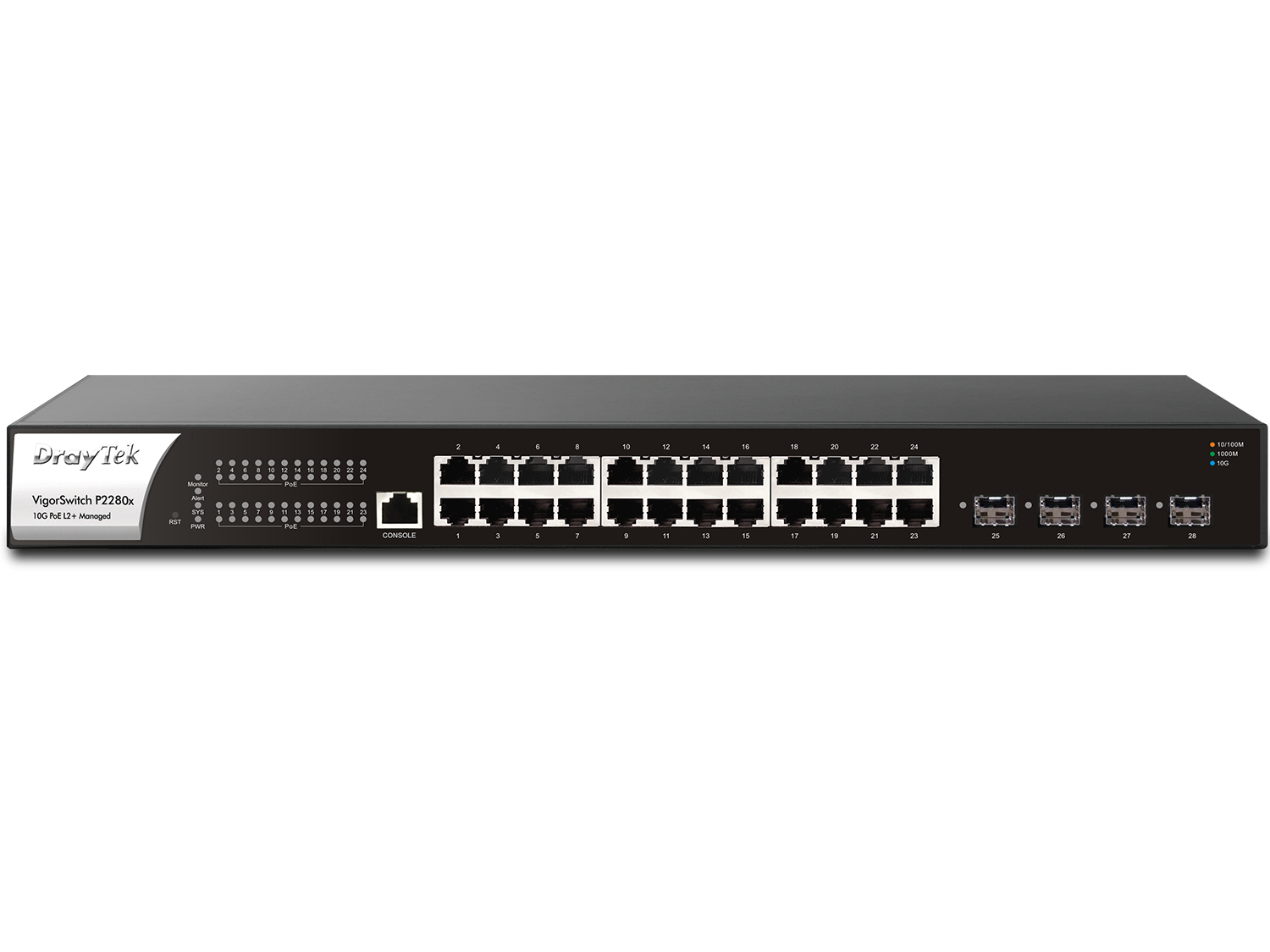

1Power Socket
2Reset Button
3LED Indicator
4Console Port
524x PoE/PoE+ Gigabit Ethernet
64x SFP+ Port
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch P2280x to route the inter-VLAN traffic directly and offload the router.
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
IPv6 Ready
VigorSwitch P2280x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Advanced Layer 2+ Features
DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency,
with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.
L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.
As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
Bind IP to MAC
Reserve an IP Address for an Important Device
As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.
IP Conflict Detection & Prevention
Conflict Detection
VigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
Performance |
|
| Buffer Size (Mbit) | 12 |
| Switching Capacity (Gbps) | 128 |
| Forwarding Rate (64 bytes)(Mpps) | 95.2 |
| MAC Address Table | 16K |
| Max. Jumbo Frame (KB) | 12 |
| L3 Routing Table | |
Ports |
|
| 1 GbE | 24 |
| SFP+ (10G) | 4 |
| Console (RJ-45) | 1 |
PoE |
|
| PoE+(802.3af/at) Ports | 24 |
| PoE Power Budget (watts) | 400 |
| Scheduled On/Off | |
Standard Compliance |
|
| Ethernet Standards |
802.3af PoE
802.3at PoE+
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
|
Spanning Tree |
|
| STP | |
| RSTP | |
| MSTP | |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | |
VLAN |
|
| Max. Number of VLAN | 512 |
| VLAN Type |
802.1q Tag-based VLAN
MAC-based VLAN
Protocol-based VLAN
Management VLAN
Voice VLAN
Surveillance VLAN
|
| GVRP | |
| QinQ (Basic) | |
Layer3 Features |
|
| Static Route | |
| VLAN Route | |
| DHCP Server | |
Multicast |
|
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | |
| MVR (Multicast VLAN Registration) | |
ONVIF Surveillance |
|
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance |
Device Info
Network Settings
Time Settings
Reboot
Reset to Factory Default
|
QoS |
|
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) |
CoS
DSCP
CoS-DSCP
IP Precedence
|
| Rate Limiting | |
Security |
|
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | |
| IP Source Guard | |
| Traffic Control | DoS Defense, Storm Control |
| Dynamic ARP Inspection (DAI) | |
| DHCP Snooping | |
| IP Conflict Prevention | |
| Loop Protection | |
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
|
| Config Backup/Restore | |
| Dual Image | |
| 2-Level Administration Privilege | |
| Access Control | Access List |
| OpenVPN Client | |
| sFlow | |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | |
| LLDP | |
| LLDP-MED | |
| Mail Alert |
Port Status
Port Speed
System Restart
IP Conflict
Hardware Monitor
Device Check
ONVIF IP Cam Snapshot
|
| VigorRouter Management (SWM) | |
| VigorConnect Management (Since f/w) | V2.5.1 |
| VigorACS Management (Since f/w) | V2.6.1 |
Physical |
|
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 5.5A |
| Max. Power Consumption (watts) | 499 |
| Dimension (mm) | 441 x 270 x 44 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
