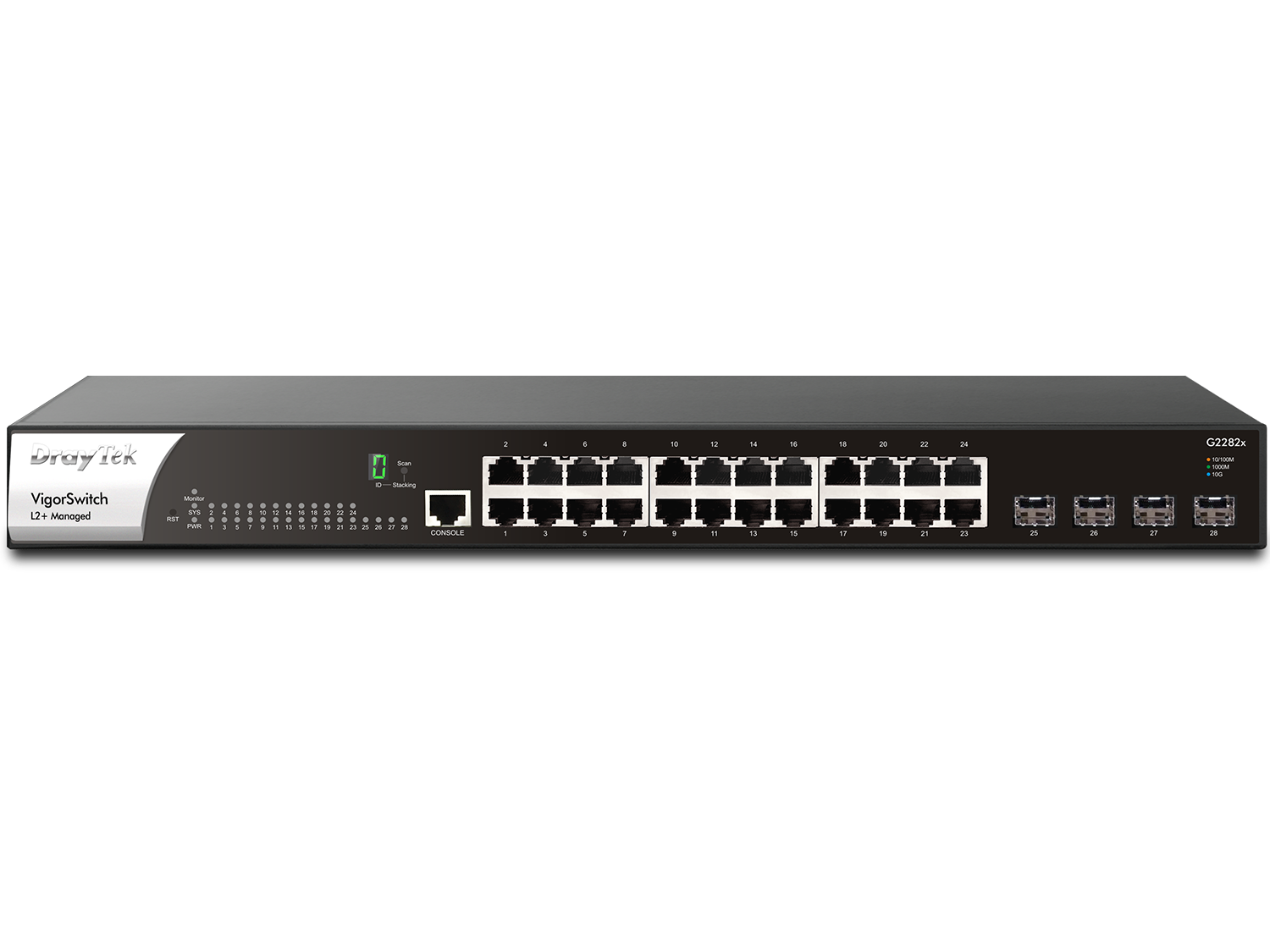

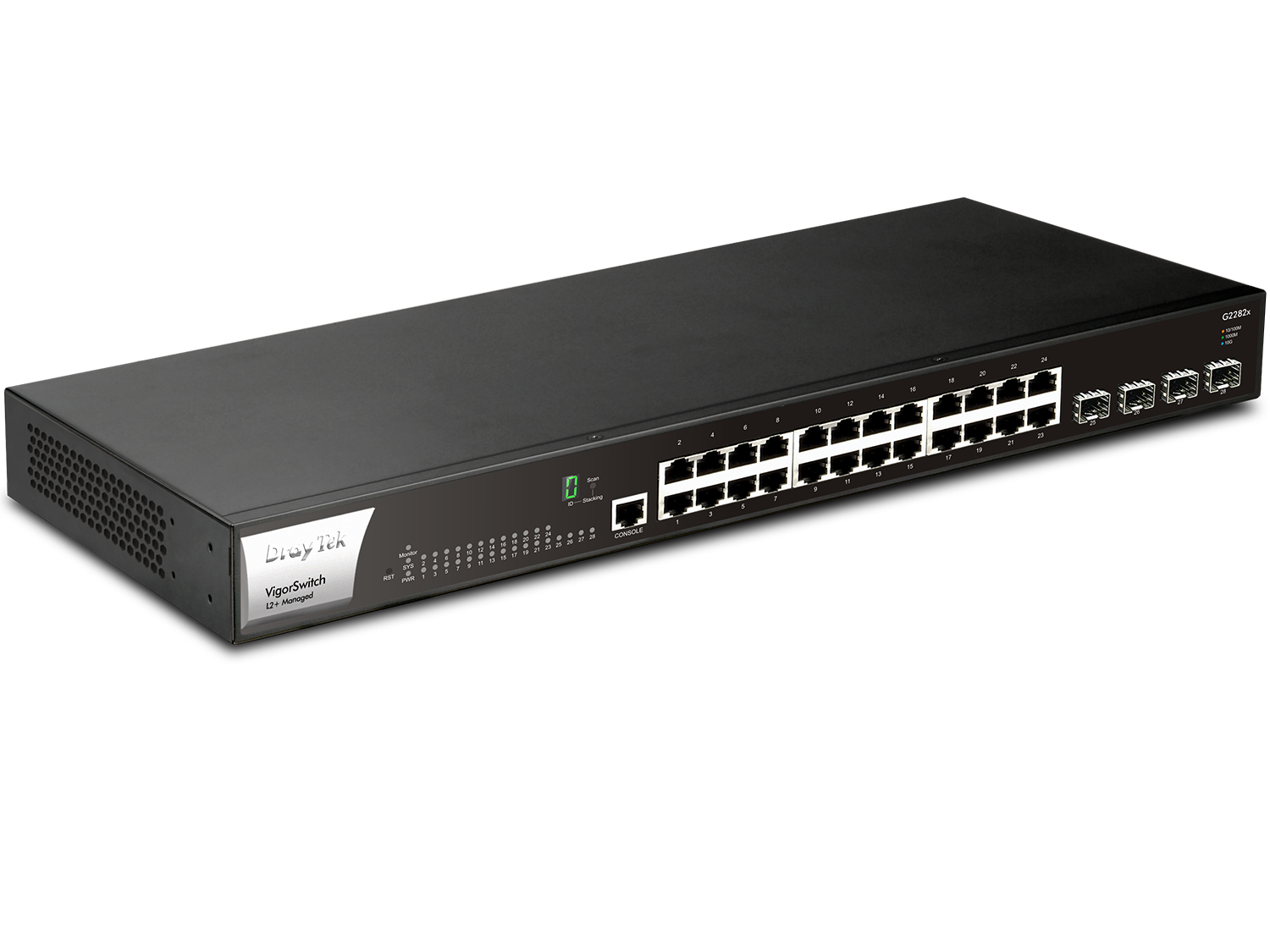

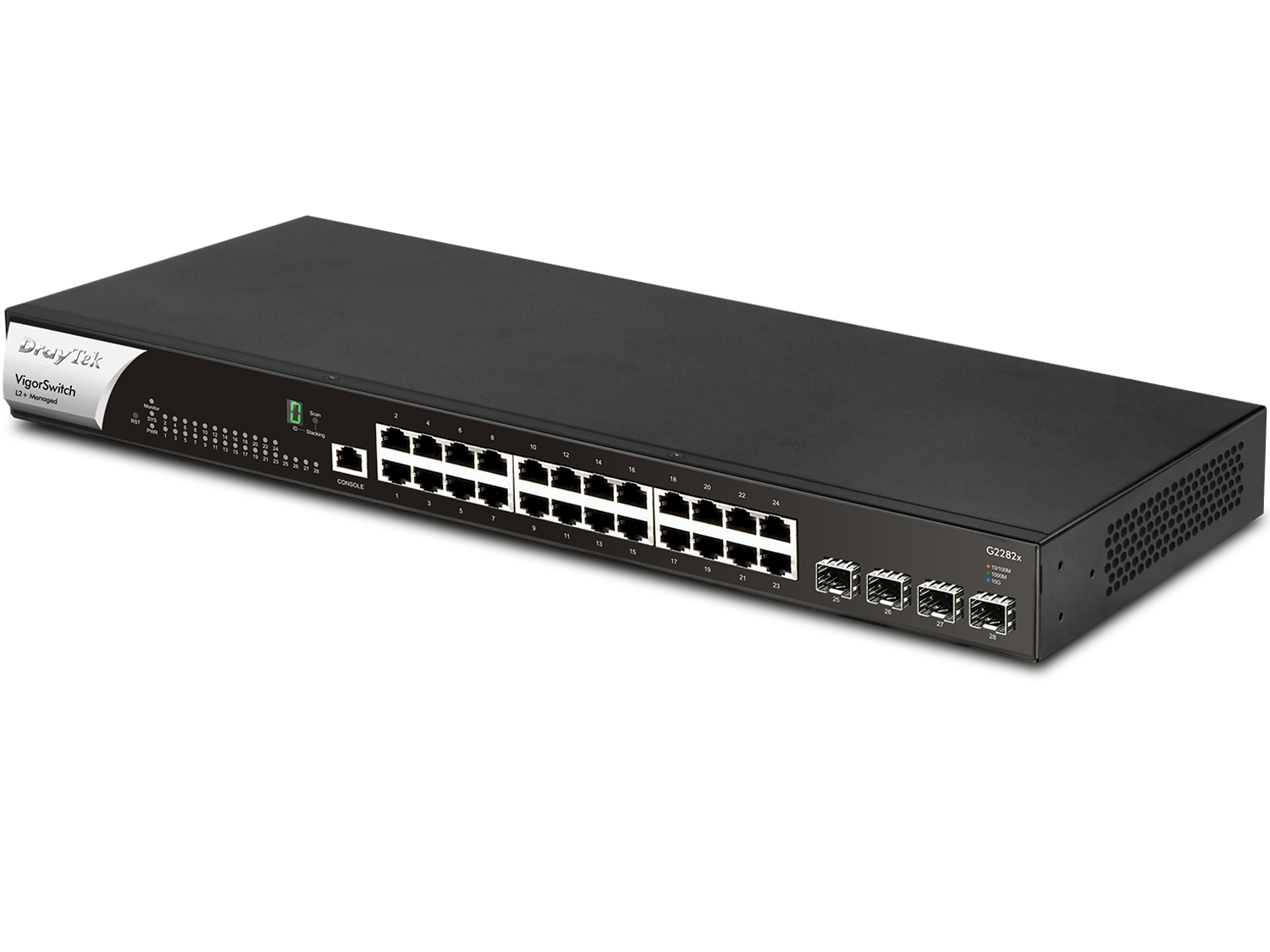

Thiết bị chuyển mạch DrayTek VigorSwitch G2282x – Switch 28 Port L2+ Managed 10G
Chính hãng giảm sốc
Giá:
5.950.000 ₫
6.250.000 ₫
-5%
- Tình trạng
- Hàng chính hãng - New 100%, COCQ đầy đủ
- Part Number
- G2282x
- Kho hàng
- Còn hàng
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
- Mô tả
DrayTek VigorSwitch 2282x series is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch 2282x series also provides DC power input as other power source, which helps to ensure uninterrupted operation. Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing.
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
Review
Xem tại đây
DrayTek VigorSwitch G2282x is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch G2282x also provide a DC power input as other power source, which helps to ensure uninterrupted operation and protect connected devices in the event of AC power supply failure.
Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing. This enhances network efficiency and ensures uninterrupted LAN connectivity, even when the gateway is offline, which makes it an excellent solution for a network with increasing traffic demands.
24x GbE
10/100/1000Mbps Ethernet, RJ-45
4x 10G SFP+
1000Mbps/10Gbps fiber slot
128 Gbps
Switching Capacity

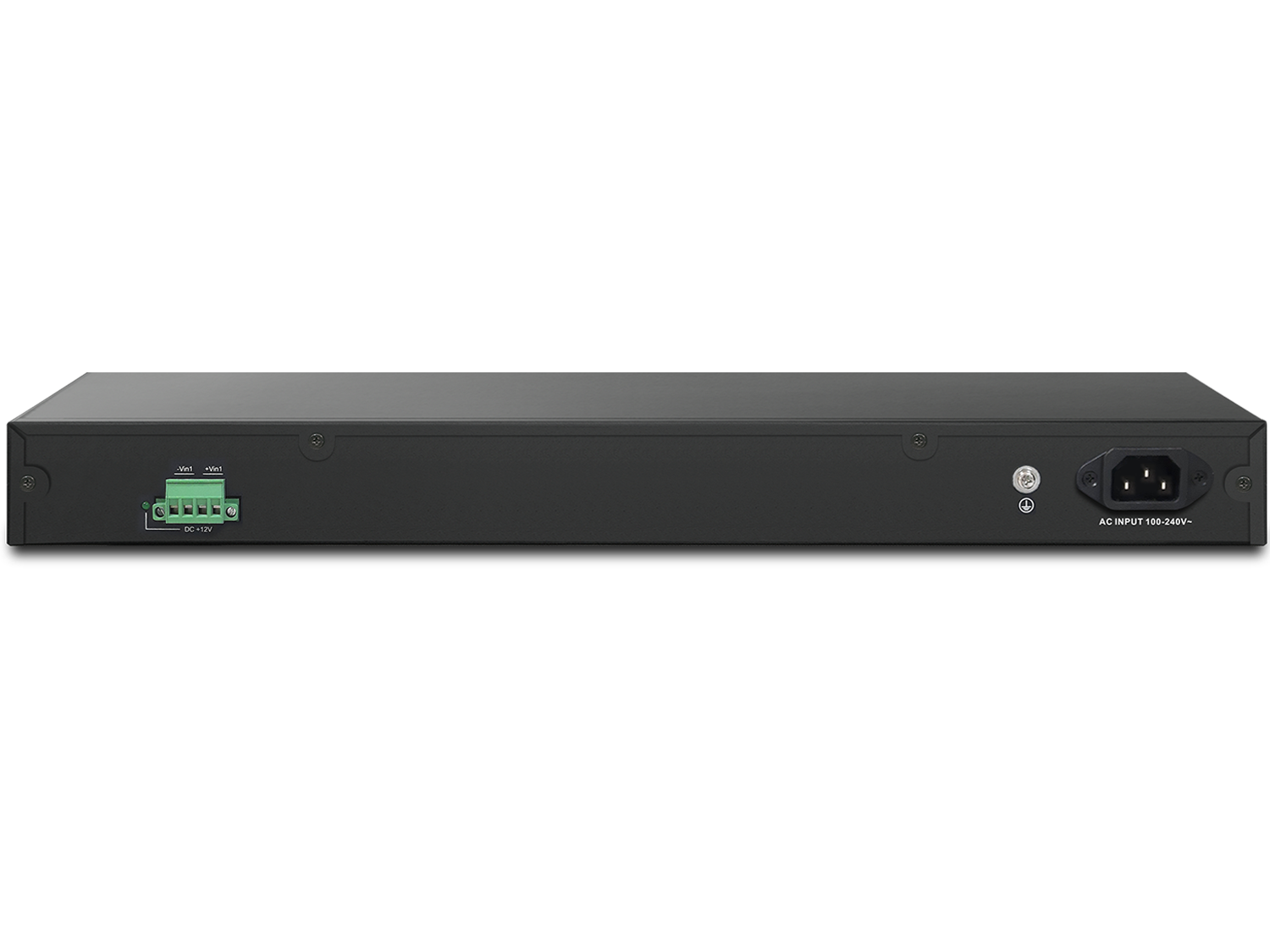

Backup Power
DC 12V redundant power socket
1Console Port
224x Gigabit Ethernet
34x SFP+ Port
41x DC Power Socket (backup usage)
5AC Power Supply
Key Features
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch G2282x to route the inter-VLAN traffic directly and offload the router.
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Access Control
VigorSwitch G2282x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
IPv6 Ready
VigorSwitch G2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Advanced Layer 2+ Features
DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency,
with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.
L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.
As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
Bind IP to MAC
Reserve an IP Address for an Important Device
As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
IP Conflict Detection & Prevention
Conflict Detection
Keep an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can't only detect but block the misconfigured or malicious IP host.
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.
Management Solution
All-in-One Management
VigorRouter SWM
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
Performance |
|
| Buffer Size (Mbit) | 12 |
| Switching Capacity (Gbps) | 128 |
| Forwarding Rate (64 bytes)(Mpps) | 95.2 |
| MAC Address Table | 16K |
| Max. Jumbo Frame (KB) | 12 |
| L3 Routing Table | |
Ports |
|
| 1 GbE | 24 |
| SFP+ (10G) | 4 |
| Console (RJ-45) | 1 |
Standard Compliance |
|
| Ethernet Standards |
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
|
Spanning Tree |
|
| STP | |
| RSTP | |
| MSTP | |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | |
VLAN |
|
| Max. Number of VLAN | 512 |
| VLAN Type |
802.1q Tag-based VLAN
MAC-based VLAN
Protocol-based VLAN
Management VLAN
Voice VLAN
Surveillance VLAN
|
| GVRP | |
| QinQ (Basic) | |
Layer3 Features |
|
| Static Route | |
| VLAN Route | |
| DHCP Server | |
Multicast |
|
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | |
| MVR (Multicast VLAN Registration) | |
ONVIF Surveillance |
|
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance |
Device Info
Network Settings
Time Settings
Reboot
Reset to Factory Default
|
QoS |
|
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) |
CoS
DSCP
CoS-DSCP
IP Precedence
|
| Rate Limiting | |
Security |
|
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | |
| IP Source Guard | |
| Traffic Control | DoS Defense, Storm Control |
| Dynamic ARP Inspection (DAI) | |
| DHCP Snooping | |
| IP Conflict Prevention | |
| Loop Protection | |
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
|
| Config Backup/Restore | |
| Dual Image | |
| 2-Level Administration Privilege | |
| Access Control | Access List |
| OpenVPN Client | |
| sFlow | |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | |
| LLDP | |
| LLDP-MED | |
| Mail Alert |
Port Status
Port Speed
System Restart
PoE Warning
IP Conflict
Hardware Monitor
Device Check
ONVIF IP Cam Snapshot
|
| VigorRouter Management (SWM) | |
| VigorConnect Management (Since f/w) | V2.9.1 |
| VigorACS Management (Since f/w) | V2.9.1 |
Physical |
|
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 0.7A |
| Backup Power Input | DC 12V @ 3A |
| Max. Power Consumption (watts) | 36 |
| Dimension (mm) | 440 x 205 x 44 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
