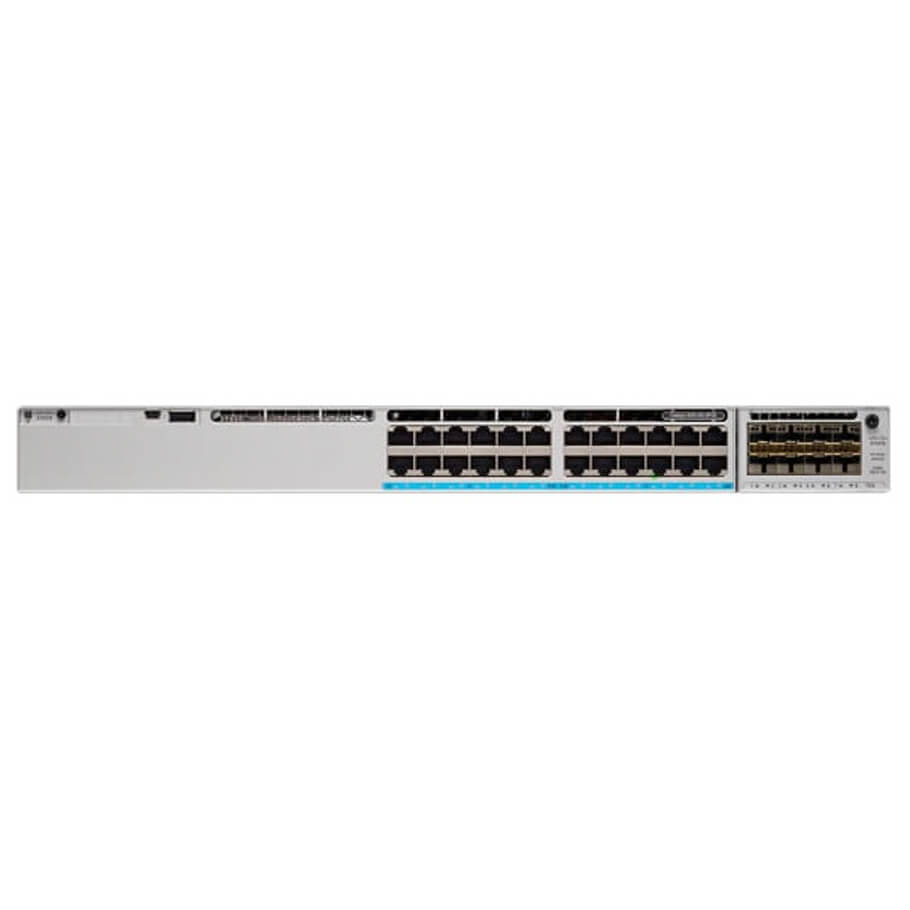

Catalyst 9300 24-port 10G/mGig Switch CISCO C9300-24UX-A
- The Catalyst C9300 Switch is a next-generation product line, a superior stackable platform compared to its predecessors. These bearer switches are built for security, IoT, and for cloud applications. Cisco C9300-24UX-A is one of the latest updates to the C9300 series with outstanding features.
- The Catalyst C9300-24UX-A Switch is a Layer 3, 24 Gigabit Ethernet, UPoE, Fast Ethernet switch, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet ports.
- Switch C9300-24UX-A uses remote management protocol via CLI, RMON1, RMON2, SNMP1, SNMP2c, SNMP 3.
Đặc tính kỹ thuật
| Model | C9300-24UX-A |
| Product description | Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 24 Multigigabit Cisco UPOE (100 Mbps or 1, 2.5, 5, or 10 Gbps) |
| Default AC power supply | 1100W AC |
| Available PoE power | 490W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-1100WAC-P/2 |
| Switching capacity | 640 Gbps on 24-port Multigigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32 |
| IPv6 routing entries | 16 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 32 MB buffer for 24-port Multigigabit |
| FNF entries | 128,000 flows on 24-port Multigigabit |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
- Bảo hành: 12 tháng.
