Giá: 5.900.000₫ 6.350.000₫ -7% (Giá đã bao gồm VAT) / 500m / Cuộn
Giá đã được giảm trực tiếp vào giá bán. Áp dụng giá cho đến khi có thông báo mới.
Cáp mạng treo ngoài trời - CAT.6, 500m, thép gia cường dùng treo móc.
Cáp mạng treo ngoài trời - CAT.6, 500m, thép gia cường dùng treo móc.
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

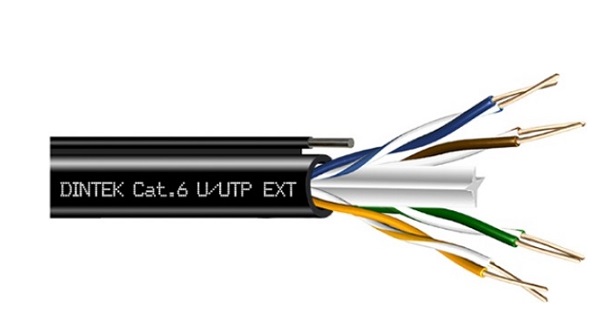

Cáp mạng treo ngoài trời Dintek CAT.6 UTP 500m (1101-04017)
Features
- Capable of handling the latest versions of Power over Ethernet
- Conductor size for PowerPRO TM Cat.6 set at 23AWG
- Telecommunications cable 4 pairs PE sheathed
- Successful transmission at 250Mhz up to 100m length
- Self-supporting system 1.2mm galvanized steel wire
Application
- Industrial and external cabling / overhead backbone cabling
- 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
- 100VG-AnyLAN / Broadband Video / Voice / T1 / ISDN
- 250Mhz transmission with length up to 100m
Specifications
Conductor | |
Material | Pure Annealed Copper |
Wire Size | 23AWG |
Braided Type | Hard core |
No. Of Pairs | 4P |
Insulation | |
Material | HDPE |
Diameter | 1.0mm ± 0.05mm |
Colors | Blue/White | Orange/White | Green/White | Brown/White |
Wrap foil in pairs | None |
Jacket | |
Material | Polyethylene |
Separator | Non-metallic cross separator (backbone) |
Diameter | 6.0mm ± 0.5mm / 2.8mm ± 0.5mm |
Color | Black |
CPR Reaction To Fire | Fca: according to EN 13501-6 |
Foil Shield | None |
Braided Shield | None |
Self-help system | 1.2mm galvanized steel wire (17AWG) |
Jacket Physical Ranges | |
Min. Bending Radius | No load 4 x Outer diameter / Under load 8 x Outer diameter |
Maximum Tensile Strength | 110N |
Installation Temperature | 0°C to +50°C |
Operating Temperature | -20°C to +75°C |
Electrical | |
Conductor Resistance | Max. 9.38Ω/100m at 20°C |
DC Resistance Unbalance | 2% max at 20°C |
Unbalanced capacitance between wire pair and ground | Up to 160 pF/km at 1 kHz |
Dielectric strength of insulation | 1 KV in 1 minute |
Insulation Resistance Test (500V) | Min. 5000 MΩ/Km at 20°C |
Mutual Capacitance | Max. 5.6 nF/100m at 1 kHz |
Impedance 1 ~ 100Mhz | 100Ω ± 15% |
Nominal Velocity Of Propagation | 67% |
