Giá: 7.380.000₫ 7.500.000₫ -2% (Giá đã bao gồm VAT) / 305m / Cuộn
Giá đã được giảm trực tiếp vào giá bán. Áp dụng giá cho đến khi có thông báo mới.
CAT.6 S-FTP, 4 pair, 23 AWG, Bọc nhôm chống nhiễu từng đôi, bọc thêm lưới đồng ở ngoài, cuộn 305m trên rulo nhựa
CAT.6 S-FTP, 4 pair, 23 AWG, Bọc nhôm chống nhiễu từng đôi, bọc thêm lưới đồng ở ngoài, cuộn 305m trên rulo nhựa
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

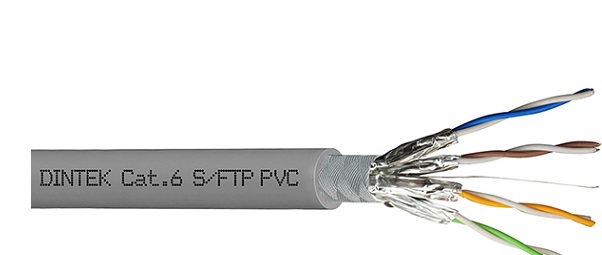

Cáp mạng Dintek CAT.6 S/FTP (1107-04009, 305 mét/cuộn)
Part Number: 1107-04009
- Cáp mạng CAT.6 S/FTP Dintek 4-pairs, 23AWG, cuộn 305m trên rulo nhựa.
- Bọc nhôm chống nhiễu từng đôi cáp, bọc thêm lưới đồng ở ngoài.
Features
- Capable of handling the latest versions of Power over Ethernet
- Conductor sizes for PowerMAX500TM Cat.6 set at 23AWG
- PVC jacketed 4 pair telecommunications cable
- Successful transmission at 500Mhz up to a length of 70Mtrs
- EZI-Pull 305Mtr Reel for trouble free installation
- Foil wraps act to prevent crosstalk between twisted pairs
- Braided shield helps prevent EMI/RFI & AXT from entering cable
Application
- Horizontal and backbone cable
- 1000BASE-TX Gigabit Ethernet/1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet/10BASE-TX Ethernet
- 100 Mbps TP-PMD/100VG-AnyLAN
- Broadband Video/Voice/T1/ISDN
- 10Gbit (500Mhz) Transmission up to length of 70Mtrs
Standards Conformance
- Performance - ANSI/TIA 568.2-D Cat.6/ISO/IEC 11801
- Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-5-1
- PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)
- Environmental - Conforms to RoHS and REACH Directives
- Flame testing - EN 60332-1-2
Independent Certification
- ETL Certification according to ANSI/TIA-568.2-D Cat.6
- UL Cable Fire Rating - CM as per UL 444
Thông số kỹ thuật
Construction | |
Conductor | |
Material | Pure Annealed Copper |
Wire Size | 23AWG |
Strand Type | Solid Core |
No. Of Pairs | 4P |
Insulation | |
Material | Polyethylene |
Thickness | 0.43mm ± 0.03mm |
Diameter | 1.42mm ± 0.1mm |
Colors | Blue/White | Orange/White | Green/White | Brown/White |
Pair Foil Wrap | Aluminum-mylar tape |
Jacket | |
Material | PVC |
Thickness | 0.5 mm ± 0.05mm |
Diameter | 7.30mm ± 0.3mm |
Color | Gray |
Jacket Rating | CM |
Foil Shield | None |
Braided Shield | Tinned copper braid |
Physical Ranges | |
Jacket | |
Cold Bend Test | -20 ± 2°C x 4hrs no crack |
Min. Bending Radius | Min. 4 x Cable Diameter |
Max. Pulling Tension | 10Kg / 25 lbs |
Installation Temperature | 0°C to +50°C |
Operating Temperature | -20°C to +60°C |
Electrical | |
Conductor Resistance | Max. 9.38 Ω/100m at 20°C |
DC Resistance Unbalance | Max. 2% at 20°C |
Pair-to-Ground Capacitance Unbalance | Max. 1600 pF/km at 1 kHz |
Dielectric Strength of Insulation | DC 1.0 KV for 1 min |
Insulation Resistance Test (500V) | Min. 5000 MΩ/Km at at 20℃ |
Mutual Capacitance | Max. 5600 pF/100m at 1 kHz |
Impedance 1 ~ 250Mhz | 100Ω ± 5% |
Nominal Velocity Of Propagation | 78% |
