Phatsongwifi
Nhật Bản Thương hiệu: I-Pro (Panasonic)

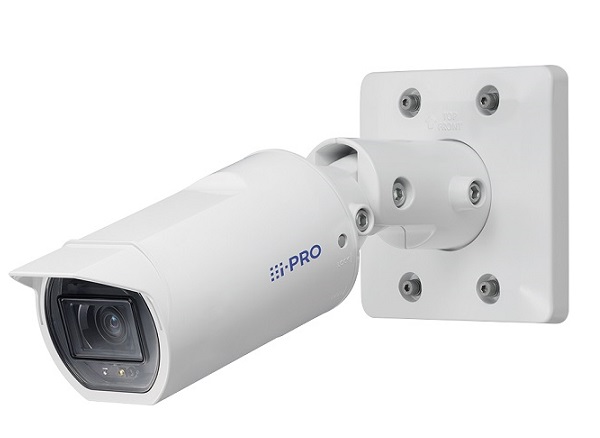

Camera IP hồng ngoại 2.0 Megapixel I-PRO WV-U1532L

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP hồng ngoại 2.0 Megapixel I-PRO WV-U1532L
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP hồng ngoại 2.0 Megapixel I-PRO WV-U1532L

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải: Full HD 1080p (30 khung hình/ giây).

- Ống kính có động cơ và ống kính lấy nét có động cơ zoom 2.5x.

- Tiêu cự: 2.9 – 7.3 mm {1/8 - 9/32 inches}, F2.0 Motorized.

- Tầm quan sát hồng ngoại: 30 mét.

- Góc quan sát H: 44-102 deg. V: 24-56 deg.(16:9).

- Tính năng iA (intelligent Auto).

- Super Dynamic 120dB.

- Tầm nhìn ban đêm màu (0,006 đến 0,1 lx).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Chế độ hành lang (xoay 90° hoặc 270°).

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 64GB.

- Tiêu chuẩn bảo vệ: Type 4X, NEMA 4X.

- Tiêu chuẩn chống bụi và nước: IP66 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nguồn hỗ trợ: PoE (IEEE802.3af) 6.7W.

- Hỗ trợ ONVIF G T.

- Tiêu chuẩn UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1, FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024.

Đặc tính kỹ thuật

Model  WV-U1532L
Camera
Image Sensor  Approx. 1/3 type CMOS image sensor
Minimum Illumination Color : 0.1 lx, BW: 0.04 lx
 (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW : 0 lx {0 footcandle}
 (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit)
Color : 0.006 lx, BW: 0.0025 lx
 (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance  ATW1/ ATW2/ AWC
Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On / Off
Super Dynamic On / Off, the level can be set in the range of 0 to 31.
Dynamic Range  Max.120 dB (Super Dynamic: On, Level: 31)
Back light compensation / High light compensation BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off)
Fog compensation On / Off, The level can be set in the range of 0 to 8. (only when Intelligent auto / auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light High/ Middle/ Low/ Off
Maximum irradiation distance: 30 m {Approx. 100 ft}
Digital Noise Reduction  The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On/ Off, 4 areas available
Privacy Zone  On/ Off (up to 8 zones available)
Image rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Lens
Focal length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Optical zoom 2.5x (Motorized zoom / Motorized focus)
Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Angular Field of View [16 : 9 mode]
Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode]
Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0(TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Adjusting Angle
Ceiling mounting Horizontal: ±180 ° (Adjust by horizontal (PAN) angle)
Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle)
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
Wall mounting Horizontal: ±100 ° (Adjust by vertical (TILT) angle)*
Vertical : ±100 ° (Adjust by vertical (TILT) angle)*
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
*You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle.
Browser GUI
Camera Control Brightness
GUI /Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265 Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort
Transmission Type: Unicast / Multicast
JPEG Image Quality: 10 steps
Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off
AUTO VIQS: On/ Off
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)  H.265 recording:
 Manual REC / Alarm REC (Pre/Post) / Schedule REC /
 Backup upon network failure
Compatible microSDXC/microSDHC Memory Card:
 Panasonic 32 GB*, 64 GB**model
 *microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
Alarm
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device:
DC48 V 140 mA, Approx. 6.7 W (Class 0 device)
Ambient Operating Temperature -30 °C to +50 °C (-22 °F to +122 °F)
{Power On range: -20 °C to +50 °C (-4°F to +122 °F)}
Ambient Operating Humidity 10 to 100 % (no condensation)
Water and Dust Resistance IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
Shock Resistance IK10 (IEC 62262)
Dimensions 112.5 mm (W) x 112.5 mm (H) x 262 mm (D)
{4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)}
Mass (approx.)  800 g {1.77 lbs.}
Finish Main body: Aluminum die cast/ PC resin, i-PRO white
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Front cover: Polycarbonate resin, Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.

Camera IP hồng ngoại 2.0 Megapixel I-PRO WV-U1532L

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải: Full HD 1080p (30 khung hình/ giây).

- Ống kính có động cơ và ống kính lấy nét có động cơ zoom 2.5x.

- Tiêu cự: 2.9 – 7.3 mm {1/8 - 9/32 inches}, F2.0 Motorized.

- Tầm quan sát hồng ngoại: 30 mét.

- Góc quan sát H: 44-102 deg. V: 24-56 deg.(16:9).

- Tính năng iA (intelligent Auto).

- Super Dynamic 120dB.

- Tầm nhìn ban đêm màu (0,006 đến 0,1 lx).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Chế độ hành lang (xoay 90° hoặc 270°).

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 64GB.

- Tiêu chuẩn bảo vệ: Type 4X, NEMA 4X.

- Tiêu chuẩn chống bụi và nước: IP66 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nguồn hỗ trợ: PoE (IEEE802.3af) 6.7W.

- Hỗ trợ ONVIF G T.

- Tiêu chuẩn UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1, FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024.

Đặc tính kỹ thuật

Model  WV-U1532L
Camera
Image Sensor  Approx. 1/3 type CMOS image sensor
Minimum Illumination Color : 0.1 lx, BW: 0.04 lx
 (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW : 0 lx {0 footcandle}
 (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit)
Color : 0.006 lx, BW: 0.0025 lx
 (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance  ATW1/ ATW2/ AWC
Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On / Off
Super Dynamic On / Off, the level can be set in the range of 0 to 31.
Dynamic Range  Max.120 dB (Super Dynamic: On, Level: 31)
Back light compensation / High light compensation BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off)
Fog compensation On / Off, The level can be set in the range of 0 to 8. (only when Intelligent auto / auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light High/ Middle/ Low/ Off
Maximum irradiation distance: 30 m {Approx. 100 ft}
Digital Noise Reduction  The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On/ Off, 4 areas available
Privacy Zone  On/ Off (up to 8 zones available)
Image rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Lens
Focal length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Optical zoom 2.5x (Motorized zoom / Motorized focus)
Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Angular Field of View [16 : 9 mode]
Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode]
Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0(TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Adjusting Angle
Ceiling mounting Horizontal: ±180 ° (Adjust by horizontal (PAN) angle)
Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle)
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
Wall mounting Horizontal: ±100 ° (Adjust by vertical (TILT) angle)*
Vertical : ±100 ° (Adjust by vertical (TILT) angle)*
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
*You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle.
Browser GUI
Camera Control Brightness
GUI /Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265 Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort
Transmission Type: Unicast / Multicast
JPEG Image Quality: 10 steps
Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off
AUTO VIQS: On/ Off
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)  H.265 recording:
 Manual REC / Alarm REC (Pre/Post) / Schedule REC /
 Backup upon network failure
Compatible microSDXC/microSDHC Memory Card:
 Panasonic 32 GB*, 64 GB**model
 *microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
Alarm
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device:
DC48 V 140 mA, Approx. 6.7 W (Class 0 device)
Ambient Operating Temperature -30 °C to +50 °C (-22 °F to +122 °F)
{Power On range: -20 °C to +50 °C (-4°F to +122 °F)}
Ambient Operating Humidity 10 to 100 % (no condensation)
Water and Dust Resistance IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
Shock Resistance IK10 (IEC 62262)
Dimensions 112.5 mm (W) x 112.5 mm (H) x 262 mm (D)
{4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)}
Mass (approx.)  800 g {1.77 lbs.}
Finish Main body: Aluminum die cast/ PC resin, i-PRO white
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Front cover: Polycarbonate resin, Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
