Nhật Bản Thương hiệu: I-Pro (Panasonic)

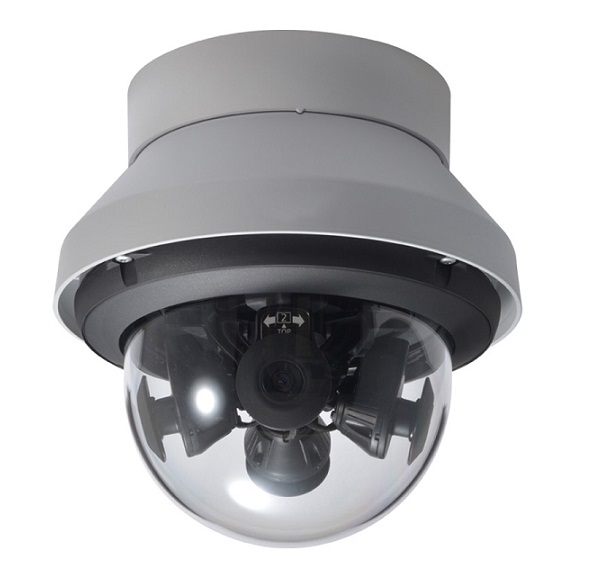

Camera IP đa cảm biến 2.0 Megapixel I-PRO WV-S8530N

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP đa cảm biến 2.0 Megapixel I-PRO WV-S8530
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP đa cảm biến 2.0 Megapixel I-PRO WV-S8530N

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải camera ip: 2.0 Megapixel.

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG.

- Ống kính: 3.2 - 5.7 mm.

- Góc quan sát: Ngang 53° ~99°; Dọc 30° ~ 54° (16 : 9 mode).

- Chống ngược sáng thực WDR 108dB.

- Hỗ trợ tính năng iA (intelligent Auto).

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 256GB.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuấn chống va đập: IK10.

- Nhiệt độ hoạt động: -40°C - 60°C.

Đặc tính kỹ thuật

Model  WV-S8530N
Camera
Image Sensor  1/3 type CMOS image sensor
Minimum Illumination - Color: 0.09 lx, BW: 0.04 lx
 (F2.2, Maximum shutter: Off (1/30s), AGC: 11)
- Color: 0.006 lx, BW: 0.003 lx
 (F2.2, Maximum shutter: max. 16/30s, AGC: 11)
Intelligent Auto On/ Off
Maximum shutter Max.1/10000s to Max.16/30s
Super Dynamic On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range Max.108 dB typ. (Super Dynamic: On, level: 31)
Image Settings Gain (AGC), White balance
Image Compensation Adaptive black stretch, Back light compensation (BLC), High light compensation (HLC), Fog compensation, Digital noise reduction
Color/BW (ICR) Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
Video Motion Detection (VMD) On/ Off, 4 areas available
Privacy Zone  On / Off (up to 8 zones available)
Upside-down On / Off
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks
Adjusting angle Camera 1, 2, 3 :
Horizontal (PAN) angle : 360 °
Vertical (TILT) angle : +30 ° to + 80 °
Azimuth (YAW) angle : ±50 °
Camera 4 :
Horizontal (PAN) angle : 360 °
Vertical (TILT) angle : –15 ° to + 80 °
Azimuth (YAW) angle : ±50 °
*The above is the adjustable range of a single camera.
 The adjustable range of each camera varies according to the
 positional relationship with other cameras
Lens
Zoom Ratio 1.8x Optical (Manual zoom/ Manual focus)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal length 3.2 mm – 5.7 mm {1/8 inches - 7/32 inches}
Maximum Aperture Ratio 1 : 2.2 (WIDE) – 1 : 3.1 (TELE)
Focus range 1.5 m {4.92 feets} – ∞
Angular Field of view - [16 : 9] Horizontal : 53 ° (TELE) – 99 ° (WIDE)
               Vertical : 30 ° (TELE) – 54 ° (WIDE)
- [ 4 : 3] Horizontal : 44 ° (TELE) – 81 ° (WIDE)
              Vertical : 33 ° (TELE) – 60 ° (WIDE)
Browser GUI
Camera Control Brightness, AUX On/ Off
GUI/ Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T/ 100Base-TX/ 1000Base-T, RJ45 connector
Resolution with one lens - [16 : 9 mode] 1920 x 1080/ 1280 x 720/ 640 x 360/ 320 x 180
- [ 4 : 3 mode] 1600 x 1200/ 1280 x 960/ 640 x 480/ 320 x 240
H.265/H.264 - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast
JPEG - Image Quality: 10 steps
Smart Coding - GOP (Group of pictures) control :
On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
- Auto VIQS : On / Off
Supported Protocol - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP (Server), SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP (Server), SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Maximum concurrent access number Up to 24 users
(Depends on network conditions)
SDXC/SDHC/SD Memory Card  - H.265/H.264 recording :
 Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- Compatible SDXC/SDHC/SD card :
 Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**,
 256 GB**model
 *SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad/ iPhone, AndroidTM terminals
Alarm
Alarm Source 3 terminals input, VMD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output
Input/Output
Audio Input ø3.5 mm stereo mini jack (Audio input is monaural)
- For microphone input:
Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance: Approx. 2 k (unbalanced)
Supply voltage: 4.0 V ±0.5 V
- For line input: Input level : Approx. –10 dBV
External I/O Terminals ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ ALARM OUT/ AUX OUT) (x1)
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device: DC 48V/210 mA/Approx. 10.1 W (Class 0 device)
Ambient Operating Temperature -40 °C to +60 °C {–40 °F to +140 °F}
{Power On range : –20 °C to +60 °C (–4 °F to +140 °F)}
Ambient Operating Humidity 10 to 100 % (no condensation)
Water and Dust Resistance IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant
Shock Resistance IK10 (IEC62262)
Dimensions When using the attachment plate only:
ø230 mm x 196 mm (H) {ø9-1/16 inches x 7-23/32 inches (H)},
Dome radius 80 mm {3-5/32 inches}
When using the base bracket:
ø230 mm x 232 mm (H) {ø9-1/16 inches x 9-1/8 inches (H)},
Dome radius 80 mm {3-5/32 inches}
Mass (approx.) When using the attachment plate only: Approx. 2.7 kg {5.95 lbs}
When using the base bracket: Approx. 3.2 kg {7.05 lbs}
Finish Main body: Aluminum die cast, Light gray,
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Dome cover: Polycarbonate resin (with ClearSight coating), Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.

Camera IP đa cảm biến 2.0 Megapixel I-PRO WV-S8530N

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải camera ip: 2.0 Megapixel.

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG.

- Ống kính: 3.2 - 5.7 mm.

- Góc quan sát: Ngang 53° ~99°; Dọc 30° ~ 54° (16 : 9 mode).

- Chống ngược sáng thực WDR 108dB.

- Hỗ trợ tính năng iA (intelligent Auto).

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 256GB.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuấn chống va đập: IK10.

- Nhiệt độ hoạt động: -40°C - 60°C.

Đặc tính kỹ thuật

Model  WV-S8530N
Camera
Image Sensor  1/3 type CMOS image sensor
Minimum Illumination - Color: 0.09 lx, BW: 0.04 lx
 (F2.2, Maximum shutter: Off (1/30s), AGC: 11)
- Color: 0.006 lx, BW: 0.003 lx
 (F2.2, Maximum shutter: max. 16/30s, AGC: 11)
Intelligent Auto On/ Off
Maximum shutter Max.1/10000s to Max.16/30s
Super Dynamic On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range Max.108 dB typ. (Super Dynamic: On, level: 31)
Image Settings Gain (AGC), White balance
Image Compensation Adaptive black stretch, Back light compensation (BLC), High light compensation (HLC), Fog compensation, Digital noise reduction
Color/BW (ICR) Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
Video Motion Detection (VMD) On/ Off, 4 areas available
Privacy Zone  On / Off (up to 8 zones available)
Upside-down On / Off
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks
Adjusting angle Camera 1, 2, 3 :
Horizontal (PAN) angle : 360 °
Vertical (TILT) angle : +30 ° to + 80 °
Azimuth (YAW) angle : ±50 °
Camera 4 :
Horizontal (PAN) angle : 360 °
Vertical (TILT) angle : –15 ° to + 80 °
Azimuth (YAW) angle : ±50 °
*The above is the adjustable range of a single camera.
 The adjustable range of each camera varies according to the
 positional relationship with other cameras
Lens
Zoom Ratio 1.8x Optical (Manual zoom/ Manual focus)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal length 3.2 mm – 5.7 mm {1/8 inches - 7/32 inches}
Maximum Aperture Ratio 1 : 2.2 (WIDE) – 1 : 3.1 (TELE)
Focus range 1.5 m {4.92 feets} – ∞
Angular Field of view - [16 : 9] Horizontal : 53 ° (TELE) – 99 ° (WIDE)
               Vertical : 30 ° (TELE) – 54 ° (WIDE)
- [ 4 : 3] Horizontal : 44 ° (TELE) – 81 ° (WIDE)
              Vertical : 33 ° (TELE) – 60 ° (WIDE)
Browser GUI
Camera Control Brightness, AUX On/ Off
GUI/ Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T/ 100Base-TX/ 1000Base-T, RJ45 connector
Resolution with one lens - [16 : 9 mode] 1920 x 1080/ 1280 x 720/ 640 x 360/ 320 x 180
- [ 4 : 3 mode] 1600 x 1200/ 1280 x 960/ 640 x 480/ 320 x 240
H.265/H.264 - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast
JPEG - Image Quality: 10 steps
Smart Coding - GOP (Group of pictures) control :
On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
- Auto VIQS : On / Off
Supported Protocol - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP (Server), SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP (Server), SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Maximum concurrent access number Up to 24 users
(Depends on network conditions)
SDXC/SDHC/SD Memory Card  - H.265/H.264 recording :
 Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- Compatible SDXC/SDHC/SD card :
 Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**,
 256 GB**model
 *SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad/ iPhone, AndroidTM terminals
Alarm
Alarm Source 3 terminals input, VMD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output
Input/Output
Audio Input ø3.5 mm stereo mini jack (Audio input is monaural)
- For microphone input:
Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance: Approx. 2 k (unbalanced)
Supply voltage: 4.0 V ±0.5 V
- For line input: Input level : Approx. –10 dBV
External I/O Terminals ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ ALARM OUT/ AUX OUT) (x1)
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device: DC 48V/210 mA/Approx. 10.1 W (Class 0 device)
Ambient Operating Temperature -40 °C to +60 °C {–40 °F to +140 °F}
{Power On range : –20 °C to +60 °C (–4 °F to +140 °F)}
Ambient Operating Humidity 10 to 100 % (no condensation)
Water and Dust Resistance IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant
Shock Resistance IK10 (IEC62262)
Dimensions When using the attachment plate only:
ø230 mm x 196 mm (H) {ø9-1/16 inches x 7-23/32 inches (H)},
Dome radius 80 mm {3-5/32 inches}
When using the base bracket:
ø230 mm x 232 mm (H) {ø9-1/16 inches x 9-1/8 inches (H)},
Dome radius 80 mm {3-5/32 inches}
Mass (approx.) When using the attachment plate only: Approx. 2.7 kg {5.95 lbs}
When using the base bracket: Approx. 3.2 kg {7.05 lbs}
Finish Main body: Aluminum die cast, Light gray,
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Dome cover: Polycarbonate resin (with ClearSight coating), Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
