Camera IP Speed Dome hồng ngoại 2.0 Megapixel I-PRO WV-SUD638PJ

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: Camera IP Speed Dome hồng ngoại 2.0 Megapixel I-PR
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

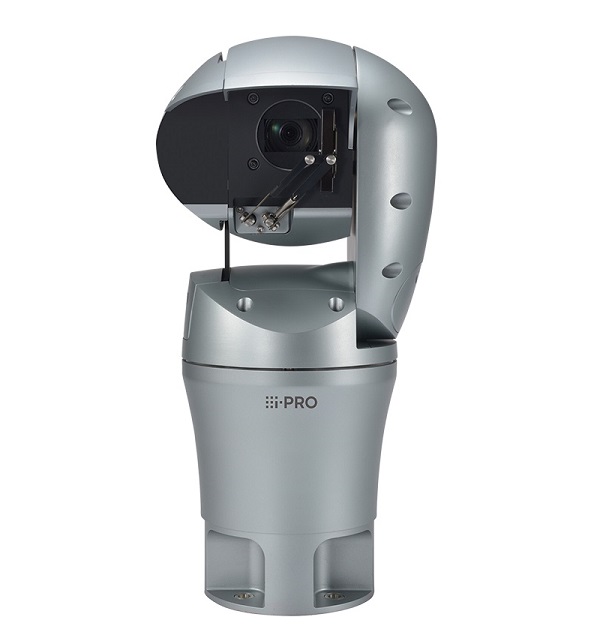

Camera IP Speed Dome hồng ngoại 2.0 Megapixel I-PRO WV-SUD638PJ

- I-PRO WV-SUD638PJ là dòng camera IP Speed Dome hồng ngoại 2.0 Megapixel Outdoor.

- Cảm biến hình ảnh: Approx. 1/3 inch CMOS.

- Độ phân giải: 2.0 Megapixel.

- Chuẩn nén hình ảnh: H.264, JPEG (MJPEG).

- Độ nhạy sáng tối thiểu: Color: 0.06lx, B/W: 0.02lx; B/W: 0.0lux (with IR LED on).

- Ống kính: 4.3mm - 129mm.

- Góc quan sát: Ngang 2.3°-64°, Dọc: 1.3-38°.

- Tầm quan sát hồng ngoại: 150 mét.

- Góc quay ngang: liên tục 360° endless.

- Zoom quang: 30x.

- Zoom số: 24x.

- Tiêu chuẩn chống bụi và nước: IP66 (IEC60529), IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Hỗ trợ kết nối ONVIF.

Đặc tính kỹ thuật

Model	WV-SUD638PJ
Camera
Image Sensor	Approx. 1/3 type MOS image sensor
Minimum Illumination	- Color: 0.06 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High) 0.004 lx (F1.6, Maximum shutter: max. 16/30 s, AGC: High) - BW: 0.02 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High) 0.001 lx (F1.6, Maximum shutter: max. 16/30 s, AGC: High) 0 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High, when the IR LED (Optional) is lit)
Super Dynamic	Dynamic Range 105 dB typ.
Image settings	Gain (AGC), White balance
Image compensation	Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
Shutter speed	[2 Megapixel [16 : 9] (60 fps mode)] Off (1/60) to 1/10000 Other than [2 Megapixel [16 : 9](60 fps mode)] Off (1/30) to 1/10000
Day/Night (ICR)	Off / On/ Auto1(Normal)/ Auto2(IR Light)/ Auto3(SCC)
IR LED Light (Optional)	Off/ Auto (High/ Mid/ Low) irradiation distance: 150 m (500 feet)
Image stabilization	On/ Off *Hybrid image stabilizer
Privacy zone	Gray/ Mosaic/ Off (up to 32 zones available)
Camera title on screen	Up to 20 characters (alphanumeric characters, marks)
Video Motion Detection (VMD)	On/ Off, 4 areas available
Lens
Zoom Ratio	30x/ 45x with HD extra optical zoom (at 1280 x 720) (Motorized zoom/ Auto Focus)
Digital (electronic) zoom	24x
Focal length	4.3 mm - 129 mm {3/16 inches - 5-3/32 inches}
Maximum Ratio Aperture	1 : 1.6 (WIDE) - 1 : 4.7 (TELE)
Focus range	2.0 m - ∞
Aperture range	F1.6 (WIDE) - Close
Angular field of view	- [16 : 9 mode] Horizontal: 2.3° (TELE) – 64° (WIDE) Vertical: 1.3° (TELE) – 38° (WIDE) - [4 : 3 mode] Horizontal: 1.8° (TELE) – 50° (WIDE) Vertical: 1.3° (TELE) – 38° (WIDE)
Pan/tilt unit
Panning Range	360° endless
Panning Speed	- Manual: approx. 0.065°/s to 100°/s Preset: up to approx. 200°/s (Except when IR LED Unit is equipped, forward tilt mount, frozen.)
Tilting Range	Upright: –45° to +90° Forward tilt: –90° to +90° Hanging: –90° to +30°
Tilting Speed	Manual: approx. 0.065°/s to 100°/s Preset: up to approx. 200°/s (Except when IR LED Unit is equipped, forward tilt mount, frozen.)
Preset Positions	256 positions
Auto Mode	Auto track/ Auto pan/ Preset sequence/ 360 map-shot/ Preset map-shot/ Patrol
Self Return	10s to 60 min
Tilt flip	On/ Off
Map Shot	360° map shot/ preset map shot
Network
Network IF	10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG)	- 2 Megapixel [16 : 9] (60 fps mode/30 fps mode) + H.264: Maximum 1,920 x 1080 + JPEG: Maximum 1,920 x 1080 - 1.3 Megapixel [4 : 3] (30 fps mode) + H.264: Maximum 1,280 x 960 + JPEG: Maximum 1,280 x 960
Image compression method	- H.264 Transmission Mode : Constant bit rate/ Variable bit rate/ Frame rate priority/ Best effort/ Advanced VBR Transmission type: Unicast/ Multicast - JPEG Image Quality: 10 steps - Multiple streams individually configurable
Intelligent compression	Smart coding, VIQS (ROI)
Audio compression	G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps, AAC-LC(High quality): 64 kbps/ 96 kbps/ 128 kbps
Protocol	- Pv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ
Maximum concurrent access number	Up to 14 users (Depends on network conditions)
Mobile terminal compatibility	iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals
Environment
Water and Dust Resistance	- Main body: IP66, IP67, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant - Waterproof RJ45 connector, Waterproof power connector, Waterproof I/O connector
Shock resistance	Compliant with IK10 (IEC 62262)
Vibration resistance	IEC60068-2-6 compliant
Salt damage resistance	ISO14993 compliant
Resistance to wind	Upright 216 km/h (135 mph) (Operation) / 288 km/h (180 mph) (non-destructive) Forward tilt 50 m (112 mph) (Operation) / 80 m (180 mph) (non-destructive)
General
Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassA, EN55024
Power source	AC100 to 240 V, 50 Hz / 60 Hz Tested PoE Injector* (60 W) *with limitations
Operating environment	- Ambient operating temperature: AC100 to 240V: –50°C to +60°C {–58°F to 140°F} (Power On range: –30°C to +60°C {–22°F to 140°F}) - When using the tested PoE injector: –30°C to +60°C {–22°F to 140°F} - When using the tested PoE injector and IR LED unit at the same time: –20°C to +55°C {–4°F to 131°F}) The upper limit value of ambient operating temperature indicates the use of WV-SUD638 (natural silver). In cases of products with other body colors, the upper limit value is +55°C {131°F}. When WV-SUD6FRL1 (IR LED unit) is attached, the upper limit value of ambient operating temperature is +55 °C {131°F}. Ambient operating humidity: 10% to 100%
External I/O terminals	ALARM IN 1(DAY/NIGHT IN, Auto time adjustment), ALARM IN 2(ALARM OUT), ALARM IN 3(AUX OUT), Relay connection (x1 for each)
Line input	ø3.5 mm monaural mini jack Input impedance: Approx. 2 kΩ (unbalanced) For line input: Input level : Approx. –10 dBV
Audio output	ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) Using Amplifier built-in external speaker Output level: –20 dBV
Dimensions	220 mm (W) x 450 mm (H) x 266 mm (D) {8-21/32 inches (W) x 1ft 5-23/32 inches (H) x 10-15/32 inches (D)}
Mass (approx.)	Approx. 8.5 kg {18.7 lbs}

- Xuất xứ: Nhật Bản.

- Bảo hành: 12 tháng.
