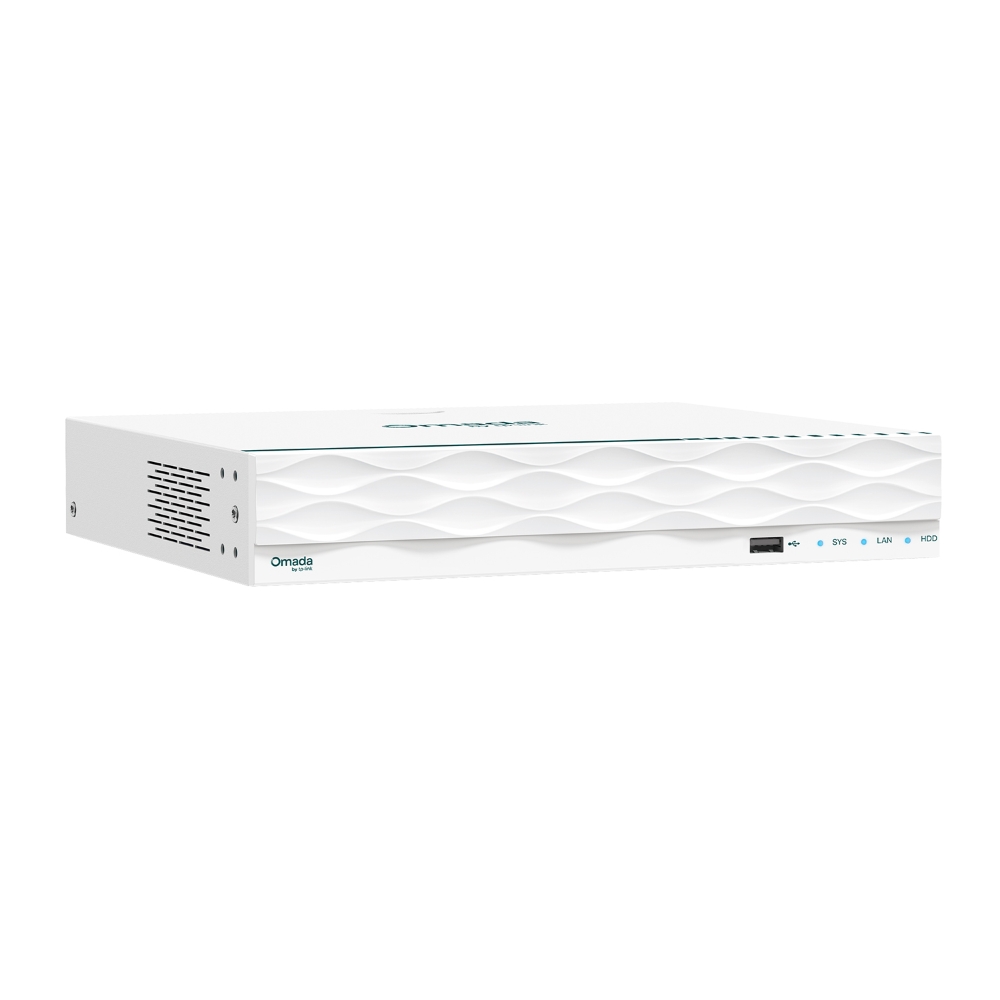

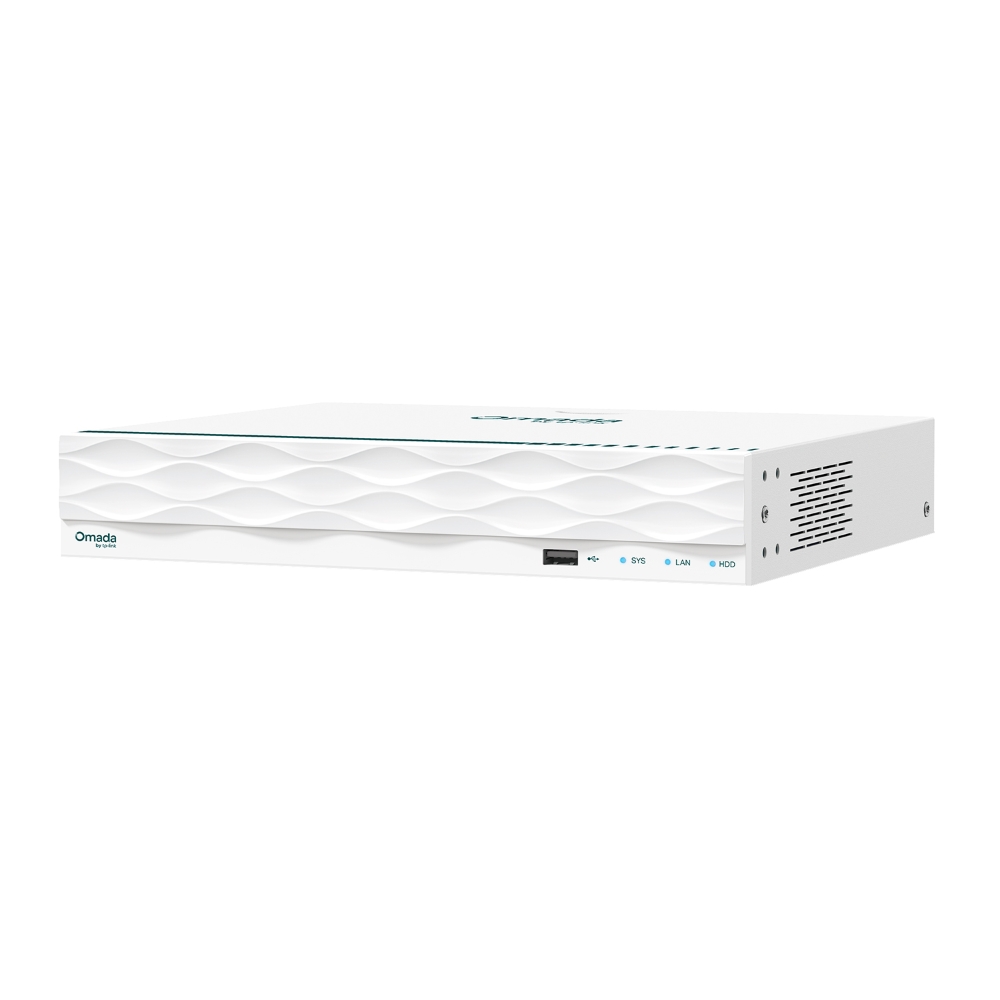

Thiết bị TP-Link Omada NVR16-8P-2T | Omada 8-Port PoE+ Network Video Recorder with 2TB HDD, Up to 16 Channel

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: Omada NVR16-8P-2T
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: Omada 8-Port PoE+ Network Video Recorder with 2TB HDD, Up to 16 Channel

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Video and Audio
IP Video Input	16-Channel
Managed Cameras	• 16 (HD) • 16 (2K/5MP) • 12 (4K/8MP) • 8 (12MP) • 6 (16MP)
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode	HDMI and VGA Simultaneous Output
Multi-View Display	1/4/6/8/9/16
DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	16MP/8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel**
Capability	• 25fps: 10-ch @ 2MP • 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Record Management
Record Mode	• Manual Recording • Scheduling Recording • Event Recording
Playback Mode	• Instant Playback • Regular Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Play By Frame • Video Clip • Export Clip • Audio On/Off
MẠNG
Giao thức	• UPnP (Plug and Play) • NTP (Network Timing) • SMTP • DNS • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • RTSP • SSL/TLS • RTP • IPv4 • ARP
Mobile Phone Access	Android, iOS
Trình duyệt Web	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile G/S/T

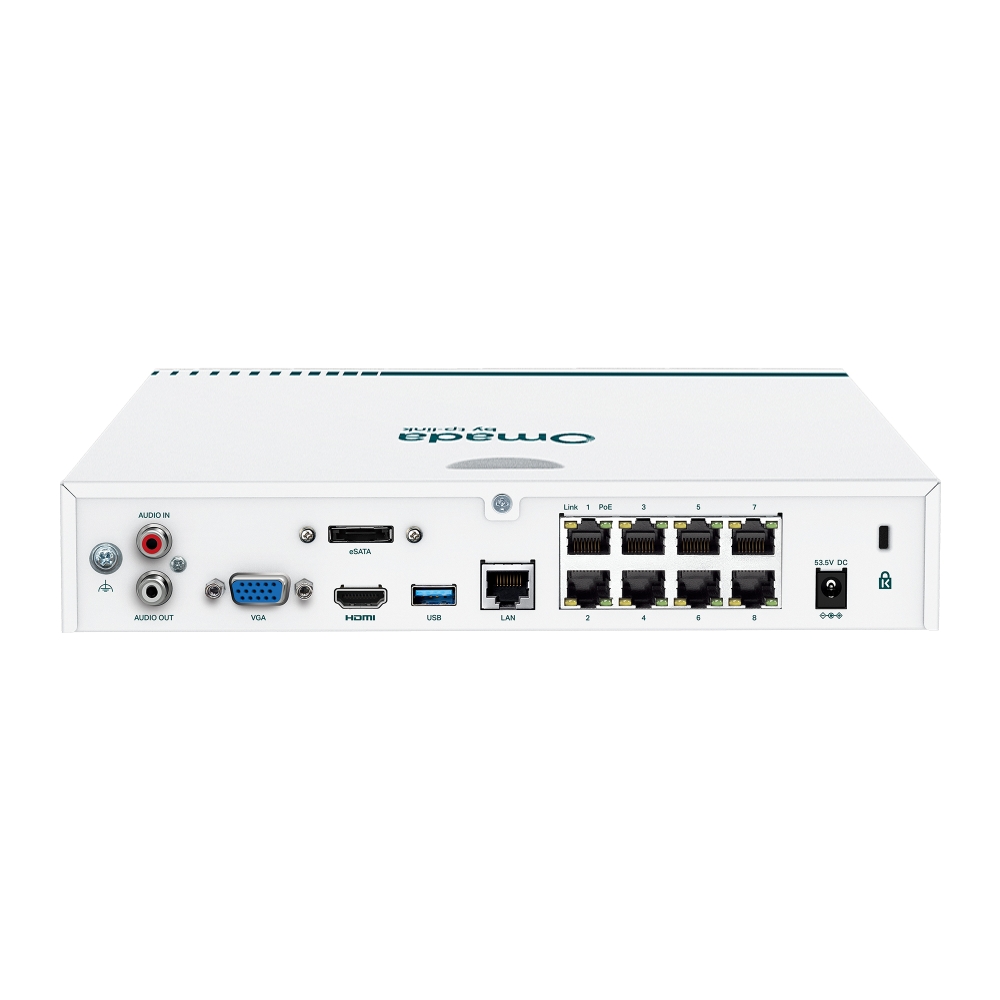

External Interface
Network Interface	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface	• 1-ch RCA Input (1.4 Vp-p, 10KΩ) • 1-ch RCA Output (2.8 Vp-p, 1KΩ)
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	1
VGA	1
HARD DISK
SATA	1 SATA Interfaces
Capacity	• 1× SATA Interface, Up to 16 TB Capacity • 1× 2TB HDD Preinstalled
PoE
Standard	802.3at/af Compliant
Interface	1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget	115 W △ Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm	• Motion Detection (Vehicle Detection, Human Detection, Pet Detection) • Video Tampering • Line-Crossing Detection • Intrusion Detection Note: The alarm function requires the use of a camera.
Anomaly Alarm	• IPC IP Conflict • Video signal loss Note: The alarm function requires the use of a camera. • No disk • Hard drive exception • Hard drive reallocated section count error • No enough space of hard drive • Hard drive password error • NVR offline • NVR IP Conflict • Single Port Short Circuit • Single port power exceeded • Pse chip temperature is too high • Total power exceeded • FTP Directory Storage Space Insufficient • The IP address obtained from DHCP conflicts with the internal IP • Login Exception
Alarm Linkage	Basic Event/Smart Event: • Buzzer • Pop-up Alarm Screen • Push Notification • Send Email • Highlight Window • Recording Linkage • Light Alarm • Audible Alarm • Channel Alarm Output Note: The alarm function requires the use of a camera. Anormaly Alarm: • Buzzer • Send Email
THÔNG TIN CHUNG
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity	10%~90% RH Non-Condensing
Sản phẩm bao gồm	• Omada Network Video Recorder • Power Adapter • AC Power Cord • HDMI Cable • Network Cable (3 ft/1 m) • Mounting Accessories • USB Mouse • Installation Guide • Surveillance Sticker
Working Temperature	• NVR: -10 °C to 55 °C (14 °F to 131 °F) • Power Adapter: 0°C to 40°C (32 °F to 104 °F)
Working Humidity	10%~90% RH Non-Condensing
Kích thước ( R x D x C )	10 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Khối lượng tịnh	1.86 Kg (4.1 lbs)
Trọng lượng	3.25 Kg (7.17 lbs)
Power Supply	53.5V DC/2.43A
Max. Power Consumption	• 4.17 W (Without Disk) • 7.81 W (With Disk)
Chứng Chỉ	CE, NTRA, HDMI, FCC, VCCI, BSMI, ONVIF, UL 4200A
