Thiết bị TP-Link Omada T8S4-2T | Omada 8MP Turret PoE Security Camera System with 2TB HDD, 4 Cameras with 16-Channel NVR

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: Omada T8S4-2T
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: Omada 8MP Turret PoE Security Camera System with 2TB HDD, 4 Cameras with 16-Channel NVR

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

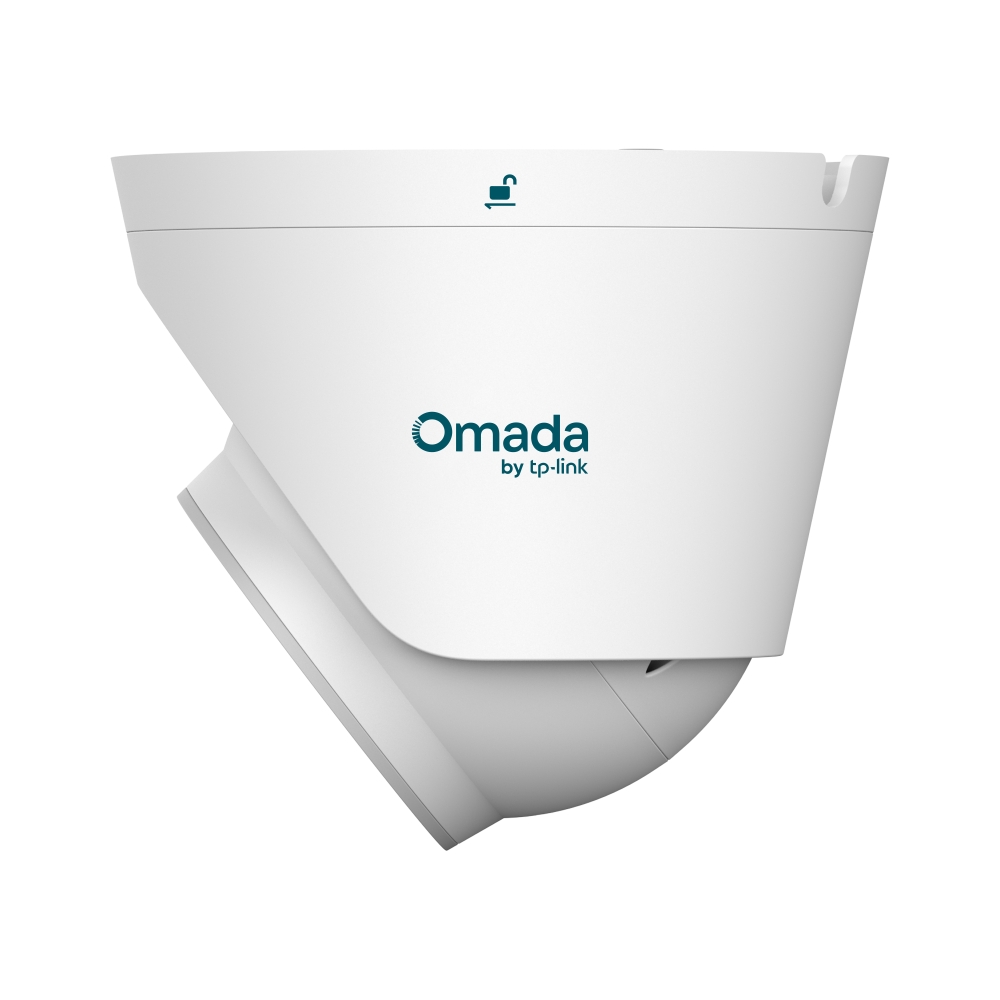

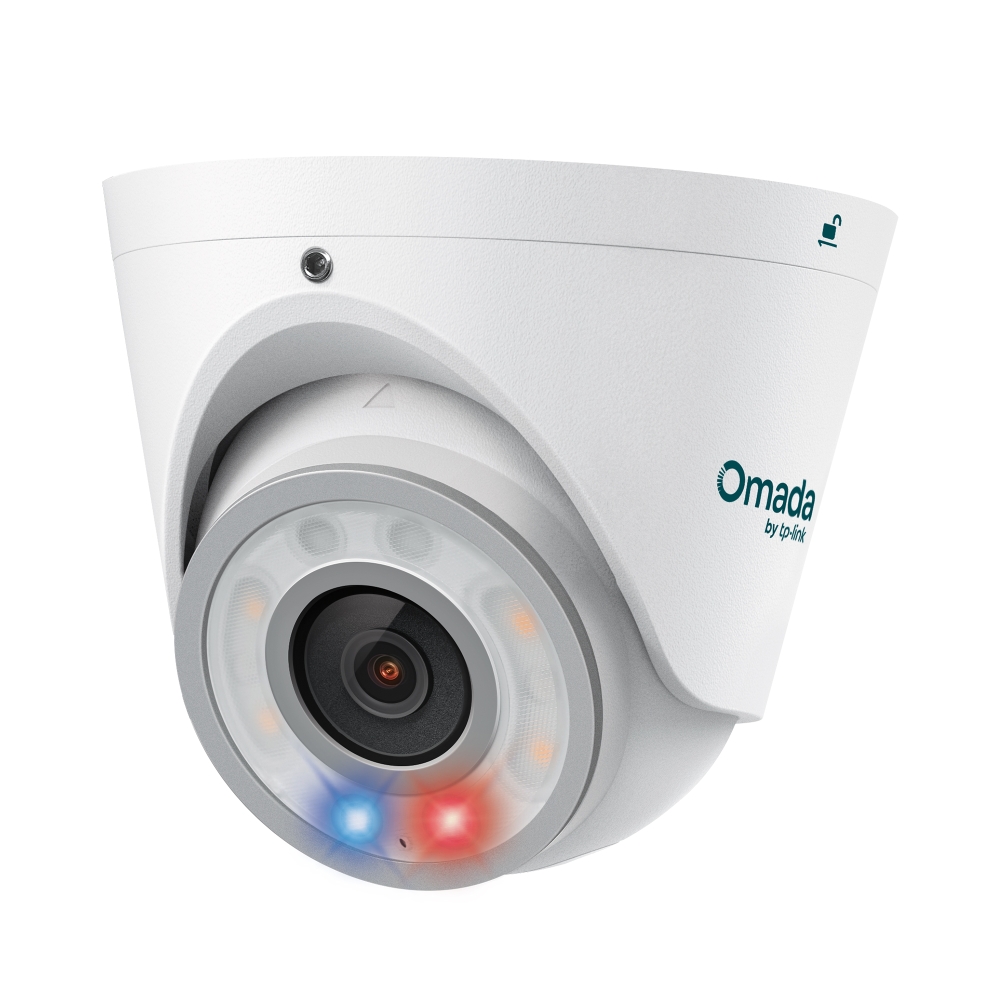

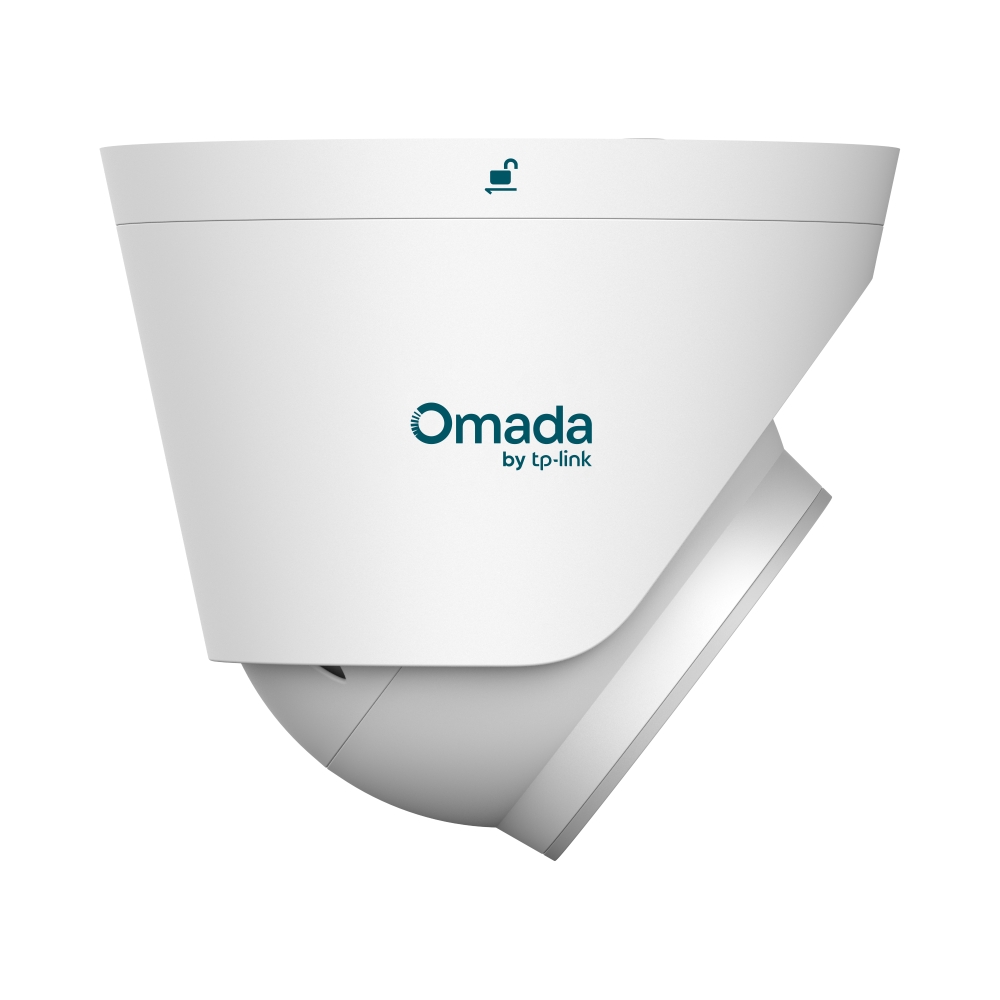

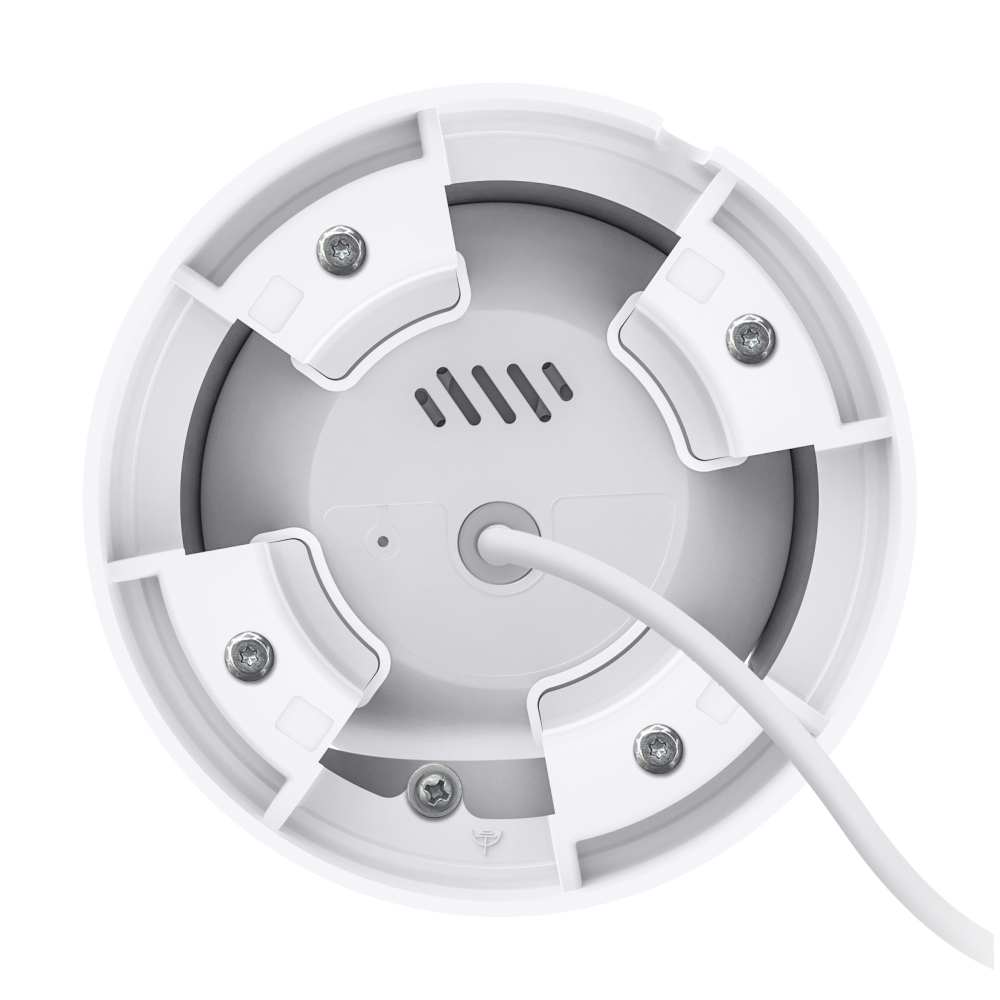

CAMERA
Cảm biến hình ảnh	1/2.7” Progressive Scan CMOS
Tốc độ màn trập	1/3 to 1/10000 s
Khẩu độ	F1.6
Ống kính	4 mm, Fixed Focal Lens, M12
FOV	Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Nhạy sáng tối thiểu	0.005 Lux; 0 Lux with IR/White Light
Cơ chế Ngày/Đêm	IR Cut Filter
Chuyển đổi Ngày/Đêm	Auto
Đèn LED trắng	• Quantity: 4 • Range: 98 ft (30m)
Đèn hồng ngoại IR	• Quantity: 4 • Range: 98 ft (30 m) • Wavelength: 850nm
Illuminator On/Off Control	Auto/Always on/Always off
Max. Resolution	3840 x 2160 (8MP)
Main Stream	• Frame Rate: 50Hz: 25fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) 60Hz: 24fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 25fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) 60Hz: 24fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Video Bit Rate	• Main Stream: 256 Kbps to 8192 Kbps • Sub-Stream: 64 Kbps to 1024 Kbps
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
Event	• Motion Detection (Person/Vehicle/Pet Detection) • Line-Crossing Detection • Intrusion Detection
Recording Modes	Event-Triggered Recording, Scheduled Recording, 24/7 Recording (Default)

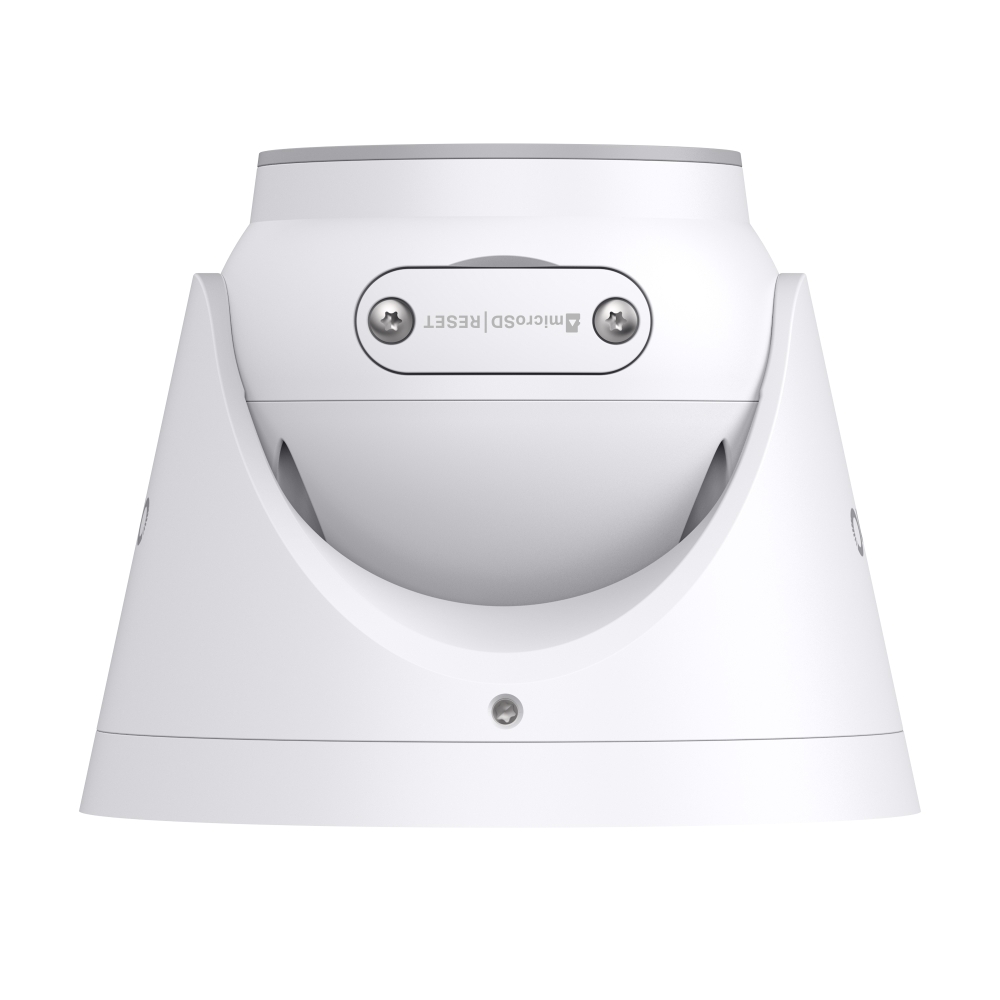

Interface & Button	• Buit-in Microphone; Records Anything Going on within a 16.4ft (5m) Radius of the Camera • Buit-in Speaker • 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE • 1× DC Port • Reset Button • Red & Blue Warning Lights • Buit-in Memory Card Slot, Support MicroSD Card, up to 521GB △
Operating Temperature	-30 °C to 60 °C (-22 ℉ to 140 ℉)
Operating Humidity	95% or Less (Non-Condensing)
Power Supply	DC • 12V DC ± 5%, Max. 12 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C1 (for EU Regions) PoE • PoE: 802.3af/at, Max. 12.5 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.7 W
Protection	• IP67 Weatherproof • IK08 Vandal Proof
Product Dimensions (L x W x H)	4.4 × 4.4 × 3.5 in (112 × 112 × 88 mm)
Weight	• Gross Weght: 0.84 kg (1.85 lbs) • Net Weght: 0.5 kg (1.10 lbs)

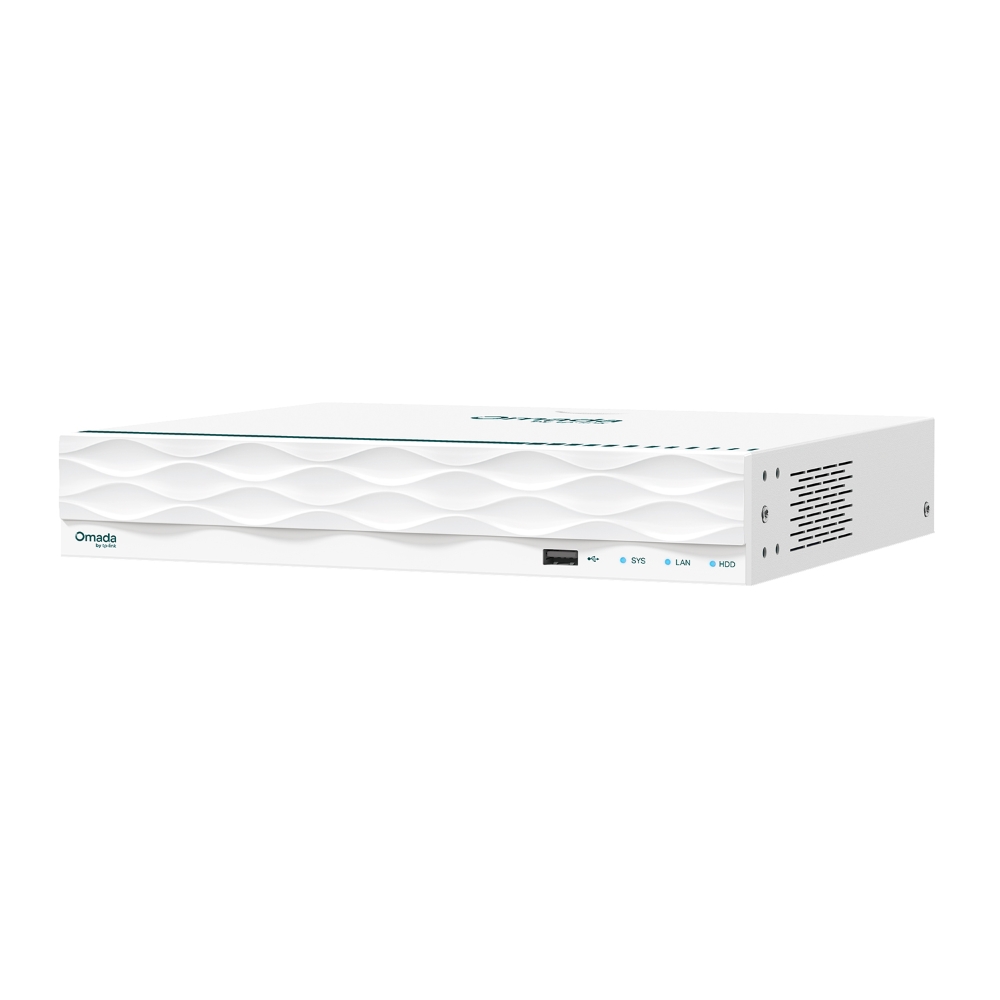

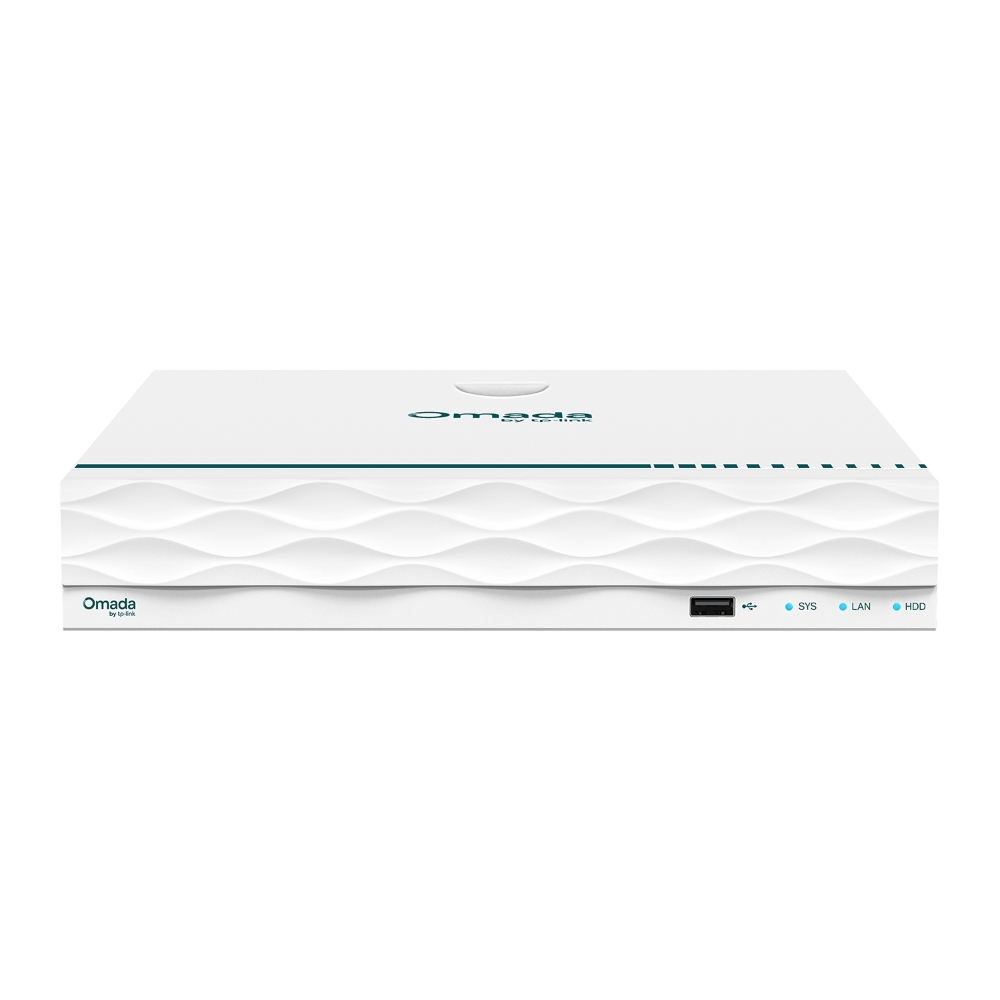

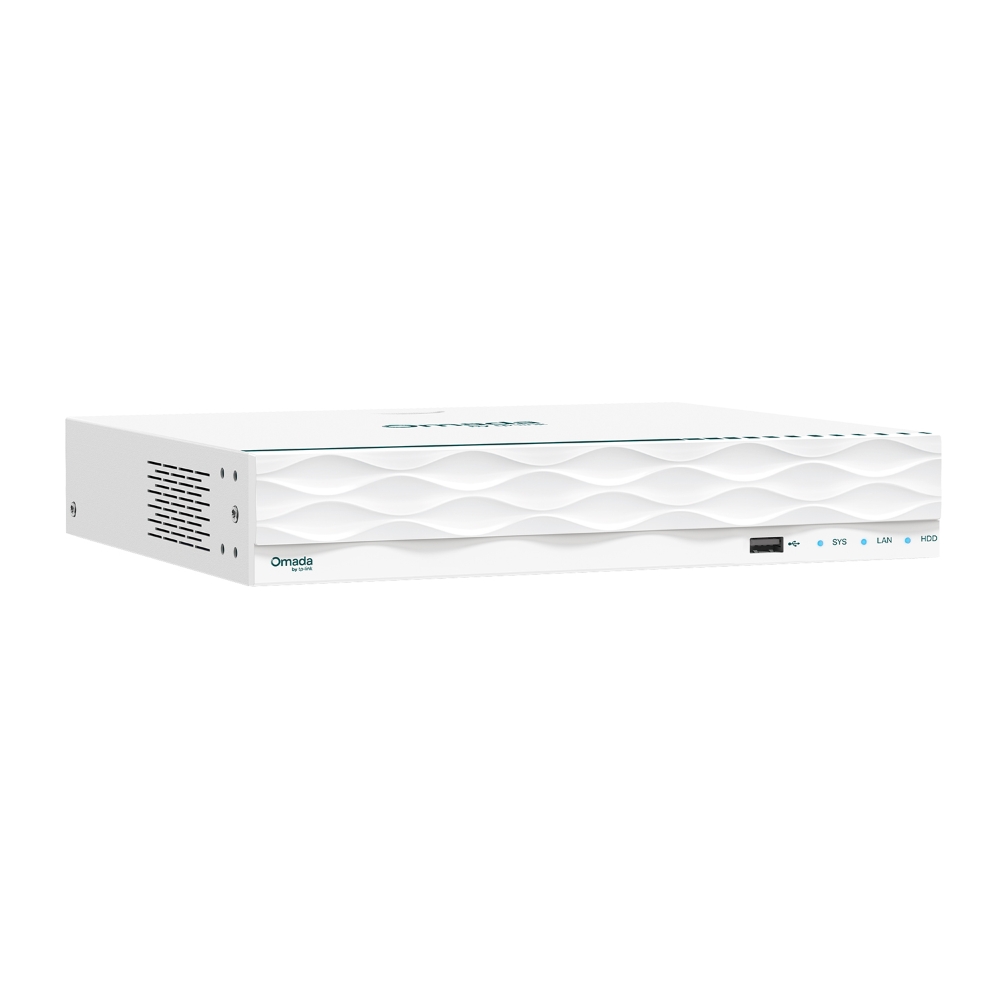

NVR
IP Video Input	16-Channel*
Managed Cameras	• 16 (HD) • 16 (2K/5MP) • 12 (4K/8MP) • 8 (12MP) • 6 (16MP)
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Compression	H.265+/H.265/H.264+/H.264
Record Resolution	16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/ QCIF
Synchronous Playback	16-Channel
Decoding Capability	• 25fps: 10-ch @ 2MP • 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Hard Disk	• 1× SATA Interface, Up to 16 TB Capacity • 1× 2TB HDD Preinstalled
PoE Budget	115 W Available for All PoE+ Ports, 30 W Max per Port

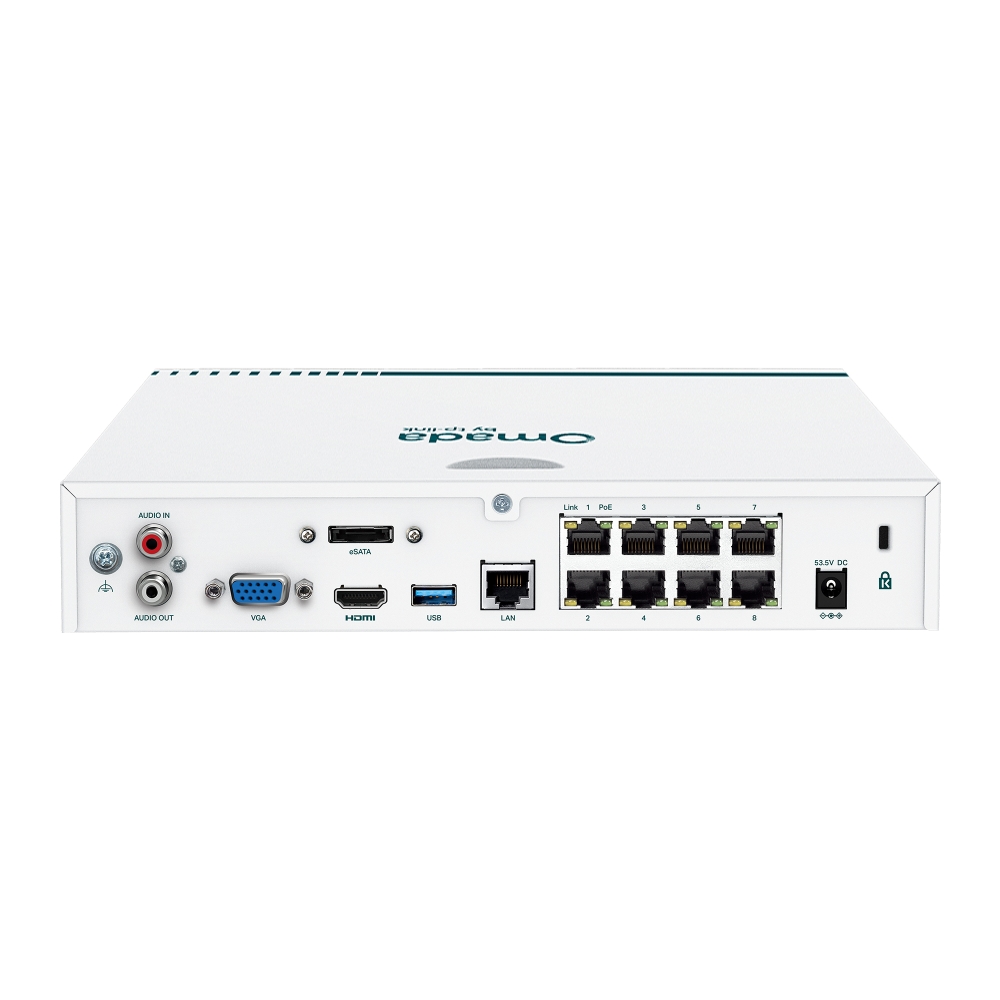

External Interfaces	• 1× eSATA, Supports External Storage Devices up to 16TB • 1× HDMI Port • 1× VGA Port • 1× Front USB 2.0 Port, 1× Rear USB 3.0 Port • 1-ch RCA Audio Input (1.4 Vp-p, 10KΩ), 1-ch RCA Audio Output (2.8 Vp-p, 1KΩ) • 1× 10/100/1000 Mbps Self-Adaptive Ethernet Port • 1× DC Power Supply Port • 8× PoE+ Ports
Network Protocol	• UPnP (Plug and Play) • NTP (Network Timing) • SMTP • DNS • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • RTSP • SSL/TLS • RTP • IPv4 • ARP • LLDP • FTP • IPv6 • SNMP
Web Browser	• Chrome (57+) • Firefox (52+) • Edge (91+)
Max. User Access	40 Users; Support up to 32 Simultaneous Video Streams
Power Supply	53.5V DC/2.43 A
Working Temperature	• NVR: -10 °C to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 °C to 40 °C (32 ℉ to 104 ℉)
Interoperability	ONVIF Profile G/S/T
Product Dimensions (L x W x H)	10.2 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Weight	• Net Weight: 1.86 Kg (4.1 lbs) • Gross Weght: 3.25 Kg (7.17 lbs)
