Nhật Bản Thương hiệu: I-Pro (Panasonic)

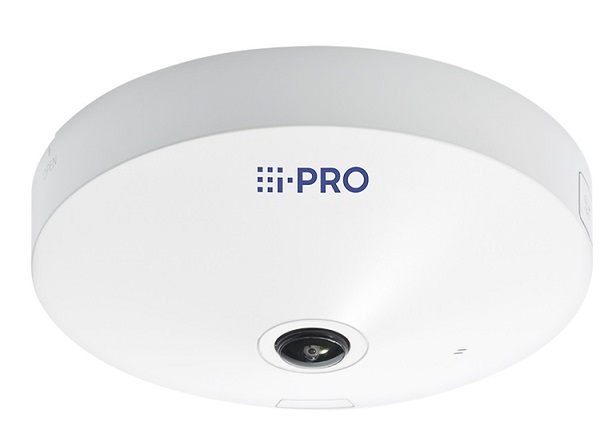

Camera IP Fisheye 5.0 Megapixel I-PRO WV-S4151

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Fisheye 5.0 Megapixel I-PRO WV-S4151
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Fisheye 5.0 Megapixel I-PRO WV-S4151

- Cảm biến hình ảnh: Approx. 1/3 type 5MP CMOS image sensor.

- Độ phân giải: 5.0 megapixels.

- Độ nhạy sáng tối thiểu:

   + Color: 0.15 lx, BW: 0.1 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11);

   + Color: 0.01 lx, BW: 0.006 lx (F2.4, Maximum shutter: max. 16/30s, AGC: 11).

- Hỗ trợ các tính năng camera: BLC, HLC, AGC, Super Dynamic 120dB.

- Hỗ trợ tính năng iA (intelligent Auto).

- Hỗ trợ chuẩn nén H.265 Smart Coding.

- Nhiệt độ hoạt động: -10°C to +50°C.

Thông số kỹ thuật

Camera
Image Sensor Approx. 1/3 type 5MP CMOS image sensor
Minimum Illumination Color: 0.15 lx, BW: 0.1 lx
(F2.4, Maximum shutter: Off (1/30 s), AGC: 11)
Color: 0.01 lx, BW: 0.006 lx
(F2.4, Maximum shutter: max. 16/30s, AGC: 11)
Intelligent Auto On / Off
Maximum Shutter max. 16/30s to Max. 1/10000s
Super Dynamic On / Off, The level can be set in the range of 0 to 31.
Dynamic Range Max.120 dB (Super Dynamic: On, level : 31)
Image Settings Gain (AGC), White balance
Image Compensation Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
Day / Night (Electrical) Off / Auto
Video Motion Detection (VMD) On / Off, 4 areas available
Intelligent VMD (i-VMD) Type 8 *Bundled License
Privacy Zone On / Off, Up to 8 zones available
Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)
Fixing angle adjustment -5°, 0°, +5°
Lens
Zoom Ratio 1x
Digital (Electronic) Zoom Choose from 3 levels of x1, x2, x4
Focal Length 0.84 mm {1/32 inches}
Maximum Aperture Ratio 1 : 2.4
Focus Range 0.3 m {11-13/16 inches} - ∞
Angular Field of View Horizontal : 186° Vertical : 186°
DORI
Distance to the object in the center of the image Identify (250 ppm / 76 ppf) : 2.1 m / 6.8 ft
Coverage radius when mounted at a height of 3 m (10 ft) Identify (250 ppm / 76 ppf)
Browser GUI
Camera Control Brightness, AUX On / Off
Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution •Fisheye mode (max. 30 fps/25 fps)
2192×2192 / 1280×1280 / 640×640 / 320×320
•Quad PTZ mode (max. 30 fps/25 fps), Single PTZ mode (max. 30 fps/25 fps)
1600×1200 / 1280×960 / 800×600 / VGA / QVGA
Resolution •Double Panorama mode (max. 30 fps/25 fps)
1920×1080 / 1280×720 / 640×360 / 320×180
•Fisheye + Double Panorama mode (max. 30 fps/25 fps)
(Fisheye) 2192×2192 / 1280×1280 / 640×640 / 320×320
(Double Panorama) 1280×720 / 640×360 / 320×180
•Fisheye + Quad PTZ mode (max. 30 fps/25 fps)
(Fisheye) 2192×2192 / 1280×1280 / 640×640 / 320×320
(Quad PTZ) 1280×960 / 800×600 / VGA / QVGA
•Quad streams mode
(Single PTZ (Quad streams)) 1280×960 / 800×600 / VGA / QVGA (max. 30 fps/25 fps)
(Quad PTZ) 1600×1200 / 1280×960 / 800×600 / VGA / QVGA (max. 5 fps)
Resolution •Panorama mode (max. 30 fps/25 fps)
1920×1080 / 1280×720 / 640×360 / 320×180
•Fisheye + Panorama mode (max. 30 fps/25 fps)
(Fisheye) 2192×2192 / 1280×1280 / 640×640 / 320×320
(Panorama) 1280×720 / 640×360 / 320×180
H.265/H.264 Transmission Mode
Constant bit rate / VBR / Frame rate / Best effort
Transmission Type
Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG Image Quality
10 steps
Smart Coding GOP (Group of pictures) control :
On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
Auto VIQS : On / Off
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps
G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,
ARP, IEEE 802.1X, DiffServ, SSL/TLS , SRTP, SFTP, MQTT, LLDP
Maximum concurrent access number Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC
JPEG recording :
Manual REC / Alarm REC (Pre/Post)
Compatible SDXC/SDHC/SD card :
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**,
256 GB**model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad / iPhone, AndroidTM terminals
ONVIF Profile G / S / T
Alarm
Alarm Source 3 terminals input, VMD, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output
Input/Output
Audio Input ø3.5 mm stereo mini jack, Recommended applicable microphone : Plug-in power type
(Sensitivity of microphone : –48 dB ±3 dB (0 dB=1 V / Pa,1 kHz))
Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V
Built-in microphone Nondirectional electret condenser microphone
Audio Output ø3.5 mm stereo mini jack (monaural output)
Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
External I/O Terminals ALARM IN 1 (Auto time adjustment) (x1),
ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024, EN55035
Power Source and Power Consumption DC power supply : DC12 V 400 mA, Approx. 4.8 W
PoE (IEEE802.3af compliant) Device :
DC48 V 110 mA, Approx. 5.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity 10% to 90 % (no condensation)
Dimensions ø150 mm × 50.5 mm (H)
Mass (Approx.) Approx. 390 g {0.86 lbs}
Finish Main body : ABS resin, i-PRO white

- Bảo hành: 12 tháng.
