Camera IP Dome hồng ngoại 8.0 Megapixel I-PRO WV-X2271L

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: Camera IP Dome hồng ngoại 8.0 Megapixel I-PRO WV-X
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

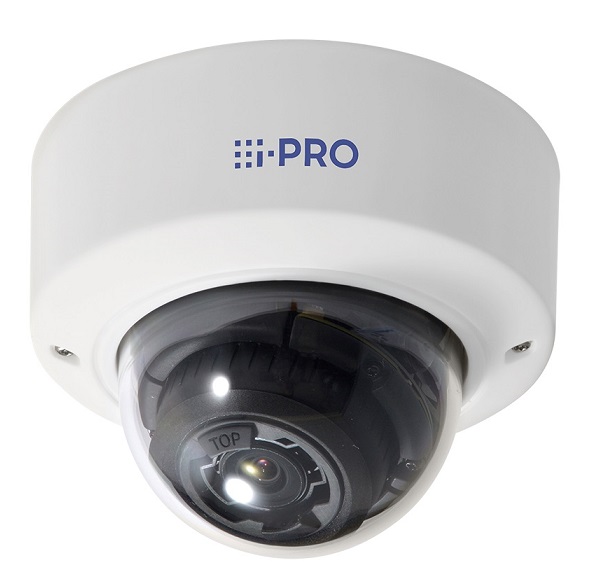

Camera IP Dome hồng ngoại 8.0 Megapixel I-PRO WV-X2271L

- I-PRO WV-X2271L là dòng camera IP Dome hồng ngoại 8.0 Megapixel.

- Cảm biến hình ảnh: 1/1.8 inch CMOS.

- Độ phân giải: 4K (3840 x 2.160).

- Ống kính: 4.3 mm - 8.6 mm.

- Độ nhạy sáng tối thiểu: Color: 0.09lx, BW: 0.05lx; B/W: 0.0lux (with IR LED on).

- Góc quan sát: Ngang: 52°-101°, Dọc: 29°-55°.

- Tầm quan sát hồng ngoại: 30 mét.

- Chống ngược sáng thực WDR 132dB.

- Hỗ trợ tính năng iA (intelligent Auto).

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG.

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 256GB.

- Tiêu chuẩn chống va đập: IK10.

- Hỗ trợ kết nối ONVIF G/S/T.

Đặc tính kỹ thuật

Model	WV-X2271L
Camera
Image Sensor	1/1.8 type CMOS image sensor
Minimum Illumination	- Color: 0.09 lx, BW: 0.05 lx (F1.5, Maximum shutter: Off (1/30s), AGC: 11) - BW: 0 lx (F1.5, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) - Color: 0.006 lx, BW: 0.003 lx (F1.5, Maximum shutter: max. 16/30s, AGC: 11)
White Balance	ATW1/ATW2/AWC
Shutter Speed	[30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix
AI Intelligent Auto	On / Off
Super Dynamic	On / Off, The level can be set in the range of 0 to 31
Dynamic Range	Max. 132 dB (Super Dynamic : On, Level : 31)
Adaptive Black Stretch	The level can be set in the range of 0 to 255
Back light compensation/High light compensation	BLC (Back light compensation)/ HLC (High light compensation)/ Off The level can be set in the range of 0 to 31. (only when Super dynamic/AI Intelligent Auto: Off)
Fog compensation	On/Off, The level can be set in the range of 0 to 8 (only when AI Intelligent auto/auto contrast adjust: Off)
Maximum gain	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off/On (IR Light Off)/On (IR Light On)/Auto1 (IR Light Off)/Auto2 (IR Light On)/Auto3 (SCC)
IR LED Light	High/Middle/Low/Off Maximum irradiation distance : 30 m {Approx. 98 ft}
Digital Noise Reduction	The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)	On/Off, 4 areas available
Scene Change Detection (SCD)	On/Off, 1 area available
Privacy Zone	On/Off, Up to 8 zones available
Image rotation	0° (Off)/ 90°/ 180°(Upside-down)/ 270°
Camera Title (OSD)	On/Off, Up to 20 characters (alphanumeric characters, marks)
Lens
Optical zoom	2.0x (Motorized zoom/Motorized focus)
Extra optical zoom	6.0x (when resolution is 1280x720)
Digital (electronic) zoom	Choose from 3 levels of x1, x2, x4
Focal length	4.3 mm - 8.6 mm {5/32 inches - 11/32 inches}
Maximum Aperture Ratio	1 : 1.5 (WIDE) – 1 : 2.4 (TELE)
Focus range	1 m {39-3/8 inches} – ∞
Angular Field of View	[16 : 9 mode] *[4:3 mode] is not supported. Horizontal: 52° (TELE) – 101° (WIDE), Vertical: 29° (TELE) – 55° (WIDE)
DORI
Detect (25ppm / 8ft)	Wide: 63.31 m / 207.71 ft, Tele: 157.46 m / 516.61 ft
Observe (62.5ppm / 19ft)	Wide: 25.32 m / 83.08 ft, Tele: 62.99 m / 206.64 ft
Recognize (125ppm / 38ft)	Wide: 12.66 m / 41.54 ft, Tele: 31.49 m / 103.32 ft
Identify (250ppm / 76ft)	Wide: 6.33 m / 20.77 ft, Tele: 15.75 m / 51.66 ft
Adjusting Angle
Adjusting Angle	Horizontal (PAN) angle: ±180°, Vertical (TILT) angle: -30 to +85°, Azimuth (YAW) angle: ±100°
Browser GUI
Camera Control	Brightness, AUX On / Off
Audio	- Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High - Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI/Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF	10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG)	[16 : 9 mode] *[4:3 mode] is not supported. 3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180
H.265/H.264	Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort
H.265/H.264	Transmission Type: Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG	Image Quality: 10 steps
Smart Coding	Smart Facial Coding : On (Smart Facial Coding) / On (Auto VIQS) / Off Smart Facial Coding is only available with Stream(1).
Smart Coding	GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265.
Audio Compression	G.726 (ADPCM): 16 kbps/32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/128 kbps
Audio transmission mode	Off / Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)
Supported Protocol	- IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card	- H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure - JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure - Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB** model SDHC card, * SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility	iPad, iPhone, AndroidTM terminals
ONVIF Profile	G/S/T
Alarm
Alarm Source	3 terminals input, VMD alarm, SCD alarm, Command alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/Output
Monitor Output (for adjustment)	VBS: 1.0 V [p-p]/75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera
Audio input	ø3.5 mm stereo mini jack
	For microphone input: - Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) - Input impedance: Approx. 2 kΩ (unbalanced) - Supply voltage: 2.5 V ±0.5 V
	For line input: Input level: Approx. -10 dBV
Audio Output	ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
External I/O Terminals	ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
General
Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption	DC power supply: DC 12 V 890 mA/Approx. 10.7 W PoE (IEEE802.3af compliant) Device: DC48 V 230 mA/ Approx. 11.0 W (Class 0 device
Ambient Operating Temperature	-10 °C to +50 °C (+14 °F to +122 °F)
Ambient Operating Humidity	10 to 90 % (no condensation)
Shock Resistance	IK10 (IEC 62262)
Dimensions	ø129.5 mm x 103.5 mm (H) {ø5-1/8 inches x 4-1/16 inches (H)} Dome radius 41.5 mm {1-5/8 inches}
Mass	Approx. 830 g {1.83 lbs}
Finish	Main body: Aluminum die cast, i-PRO white Dome cover: Polycarbonate resin, Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
