Nhật Bản Thương hiệu: I-Pro (Panasonic)

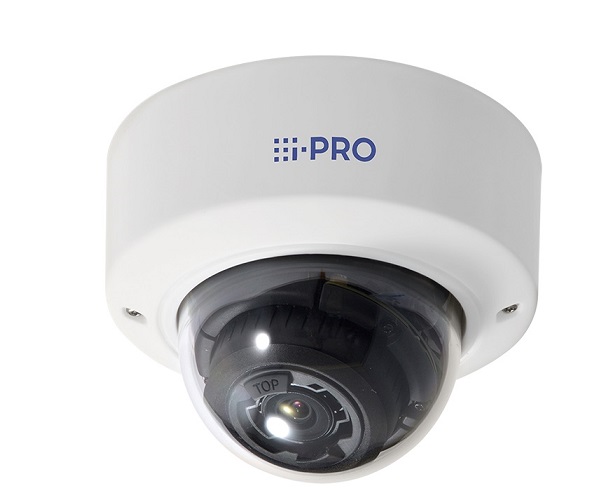

Camera IP Dome hồng ngoại 8.0 Megapixel I-PRO WV-S2272L

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome hồng ngoại 8.0 Megapixel I-PRO WV-S
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome hồng ngoại 8.0 Megapixel I-PRO WV-S2272L

- Cảm biến hình ảnh: 1/1.8 type CMOS image sensor.

- Độ phân giải: 8.0 megapixels.

- Độ nhạy sáng tối thiểu:

   + Color: 0.09lx, BW: 0.05 lx (F1.5, Maximum shutter: Off (1/30s), AGC: 11);

   + BW: 0lx (F1.5, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit);

   + Color: 0.006lx, BW: 0.003 lx (F1.5, Maximum shutter: max. 16/30s, AGC: 11).

- Hỗ trợ các tính năng camera: BLC, HLC, ICR, AGC.

- Hỗ trợ tính năng iA (intelligent Auto).

- Hỗ trợ chuẩn nén H.265 Smart Coding.

- Tầm quan sát hồng ngoại: 30 mét.

- Nhiệt độ hoạt động: -10°C to +50°C.

Thông số kỹ thuật

Camera
Image Sensor 1/1.8 type CMOS image sensor
Minimum Illumination Color: 0.09lx, BW: 0.05 lx
(F1.5, Maximum shutter: Off (1/30s), AGC: 11)
BW: 0lx (F1.5, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit)
Color: 0.006 lx, BW: 0.003 lx (F1.5, Maximum shutter: max. 16/30s, AGC: 11)
White Balance ATW1/ ATW2/ AWC
Shutter Speed [30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix
Intelligent Auto On / Off
Super Dynamic On / Off, The level can be set in the range of 0 to 31.
Dynamic Range Max. 132 dB (Super Dynamic : On, Level : 30 or more, 15fps)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
The level can be set in the range of 0 to 31.
(only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On / Off, The level can be set in the range of 0 to 8
(only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off,
Maximum irradiation distance : 30 m {Approx. 98 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Scene Change Detection (SCD) On / Off, 1 areas available
Intelligent VMD (i-VMD) Type 7 *Bundled License
Privacy Zone On / Off, Up to 8 zones available
Image Rotation 0 ° (Off) / 90 °/ 180 ° (Upside-down)/ 270 °
Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)
Lens
Optical zoom 2.0x (Motorized zoom / Motorized focus)
Extra zoom 6.0x (when resolution is 1280x720)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal length 4.3 mm - 8.6 mm {5/32 inches - 11/32 inches}
Maximum Aperture Ratio 1 : 1.5 (WIDE) – 1 : 2.4 (TELE)
Focus range 1 m {39-3/8 inches} – ∞
Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
Horizontal: 52° (TELE) – 101° (WIDE), Vertical: 29° (TELE) – 55° (WIDE)
DORI
Detect (25ppm / 8ppf) Wide: 63.31 m / 207.71 ft, Tele: 157.46 m / 516.61 ft
Observe (62.5ppm / 19ppf) Wide: 25.32 m / 83.08 ft, Tele: 62.99 m / 206.64 ft
Recognize (125ppm / 38ppf) Wide: 12.66 m / 41.54 ft, Tele: 31.49 m / 103.32 ft
Identify (250ppm / 76ppf) Wide: 6.33 m / 20.77 ft, Tele: 15.75 m / 51.66 ft
Adjusting Angle
Adjusting Angle Horizontal (PAN) angle : ±180°,
Vertical (TILT) angle : -30 to +85°, Azimuth (YAW) angle : ±100°
Browser GUI
Camera Control Brightness, AUX On / Off
Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser Microsoft Edge, Firefox, Google Chrome
Network
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) [16 : 9 mode] *[4:3 mode] is not supported.
3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180
H.265/H.264 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
JPEG [Image Quality]
10 steps
Smart Coding GOP (Group of pictures) control :
On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
Auto VIQS : On / Off
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps
G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) /
Interactive (Full duplex)
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure
JPEG recording : Manual REC / Alarm REC (Pre/Post)
Compatible SDXC/SDHC/SD Memory Card:
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
ONVIF® Profile G / S / T
Alarm
Alarm Source 3 terminals input, VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification, Indication on browser, TCP alarm notification output
Input/Output
Monitor Output (for Adjustment) VBS: 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack
An NTSC or PAL signal can be outputted from camera
Audio input ø3.5 mm stereo mini jack
For microphone input : Recommended applicable microphone : Plug-in power type
(Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance : Approx. 2 kΩ (unbalanced)
Supply voltage : 2.5 V ±0.5 V
For line input : Input level: Approx. –10 dBV
Audio Output ø3.5 mm stereo mini jack (Audio output is monaural.)
Output impedance : Approx. 600 Ω (unbalanced)
Output level: –20 dBV
External I/O Terminals ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption DC power supply: DC 12 V 890 mA/Approx. 10.7 W
PoE (IEEE802.3af compliant) Device: DC48 V 230 mA/ Approx. 11.0 W (Class 0 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
Ambient Operating Humidity 10 to 90 % (no condensation)
Shock Resistance IK10 (IEC 62262)
Dimensions ø129.5 mm x 103.5 mm (H) {ø5-1/8 inches x 4-1/16 inches (H)}
Dome radius 41.5 mm {1-5/8 inches}
Mass Approx. 830 g
Finish Main body: Aluminum die cast, i-PRO white
Dome cover: Polycarbonate resin, Clear

- Bảo hành: 12 tháng.
