Nhật Bản Thương hiệu: I-Pro (Panasonic)

Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-U2142L

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

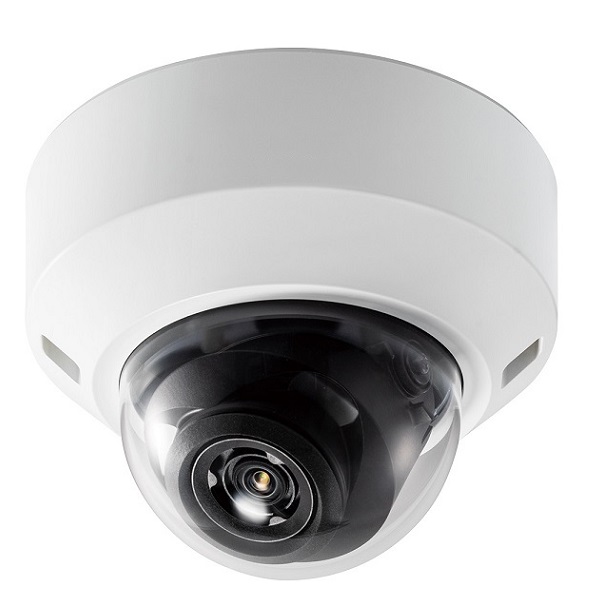

Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-U2142L

- Cảm biến hình ảnh: 1/2.7 inch CMOS.

- Độ phân giải: 4MP (30fps).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Ống kính có động cơ và ống kính lấy nét có động cơ zoom 2,5x.

- Tiêu cự: 2.9 ~ 7.25 mm (1/8 - 9/32 inches), F2.0 Motorized.

- Tầm xa hồng ngoại camera quan sát được: 20 mét.

- Góc quan sát H: 44~102°, V: 25-57° (16:9).

- Độ nhạy sáng tối thiểu: 0.019 đến 0.3lx màu.

- Hỗ trợ tính năng iA.

- Chức năng Super Dynamic 102dB.

- Chế độ hành lang (xoay 90° hoặc 270°).

- Hỗ trợ khe cắm thẻ nhớ SDXC/SDHC/SD max 64GB.

- Nguồn hỗ trợ: PoE (IEEE802.3af) 6.5W.

- Hỗ trợ ONVIF G T.

Đặc tính kỹ thuật

Model WV-U2142L
Image Sensor Approx. 1/2.7 type CMOS image sensor
Minimum Illumination Color: 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW: 0 lx (50IRE, F2.0, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Maximum Shutter Max. 1/10000 s to Max. 16/30 s
Intelligent Auto On / Off
Super Dynamic On / Off, the level can be set in the range of 0 to 31.
Dynamic Range Max. 102 dB (Super Dynamic : On, Level: 31)
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On/ Off The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 20 m {Approx. 65 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Privacy Zone On / Off (up to 8 zones available)
Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Focal Length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Zoom Ratio 2.5x Optical zoom (Motorized zoom / Motorized focus)
3.3x FHD Extra Optical Zoom (when resolution is 1920x1080)
Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
Horizontal : 44° (TELE) – 102° (WIDE)
Vertical : 25° (TELE) – 57° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
Focusing Range 1 m {39-3/8 inches} - ∞
Adjusting Angle Horizontal (PAN) angle: ±180°, Vertical (TILT) angle: -30 °– +85 °
Azimuth (YAW) angle: ±100°
Camera Control Brightness
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] *[4:3 mode] is not supported.
2560×1440, 1920×1080, 640×360, 320×180
H.265 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
JPEG [Image Quality] 10 steps
Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
AUTO VIQS: On/ Off
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
Compatible microSDXC/microSDHC Memory Card
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device : DC48 V 135 mA, Approx. 6.5 W (Class 0 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions ø129.5 mm x 101 mm (H)
Mass (Approx.) Approx. 350 g {0.77 lbs}
Finish Main body: ABS resin, i-PRO white
Dome section : Acrylic resin, Clear

- Bảo hành: 12 tháng.

Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-U2142L

- Cảm biến hình ảnh: 1/2.7 inch CMOS.

- Độ phân giải: 4MP (30fps).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Ống kính có động cơ và ống kính lấy nét có động cơ zoom 2,5x.

- Tiêu cự: 2.9 ~ 7.25 mm (1/8 - 9/32 inches), F2.0 Motorized.

- Tầm xa hồng ngoại camera quan sát được: 20 mét.

- Góc quan sát H: 44~102°, V: 25-57° (16:9).

- Độ nhạy sáng tối thiểu: 0.019 đến 0.3lx màu.

- Hỗ trợ tính năng iA.

- Chức năng Super Dynamic 102dB.

- Chế độ hành lang (xoay 90° hoặc 270°).

- Hỗ trợ khe cắm thẻ nhớ SDXC/SDHC/SD max 64GB.

- Nguồn hỗ trợ: PoE (IEEE802.3af) 6.5W.

- Hỗ trợ ONVIF G T.

Đặc tính kỹ thuật

Model WV-U2142L
Image Sensor Approx. 1/2.7 type CMOS image sensor
Minimum Illumination Color: 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW: 0 lx (50IRE, F2.0, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Maximum Shutter Max. 1/10000 s to Max. 16/30 s
Intelligent Auto On / Off
Super Dynamic On / Off, the level can be set in the range of 0 to 31.
Dynamic Range Max. 102 dB (Super Dynamic : On, Level: 31)
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On/ Off The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 20 m {Approx. 65 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Privacy Zone On / Off (up to 8 zones available)
Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Focal Length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Zoom Ratio 2.5x Optical zoom (Motorized zoom / Motorized focus)
3.3x FHD Extra Optical Zoom (when resolution is 1920x1080)
Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
Horizontal : 44° (TELE) – 102° (WIDE)
Vertical : 25° (TELE) – 57° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
Focusing Range 1 m {39-3/8 inches} - ∞
Adjusting Angle Horizontal (PAN) angle: ±180°, Vertical (TILT) angle: -30 °– +85 °
Azimuth (YAW) angle: ±100°
Camera Control Brightness
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] *[4:3 mode] is not supported.
2560×1440, 1920×1080, 640×360, 320×180
H.265 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
JPEG [Image Quality] 10 steps
Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
AUTO VIQS: On/ Off
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
Compatible microSDXC/microSDHC Memory Card
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device : DC48 V 135 mA, Approx. 6.5 W (Class 0 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions ø129.5 mm x 101 mm (H)
Mass (Approx.) Approx. 350 g {0.77 lbs}
Finish Main body: ABS resin, i-PRO white
Dome section : Acrylic resin, Clear

- Bảo hành: 12 tháng.
