Phatsongwifi
Nhật Bản Thương hiệu: I-Pro (Panasonic)

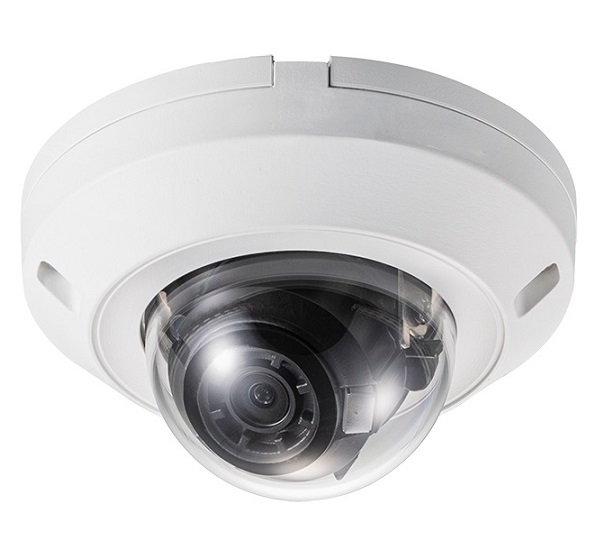

Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-U2140L

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-U
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-U2140L

- Cảm biến hình ảnh: Approx. 1/2.7 inch CMOS.

- Độ phân giải camera ip: 4.0 Megapixel.

- Tốc độ khung hình: 1 to 30 fps.

- Độ nhạy sáng tối thiểu: Color 0.3 lux; B/W: 0.0 lux (with IR LED on).

- Tầm quan sát hồng ngoại: 20 mét.

- Chuẩn nén hình ảnh: H.265.

- Nhiệt độ hoạt động: -10°C to 50°C.

- Nguồn điện: DC48V/110mA và PoE.

Đặc tính kỹ thuật

Model  WV-U2140L
Camera
Image Sensor Approx. 1/2.7 type CMOS image sensor
Effective pixels  Approx. 5.2 megapixels, 2688(H)×1944(V)
Minimum Illumination Color: 0.3 lx, BW: 0.12 lx
(50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW: 0 lx
(50IRE, F2.0, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.019 lx, BW: 0.0075 lx
(50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance  ATW1/ ATW2/ AWC
Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On/ Off
Super Dynamic On/ Off, The level can be set in the range of 0 to 31.
Dynamic Range  Max. 102 dB (Super Dynamic : On, Level: 31)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back light compensation/ High light compensation BLC (Back light compensation)/ HLC (High light compensation)/ Off
The level can be set in the range of 0 to 31.
(only when Super dynamic/ Intelligent Auto: Off)
Fog compensation On/ Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light High/ Middle/ Low/ Off, Maximum irradiation distance: 20 m {Approx. 65 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On/ Off, 4 areas available
Scene Change Detection (SCD) On/ Off, 1 area available
Privacy Zone On/ Off, Up to 8 zones available
VIQS On/ Off, Up to 8 zones available
Image rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On/ Off, Up to 20 characters (alphanumeric characters, marks)
Lens
Focal length 3.2 mm{1/8 inches}
Optical zoom 1x
Extra zoom 1.0x - 1.3x (when resolution is 1920x1080)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
Horizontal: 100°
Vertical: 54°
Maximum Aperture Ratio 1 : 2.0
Focusing Range 1 m {39-3/8 inches} – ∞
Adjusting Angle
Adjusting Angle Horizontal (PAN) angle: -175 °– +175 °
Vertical (TILT) angle: -30 °– +80 °
Azimuth (YAW) angle: ±100°
Browser GUI
Camera Control Brightness
GUI/ Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] *[4:3 mode] is not supported.
2560×1440, 1920×1080, 640×360, 320×180
H.265 - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast port(AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG - Image Quality: 10 steps
Smart Coding - GOP (Group of pictures) control: On (Frame rate control)/ On (Advanced)/ On (Mid.)/ On (Low)/ Off
- AUTO VIQS: On/ Off
Supported Protocol - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) - H.265 recording:  Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- Compatible microSDXC/microSDHC Memory Card:  microSD speed class6 or higher
I-PRO 32GB*, 64GB**model
 *microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, Android terminals
ONVIF Profile G/ T
Alarm
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device: DC48 V 110 mA, Approx. 5.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions  ø109 mm x 62 mm (H)
Dome radius 30.5 mm {1-3/16 inches}
Mass (approx.) 250 g {0.55 lbs}
Finish  Main body: Aluminum die cast/ Polycarbonate resin, i-PRO white
Dome section: Polycarbonate resin, Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.

Camera IP Dome hồng ngoại 4.0 Megapixel I-PRO WV-U2140L

- Cảm biến hình ảnh: Approx. 1/2.7 inch CMOS.

- Độ phân giải camera ip: 4.0 Megapixel.

- Tốc độ khung hình: 1 to 30 fps.

- Độ nhạy sáng tối thiểu: Color 0.3 lux; B/W: 0.0 lux (with IR LED on).

- Tầm quan sát hồng ngoại: 20 mét.

- Chuẩn nén hình ảnh: H.265.

- Nhiệt độ hoạt động: -10°C to 50°C.

- Nguồn điện: DC48V/110mA và PoE.

Đặc tính kỹ thuật

Model  WV-U2140L
Camera
Image Sensor Approx. 1/2.7 type CMOS image sensor
Effective pixels  Approx. 5.2 megapixels, 2688(H)×1944(V)
Minimum Illumination Color: 0.3 lx, BW: 0.12 lx
(50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW: 0 lx
(50IRE, F2.0, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.019 lx, BW: 0.0075 lx
(50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance  ATW1/ ATW2/ AWC
Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On/ Off
Super Dynamic On/ Off, The level can be set in the range of 0 to 31.
Dynamic Range  Max. 102 dB (Super Dynamic : On, Level: 31)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back light compensation/ High light compensation BLC (Back light compensation)/ HLC (High light compensation)/ Off
The level can be set in the range of 0 to 31.
(only when Super dynamic/ Intelligent Auto: Off)
Fog compensation On/ Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light High/ Middle/ Low/ Off, Maximum irradiation distance: 20 m {Approx. 65 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On/ Off, 4 areas available
Scene Change Detection (SCD) On/ Off, 1 area available
Privacy Zone On/ Off, Up to 8 zones available
VIQS On/ Off, Up to 8 zones available
Image rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On/ Off, Up to 20 characters (alphanumeric characters, marks)
Lens
Focal length 3.2 mm{1/8 inches}
Optical zoom 1x
Extra zoom 1.0x - 1.3x (when resolution is 1920x1080)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
Horizontal: 100°
Vertical: 54°
Maximum Aperture Ratio 1 : 2.0
Focusing Range 1 m {39-3/8 inches} – ∞
Adjusting Angle
Adjusting Angle Horizontal (PAN) angle: -175 °– +175 °
Vertical (TILT) angle: -30 °– +80 °
Azimuth (YAW) angle: ±100°
Browser GUI
Camera Control Brightness
GUI/ Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] *[4:3 mode] is not supported.
2560×1440, 1920×1080, 640×360, 320×180
H.265 - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast port(AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG - Image Quality: 10 steps
Smart Coding - GOP (Group of pictures) control: On (Frame rate control)/ On (Advanced)/ On (Mid.)/ On (Low)/ Off
- AUTO VIQS: On/ Off
Supported Protocol - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) - H.265 recording:  Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- Compatible microSDXC/microSDHC Memory Card:  microSD speed class6 or higher
I-PRO 32GB*, 64GB**model
 *microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, Android terminals
ONVIF Profile G/ T
Alarm
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device: DC48 V 110 mA, Approx. 5.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions  ø109 mm x 62 mm (H)
Dome radius 30.5 mm {1-3/16 inches}
Mass (approx.) 250 g {0.55 lbs}
Finish  Main body: Aluminum die cast/ Polycarbonate resin, i-PRO white
Dome section: Polycarbonate resin, Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
