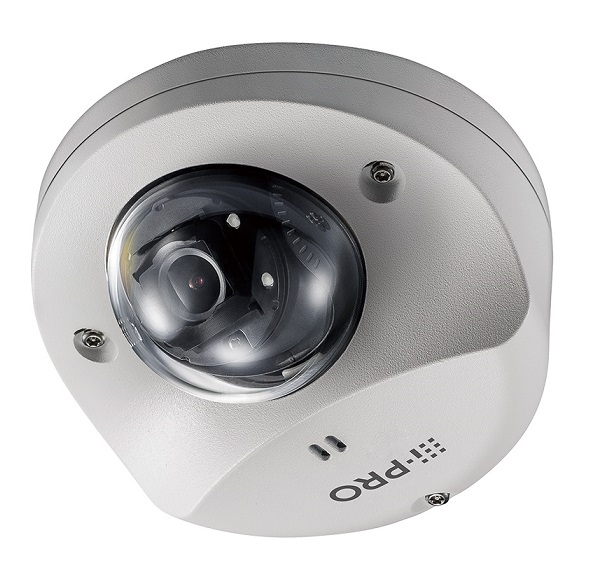

Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S3512LM

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S3512LM

- Cảm biến hình ảnh: Approx. 1/3 inch CMOS.

- Độ phân giải camera ip: 1.3 Megapixel.

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG.

- Tốc độ khung hình: 1 to 60 fps.

- Ống kính: 2.8 mm.

- Độ nhạy sáng tối thiểu: Color: 0.02 lx, BW: 0.01 lx; B/W: 0.0 lux (with IR LED on).

- Tầm quan sát hồng ngoại: 15 mét.

- Chế độ hành lang (xoay 90° hoặc 270°).

- Hỗ trợ tính năng iA (intelligent Auto).

- Tính năng thông minh Intelligent VMD (i-VMD): Type4 (Xâm nhập, Lảng vảng, Sai hướng, Vượt vạch, Đối tượng, Thay đổi cảnh) Bundled License.

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 64GB.

- Kết nối: ONVIF S, G, T, Ethernet RJ-45.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nhiệt độ hoạt động: -40°C to 60°C.

- Nguồn điện: DC48V/80mA và PoE.

Đặc tính kỹ thuật

Model	WV-S3512LM
Camera
Image Sensor	Approx. 1/3 type CMOS image sensor
Minimum Illumination	Color: 0.02 lx, BW: 0.01 lx (F2.3, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx (F2.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.0013 lx, BW: 0.0007 lx (F2.3, Maximum shutter: max. 16/30s, AGC: 11)
White Balance	AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Maximum shutter	Max. 1/10000 s to Max. 16/30 s
Intelligent Auto	On/ Off
Super Dynamic	On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range	Max.134 dB typ. (Super Dynamic: On)
Adaptive Black Stretch	The level can be set in the range of 0 to 255.
Back light compensation/ High light compensation	BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation	On/ Off (only when Intelligent auto/ auto contrast adjust : Off)
Maximum gain	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light	High/ Middle/ Low/ Off, Maximum irradiation distance : 15 m {Approx. 49 ft}
Digital Noise Reduction	The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)	On/ Off, 4 areas available
Intelligent VMD (i-VMD)	Type 4 Bundled License
Privacy Zone	On/ Off (up to 8 zones available)
Image rotation	0°/ 90°/18 0°(Upside-down)/ 270°
Mirror	On/ Off
Camera Title (OSD)	On/ Off Up to 20 characters (alphanumeric characters, marks)
Lens
Zoom Ratio	1 x Optical
Digital (electronic) zoom	Choose from 3 levels of x1, x2, x4
Focal length	2.8 mm {1/8 inches}
Angular Field of View	[16 : 9 mode] Horizontal : 97° Vertical : 54° [4 : 3 mode] Horizontal : 97° Vertical : 72°
Maximum Aperture Ratio	1 : 2.3
Focus range	0.5 m {19-11/16 inches} – ∞
Adjusting Angle
Adjusting Angle	Horizontal (PAN) angle : ±45°, Vertical (TILT) angle : 0 to +90° Azimuth (YAW) angle : ±90°
Browser GUI
Camera Control	Brightness
GUI/ Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF	10Base-T/ 100Base-TX, M12 connector
Resolution H.265/ H.264/ JPEG (MJPEG)	- 1.3 Megapixel [16 : 9] (30/60 fps1,280 x 720/ 640 x 360/ 320 x 180 - 1.3 mega pixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240
H.265/ H.264	- Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast
JPEG	Image Quality: 10 steps
Smart Coding	GOP(Group of pictures) control [When H.264 is selected] On (Mid)/ On (Low)/ Off [When H.265 is selected] On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off
Smart Coding	Smart Facial Coding* Off / On (AUTO VIQS)/ On(Smart Facial Coding) *Smart Facial Coding is only available with Stream(1).
Audio Compression	G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Supported Protocol	- IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
microSDXC/microSDHC/ microSD Memory Card	- H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording : Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible microSDXC/microSDHC/microSD Memory Card : Panasonic 2 GB, 4 GB, 8 GB, 32 GB, 64 GBmodel microSDHC card, **microSDXC card
Mobile Terminal Compatibility	iPad, iPhone, Android terminals
Alarm
Alarm Source	VMD alarm, Command alarm, Audio detection alarm
Alarm Actions	microSDXC/microSDHC/microSD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/ Output
Built-in microphone	Nondirectional electret condenser microphone
General
Safety	UL (UL60950-1 2Ed), c-UL (CAN/CSA C22. NO.60950-1-07), CE, IEC60950-1 EN45545 compliant, NFPA130
EMC	FCC (Part15 Subpart B, ClassA, SDoC), ICES-003 ClassA, EN55032 ClassB, EN55024, ECE-R10, EN50498, EN50121
Power Source and Power Consumption	PoE (IEEE802.3af compliant, alternative A) Device: DC48V/ 80mA, Approx. 3.8 W (Class 2 device)
Ambient Operating Temperature	-40 °C to +60 °C (-40 °F to 140 °F)*11 {Power On range : –20 °C to +60 °C (–4 °F to +140 °F)}
Ambient Operating Humidity	10 to 100 % (no condensation)
Water and Dust Resistance	IP66 (IEC60529), Type 4X(UL50), NEMA 4X compliant
Shock Resistance	IK10 (IEC 62262)
Railway Application	EN50155: 2017 Class OT2/ST2 (EN 50155: 2007 Class TX), IEC62236-3-2
Dimensions	ø109 mm x 53 mm (H) {ø4-9/32 inches x 2-3/32 inches (H)} Dome radius 27 mm {1-1/16 inches}
Mass (approx.)	Approx. 410 g {0.91 lbs}
Finish	Main body: Aluminum die cast, Light gray Dome section: Polycarbonate resin, Clear

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
