Nhật Bản Thương hiệu: I-Pro (Panasonic)

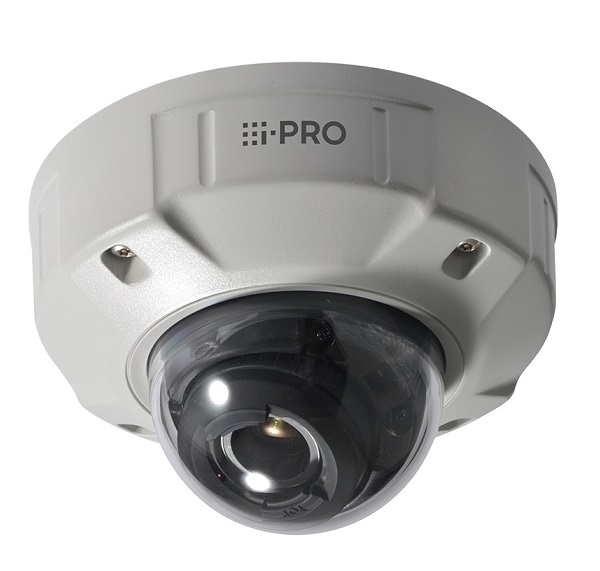

Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S2511LN

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S2511LN

- Cảm biến hình ảnh: Approx. 1/3 inch CMOS.

- Độ phân giải camera ip: HD 720p (1280 x 720).

- Tốc độ khung hình: 60 fps.

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG, H.264, JPEG.

- Ống kính: 2.8 - 10 mm.

- Độ nhạy sáng tối thiểu: Color: 0.008 lx, BW: 0.004 lx; B/W: 0.0 lux (with IR LED on).

- Tầm quan sát hồng ngoại: 40 mét.

- Chống ngược sáng thực WDR 144dB.

- Hỗ trợ tính năng iA (intelligent Auto).

- Tính năng thông minh Intelligent VMD (i-VMD): Type4 (Xâm nhập, Lảng vảng, Sai hướng, Vượt vạch, Đối tượng, Thay đổi cảnh) Bundled License.

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 256GB.

- Kết nối: ONVIF S, G, T, Ethernet RJ-45.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nhiệt độ hoạt động: -40 to 50 độ C.

Đặc tính kỹ thuật

Model  WV-S2511LN
Camera
Image Sensor Approx. 1/3 type MOS image sensor
Minimum Illumination Color: 0.008 lx, BW: 0.004 lx
 (F1.6, Maximum shutter: Off (1/30s), AGC: 11)
BW: 0 lx
 (F1.6, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.0005 lx, BW: 0.0003 lx
 (F1.6, Maximum shutter: max. 16/30s, AGC: 11)
White Balance  AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Shutter Speed 1/30 Fix to 1/10000 Fix
*1/30 Fix to 2/120 Fix is available during 30 fps mode only.
*1/60 Fix is available during 60 fps mode only.
Intelligent Auto On/Off
Super Dynamic On/Off, the level can be set in the range of 0 to 31.
Dynamic Range 144 dB (Super Dynamic: On)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back light compensation/High light compensation BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation On/ Off (only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light High/ Middle/ Low/ Off, Maximum irradiation distance: 40 m {Approx. 131 ft}
Digital Noise Reduction  The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On/Off, 4 areas available
Intelligent VMD (i-VMD) Type 4 *Bundled License
Stabilizer On/ Off (available only in the 30 fps mode)
Privacy Zone On/ Off (up to 8 zones available)
Image rotation 0°/ 90°/ 180°/ 270°
Camera Title (OSD) On/ Off Up to 20 characters (alphanumeric characters, marks)
Focus Adjustment Auto back focus/ Manual
Lens
Focal length 2.8 - 10 mm {1/8 inches - 13/32 inches}
Zoom ratio 3.6 x (Manual zoom / Motorized focus)
Angular Field of View - [16 : 9 mode] Horizontal : 30° (TELE) – 108° (WIDE)
                         Vertical : 17° (TELE) – 58° (WIDE)
- [4 : 3 mode] Horizontal : 25° (TELE) – 90° (WIDE)
                       Vertical : 19° (TELE) – 65° (WIDE)
Maximum Aperture Ratio 1 : 1.6 (WIDE) – 1 : 3.35 (TELE)
Focusing Range 0.3 m {11-13/16 inches} – ∞
Adjusting Angle
Adjusting Angle Horizontal: ±180°, Vertical: -30 to +85°, Yaw: ±100°
Browser GUI
Camera Control Brightness, AUX On/Off
Audio Mic (Line) Input: On/Off
Volume adjustment : Low/ Middle/ High
Audio Output: On/Off
Volume adjustment: Low/ Middle/ High
GUI/ Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF 10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) - 1.3 Megapixel [16 : 9] (30/60 fps)
 1,280 x 720/ 640 x 360/ 320 x 180
- 1.3 Megapixel [4 : 3] (30 fps)
 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240
H.265/H.264 - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast
JPEG Image Quality: 10 steps
Smart Coding - Smart Facial Coding: On (Smart Facial Coding*)/ On (Auto VIQS)/ Off
*Smart Facial Coding is only available with Stream(1).
- GOP (Group of pictures): On (Advanced)*/ On (Mid)/ On (Low)/ Off
*On(Advanced) is only available with H.265.
Audio Compression G.726 (ADPCM): 16 kbps/ 32 kbps
G.711: 64 kbps
AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Audio transmission mode Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex/ Interactive (Full duplex)
Supported Protocol - Pv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)  - H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure
- Compatible SDXC/SDHC/SD Memory Card :
 Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibilit iPad, iPhone, Android mobile terminals
Alarm
Alarm Source  3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions  SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/ Output
Monitor Output (for adjustment) VBS: 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack
An NTSC or PAL signal can be outputted from camera
Audio input ø3.5 mm stereo mini jack
Input impedance: Approx. 2 kΩ (unbalanced)
(Applicable microphone: Plug-in power type)
Supply voltage: 2.5 V ±0.5 V
Audio Output ø3.5 mm stereo mini jack (monaural output)
Output impedance: Approx. 600 Ω (unbalanced)
External I/O Terminals  ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption DC power supply: DC12 V 750 mA, Approx. 9 W
PoE (IEEE802.3af compliant) Device: DC48 V 195 mA, Approx. 9.4 W (Class 0 device)
Ambient Operating Temperature IR LED: On -40 °C to +50 °C (-40 °F to 122 °F), IR LED: Off -40 °C to +60 °C (-40 °F to 140 °F)
(Power On range: –30 °C to +60 °C {–22 °F to 140 °F})
Ambient Operating Humidity 10 to 100 % (no condensation)
Water and Dust Resistance IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant
Shock Resistance Compliant with 50J IEC60068-2-75, IK10 (IEC 62262)
Dimensions
* Installing using the base bracket		 ø164 mm x 139 mm (H) {ø6-15/32 inches x 5-15/32 inches (H)}
Dome radius 42 mm {1-21/32 inches}
Mass (approx.) When using base bracket: Approx. 1.6 kg {3.53 lbs}
When using attachment plate: Approx. 1.2 kg {2.65 lbs}
Finish Main body: Aluminum die cast, Light gray
Dome section: Clear polycarbonate resin (ClearSight coating)

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
