Phatsongwifi
Nhật Bản Thương hiệu: I-Pro (Panasonic)

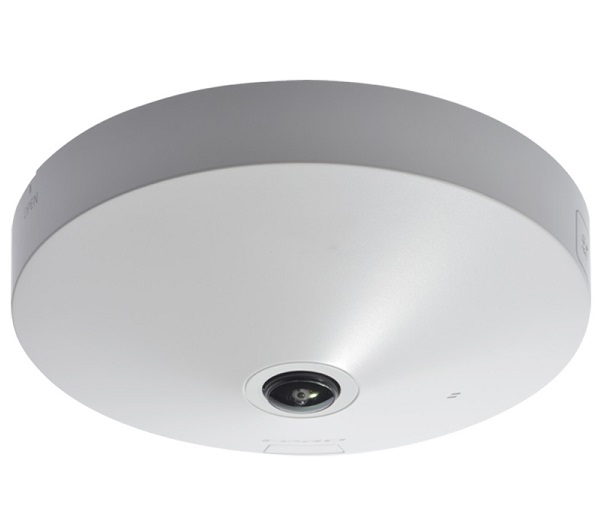

Camera IP Dome 5.0 Megapixel I-PRO WV-S4150

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome 5.0 Megapixel I-PRO WV-S4150
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome 5.0 Megapixel I-PRO WV-S4150

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải camera ip: 5.0 Megapixel.

- Tốc độ khung hình: Lên đến 30 fps.

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG, H.264, JPEG.

- Ống kính: 0.84 mm.

- Góc quan sát: Ngang 186°, Dọc 186°.

- Độ nhạy sáng tối thiểu: Color: 0.3lx, BW: 0.2lx.

- Hỗ trợ tính năng iA (intelligent Auto).

- Intelligent VMD (i-VMD): Type5 Bundled License.

- Hỗ trợ thẻ nhớ tối đa 256GB.

- Kết nối: ONVIF S, G, T, Ethernet RJ-45.

- Nhiệt độ hoạt động: -10°C ~ 50°C.



Đặc tính kỹ thuật

Model  WV-S4150
Camera
Image Sensor Approx. 1/3 type MOS image sensor
Minimum Illumination - Color: 0.3 lx, BW: 0.2 lx
(F2.4, Maximum shutter: Off (1/30 s), AGC: 11)
- Color: 0.02 lx, BW: 0.013 lx
(F2.4, Maximum shutter: max. 16/30s, AGC: 11)
Intelligent Auto On/ Off
Maximum shutter Max.16/30s to Max. 1/10000s
Super Dynamic On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range 108 dB (Super Dynamic: On, level: 31)
Image Settings Gain (AGC), White balance
Image Compensation Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
Day/ Night (Electrical) Off/ Auto
Video Motion Detection (VMD) On/ Off, 4 areas available
Intelligent VMD (i-VMD) Type 5 *Bundled License
Privacy Zone On/ Off (up to 8 zones available
Camera Title (OSD) On/ Off Up to 20 characters (alphanumeric characters, marks)
Fixing angle adjustment -5°, 0°, +5°
Lens
Zoom Ratio 1x
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal length 0.84 mm {1/32 inches}
Maximum Aperture Ratio 1 : 2.4
Focus range 0.3 m {11-13/16 inches} - ∞
Angular Field of view Horizontal: 186° Vertical: 186°
Browser GUI
Camera Control Brightness, AUX On/ Off
Audio Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High
Audio Output: On/ Off Volume adjustment: Low/ Middle/ High
GUI/ Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T/ 100Base-TX, RJ45 connector
Resolution
                              		 - Fisheye mode max.30 fps
2192×2192/ 1280×1280/ 640×640/ 320×320
- Quad PTZ mode max.30 fps, Single PTZ mode max.30 fps
1600×1200/ 1280×960/ 800×600/ VGA/ QVGA
  - Double Panorama mode (max. 30 fps)
1920×1080/ 1280×720/ 640×360/ 320×180
- Fisheye + Double Panorama mode (max. 30 fps)
(Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320
(Double Panorama) 1280×720/ 640×360/ 320×180
- Fisheye + Quad PTZ mode (max. 30 fps)
(Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320
(Quad PTZ) 1280×960/ 800×600/ VGA/ QVGA
- Quad streams mode
(Single PTZ (Quad streams)) 1280×960/ 800×600/ VGA/ QVGA (max. 30 fps)
(Quad PTZ) 1600×1200/ 1280×960/ 800×600/ VGA/ QVGA (max. 5 fps)
  - Panorama mode (max. 30 fps)
1920×1080/ 1280×720/ 640×360/ 320×180
- Fisheye + Panorama mode (max. 30 fps)
(Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320
(Panorama) 1280×720/ 640×360/ 320×180
H.265/ H.264 - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast
JPEG - Image Quality: 10 steps
Smart Coding - GOP (Group of pictures) control :
On (Frame rate control)*/ On (Advanced)*/ On (Mid)/ On (Low)/ Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
- Auto VIQS: On / Off
Audio Compression - G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Supported Protocol - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Maximum concurrent access number Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) - H.265/ H.264 recording :
 Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure
- Compatible SDXC/SDHC/SD card:
 Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model
 *SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad, iPhone (iOS 4.2.1 or later), AndroidTM mobile terminals
Alarm
Alarm Source 3 terminals input, VMD, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/Output
Audio Input ø3.5 mm stereo mini jack, Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone: –48 dB ±3 dB (0 dB=1 V/ Pa,1 kHz))
Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage: 2.5V ±0.5V
Built-in microphone Nondirectional electret condenser microphone
Audio Output ø3.5 mm stereo mini jack (monaural output)
Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV
External I/O Terminals ALARM IN 1 (Auto time adjustment) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption DC power supply: DC12 V 385 mA, Approx. 4.6 W
PoE (IEEE802.3af compliant) Device: DC48 V 105 mA, Approx. 5.1 W (Class 2 device)
Ambient Operating Temperature –10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity 10% to 90 % (no condensation)
Dimensions ø150 mm × 50.5 mm (H) {ø5-29/32 inches × 2 inches (H)}
Mass (approx.) Approx. 390 g {0.86 lbs}
Finish Main body: ABS resin, sail white

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.

Camera IP Dome 5.0 Megapixel I-PRO WV-S4150

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải camera ip: 5.0 Megapixel.

- Tốc độ khung hình: Lên đến 30 fps.

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG, H.264, JPEG.

- Ống kính: 0.84 mm.

- Góc quan sát: Ngang 186°, Dọc 186°.

- Độ nhạy sáng tối thiểu: Color: 0.3lx, BW: 0.2lx.

- Hỗ trợ tính năng iA (intelligent Auto).

- Intelligent VMD (i-VMD): Type5 Bundled License.

- Hỗ trợ thẻ nhớ tối đa 256GB.

- Kết nối: ONVIF S, G, T, Ethernet RJ-45.

- Nhiệt độ hoạt động: -10°C ~ 50°C.



Đặc tính kỹ thuật

Model  WV-S4150
Camera
Image Sensor Approx. 1/3 type MOS image sensor
Minimum Illumination - Color: 0.3 lx, BW: 0.2 lx
(F2.4, Maximum shutter: Off (1/30 s), AGC: 11)
- Color: 0.02 lx, BW: 0.013 lx
(F2.4, Maximum shutter: max. 16/30s, AGC: 11)
Intelligent Auto On/ Off
Maximum shutter Max.16/30s to Max. 1/10000s
Super Dynamic On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range 108 dB (Super Dynamic: On, level: 31)
Image Settings Gain (AGC), White balance
Image Compensation Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
Day/ Night (Electrical) Off/ Auto
Video Motion Detection (VMD) On/ Off, 4 areas available
Intelligent VMD (i-VMD) Type 5 *Bundled License
Privacy Zone On/ Off (up to 8 zones available
Camera Title (OSD) On/ Off Up to 20 characters (alphanumeric characters, marks)
Fixing angle adjustment -5°, 0°, +5°
Lens
Zoom Ratio 1x
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal length 0.84 mm {1/32 inches}
Maximum Aperture Ratio 1 : 2.4
Focus range 0.3 m {11-13/16 inches} - ∞
Angular Field of view Horizontal: 186° Vertical: 186°
Browser GUI
Camera Control Brightness, AUX On/ Off
Audio Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High
Audio Output: On/ Off Volume adjustment: Low/ Middle/ High
GUI/ Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T/ 100Base-TX, RJ45 connector
Resolution
                              		 - Fisheye mode max.30 fps
2192×2192/ 1280×1280/ 640×640/ 320×320
- Quad PTZ mode max.30 fps, Single PTZ mode max.30 fps
1600×1200/ 1280×960/ 800×600/ VGA/ QVGA
  - Double Panorama mode (max. 30 fps)
1920×1080/ 1280×720/ 640×360/ 320×180
- Fisheye + Double Panorama mode (max. 30 fps)
(Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320
(Double Panorama) 1280×720/ 640×360/ 320×180
- Fisheye + Quad PTZ mode (max. 30 fps)
(Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320
(Quad PTZ) 1280×960/ 800×600/ VGA/ QVGA
- Quad streams mode
(Single PTZ (Quad streams)) 1280×960/ 800×600/ VGA/ QVGA (max. 30 fps)
(Quad PTZ) 1600×1200/ 1280×960/ 800×600/ VGA/ QVGA (max. 5 fps)
  - Panorama mode (max. 30 fps)
1920×1080/ 1280×720/ 640×360/ 320×180
- Fisheye + Panorama mode (max. 30 fps)
(Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320
(Panorama) 1280×720/ 640×360/ 320×180
H.265/ H.264 - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast
JPEG - Image Quality: 10 steps
Smart Coding - GOP (Group of pictures) control :
On (Frame rate control)*/ On (Advanced)*/ On (Mid)/ On (Low)/ Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
- Auto VIQS: On / Off
Audio Compression - G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Supported Protocol - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Maximum concurrent access number Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) - H.265/ H.264 recording :
 Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure
- Compatible SDXC/SDHC/SD card:
 Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model
 *SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad, iPhone (iOS 4.2.1 or later), AndroidTM mobile terminals
Alarm
Alarm Source 3 terminals input, VMD, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/Output
Audio Input ø3.5 mm stereo mini jack, Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone: –48 dB ±3 dB (0 dB=1 V/ Pa,1 kHz))
Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage: 2.5V ±0.5V
Built-in microphone Nondirectional electret condenser microphone
Audio Output ø3.5 mm stereo mini jack (monaural output)
Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV
External I/O Terminals ALARM IN 1 (Auto time adjustment) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption DC power supply: DC12 V 385 mA, Approx. 4.6 W
PoE (IEEE802.3af compliant) Device: DC48 V 105 mA, Approx. 5.1 W (Class 2 device)
Ambient Operating Temperature –10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity 10% to 90 % (no condensation)
Dimensions ø150 mm × 50.5 mm (H) {ø5-29/32 inches × 2 inches (H)}
Mass (approx.) Approx. 390 g {0.86 lbs}
Finish Main body: ABS resin, sail white

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
