Nhật Bản Thương hiệu: I-Pro (Panasonic)

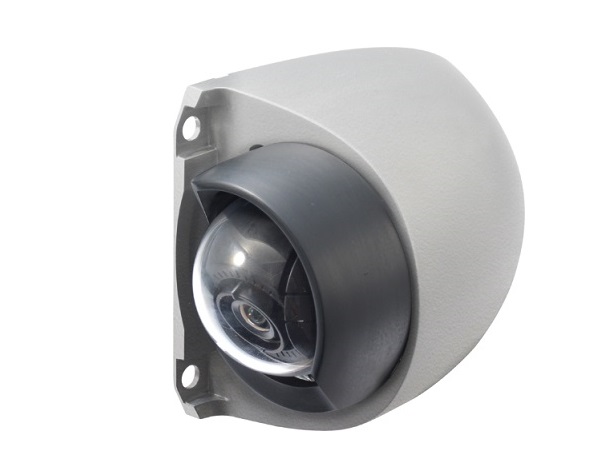

Camera IP Dome 1.3 Megapixel I-PRO WV-SBV111M

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome 1.3 Megapixel I-PRO WV-SBV111M
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome 1.3 Megapixel I-PRO WV-SBV111M

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải camera ip: 720p HD.

- Chuẩn nén hình ảnh: H.264/ JPEG.

- Tốc độ khung hình: 30 fps.

- Ống kính: 1.95 mm.

- Độ nhạy sáng tối thiểu: Color: 0.04 lx, BW: 0.03 lx.

- Hỗ trợ khe cắm thẻ nhớ tối đa 128GB.

- Kết nối: ONVIF S, G, Ethernet RJ-45.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuấn chống va đập: IK10.

Đặc tính kỹ thuật

Model  WV-SBV111M
Camera
Image Sensor  1/3 type MOS image sensor
Scanning Mode Progressive
Scanning Area 4.86 mm (H) x 3.65 mm (V) {3/16 inches (H) x 5/32 inches (V)}
Minimum Illumination - Color: 0.04 lx (F2.2, Maximum shutter: Off (1/30s), AGC: High)
0.003 lx (F2.2, Maximum shutter: Max. 16/30s, AGC: High)
- BW: 0.03 lx (F2.2, Maximum shutter: Off (1/30s), AGC: High)
 0.002 lx (F2.2, Maximum shutter: Max. 16/30s, AGC: High)
White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Light Control Mode ELC/ Indoor scene 50Hz/ Indoor scene 60Hz
Wide dynamic range On/ Off
Adaptive Black Stretch On/ Off (only when Wide dynamic range: Off)
Fog compensation On/ Off (only when Wide dynamic range: Off)
High light compensation (HLC) On/ Off (only when Wide dynamic range/ Back light compensation (BLC): Off)
AGC  On (High)/ On (Mid)/ On (Low)/ Off
Maximum shutter  max. 1/10,000s, max. 1/4,000s, max. 1/2,000s, max. 1/1,000s,
max. 1/500s, max. 1/250s, max. 1/120s, max. 1/100s, max.
2/120s, max. 2/100s, max. 3/120s, max. 3/100s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s
Day/Night (Electrical) Off / Auto
Digital Noise Reduction High/ Low
Video Motion Detection On/ Off, 4 areas available
Privacy Zone On/ Off (up to 8 zones available)
VIQS On/ Off (Max. 8 locations)
camera Title (OSD)  Up to 20 characters (alphanumeric characters, marks), On/ Off
Focus Adjustment MANUAL
Lens
Focal Length 1.95 mm {1/16 inches}
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Zoom ratio x1
Extra zoom x2
Angular  Field of View [16 : 9 mode] Horizontal: 104 ° Vertical: 69 °
[4 : 3 mode] Horizontal: 104 ° Vertical: 85 °
F Numbe F2.2
Focus Distance  0.5 m - ∞
Adjusting Angle
Adjusting Angle Horizontal: ±170°, Vertical: ±90°
Image tilt adjustment range: -170° (Left) to +170° (Right)
Browser GUI
Camera Control  Brightness
Display Mode  Spot, Quad: Image from 16 cameras can be displayed in
4 different Quad screens or 16 split screen (JPEG only).
20 characters camera title available.
Camera Title Up to 20 alphanumeric characters
Clock Display Time: 12H/24H
Date: 5 formats on the browser
Summer time (Manual)
One Shot Capture  A still picture will be displayed on a newly opened window
SD Memory Data Download Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
GUI/Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Chinese, Russian, Japanese
System Log Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory
when the recording format is set to JPEG.) error logs
Supported OS Microsoft® Windows® 10, Microsoft® Windows® 8.1,
Microsoft® Windows® 8, Microsoft® Windows® 7
Supported Browser Windows® Internet Explorer® 11 (32 bit)
Windows® Internet Explorer® 10 (32 bit)
Windows® Internet Explorer® 9 (32 bit)
Windows® Internet Explorer® 8 (32 bit)
Network
Network IF 10Base-T/ 100Base-TX, M12 connector (female)
Image Resolution - 1.3 Megapixel [16 : 9]
 H.264(1)(2)(3)(4)/ JPEG (1)(2)(3)
 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90
- 1.3 Megapixel [4 : 3]
 H.264(1)(2)(3)(4)/ JPEG (1)(2)(3)
 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120
H.264  - Transmission Mode: Constant bit rate/ Variable bit rate/ Framerate priority/ Best effort/ Advanced VBR
- Frame Rate: 1/ 3/ 5/ 7.5/ 10/ 12/ 15/ 20/ 30 fps
- Bit Rate/Client:  64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 1,536/
 2,048/ 3,072/ 4,096/ 6144*/ 8,192*/ 10,240*/ 12,288*/
14,336*/ 16,384*/ 20,480*/ 24,576*/ 30,720*/ 40,960 kbps*
* The available range of the H.264 bit rate varies depending on
 the setting selected for “image capture size”
- Image Quality:
 Low/ Normal/ Fine
 0 SUPER FINE/1 FINE /2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9LOW
- Smart Coding mode: On (Low / Mid / High) / Off (Only when 'Variable bit rate' is selected)
- Transmission Type: Unicast/ Multicast
JPEG - Image Quality: 10 steps
- Refresh Interval: 0.1 fps - 30 fps
- Transmission Type: Pull / Push
Total Bit Rate 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited
Supported Protocol  - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,ARP
FTP Client  Alarm image transmission, FTP periodic transmission
(When the FTP transmission is failed, backup on an optional
SDXC/SDHC/SD memory card is available.)
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card(Option) Manufactured by Panasonic (except miniSD card and microSD card)
SDXC memory card: 64 GB, 128 GB
SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
SD memory card: 256 MB, 512 MB, 1 GB, 2 GB
Cellular Phone Compatibility JPEG image
Mobile Terminal Compatibility iPad, iPhone, iPod touch(iOS 4.2.1 or later), Android mobile terminals
Alarm
Alarm Source VMD, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Alarm Log With SDXC/SDHC/SD memory card: 5,000 logs,
without SDXC/SDHC/SD memory card: 1,000 logs
Schedule VMD
General
Safety/EMC Standard UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
FCC Part15 ClassA, ICES003 ClassA, EN55022 ClassB, EN55024
Power Source and Power Consumption  PoE (IEEE802.3af compliant)/ PoE (Alternative A): 48 VDC: 80 mA/ Approx.3.8 W (Class 2 device)
Ambient Operating Temperature -40 °C to +60 °C {-40 °F to 140 °F}
(Power On range: -30 °C to +60 °C {-22 °F to 140 °F})
Ambient Operating Humidity 10 % to 90 % (no condensation)
Impact Protection Compliant with IK10 (IEC 62262)
Water and Dust Resistance IP66 (IEC60529), IP6K9K, Type 4X (UL50), NEMA 4X compliant
Railway Application EN50155-T3, EN50121, ECE-R10, EN45545, EN50498
Dimensions 100 mm (W), 80 mm (H)
161 mm (D)
Mass (approx.)  Approx. 750 g
Finish  Main body: Aluminum die cast, Light gray
Dome cover: Polycarbonate resin, Clear (with hard coating)
Others Tamper-resistant dome cover

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
