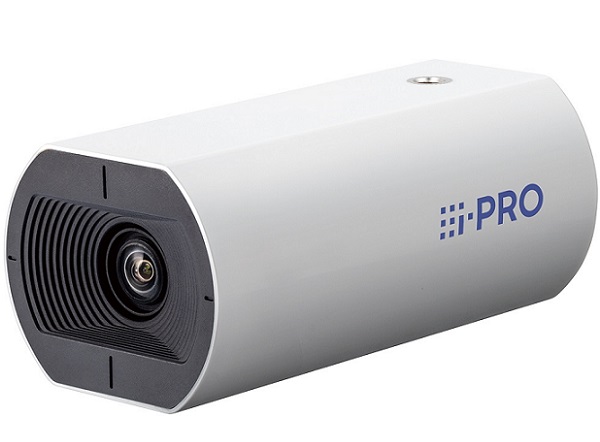

Camera IP 5.0 Megapixel I-PRO WV-U1142A

- Camera IP thân trong nhà 4MP Varifocal Lens.

- Cảm biến hình ảnh: 1/2.7 inch CMOS.

- Độ phân giải: 5MP (2688 × 1520).

- Tiêu cự: 2.9 ~ 7.3 mm.

- Ống kính lấy nét có động cơ và zoom có động cơ 2.5 lần.

- Hỗ trợ iA (Tự động thông minh).

- Hỗ trợ siêu động Super Dynamic 102dB.

- Tầm nhìn ban đêm có màu: 0.019 ~ 0.3 lx

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Chế độ hành lang (90° hoặc 270° khi xoay hình ảnh).

- Cấu hình ONVIF G / S / T.

- Hỗ trợ thẻ nhớ

o microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB

o microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB

o microSD memory card: 2 GB

Thông số kỹ thuật

Model	WV-U1142A
Image Sensor	Approx. 1/2.7 type CMOS image sensor
Minimum Illumination	Color: 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color: 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance	AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Maximum Shutter	Max. 1/10000 s to Max. 16/30 s
Intelligent Auto	On / Off
Super Dynamic	On / Off, the level can be set in the range of 0 to 31.
Dynamic Range	102 dB (Super Dynamic: On, Level: 31)
Back Light Compensation/High Light Compensation	BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off)
Fog Compensation	On / Off (only when Intelligent auto / auto contrast adjust: Off)
Maximum Gain (AGC)	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
Digital Noise Reduction	The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)	On / Off, 4 areas available
Privacy Zone	On / Off (up to 8 zones available)
Image Rotation	0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD)	On / Off Up to 20 characters (alphanumeric characters, marks)
Focal Length	2.9 mm – 7.25 mm{1/8inches-9/32inches}
Zoom Ratio	2.5x Optical zoom (Motorized zoom / Motorized focus) 3.3x FHD Extra Optical Zoom (when resolution is 1920x1080)
Angular Field of View	[16 : 9 mode] Horizontal : 44° (TELE) ~ 103° (WIDE), Vertical : 25° (TELE) ~ 57° (WIDE) *[4:3 mode] is not supported.
Maximum Aperture Ratio	1 : 2.0 (WIDE) – 1 : 3.0(TELE)
Focusing Range	1 m {39-3/8 inches} – ∞
Camera Control	Brightness
GUI / Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF	10Base-T / 100Base-TX, RJ45 connector
Resolution H.265	[16 : 9 mode] 2560×1440, 1920×1080, 640×360, 320×180 *[4:3 mode] is not supported.
H.265	[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast / Multicast
JPEG	[Image Quality] 10 steps
Smart Coding	GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off AUTO VIQS: On/ Off
Supported Protocol	IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)	H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure Compatible microSDXC/microSDHC Memory Card: I-PRO 32 GB, 64 GBmodel microSDHC card, **microSDXC card
Mobile Terminal Compatibility	iPad, iPhone, AndroidTM mobile terminals
Alarm Source	VMD alarm, SCD alarm, Command alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption	PoE (IEEE802.3af compliant) Device: DC48 V 100 mA, Approx. 4.8 W (Class 2 device)
Ambient Operating Temperature	-10 °C to +50 °C (14 °F to 122 °F) {Power On range: 0 °C to 50 °C (32°F to 122 °F)}
Ambient Operating Humidity	10 to 90 % (no condensation)
Dimensions	59 mm (W) x 49 mm (H) x 116 mm (D)
Mass (Approx.)	200g
Finish	Main body: PC / ABS resin, i-PRO white

- Bảo hành: 12 tháng.
