Nhật Bản Thương hiệu: I-Pro (Panasonic)

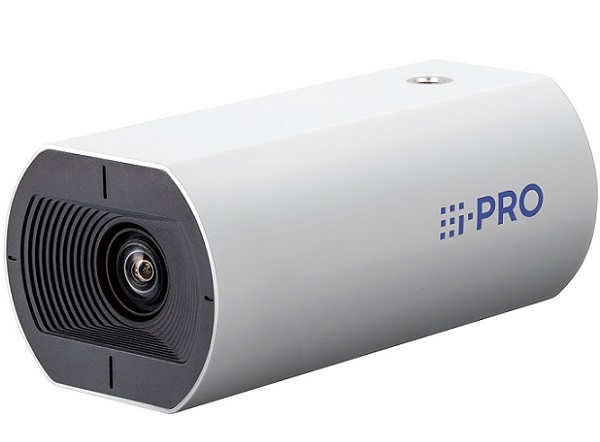

Camera IP 2.0 Megapixel I-PRO WV-U1132A

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP 2.0 Megapixel I-PRO WV-U1132A
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP 2.0 Megapixel I-PRO WV-U1132A

- Camera IP thân trong nhà Full HD Varifocal Lens.

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải: Full HD 1080p (lên đến 30 khung hình/ giây).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Tiêu cự: 2.9 ~ 7.3 mm.

- Ống kính lấy nét có động cơ và zoom có động cơ 2.5 lần.

- Hỗ trợ iA (Tự động thông minh).

- Hỗ trợ siêu động Super Dynamic 120dB

- Tầm nhìn ban đêm có màu: 0,006 đến 0,1 lx.

- Chế độ hành lang (90 độ hoặc 270 độ khi xoay hình ảnh)

- Cấu hình ONVIF G / S / T

- Hỗ trợ thẻ nhớ

o microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB

o microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB

o microSD memory card: 2 GB

Thông số kỹ thuật

Model WV-U1132A
Image Sensor Approx. 1/3 type CMOS image sensor
Minimum Illumination Color : 0.1 lx, BW: 0.04 lx
(50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
Color : 0.006 lx, BW: 0.0025 lx
(50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance ATW1/ ATW2/ AWC
Maximum Shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On / Off
Super Dynamic On / Off, the level can be set in the range of 0 to 31.
Dynamic Range Max.120 dB (Super Dynamic: On, Level: 31)
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off)
Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust: Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Privacy Zone On / Off (up to 8 zones available)
Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Focal Length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Optical Zoom 2.5x (Motorized zoom / Motorized focus)
Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
Angular Field of View [16 : 9 mode]
Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode]
Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0(TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Camera Control Brightness
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
JPEG [Image Quality] 10 steps
Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
AUTO VIQS: On/ Off
Supported Protocol IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure
Compatible microSDXC/microSDHC Memory Card: Panasonic 32 GB*, 64 GB**model
*microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device: DC48 V 90 mA, Approx. 4.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions 59 mm (W) x 49 mm (H) x 116 mm (D)
Mass (Approx.) 155 g { 0.34 lbs.}
Finish Main body: PC / ABS resin, i-PRO white

- Bảo hành: 12 tháng.

Camera IP 2.0 Megapixel I-PRO WV-U1132A

- Camera IP thân trong nhà Full HD Varifocal Lens.

- Cảm biến hình ảnh: 1/3 inch CMOS.

- Độ phân giải: Full HD 1080p (lên đến 30 khung hình/ giây).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Tiêu cự: 2.9 ~ 7.3 mm.

- Ống kính lấy nét có động cơ và zoom có động cơ 2.5 lần.

- Hỗ trợ iA (Tự động thông minh).

- Hỗ trợ siêu động Super Dynamic 120dB

- Tầm nhìn ban đêm có màu: 0,006 đến 0,1 lx.

- Chế độ hành lang (90 độ hoặc 270 độ khi xoay hình ảnh)

- Cấu hình ONVIF G / S / T

- Hỗ trợ thẻ nhớ

o microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB

o microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB

o microSD memory card: 2 GB

Thông số kỹ thuật

Model WV-U1132A
Image Sensor Approx. 1/3 type CMOS image sensor
Minimum Illumination Color : 0.1 lx, BW: 0.04 lx
(50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
Color : 0.006 lx, BW: 0.0025 lx
(50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance ATW1/ ATW2/ AWC
Maximum Shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On / Off
Super Dynamic On / Off, the level can be set in the range of 0 to 31.
Dynamic Range Max.120 dB (Super Dynamic: On, Level: 31)
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off)
Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust: Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Privacy Zone On / Off (up to 8 zones available)
Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Focal Length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Optical Zoom 2.5x (Motorized zoom / Motorized focus)
Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
Angular Field of View [16 : 9 mode]
Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode]
Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0(TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Camera Control Brightness
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
JPEG [Image Quality] 10 steps
Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
AUTO VIQS: On/ Off
Supported Protocol IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option) H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure
Compatible microSDXC/microSDHC Memory Card: Panasonic 32 GB*, 64 GB**model
*microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device: DC48 V 90 mA, Approx. 4.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions 59 mm (W) x 49 mm (H) x 116 mm (D)
Mass (Approx.) 155 g { 0.34 lbs.}
Finish Main body: PC / ABS resin, i-PRO white

- Bảo hành: 12 tháng.
