Nhật Bản Thương hiệu: I-Pro (Panasonic)

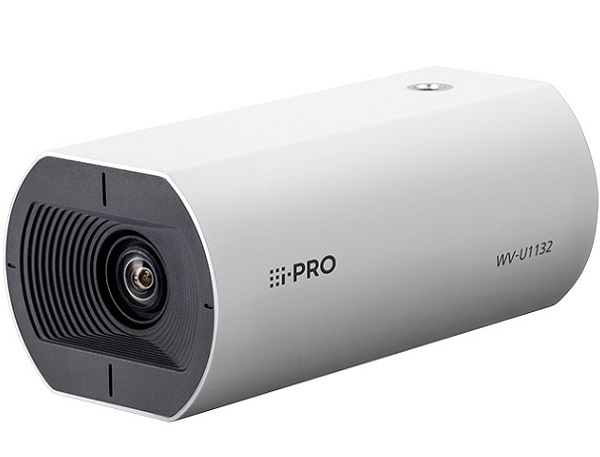

Camera IP 2.0 Megapixel I-PRO WV-U1132

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP 2.0 Megapixel I-PRO WV-U1132
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP 2.0 Megapixel I-PRO WV-U1132

- Camera IP thân trong nhà Full HD Varifocal Lens.

- Độ phân giải: Full HD 1080p (30 khung hình/ giây).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Ống kính có động cơ và ống kính lấy nét có động cơ zoom 2,5x.

- Tiêu cự: 2.9 – 7.3 mm {1/8 - 9/32 inches}, F2.0 Motorized.

- Tầm nhìn ban đêm màu (0,006 đến 0,1 lx).

- Góc quan sát H: 44-102 deg. V: 24-56 deg.(16:9).

- Hỗ trợ tính năng iA (intelligent Auto).

- Camera quan sát hỗ trợ Super Dynamic 120dB.

- Hỗ trợ chế độ hành lang (xoay 90° hoặc 270°).

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 64GB.

- Nguồn hỗ trợ: PoE (IEEE802.3af) 4.3W.

- Hỗ trợ chuẩn ONVIF G/T.

Đặc tính kỹ thuật

Model  WV-U1132
Camera
Image Sensor  Approx. 1/3 type CMOS image sensor
Minimum Illumination Color: 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
Color: 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance ATW1/ ATW2/ AWC
Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On/ Off
Super Dynamic On/ Off, the level can be set in the range of 0 to 31
Dynamic Range Max.120 dB (Super Dynamic: On, Level: 31)
Back light compensation / High light compensation BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation On/ Off (only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11
Color/BW (ICR)  Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC)
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On/ Off, 4 areas available
Privacy Zone On/ Off (up to 8 zones available)
Image rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Lens
Focal length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Optical zoom 2.5x (Motorized zoom / Motorized focus)
Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Angular Field of View [16 : 9 mode]
Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode]
Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Browser GUI
Camera Control Brightness
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265 Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort
Transmission Type: Unicast / Multicast
JPEG Image Quality: 10 steps
Smart Coding GOP(Group of pictures) control:
On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
AUTO VIQS: On/ Off
Network
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)  H.265 recording:
 Manual REC / Alarm REC (Pre/Post) / Schedule REC /
 Backup upon network failure
Compatible microSDXC/microSDHC Memory Card:
 Panasonic 32 GB*, 64 GB**model
 *microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, Android terminals
Alarm
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device:
DC48 V 90 mA, Approx. 4.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions  59 mm (W) x 49 mm (H) x 116 mm (D)
Mass (approx.)  155 g { 0.34 lbs.}
Finish  Main body: PC / ABS resin, i-PRO white

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.



Camera IP 2.0 Megapixel I-PRO WV-U1132

- Camera IP thân trong nhà Full HD Varifocal Lens.

- Độ phân giải: Full HD 1080p (30 khung hình/ giây).

- Chuẩn nén hình ảnh: H.265, Smart coding.

- Ống kính có động cơ và ống kính lấy nét có động cơ zoom 2,5x.

- Tiêu cự: 2.9 – 7.3 mm {1/8 - 9/32 inches}, F2.0 Motorized.

- Tầm nhìn ban đêm màu (0,006 đến 0,1 lx).

- Góc quan sát H: 44-102 deg. V: 24-56 deg.(16:9).

- Hỗ trợ tính năng iA (intelligent Auto).

- Camera quan sát hỗ trợ Super Dynamic 120dB.

- Hỗ trợ chế độ hành lang (xoay 90° hoặc 270°).

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 64GB.

- Nguồn hỗ trợ: PoE (IEEE802.3af) 4.3W.

- Hỗ trợ chuẩn ONVIF G/T.

Đặc tính kỹ thuật

Model  WV-U1132
Camera
Image Sensor  Approx. 1/3 type CMOS image sensor
Minimum Illumination Color: 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
Color: 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
White Balance ATW1/ ATW2/ AWC
Maximum shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On/ Off
Super Dynamic On/ Off, the level can be set in the range of 0 to 31
Dynamic Range Max.120 dB (Super Dynamic: On, Level: 31)
Back light compensation / High light compensation BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation On/ Off (only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11
Color/BW (ICR)  Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC)
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On/ Off, 4 areas available
Privacy Zone On/ Off (up to 8 zones available)
Image rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Lens
Focal length 2.9 mm – 7.3 mm{1/8inches-9/32inches}
Optical zoom 2.5x (Motorized zoom / Motorized focus)
Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Angular Field of View [16 : 9 mode]
Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE)
[ 4 : 3 mode]
Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Browser GUI
Camera Control Brightness
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265 Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort
Transmission Type: Unicast / Multicast
JPEG Image Quality: 10 steps
Smart Coding GOP(Group of pictures) control:
On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
AUTO VIQS: On/ Off
Network
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)  H.265 recording:
 Manual REC / Alarm REC (Pre/Post) / Schedule REC /
 Backup upon network failure
Compatible microSDXC/microSDHC Memory Card:
 Panasonic 32 GB*, 64 GB**model
 *microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, Android terminals
Alarm
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
General
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device:
DC48 V 90 mA, Approx. 4.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions  59 mm (W) x 49 mm (H) x 116 mm (D)
Mass (approx.)  155 g { 0.34 lbs.}
Finish  Main body: PC / ABS resin, i-PRO white

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
