Nhật Bản Thương hiệu: I-Pro (Panasonic)

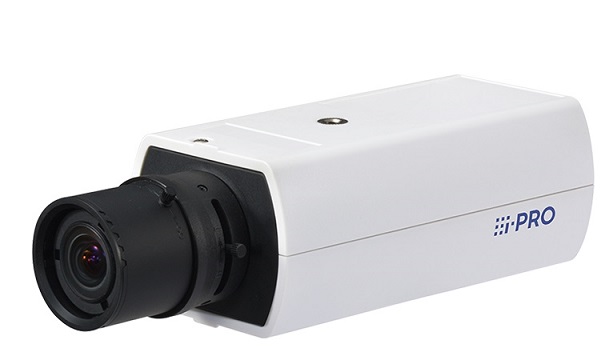

Camera IP 2.0 Megapixel I-PRO WV-S1136

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP 2.0 Megapixel I-PRO WV-S1136
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP 2.0 Megapixel I-PRO WV-S1136

- Cảm biến hình ảnh: Approx. 1/2.8 type CMOS image sensor.

- Độ phân giải: 2.0 megapixels.

- Độ nhạy sáng tối thiểu:

   + Color: 0.006lx (30IRE, F1.2, 1/30s);

   + Color: 0.008lx (50IRE, F1.2, 1/30s);

   + BW: 0.004lx (50IRE, F1.2, 1/30s).

- Hỗ trợ các tính năng camera: Super Dynamic 144dB, BLC, HLC, ICR, AGC.

- Hỗ trợ tính năng iA (intelligent Auto).

- Chuẩn nén hình ảnh: H.265/H.264/JPEG (MJPEG).

- Nhiệt độ hoạt động: -10°C to +50°C.

Thông số kỹ thuật

Camera
Image Sensor Approx. 1/2.8 type CMOS image sensor
Minimum Illumination Color: 0.006 lx (30IRE, F1.2, 1/30s)
Color: 0.008 lx (50IRE, F1.2, 1/30s)
BW: 0.004 lx (50IRE, F1.2, 1/30s)
White Balance ATW1/ ATW2/ AWC
Maximum shutter [60fps mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps mode] 1/30 Fix to 1/10000 Fix
[50fps mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix
Intelligent Auto On / Off
Super Dynamic On / Off, The level can be set in the range of 0 to 31.
Dynamic Range Max.144 dB (Super Dynamic : On, Level 31)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust: Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Scene Change Detection (SCD) On / Off, 1 areas available
Audio Detection On / Off
AI Sound Classification Gunshot, Yell, Vehicle horn, Glass break
AI Analytics Yes
Privacy Zone On / Off, Up to 8 zones available
VIQS On/ Off, Up to 8 zones available
Image Rotation 0 ° / 90 ° / 180 ° / 270 °
Camera Title (OSD) On / Off, Up to 40 characters (alphanumeric characters, marks)
Focus Adjustment Auto back focus / Manual / Adjusting method (Auto / Preset / Fix)
Browser GUI
Camera Control Brightness, AUX On / Off
Audio Mic (Line) Input: On / Off Volume adjustment : Low / Middle / High
Audio Output: On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,Chinese, Japanese
Browser Microsoft Edge, Firefox, Google Chrome
Network
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/H.264 [16:9 mode (60 fps mode)]*2 , [16:9 mode (30 fps mode)],
[16:9 mode (50 fps mode)]*2 , [16:9 mode (25 fps mode)]
1920x1080, 1280x720, 640x360, 320x180
[4:3 mode (30 fps mode)], [4:3 mode (25 fps mode)]
1280x960, VGA, QVGA
[4:3 mode (15 fps mode)], [4:3 mode (12.5 fps mode)]
2048x1536*5, 1280x960, VGA, QVGA
H.265/ H.264 [Transmission Mode]Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]Unicast port(AUTO) / Unicast port(MANUAL) / Multicast
JPEG [Image Quality]10 steps
Smart Coding GOP (Group of pictures control):
Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/
Advanced(Fixed GOP 60s w/1s key-frame)/
Frame rate control (Variable GOP 4s-16s with frame rate control)
*Advanced and Frame rate control are only available with H.265.
Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
Audio Compression G.726 (ADPCM): 16 kbps / 32 kbps
G.711: 64 kbps
AAC-LC: 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
Secure Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption
SDXC/SDHC/SD Memory Card H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG recording :
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SDXC/SDHC/SD Memory Card
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
ONVIF® Profile G / M / S / T
Alarm
Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output
Input/Output
Monitor Output (for Adjustment) VBS: 1.0 V [p-p] / 75 Ω, composite, Pin jack
An NTSC or PAL signal can be outputted from camera
Audio input ø3.5 mm stereo mini jack
For microphone input : Recommended applicable microphone : Plug-in power type
(Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance : Approx. 2 kΩ (unbalanced)
Supply voltage : 2.5 V ±0.5 V
For line input : Input level : Approx. –10 dBV
Audio Output ø3.5 mm stereo mini jack (monaural output)
Output impedance : Approx. 600 Ω (unbalanced)
Output level : –20 dBV
External I/O Terminals ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1)
ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
General
Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
Power Source and Power Consumption DC power supply : DC12 V 480 mA, Approx. 5.8 W
PoE (IEEE802.3af compliant)Device : DC48 V 130 mA, Approx. 6.3 W (Class 2 device)
Ambient Operating Temperature -10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions 75 mm (W) x 57 mm (H) x 146 mm (D) (excluding lens / power cord plug)
Mass (approx.) 370 g
Finish Main body: PC/ABS resin (i-PRO white)

- Bảo hành: 12 tháng.
