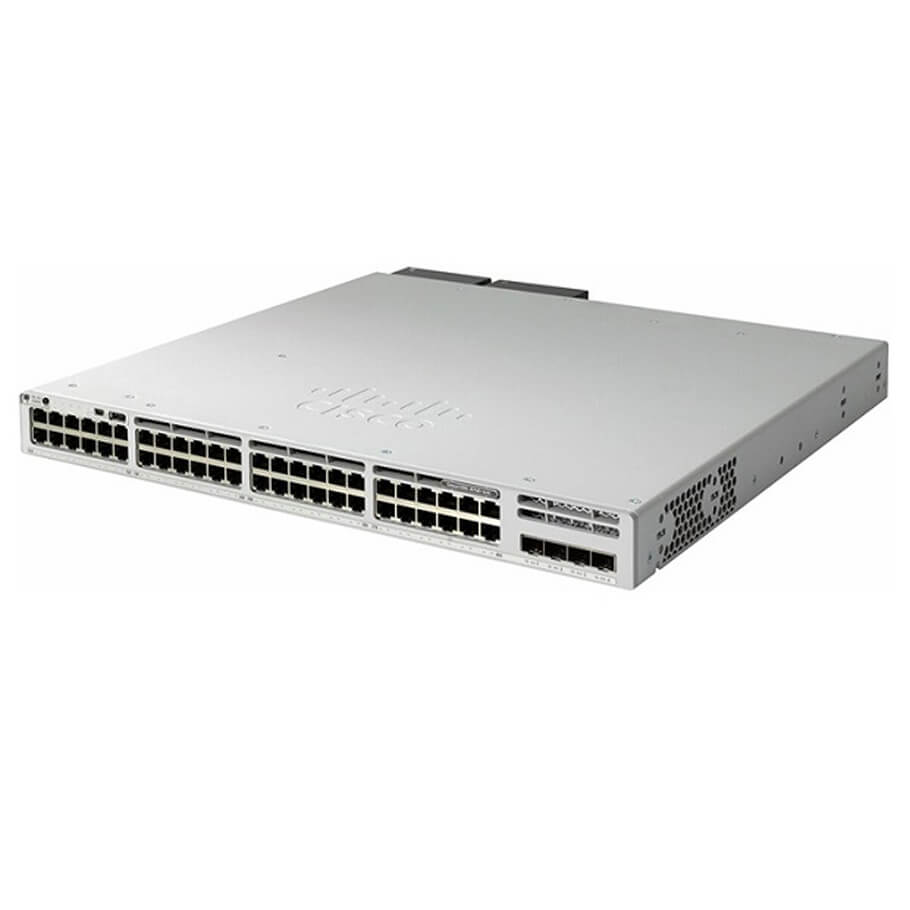

48-port Gigabit PoE+ + 4-port SFP Switch CISCO C9300L-48P-4G-E
- Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Essentials.
- Total 10/100/1000, Multigigabit copper or SFP Fiber: 48 port PoE+.
- Uplink Configuration: 4x 1G fixed uplinks.
- Default AC power supply: 715W AC.
- Switching capacity: 104Gbps.
- Switching capacity with stacking: 424Gbps.
- Forwarding rate: 77.38Mpps.
- Forwarding rate with stacking: 315.48Mpps.
Specifications
| Stacking Bandwidth Support | Stackwise-320 |
| mGig Density | 12x10G |
| App-Hosting Capacity | ✓ |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 48 port PoE+ |
| Uplink Configuration | 4x 1G fixed uplinks |
| Default AC power supply | 715W AC |
| Power supply | Primary Power Supply: PWR-C1-715WAC-P Default or Upgrade: Default Available PoE: 505W With 350W Secondary PS: 855W With 715W secondary PS: 1220W With 1100W Secondary PS: 1440W |
| Performance | Total number of MAC addresses: 32,000 |
| Total number of IPv4 routes (ARP plus learned routes): 32,000 (24,000 direct routes and 8000 indirect routes) | |
| IPv6 routing entries: 16,000 | |
| Multicast routing scale: 8,000 | |
| QoS scale entries: 5,120 | |
| ACL scale entries: 5,120 | |
| Packet buffer per SKU: 16MB buffer | |
| FNF entries: 64,000 | |
| DRAM: 8 GB | |
| Flash: 16 GB | |
| VLAN IDs: 4094 | |
| Total Switched Virtual Interfaces (SVIs): 1000 | |
| Jumbo frames: 9198 bytes | |
| Total routed ports per Catalyst 9300 Series stack: 416 | |
| Bandwidth specifications | Switching capacity: 104Gbps |
| Switching capacity with stacking: 424Gbps | |
| Forwarding rate: 77.38Mpps | |
| Forwarding rate with stacking: 315.48Mpps | |
| General Specifications | Dimensions (H x W x D): - Chassis only: 4.4 x 44.5 x 40.9 cm - W/ Default Power Supply: 4.4 x 44.5 x 44.9 cm - W/ 1100W Power Supply: 4.4 x 44.5 x 48.8 cm |
| Weight (with default power supply): 7.03kg | |
| Mean Time Between Failures – MTBF: 314,140 hours |
- Bảo hành: 12 tháng.
