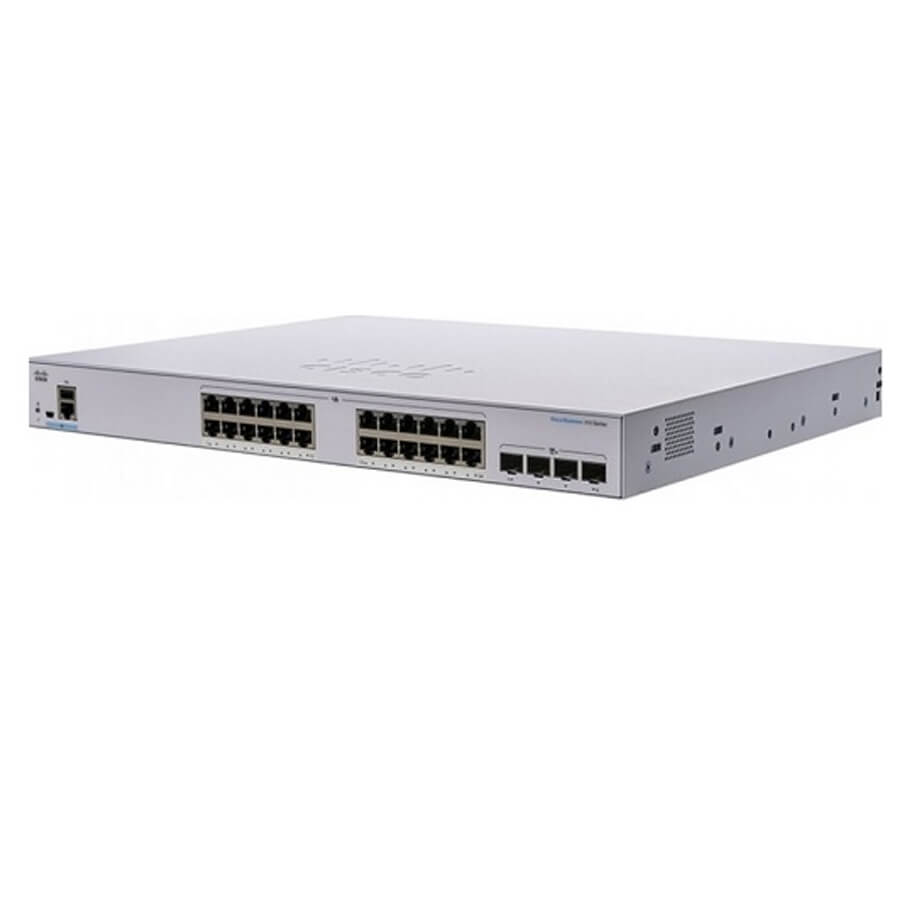

24-Port Gigabit Ethernet Smart Switch CISCO CBS250-24T-4G-EU
- Support 24-port Gigabit Ethernet and 4-port (SFP).
- Switching Capacity: 56.0Gbps.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 8K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256 MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 445 x 240 x 44 mm.
- Weight: 2.63kg.
Đặc tính kỹ thuật
| Model | CBS250-24T-4G-EU |
| Performance | |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 41.66 mpps |
| Switching capacity | 56.0Gbps |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 8K addresses |
| System power consumption | 110V=25.91W 220V=25.63W |
| Heat dissipation (BTU/hr) | 89.13 |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, Speed |
| Flash | 256 MB |
| CPU | 800MHz ARM |
| DRAM | 512 MB |
| Packet buffer | 1.5 MB |
| Ports | |
| Total system ports | 28 Gigabit Ethernet |
| RJ-45 ports | 24 Gigabit Ethernet |
| Combo ports (RJ-45 + SFP) | 4 SFP |
| Console port | Cisco Standard mini USB Type-B/RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Environmental | |
| Unit dimensions (W x D x H) | 445 x 240 x 44 mm |
| Unit weight | 2.63 kg |
| Power | 100 to 240V 50 to 60 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | -5° to 50°C |
| Storage temperature | -25° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | Fanless |
| MTBF at 25°C (hours) | 2,026,793 |
- Bảo hành: 12 tháng.
