The ZoneFlex R600 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to an additional 6dB of BeamFlex gain on top of the physical antenna gain and up to 15dB of interference mitigation.

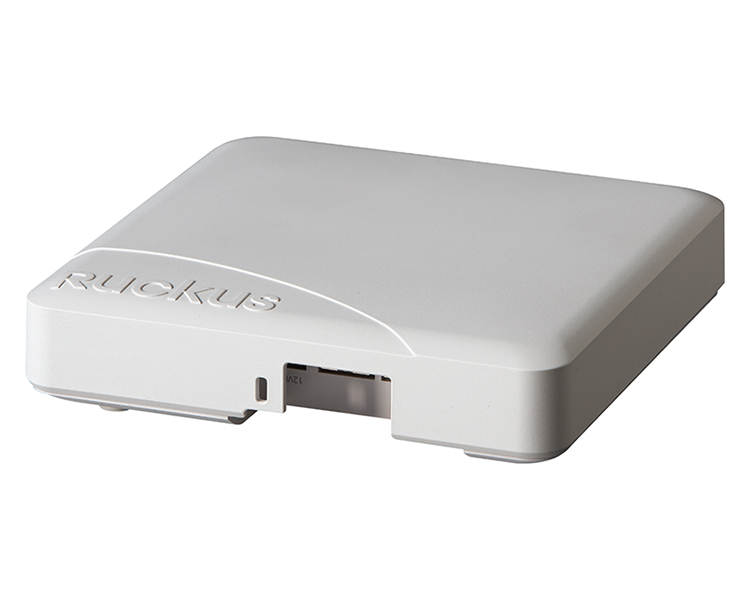

Ruckus ZoneFlex R600 - Technical Specifications
Additional Features
- IP multicast video streaming support
- Advanced QoS packet classification and automatic priority for latency-sensitive traffic
- Dynamic, pre-user rate-limiting for hotspot WLANs
- WPA-PSK (AES), 802.1X support for RADIUS and Active Directory*
- Ethernet 802.1x port-based authentication (authenticator and supplicant)
- BYOD, Zero-IT and Dynamic PSK*
- Admission control/load balancing*
- Band steering and airtime fairness support
- Captive portal and guest accounts*
- Application recognition and control*
- SmartWay Bonjour gateway*
- SecureHotspot*
- SPOT location services*
- Band balancing*
* when used with Ruckus ZoneDirector or SmartZone controller.
Physical Characteristics
- POWER
• DC Input: 12 VDC 1.0A
• Power over Ethernet 802.3 af
- PHYSICAL SIZE
• 15.8 cm x 15.8 cm x 4 cm (6.2 in x 6.2 in x 1.57 in)
- WEIGHT
• 364 g (0.8 lb.)
- ETHERNET PORTS
• 2 auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45, POE port (on one port)
- LOCK OPTIONS
• Hidden latching mechanism
• Kensington Lock Hole
• T-bar Torx
• Bracket (902-0108-0000) Torx screw & padlock (sold separately)
- ENVIRONMENTAL CONDITIONS
• Operating Temperature: 0°C - 40°C
• Operating Humidity: 10% - 95% non-condensing
- POWER DRAW
• Idle: 4W
• Typical: 6.2W
• Peak: 11.2W
Capacity
- CONCURRENT STATIONS
• Up to 500 clients per AP
- SIMULTANEOUS VoIP CLIENTS
• Up to 30
RF
- ANTENNA

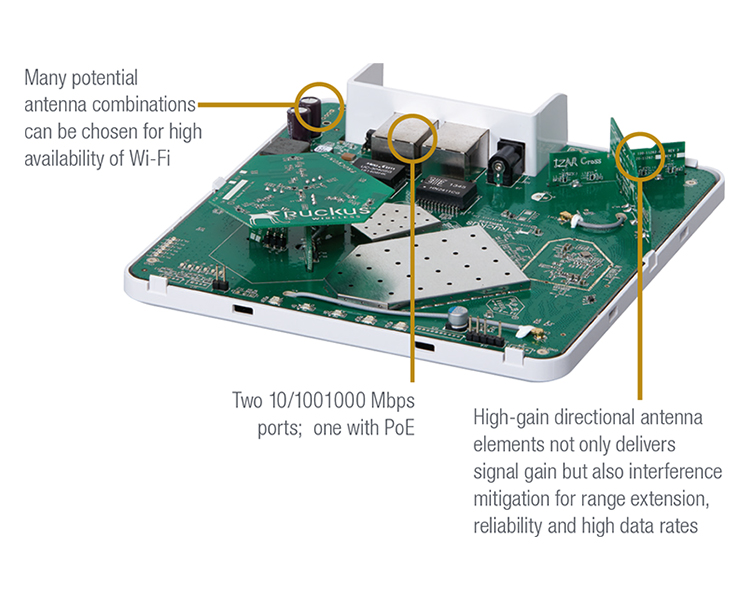

• Adaptive antenna that provides up to 512 unique antenna patterns per radio
• Full omnidirectional polarization diversity
- PHYSICAL ANTENNA GAIN
• Up to 3 dBi
- BEAMFLEX* SINR TX GAIN
• Up to 6 dB
- BEAMFLEX* SINR RX GAIN
• 3-5 dB (PD-MRC)
- INTERFERENCE MITIGATION
• Up to 15 dB
- MINIMUM RX SENSITIVITY
• Up to -101 dBm
Management
- DEPLOYMENT OPTIONS
• Standalone (individually managed)
• Managed by ZoneDirector
• Managed by SmartZone
• Managed by FlexMaster
• Managed by SmartCell™
- Gateway 200 CONFIGURATION
• Web User Interface (HTTP/S)
• CLI (Telnet/SSH), SNMP v1, 2, 3
• TR-069 vis FlexMaster
- AUTO AP SOFTWARE UPDATES
• FTP or TFTP, remote auto available
Wi-Fi
- STANDARDS
• IEEE 802.11a/b/g/n/ac
• 2.4GHz and 5GHz
- SUPPORTED DATA RATES
• 802.11n/ac: 6.5Mbps – 260Mbps (20MHz)
• 13.5Mbps – 600Mbps (40MHz)
• 29.3Mbps – 1300Mbps (80MHz)
• 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
• 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
- RADIO CHAINS
• 3 x 3
- SPATIAL STREAMS
• 3
- RF POWER OUTPUT (Aggregate)
• 28 dBm for 2.4GHz†
• 27 dBm for 5GHz†
- CHANNELIZATION
• 20MHz, 40MHz, 80MHz
- FREQUENCY BAND
• IEEE 802.11 b/g/n: 2.4 – 2.484 GHz
• IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35 GHz; 5.47 – 5.725 GHz; 5.725 – 5.85 GHz
- OPERATING CHANNELS
• US/Canada: 1-11, Europe ( ETSI X30): 1-13,
Japan X41: 1-13
• 5 GHz channels: Country dependent
- POWER SAVE
• Supported
- WIRELESS SECURITY
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
• Authentication via 802.1X with the ZoneDirector, local authentication database, support for RADIUS, LDAP, and ActiveDirectory
- CERTIFICATIONS*
• U.S., Europe, Australia, Brazil, Canada,
Chile, China, Colombia, Costa Rica, Hong
Kong, India, Indonesia, Israel, Japan, Korea,
Malaysia, Mexico, New Zealand, Peru,
Philippines, Saudi Arabia, Singapore, South
Africa, Taiwan, Thailand, UAE, Vietnam
• WEEE/RoHS compliance
• EN-60601-1-2 (Medical)
• Wi-Fi Alliance
• EN50121-1 Railway EMC
• EN50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• UL 2043 plenum rated
