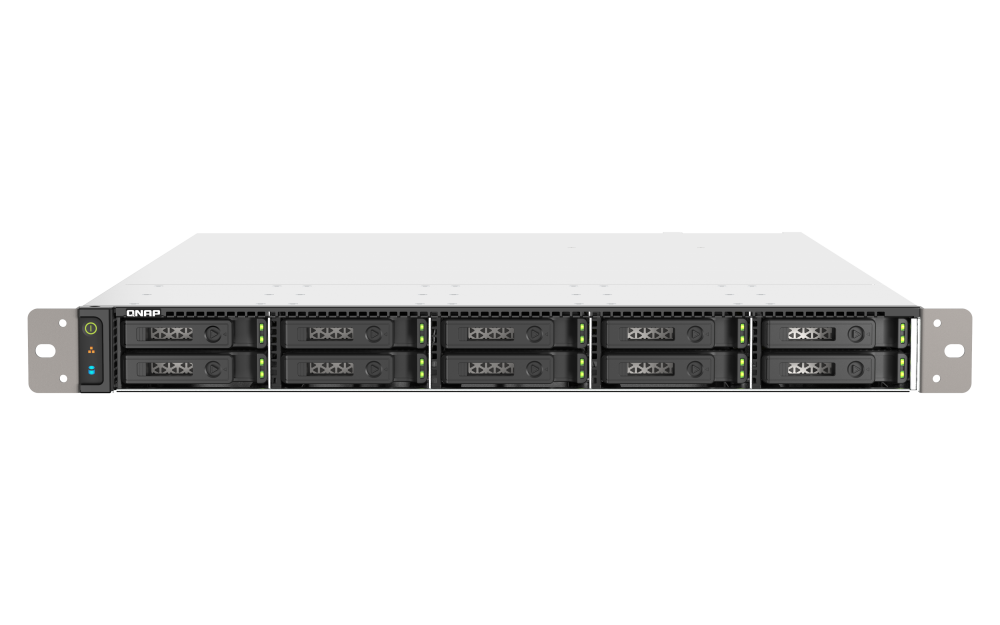

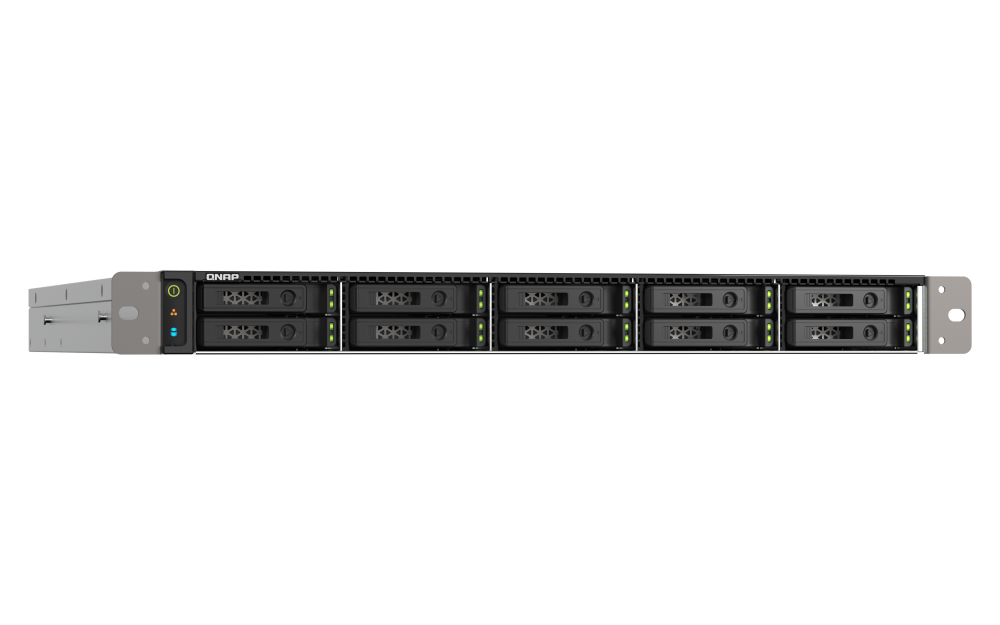

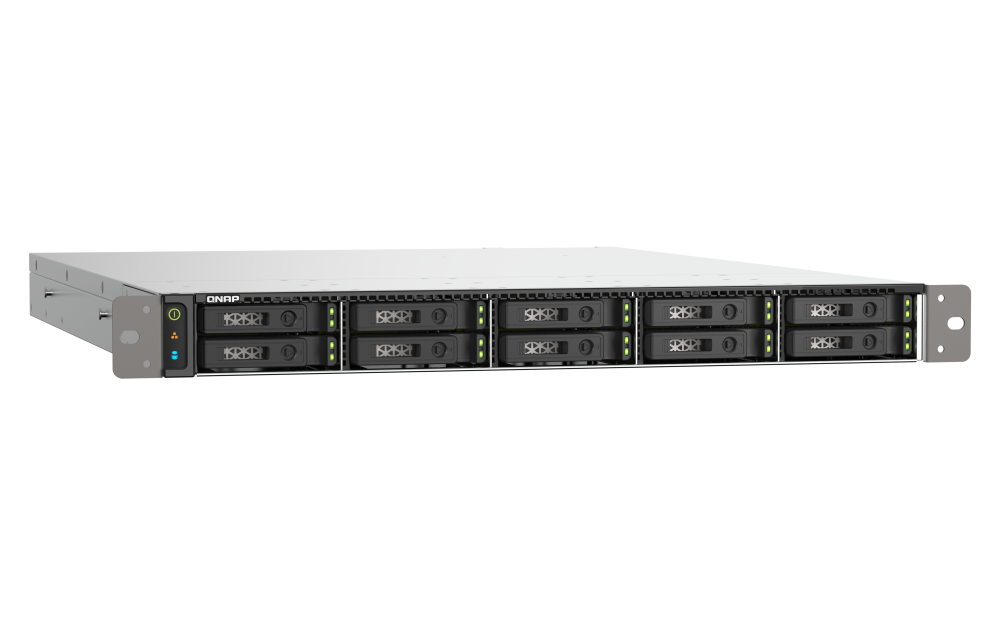

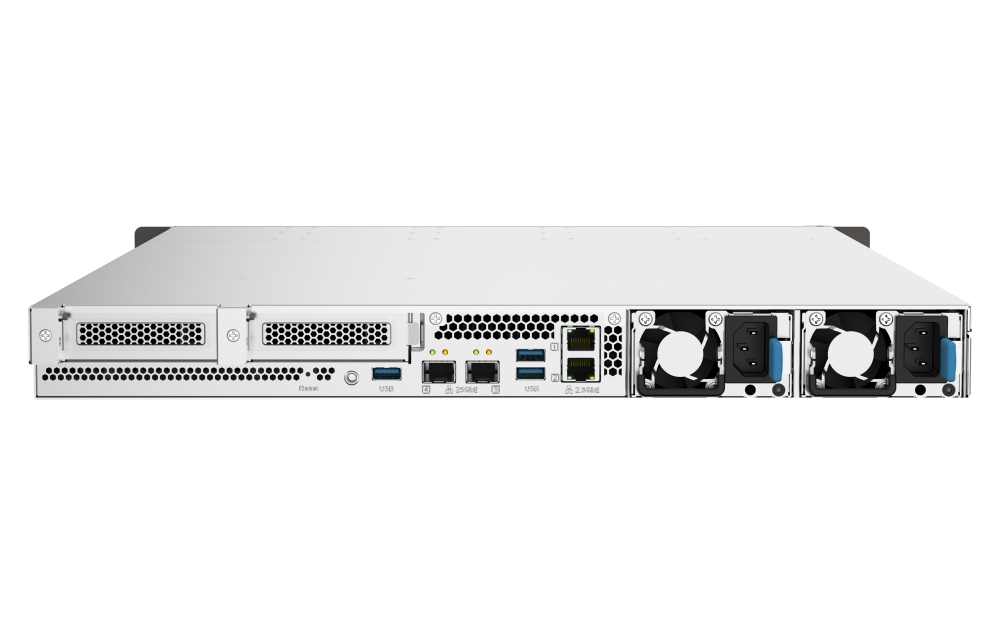

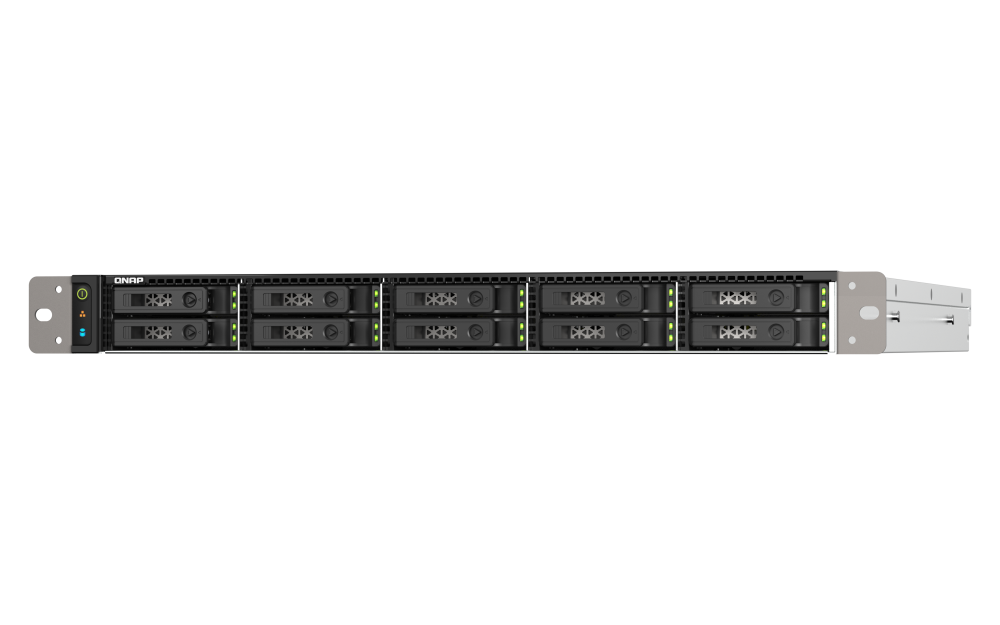

Thiết bị lưu trữ NAS QNAP TS-h1090FU-7232P-64G
Hàng chính hãng
- Tình trạng
- Hàng chính hãng, có CO CQ đầy đủ
- Part Number
- TS-h1090FU-7232P-64G
- Kho hàng
- Liên hệ
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
- Mô tả
1U 10-bay all flash NAS, U.2/U.3 NVMe PCIe Gen4 x4 and SATA 6Gbps bays, AMD EPYC 7232P 8C 16T 3.1GHz, boost up to 3.2GHz, 256GB RIMM DR4 ECC RAM, 2 x 25GbE, 2 x 2.5GbE, 2 x PCIe Gen4 x16 slots, iSCSI, NFS, SMB, FC SAN, RAID support
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
The TS-h1090FU high-density NVMe all-flash storage is designed for providing extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4 x4 SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Ideal for I/O-intensive and latency-sensitive applications, the TS-h1090FU eliminates productivity bottlenecks in virtualization, modern data centers, multimedia storage, and mission-critical backup/restore tasks-suitable for Tier 2 storage workloads with an ideal low cost-per-GB.
-
High-density all flash storage
Space-efficient with only 58cm depth compared to 80+cm depth in a 1U rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays.
-
Optimized SSD performance and lifespan
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
-
25GbE future-proof connectivity
Accelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks.
-
High-speed PCIe Gen 4 slots
Allows installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
-
Virtualization applications
Supports virtualization storage, virtual machines with SR-IOV support, and containerized apps.
-
Flexible storage expansion
Scalable design to grow with your business by connecting QNAP’s economical expansion enclosures.
TS-h1090FU-7302P-256G (By Request)
- Download Datasheet
- Download Datasheet
- Download Datasheet
| CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| System Memory | 256 GB RDIMM DDR4 ECC (8 x 32 GB) |
| Maximum Memory | 1 TB+ (12 x 128 GB) |
| Memory Slot | 12 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
The system is shipped without SSD.
For the SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| SR-IOV | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only.
Card dimensions for PCIe slot 1:198 x 68.9 x 18.76 mm / 7.8 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 2:250 x 68.9x 18.76 mm / 9.84 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Rackmount |
| LED Indicators | Disk, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 430 × 582 mm |
| Weight (Net) | 11.6 kg |
| Weight (Gross) | 13.4 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W PSU (x2), AC 100-240 V |
| Power Consumption: Operating Mode, Typical | 157.97 W
Tested with drives fully populated.
|
| Fan | 5 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
