-5%
-2%
Đài Loan
Thương hiệu:
Qnap

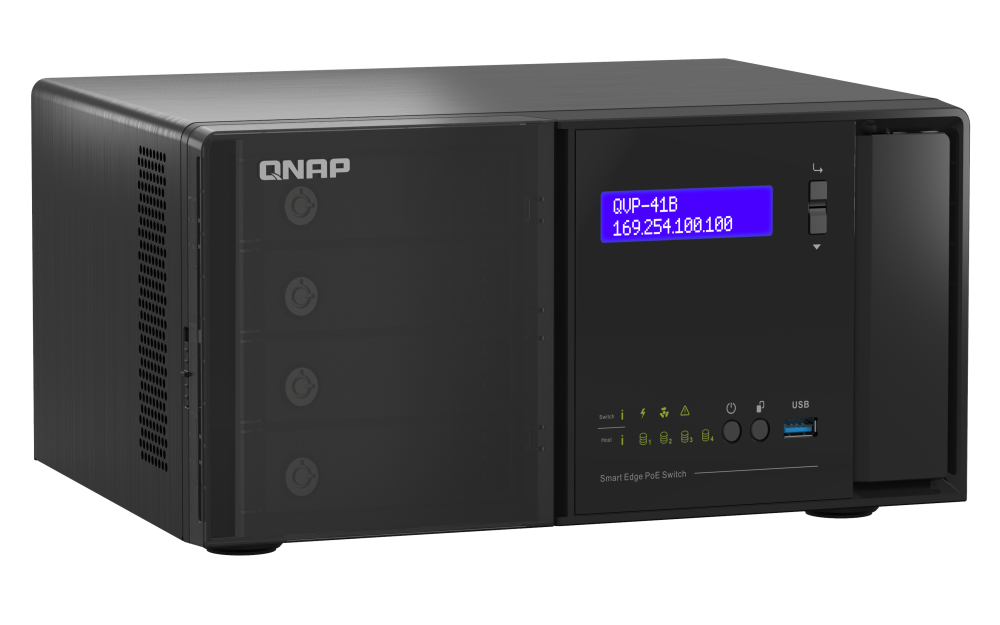

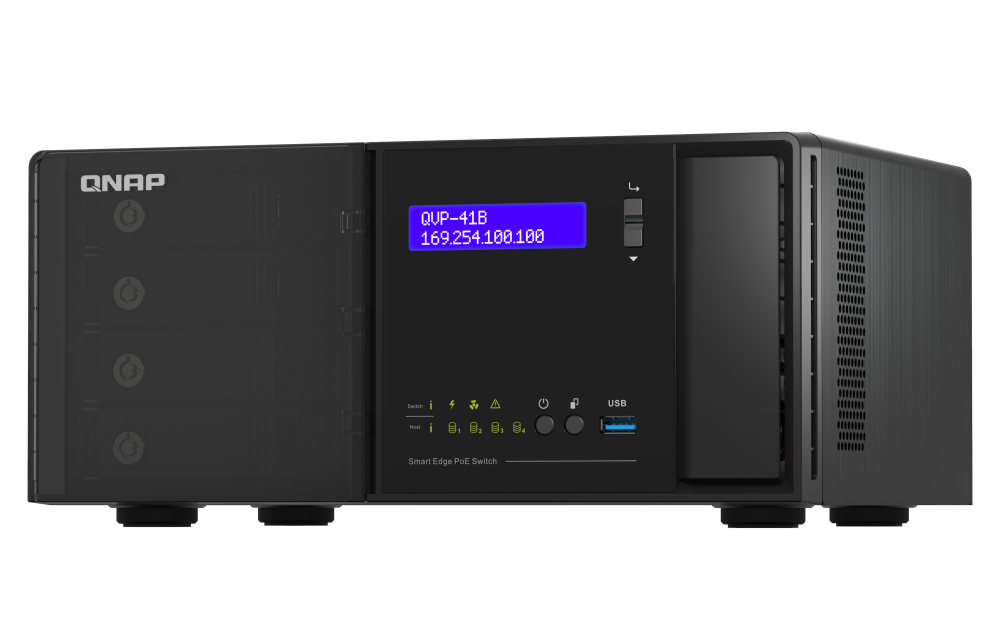

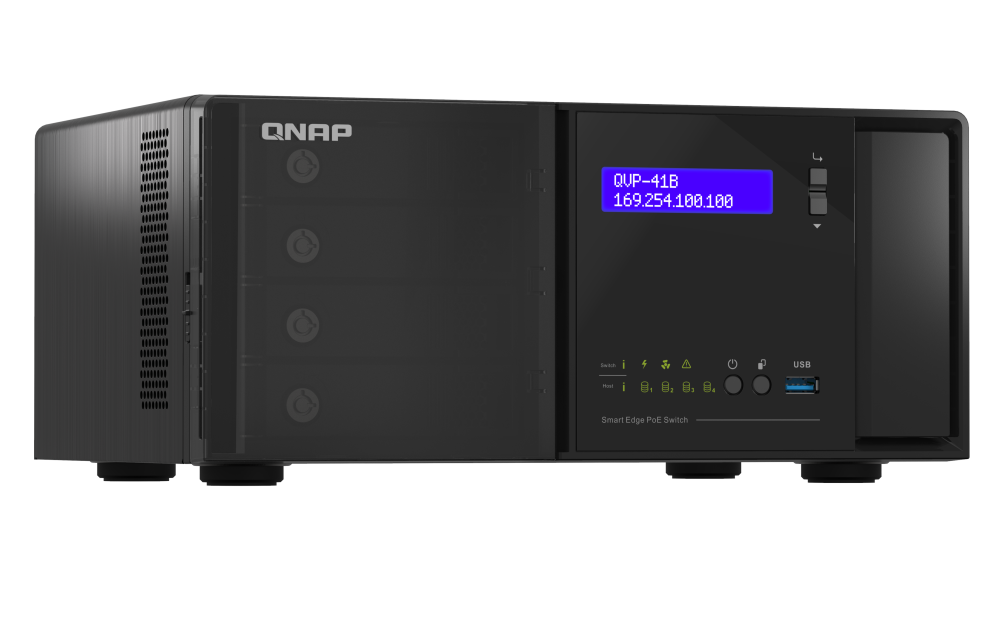

Thiết bị lưu trữ NAS QNAP QVP-41B
Hàng chính hãng
Giá:
46.139.000 ₫
47.139.000 ₫
-2%
- Tình trạng
- Hàng chính hãng, có CO CQ đầy đủ
- Part Number
- QVP-41B
- Kho hàng
- Liên hệ
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
- Mô tả
4 bay NVR, Intel Celeron, 8GB, Max 24ch, 16 port unmanaged switch PoE (30W/ per port, total 140W), Single PSU 250W, 0°C ~ 40°C
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
Review
Xem tại đây
The QVP-41B NVR network surveillance server supports real-time video/audio monitoring, high-resolution recording, and playback from multiple IP cameras. PoE switch functionality is also provided by the QVP-41B, supporting connecting all kinds of PoE cameras and devices and creating intelligent surveillance infrastructure for enterprise, SMBs and families. With four 3.5-inch SATA drive bays, sixteen 30-watt Gigabit PoE ports, two RJ45 combo ports, and two 2.5GbE host management ports the QVP-41B provides great storage space and high-speed networking to meet the requirements of small/medium monitoring environments.
-
1
Supports thousands of cameras from over 190+ brands.
-
2
Compliant with the IEEE 802.3at PoE+ standard and includes sixteen 30-watt Gigabit PoE ports. Supplies a total power budget of 140 watts to meet the demands of high-powered devices (PDs) and supports smart PoE management.
-
3
Monitor surveillance feeds with the built-in QVR Smart Client through HDMI™ output, Windows®, Mac® and mobile devices.
QVP-41B
- Download Datasheet
- Download Datasheet
- Download Datasheet
| OS | QVR Pro OS (QVP) |
| CPU | Intel Celeron ® Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 600 |
| System Memory | 8 GB SODIMM DDR4 (2 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Max Live Cameras (Local Display) | 24ch @ All 720p,H.264, 30FPS 12ch @ All 1080p,H.264, 30FPS |
| Max Playback Cameras (Local Display) | 12 |
| Max Concurrent Connection (Client) | 8 (4 live cameras / per remote client) *The number of client concurrent connection varies by live cameras |
| Embedded Channel | 8 |
| Max Channel | 24
H264 / 1920x1080 / 30FPS
|
| Max Throughput | 288 Mbps |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives 3.5-inch bays: 3.5-inch solid-state drives 3.5-inch hard disk drives |
| Hot-swappable | |
| M.2 SSD Slot | 2 x M.2 2280 SATA x2 slots |
| Gigabit Ethernet Port (RJ45) | 14 |
| 1GbE SFP/RJ45 Combo Ports | 2 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE Power Output | Ports 1-16 (Max 30W per port) |
| Total PoE Power Budget | 140W |
| 2.5 Gigabit Ethernet Port | 2 |
| USB 3.2 Gen 1 port | 3 |
| HDMI™ Output | 2, HDMI™ 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-4, Switch, Host, Warning, PoE, Fan |
| LCD Display/ Button | Yes |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130 × 295 × 224.8 mm |
| Weight (Net) | 4.08 kg |
| Weight (Gross) | 5.34 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: HDD Sleep Mode | 26.33 W |
| Power Consumption: Operating Mode, Typical | 43.584 W
With WD10EFRX drives fully populated
|
| Fan | System fan: 120 x 120mm, 12VDC |
| System Warning | Voice prompts or Buzzer |
| Tray Locker | Yes |
| File System: Internal Hard Drive | EXT4 |
| RAID Recovery | |
| Online RAID Capacity Expansion | |
| Online RAID Level Migration | |
| RAID 10+ hot spare | |
| RAID 10 | |
| RAID 5+ Spare | |
| RAID 5 | |
| RAID 1 | |
| RAID 0 | |
| JBOD | |
| Single Disk | |
| Global Hot Spare | |
| Wake on LAN (WOL) | |
| Schedule Power On/Off (15 settings) | |
| Telnet & SSH logins (Admin only) | |
| Syslog Server & Client | |
| Language | English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek |
| Supported Standards | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Jumbo Frames | |
| Safety Standard | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af/at Power-over-Ethernet (PoE) |
