Thiết bị lưu trữ NAS QNAP TL-R1620Sdc

Hàng chính hãng

Giá: 111.786.000 ₫ 112.786.000 ₫ -1%

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: TL-R1620Sdc
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Mô tả: 16-bay 3U rackmount SAS 12Gbps JBOD dual controller expansion enclosure with SAS expander, 2.5"/3.5" SAS 12Gbps drives (2.5" SATA 6Gbps drives with optional QDA-SA2 accessory), 3 x SFF-8644 Mini-SAS HD SAS 12Gbps ports per controller, redundant PSU, without rail kit.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

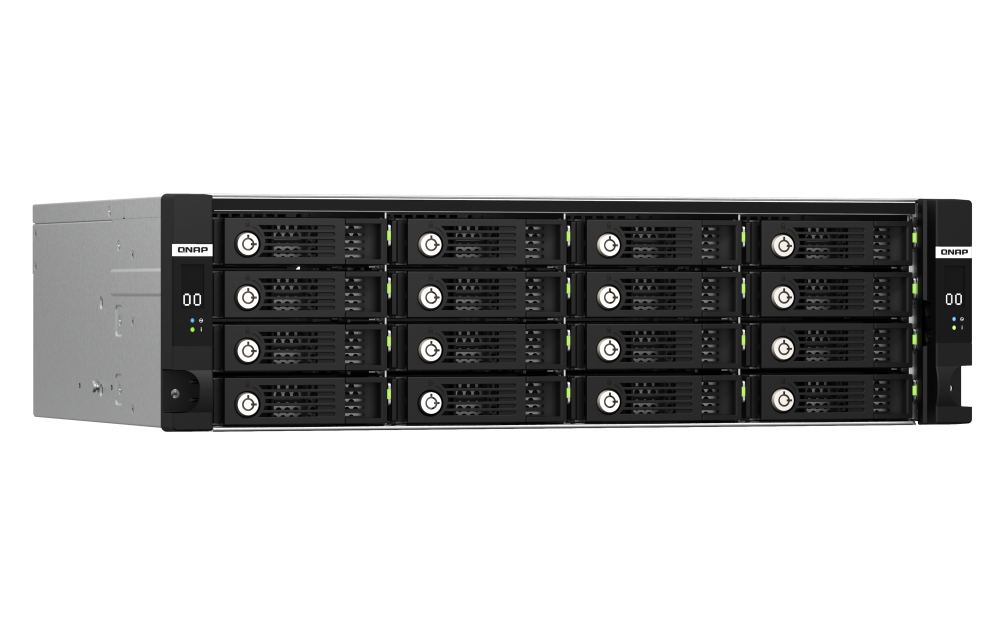

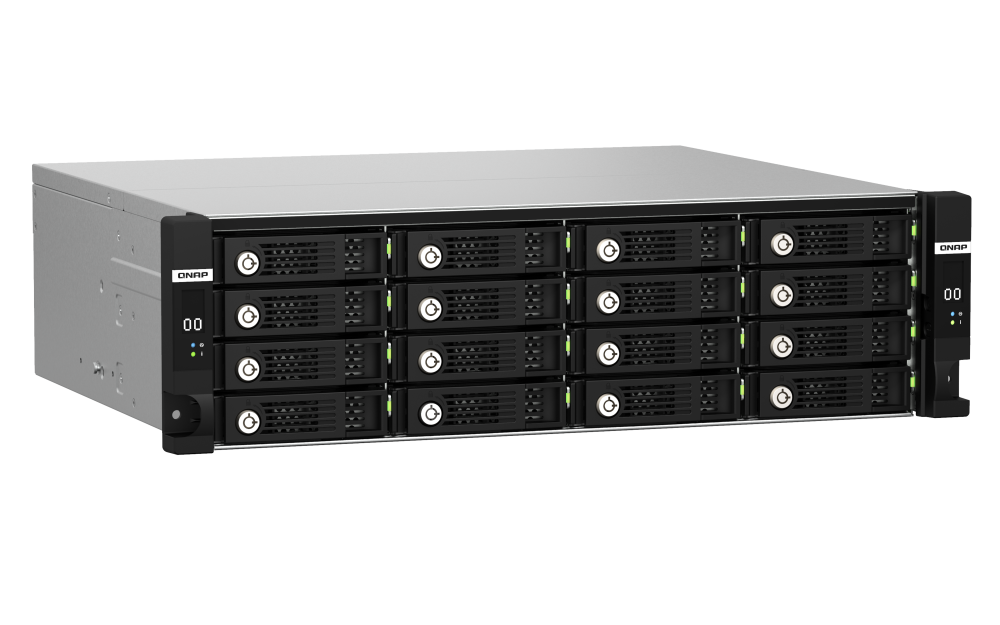

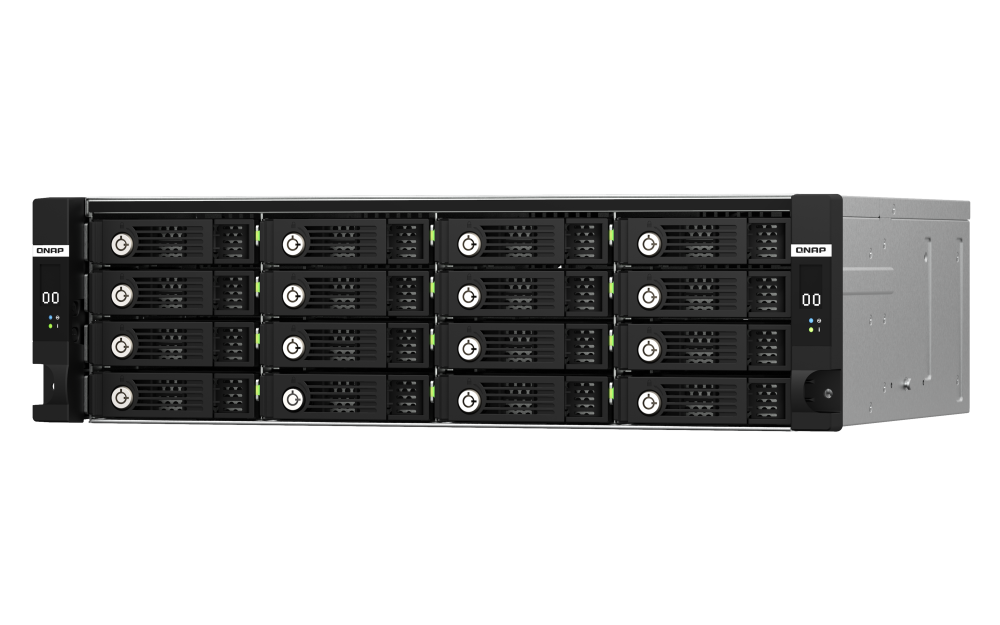

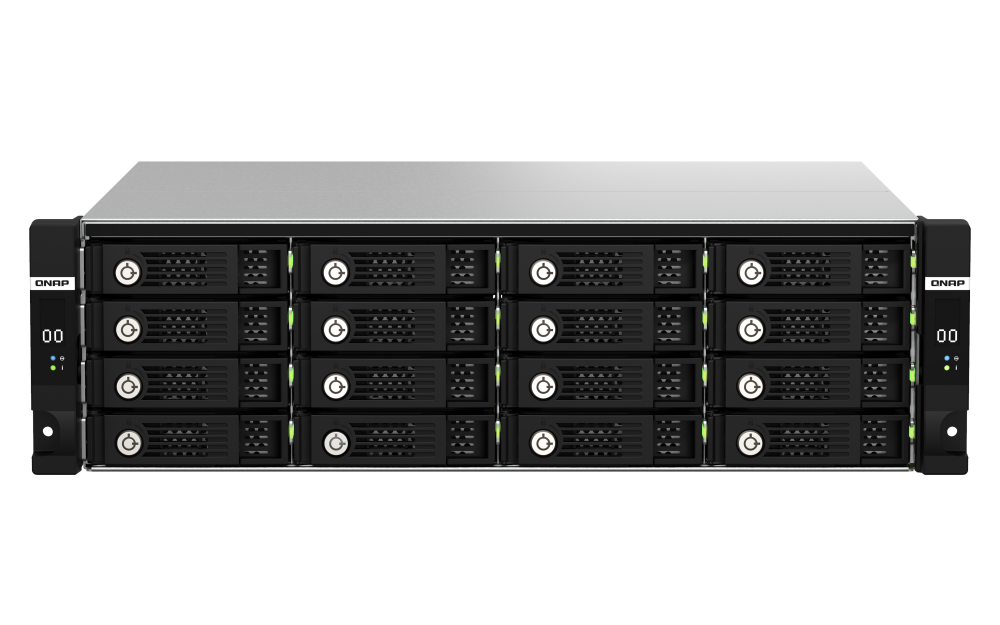

Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.

Storage expansion for dual-controller NAS

Flexibly and economically expand the storage space of a dual-controller QNAP NAS for petabyte-level storage capacity.
Dual path design

Dual path mini-SAS design with a redundant power supply for enhanced system reliability.
Missing mode protection

QNAP dual-controller NAS can detect JBOD connections, and enter missing mode protection to prevent data corruption.
DataBolt™ bandwidth optimization

DataBolt™ bandwidth optimization combines two 6Gb/s connections into one 12Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.
Flexible storage management

Manage the storage space and settings of the connected TL-R1620Sdc with Storage Manager on the host NAS.
Short depth design

The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. (Rail kit RAIL-B02 requires optional purchase.)

TL-R1620Sdc

Download Datasheet
Download Datasheet
Download Datasheet

Drive Bay	16 x 3.5-inch SAS 12Gb/s, 6Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility	3.5-inch bays: 3.5-inch SAS hard disk drives 2.5-inch SAS hard disk drives 2.5-inch SAS solid state drives
Hot-swappable
Gigabit Ethernet Port (RJ45)	1 For console access and CLI.
Form Factor	3U Rackmount
Host Interface	3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller
LED Indicators	HDD 1-16, Status, Power, Fan, Temperature, SAS connector status
Buttons	Power, OLED
Dimensions (HxWxD)	131.3 × 482.2 × 425.3 mm Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net)	13.92 kg
Weight (Gross)	17.84 kg
Max. number of HDDs/SSDs supported	16
Hard Drive Type	3.5" or 2.5" SAS12Gb/s 6Gb/s drives
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	550W(x2), 100-240V
Power Consumption: Operating Mode, Typical	212.24 W Tested with drives fully populated.
Fan	3 x 80mm, 12VDC
System Warning	Buzzer
Standard Warranty	5
Management	Managed via NAS QES OS and JBOD Manager for Windows
