-5%
Đài Loan
Thương hiệu:
Qnap

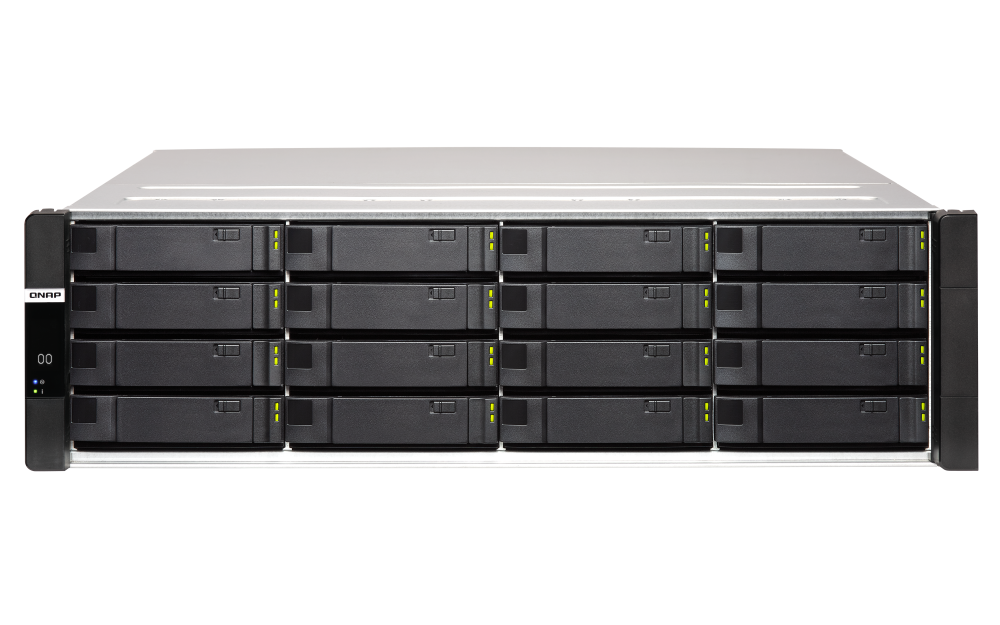

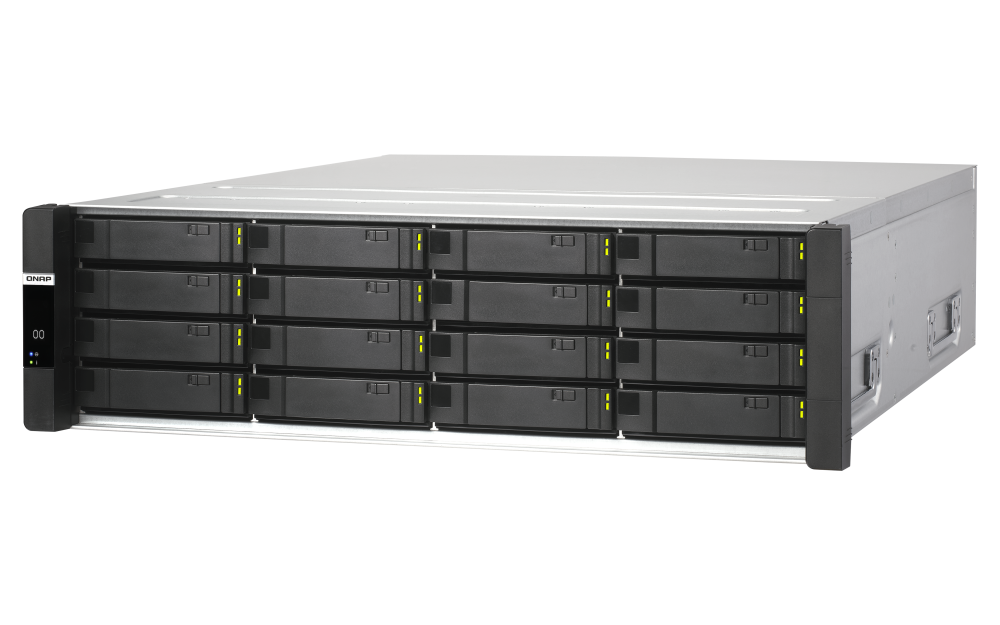

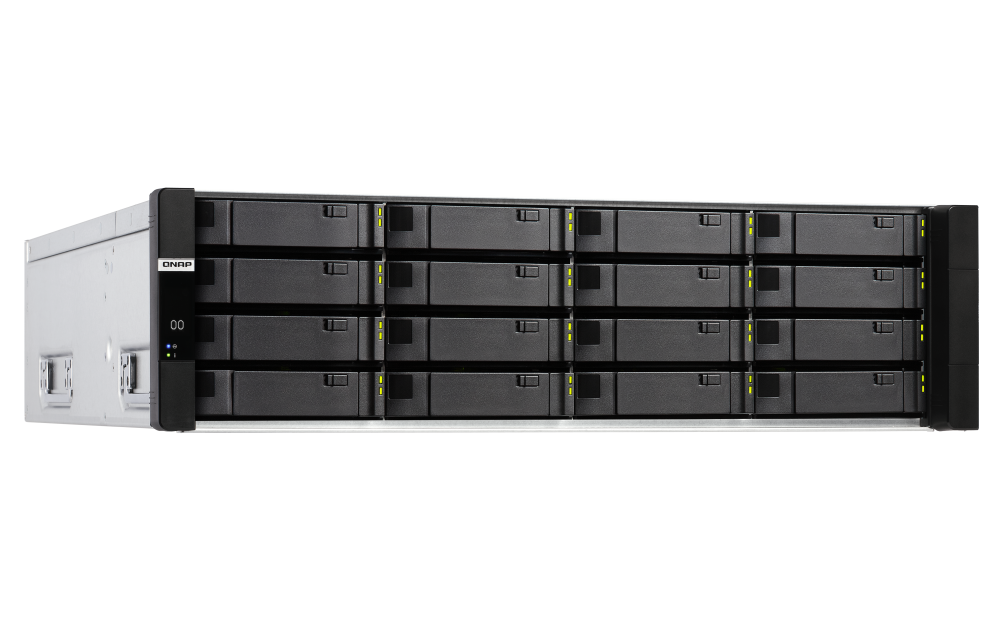

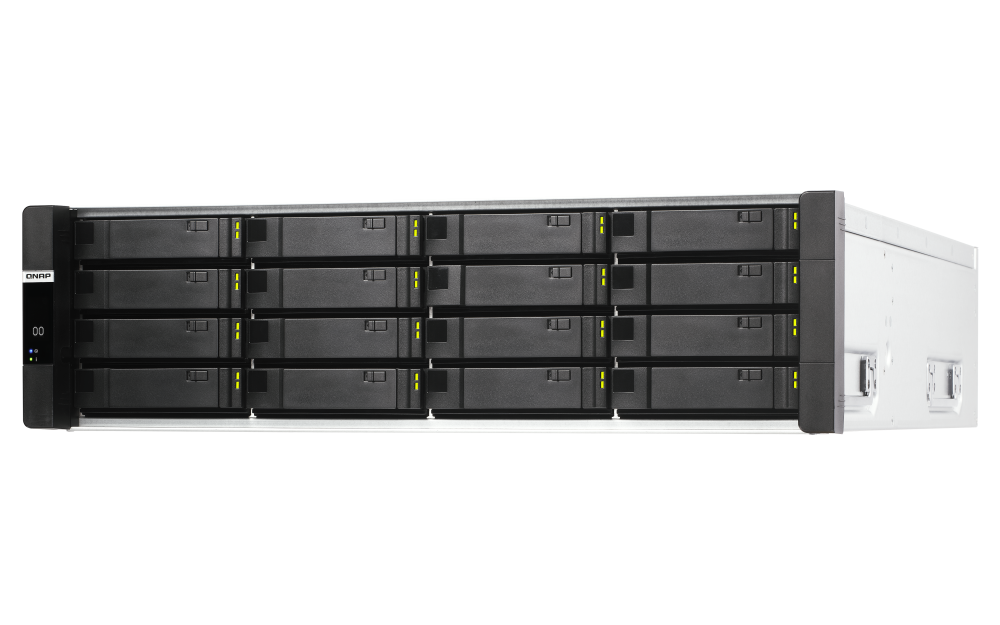

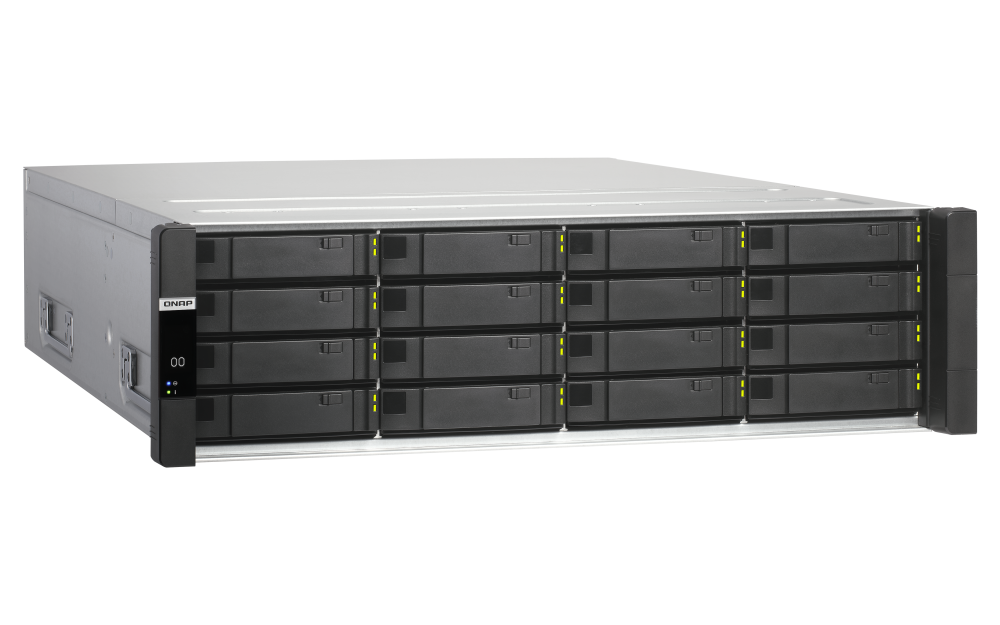

Thiết bị lưu trữ NAS QNAP ES1686dc-2123IT-64G
Hàng chính hãng
Giá:
406.145.000 ₫
- Tình trạng
- Hàng chính hãng, có CO CQ đầy đủ
- Part Number
- ES1686dc-2123IT-64G
- Kho hàng
- Liên hệ
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
- Mô tả
16-Bay Enterprise ZFS NAS, SAS 12G/6G, Xeon D-2123IT 2.2 GHz, 64GB RAM, 14-LAN (4 SFP+ / 3 RJ45 for Each Controller), 10G-ready, iSCSI, Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, RAID TP, triple Mirror, max 512 GB RAM, PCIe expansion slot x2, redundant power suppluy, with Rail Kit
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
Review
Xem tại đây
Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel® Xeon® D processors, dual active controllers, up to 512 GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression. Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.
-
Dual active-active controllers
Intel® Xeon® D dual active-active controllers provide supreme uptime and redundancy to ensure high availability.
-
Reliable & High-performance
Battery-protected DRAM write to cache data protection and Flash read acceleration provides industry-leading random access performance.
-
2 x PCIe Gen 3 slots
PCIe expandability allows for 10GbE/25GbE adapters to increase application performance.
-
4 x 10GbE SFP+ ports
Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer.
-
Real-time SnapSync
Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.
-
Virtualization applications
Supports VMware® vSphere® 6.5, Windows Server® 2016 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.
ES1686dc-2142IT-128G
- Download Datasheet
- Download Datasheet
- Download Datasheet
| CPU | Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller |
| Maximum Memory | 512 GB (8 x 64GB) |
| Memory Slot | 8 x R-DIMM/LR-DIMM DDR4
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SAS/SATA hard disk drives 2.5-inch SAS/SATA hard disk drives 2.5-inch SAS/SATA solid state drives The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 3.5-inch SAS drive bay
|

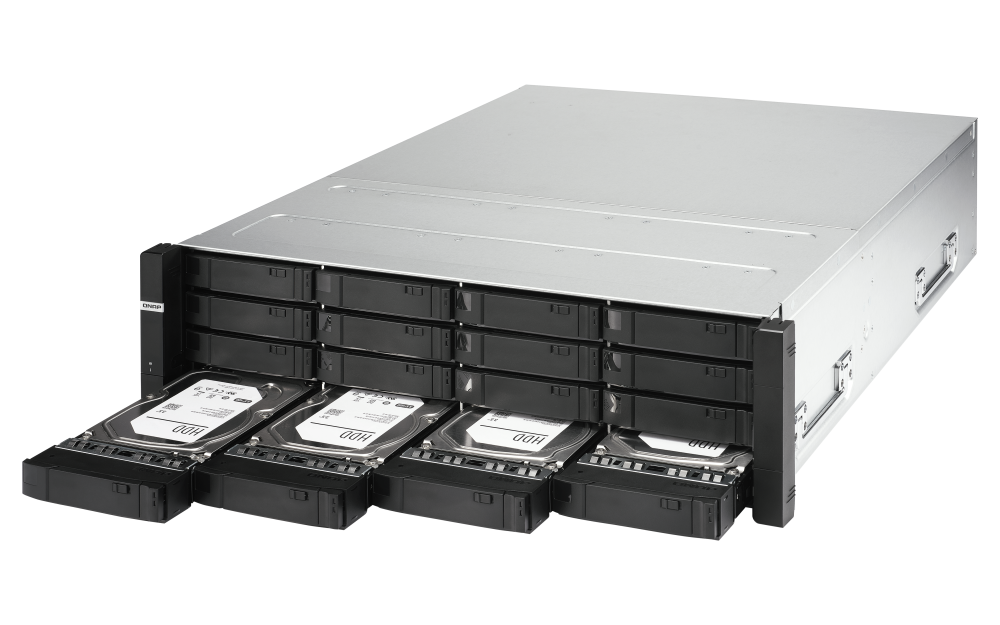

| Hot-swappable | |
| SSD Cache Acceleration Support | Read cache only |
| Cache for Copy To Flash (C2F) | 1 per each controller (64GB M.2 SSD) |
| Gigabit Ethernet Port (RJ45) | 3 for each controller (one for remote management) |
| 10 Gigabit Ethernet Port | 4 x 10GbE SFP+ for each controller |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 2 per controller Slot 1: PCIe Gen 3 x8 (CPU) Slot 2: PCIe Gen 3 x8 (CPU) Card dimensions for PCIe slot 1~Slot 2：215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 2 per each controller
Note: The USB ports are for engineering purpose only. No external devices such as storage drives or UPS are supported.
|
| Form Factor | 3U Rackmount |
| LED Indicators | System Power LED (Green): on/off System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged LCD Status Display (Two-digit number): Status of JBOD connection |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 132 × 446.2 × 587.75 mm |
| Weight (Net) | 30.22 kg |
| Weight (Gross) | 34.92 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Redundant/ Hot Swap Power Vin:90~264VAC;770W |
| Power Consumption: Operating Mode, Typical | 500.87 W
Tested with drives fully populated.
|
| Fan | Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3) |
| System Warning | Buzzer |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 |
| Safety Standard | FCC Class A (USA only) CE Mark ( EN55022 Class A, EN55024) EN60950 BSMI VCCI CB LVD |
