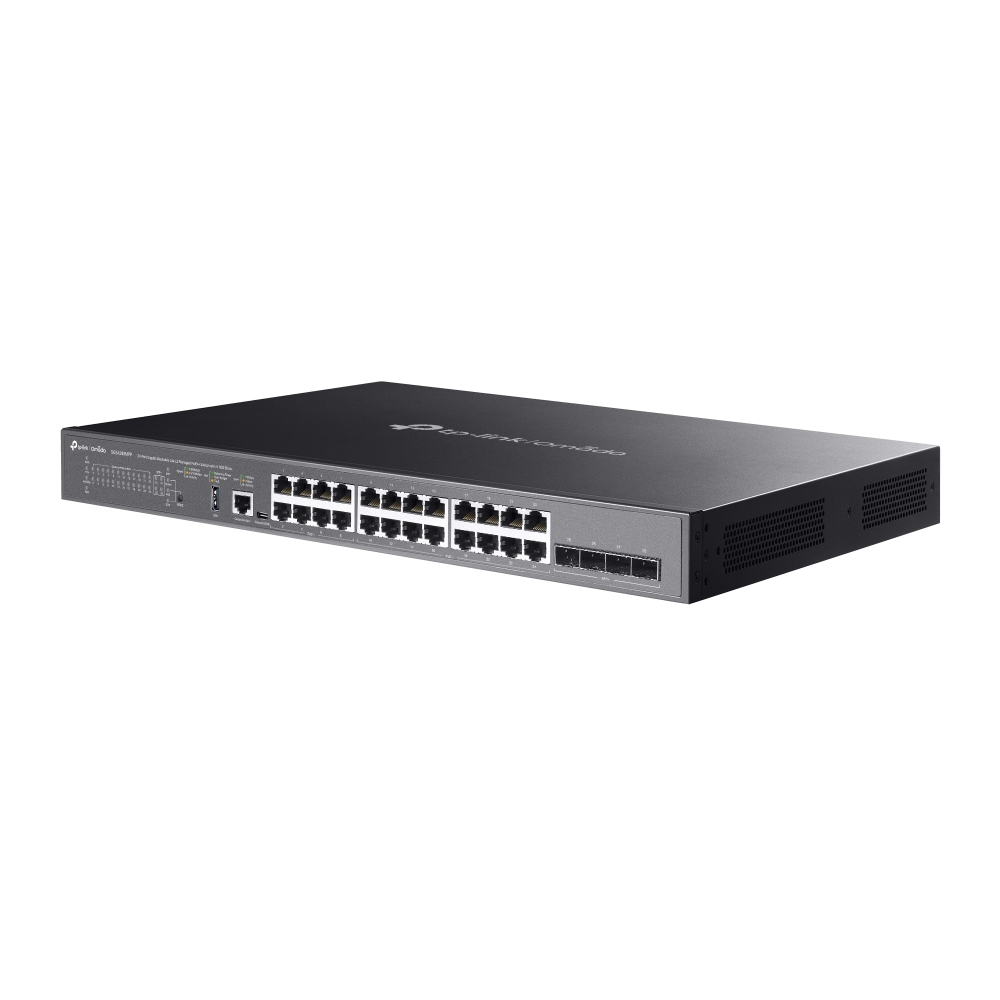

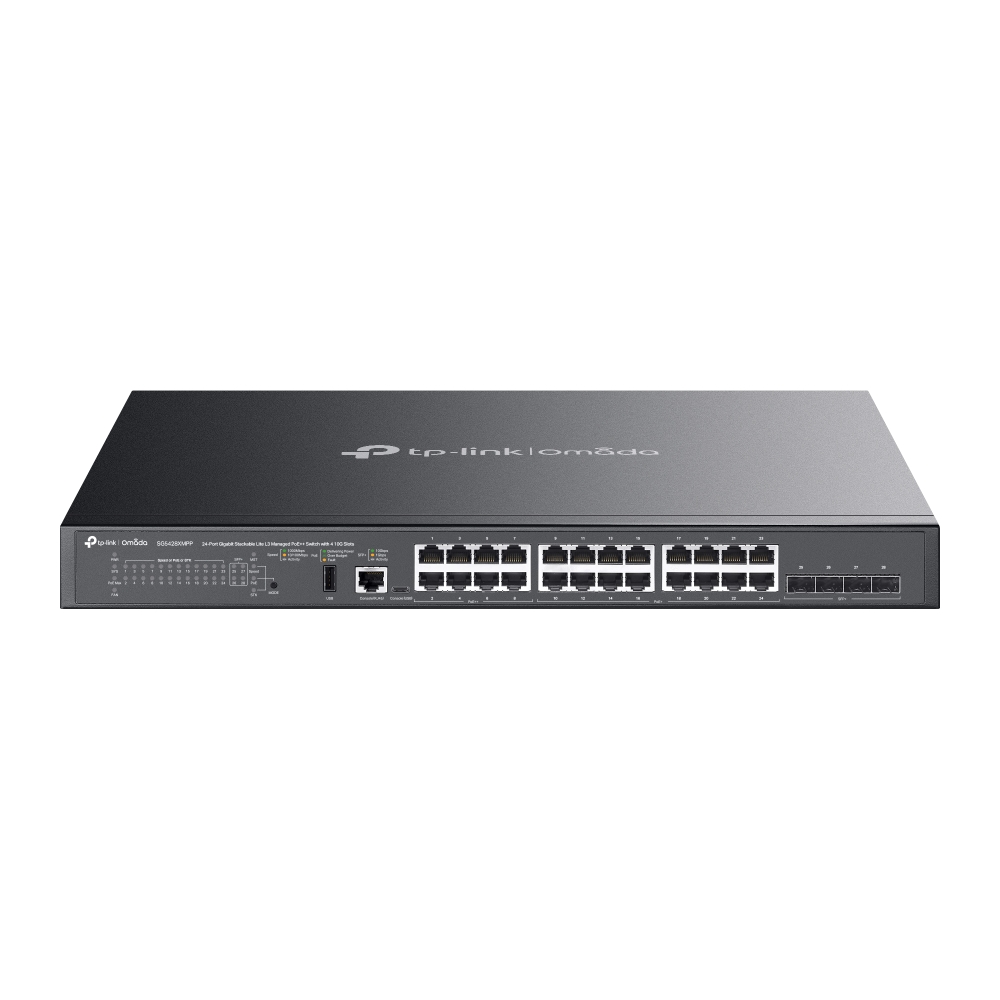

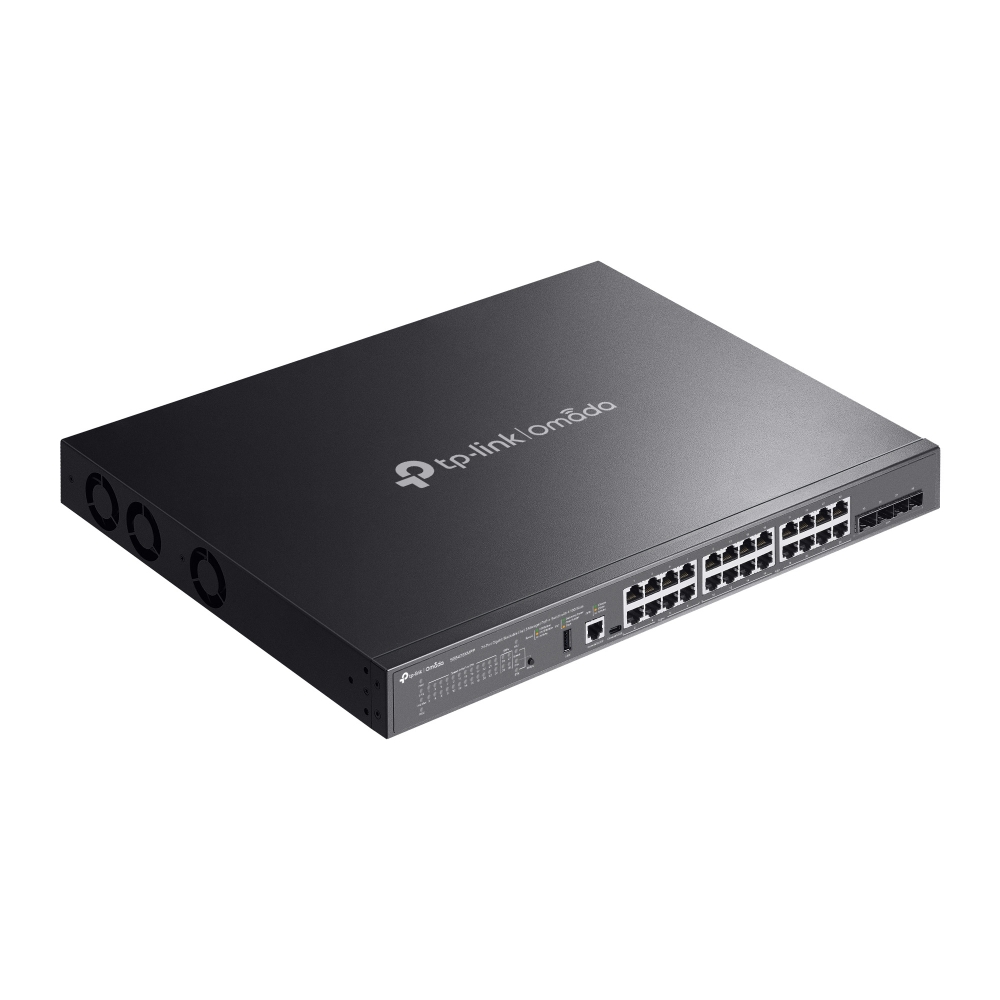

Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
16× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
4× 10 Gbps SFP+ slots
Up to 500W total PoE budget*
Fast PoE and Perpetual PoE
Giá sốc online
Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
16× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
4× 10 Gbps SFP+ slots
Up to 500W total PoE budget*
Fast PoE and Perpetual PoE
Omada SG5428XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 500W PoE budget,* 24× gigabit RJ45 ports (8× PoE++, 16× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XMPP offers a reliable networking solution for SMEs, and ISPs.
8× IEEE 802.3af/at/bt-compliant and 16× IEEE 802.3af/at-compliant PoE ports supply up to 500W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
24× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5428XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Giao diện | • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) • 4× 1/10 Gbps SFP+ Slots** • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type-C Console Port |
| Số lượng quạt | 3 |
| Bộ cấp nguồn | 100-240 V~ 50/60 Hz |
| Cổng PoE (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports: Ports 1~8 (up to 90W per Port) • PoE+ Ports: Ports 9~24 (up to 30W per Port) • Power Budget: 500W* • Fast PoE • Perpetual PoE |
| Kích thước ( R x D x C ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Lắp | Rackmountable |
| Tiêu thụ điện tối đa | • 587.7 W (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 615.8 W (110V/60Hz) ( with 500 W PD connected @ 25 °C) |
| Max Heat Dissipation | • 2004.06 BTU/hr (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 2099.88 BTU/hr (110V/60Hz) ( with 500 W PD connected @ 25 °C) |
| HIỆU SUẤT | |
|---|---|
| Switching Capacity | 128 Gbps per Unit |
| Stacking | • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 80 Gbps (4 stacking ports) |
| Tốc độ chuyển gói | 95.23 Mpps |
| Bảng địa chỉ MAC | 16 K |
| Bộ nhớ đệm gói | 12 Mbit |
| Khung Jumbo | 9 KB |
| TÍNH NĂNG PHẦN MỀM | |
|---|---|
| Chất lượng dịch vụ | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • Static Routing - IPv4 Max 512, IPv6: Max 128 • Host Route Table: Max 1,024 entries • RIP: Version v1/v2, Max 1,796 • OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 • Static ARP: 512 static entries • Dynamic ARP: 3,600 dynamic entries • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN |
| Bảo mật | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| QUẢN LÝ | |
|---|---|
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| KHÁC | |
|---|---|
| Sản phẩm bao gồm | • SG5428XMPP Switch • Power Cord • Console Cable • Rackmount Kits • Rubber Feet • Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Môi trường | • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F) • Storage Temperature: -40 °C to 70 ℃ (-40 °F to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Omada SG5428XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 500W PoE budget,* 24× gigabit RJ45 ports (8× PoE++, 16× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XMPP offers a reliable networking solution for SMEs, and ISPs.
8× IEEE 802.3af/at/bt-compliant and 16× IEEE 802.3af/at-compliant PoE ports supply up to 500W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
24× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5428XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Giao diện | • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) • 4× 1/10 Gbps SFP+ Slots** • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type-C Console Port |
| Số lượng quạt | 3 |
| Bộ cấp nguồn | 100-240 V~ 50/60 Hz |
| Cổng PoE (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports: Ports 1~8 (up to 90W per Port) • PoE+ Ports: Ports 9~24 (up to 30W per Port) • Power Budget: 500W* • Fast PoE • Perpetual PoE |
| Kích thước ( R x D x C ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Lắp | Rackmountable |
| Tiêu thụ điện tối đa | • 587.7 W (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 615.8 W (110V/60Hz) ( with 500 W PD connected @ 25 °C) |
| Max Heat Dissipation | • 2004.06 BTU/hr (220V/50Hz) ( with 500 W PD connected @ 25 °C) • 2099.88 BTU/hr (110V/60Hz) ( with 500 W PD connected @ 25 °C) |
| HIỆU SUẤT | |
|---|---|
| Switching Capacity | 128 Gbps per Unit |
| Stacking | • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 80 Gbps (4 stacking ports) |
| Tốc độ chuyển gói | 95.23 Mpps |
| Bảng địa chỉ MAC | 16 K |
| Bộ nhớ đệm gói | 12 Mbit |
| Khung Jumbo | 9 KB |
| TÍNH NĂNG PHẦN MỀM | |
|---|---|
| Chất lượng dịch vụ | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • Static Routing - IPv4 Max 512, IPv6: Max 128 • Host Route Table: Max 1,024 entries • RIP: Version v1/v2, Max 1,796 • OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 • Static ARP: 512 static entries • Dynamic ARP: 3,600 dynamic entries • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN |
| Bảo mật | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| QUẢN LÝ | |
|---|---|
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| KHÁC | |
|---|---|
| Sản phẩm bao gồm | • SG5428XMPP Switch • Power Cord • Console Cable • Rackmount Kits • Rubber Feet • Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Môi trường | • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F) • Storage Temperature: -40 °C to 70 ℃ (-40 °F to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
